QIANSON QX3600 Outdoor Portable Power Station User Manual

QIANSON QX3600 Outdoor Portable Power Station

Product Overview

This product is a portable power storage product for home and outdoor, with large capacity, small size, light weight, high safety and large output power. Can be quickly split into two small power storage for separate use; Two modules can work alternately to keep the load never power off; multiple output interface to meet all kinds of small household appliances, diversified input mode can be used in a variety of situations power supply; For indoor and outdoor electricity necessary products.

Parameter Specification

Basic parameters
The net weight	22kg
size	449x236x336mm
energy	3600Wh 57.6V
Certification standards	CE ROHs
Wi-fi	Support
GPRS	Support
Output specifications
Ac output ( x4 )	Pure sine , Max3200W , 220V ( S0Hz)
De output	12V⎓l0A
USB(x4-way output)	5V⎓3A
Type-C(x2-way output)	5V⎓3A 9V⎓3A 12V⎓3A 15V⎓3A 20V⎓3A (Max)
The input specifications
AC output	AC220V Max3000W
DC output	DC12V DC24V 200W (Max)
Solar energy charging	12V-40V The most powerful400W
The battery specification
Batteries materials	Solid-state lithium–ion batteries
Shelf life	1 year ( After the battery is fully charged }
Cycle life	80% remaining capacity After 1500 cycles
Protection type	High temperature protection, low temperature protection, over-discharge protection, over-charge protection, overload protection. Short circuit protection, overcurrent protection
Operating temperature
Optimum ambient temperature	20°C~30°C
Discharge ambient temperature	-20°C~60°C
Charging ambient temperature	0°C~60°C
Storage Environment Temperature	-20°C~45°C ( 20°C to 30°C is best)

Novice Guide

Product Appearance

Interface description

Products use

Power on. sleep, standby and power off

1. Power on: press the power switch to turn on the device. After the device is turned on, the display screen enters the power on interface, and the power switch indicator is always on;
2. Sleep: The default sleep time of the product is 15 minutes. If the product is idle for 15 minutes without any operation (the socket switch is turned off), the product will enter the sleep state. At this time. the display screen will enter the statistics interface, and then enter the sleep interface;
3. Stand by: The default standby time of this product is 15 minutes. If the socket switch is not turned on and there is no load connected, it will automatically shut down after 15 minutes;
4. Shutdown: long press the power switch, the display screen will enter the statistical information interface. and then enter the sleep interface;
5. Battery pull- out: under the power on interface, turn off the socket switch, briefly press the power switch twice, enter the battery pull-out selection interface, select the socket switch (confirm),the battery pops up, select the power switch(cancel),the battery does not pop up, and return to the power on interface;

6. Socket opening: when the machine is turned on, press the socket switch briefly once to open the socket;
7. The socket is closed: when the machine is turned on, press the socket switch briefly once, and the socket is closed;
8. Function setting interface:
   A During the time period when the power on interface is displayed during the power on process, press the socket switch 4 times continuously to enter the state of the interface with function settings;
   B. Press the power switch twice to enter the setting interface. Press the socket switch briefly to select the items to be set;
   Note: The factory default is simple interface mode;

Battery Packs Installation and Removal Instructions

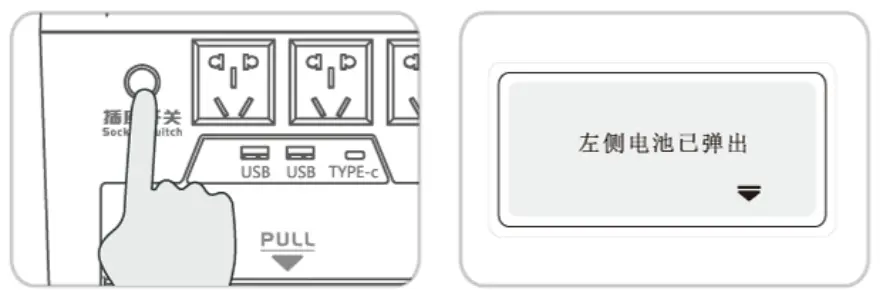

1. Press the power switch to start the machine.

2. Double click the power switch to enter the battery pop-up page.

3. Press the socket switch briefly to eject the battery.


220V AC input/output operation

• Input: Directly plug into 220V power supply to charge.

• Output: Under the state of power on, press the socket switch and insert the electrical equipment after the button indicator lights up.


Car jack inputoutput operation

• Input: When the machine is turned on, plug in the charging plug to start charging.

• Input :
  When the machine is turned on, plug in the charging plug to start charging


Solar energy charging

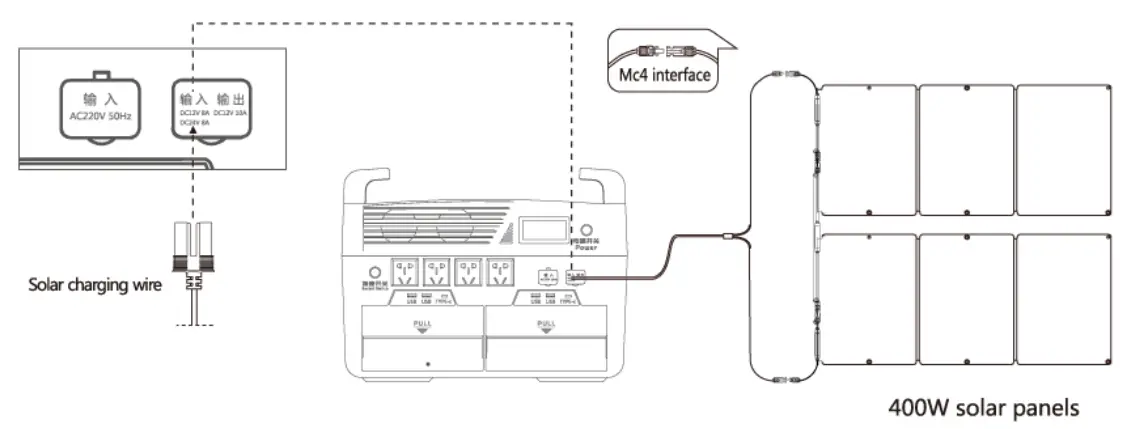

Users can connect solar panels in series to charge the product as shown in the
figure. The de input voltage range of this product is 12v-40v,the maximum charging power is 400W.

TYPE-C Output operations

When the machine is turnde on, it can be directly inserted into the electrical equipment for use.

USB Output operations

When the machine is turnde on, it can be directly inserted into the electrical equipment for use.

Safe Use Guide

use

1. Do not put the product near heat source, such as fire source or heating furnace when it is working.
2. Do not let the product touch any liquid. Do not immerse the product in water or make it wet. Do not use this product in rain or wet environment.
3. Do not use this product in the environment of strong static electricity or magnetic field.
4. It is forbidden to disassemble or prick the product with sharp objects in any way.
5. Do not use wires or other metal objects to cause short circuit of the product.
6. Do not use non-official parts or accessories. If replacement is required, please go to the official sales channel for relevant purchase information.
7. When using this product, please strictly follow the environment temperature specified in this user manual. If the temperature is too high, the battery may fail. If the temperature is too low, the performance of the product will be seriously degraded, and even it cannot meet the requirements of normal use.
8. Do not pile other heavy objects on the product.
9. It is forbidden to block the fan or keep the product in an unventilated or dusty space during use.
10. Please avoid collision, falling and strong vibration. In case of serious external force impact, please immediately turn off the power and stop using. Please fix it to avoid vibration and impact during transportation.
11. If the product accidentally falls into water during use, place it in a safe, open area away from the product until the product is completely dry. The dried products shall not be used again and shall be properly disposed of in accordance with the methods described in Section 5.2 Abandonment. In case of fire, use fire extinguishing equipment in the following recommended order: water or water mist, sand, fire blanket. dry powder, and carbon dioxide extinguisher.
12. If there is dirt on the interface of this product, please use a dry cloth to wipe it clean.
13. Please place the product carefully to prevent damage caused by dumping. If the product is dumped and seriously damaged, shut it down immediately. Place the battery in an open area away from combustibles and people, and discard it according to local laws and regulations.
14. Keep the product out of reach of children and pets.

Abandoned

1. If conditions permit, discharge the battery completely before placing the product in the specified battery recycling bin. This product contains batteries, batteries are dangerous chemicals, do not waste in the ordinary dustbin. For details, follow the local laws and regulations on battery recycling and disposal.
2. If the battery cannot be completely discharged due to the fault of the product itself, do not dispose the battery directly in the battery recycling box. Contact a professional battery recycling company for further treatment.
3. If the battery cannot be started after over discharge, press Discard.

After-sales service and support

1. From the date of purchase, the product shall enjoy free maintenance services under the following conditions (1) or (2).
   (1) Within 2 year; (2) Within 1500 use cycles;
2. Non-warranty coverage :
   (1) The product is faulty due to human causes ;
   (2) Force Majeure: Product failure caused by natural disasters such as earthquake and fire;
   (3) Self-disassembly, repair caused by product failure.

After-sales service card

User Name
Contact Number
Purchase date
Product model
Address of the user
Sales Unit
Fault Description

Error Code List

Error Code I	Error code	Error description	Solution
	E001	A battery overcharge protection	Stop charging and wait for automatic recovery
	E002	A battery overdischarge protection	Pause the discharge and plug in the charging plug to charge in time
	E003	A battery discharge overcurrent protection	Stop discharging and wait for automatic recovery
	E004	A battery charge overcurrent protection	Stop charging and wait for automatic recovery
	E005	A battery discharge overtemperature protection	Stop charging and wait for automatic recovery
	E006	A battery discharge overtemperature protection	Stop charging and wait for automatic recovery
	E007	A battery SOC protection	Stop charging and wait for automatic recovery
	E008	B battery overcharge protection	Stop charging and wait for automatic recovery
	E009	B battery overdischarge protection	Pause the discharge and plug in the charging plug to charge in time
	E010	B battery discharge overcurrent protection	Stop discharging and wait for automatic recovery
	E011	B battery charge overcurrent protection	Stop charging and wait for automatic recovery
	E012	B battery discharge overtemperature protection	Stop charging and wait for automatic recovery
	E013	B battery charge overtemperature protection	Stop charging and wait for automatic recovery
	£014	B battery SOC protection	Stop charging and wait for automatic recovery
	E015	Inverter input short circuit protection	Stop using,remove load and charging plug,restart battery
	E016	Inverter input overload protection	Stop using,wait for automatic recovery,reduce the use power
	E017	Inverter input undervoltage protection	Stop using and plug in the charging plug to charge in time
	E018	Inverter input overvoltage protection	Stop charging and wait for automatic recovery
	E019	Inverter input overtemperature protection	Stop charging and wait for automatic recovery
	E020	LV hardware error	Stop usincEremove load and charging pluq,restart battery
	E021	HC hardware error	Stop using,remove load and charging plug,restart battery
	E022	Inverter communication is abnormal	Stop using,remove load and charging plug,restart battery
	E023	Inverter output overcurrent protection	Stop using,wait for automatic recoverweduce the use power
	E024	Inverter output short circuit protection	Stop charging and wait for automatic recovery
	E025	Inverter output undervoltage protection	Stop using,remove load and charging plug,restart battery
	E026	Inverter DC overvoltage protection	Stop charging and wait for automatic recovery
	E027	Inverter DC undervoltage protection	Stop charging and wait for automatic recovery
	E028	Inverter output zero crossing error	Stop using,remove load and charging plug,restart battery
	E029	Inverter output overtemperature protection	Stop charging and wait for automatic recovery
	E030	Inverter input-output overvoltage	Stop charging and wait for automatic recovery
	E031	Inverter parameter configuration error	Stop using,remove load and charging plug,restart battery
	E032	DC input voltage abnormal	Stop usinq,remove load and charging plug,restart battery
	E033	DC output voltage abnormal	Stop using,remove load and charging plug,restart battery
	E034	Inverter hardware failure	Stop using,remove load and charging plug,restart battery
	E035	A battery sampling abnormality	Stop using,remove load and charging plug,restart battery
	E036	B battery sampling abnormality	Stop using,remove load and charging plug,restart battery
	E037	A battery MOS tube is abnormal	Stop using,remove load and charging plug,restart battery
	E038	B battery MOS tube is abnormal	Stop using,remove load and charging plug,restart battery
	wool	Low battery warning	Indicates that the battery is low,it is recommended to charge it in time
	W002		Prompt that the temperature of the internal inverter is high, it is recommended to reduce the power to use at this time
		Battery temperature alam(charging 60°C, discharging 65°C)
	W003	Inverter pre-stage temperature alarm(120°C)	Prompt that the temperature of the internal inverter is high, it is recommended to reduce the power to use at this time
	W004	Inverter post-stage temperature alarm (80°C)	Prompt that the temperature of the internal inverter is high, it is recommended to reduce the power to use at this time
	W005	Full bridge (aluminum cylinder) temperature alam(100°C)	Prompt that the temperature of the internal inverter is high, it is recommended to reduce the power to use at this time
