LED POWER SUPPLY – QTM-eLED+ WD-AN
Contents
QTM-eLED+WD-AN LED Power Supply
- Must be installed by licensed electrician.
WARNING
Risk of Fire / Electric Shock
Transformer should be installed by a Licensed electrician in accordance with the N.E.C. and all local codes in force.
LOW VOLTAGE LIGHTING SYSTEM
CLASS: 3425-15
3425-95
- Wear rubber shoes and work on a sturdy wooden or fiberglass ladder.
- This power supply must be installed according to the National Electric
- Code and local codes and ordinances.
- This power supply is to be installed and serviced only by an licensed electricians.
- This power supply is to be installed so that it is not likely to be contacted by people.
- To avoid a hazard to children, account for all parts and destroy all packaging materials.
- Do not install in wet locations.

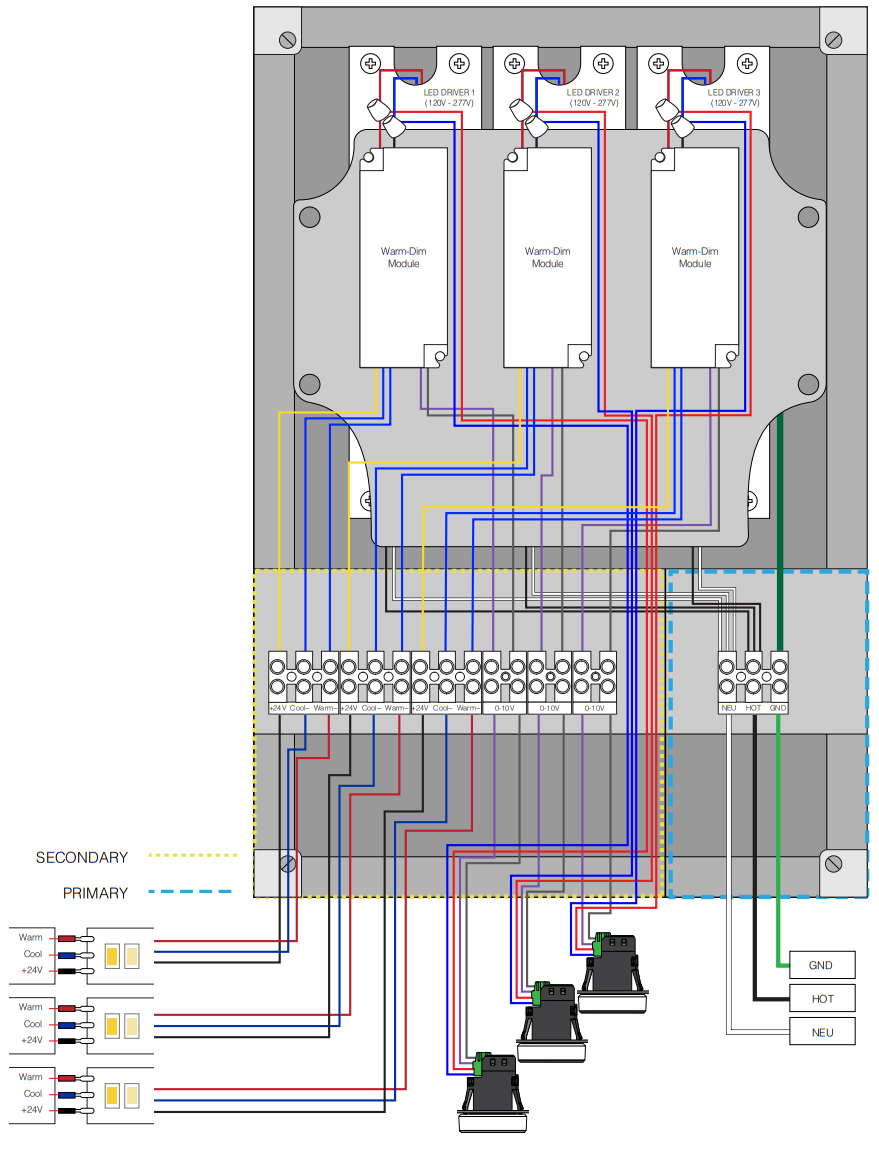

Node And Conduit Entry Locations
Conduit Entry Locations
Athena nodes must be installed on the secondary side of power supply center and require 1.0” of clearance in order to optimally function. Metal conduit must be 1.0” away from any node. Refer to the diagram above for recommendations for conduit entry into secondary compartment.
Lutron Athena Node
Mounted in the secondary wiring compartment only

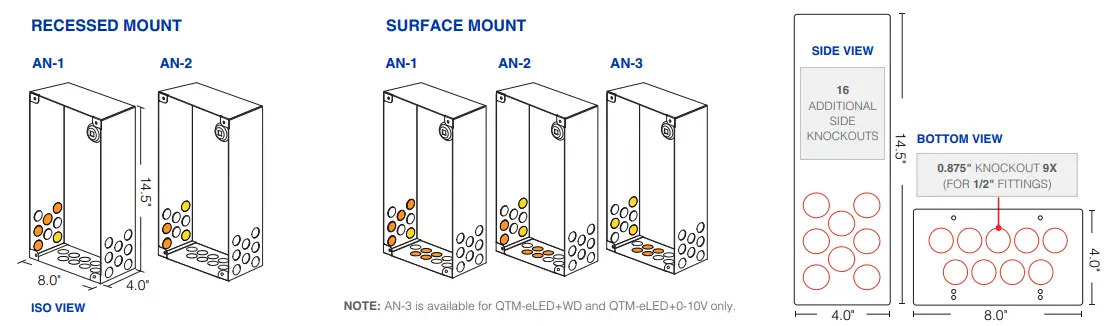

Mounting Options
Driver with Lutron Athena Node
QTM-eLED-300W+WD-AN-3: for interior
CSA Requirements
- Suitable for indoor use
- This power supply must be installed according to the National Electric Code and local codes and ordinances and in accordance with applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- Wear rubber shoes and work on a sturdy wooden or fiberglass ladder.
- This power supply is to be installed in a location where it is not likely to be contacted by non-electricians.
- To avoid a hazard to children, account for all parts and destroy all packaging materials.
