Q-TRAN LUME-01 Q-CAP Flexible Fixtures Installation Guide

Q-TRAN LUME-01 Q-CAP Flexible Fixtures

WHITE SNUG CLIP

NOTE: White snug clip should be placed every 12″

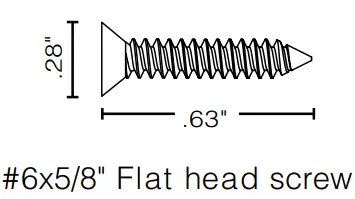

INCLUDED HARDWARE

1. Mount white snug clip with provided flat head screw.

2. Align fixture to white snug clips matching distances.

3. Press fixture into white snug clips.


MAGNETIC CLIP

NOTE: Magnetic clip should be placed every 12″

INCLUDED HARDWARE

1. Install magnet rings with provided flat head screw.

2. Attach clips to fixture matching magnet distances.

3. Align and snap fixture to magnetic rings.


LOW PROFILE PVC MOUNT CLIP:

Connects two fixtures, no wire exit

LUME-PPS-LP-CL-2

Mounting Feed (Shown: S1 & P1)

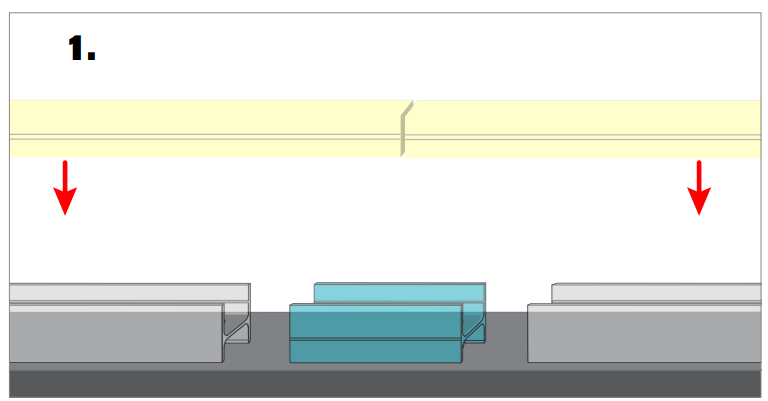

1. Snap in 2″ channel

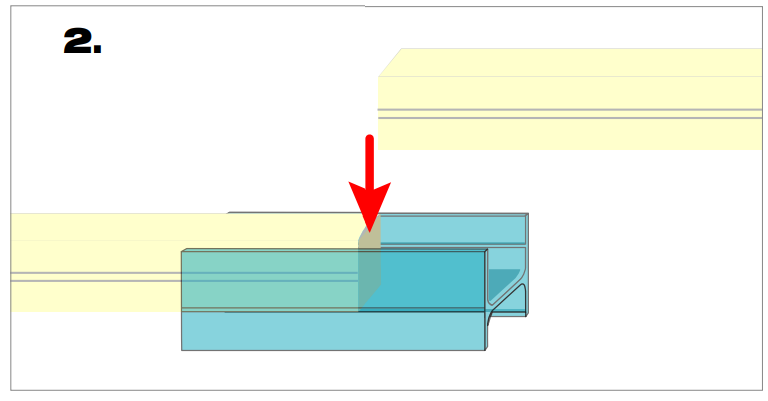

2. Press in fixtures

3. Finished assembly for end feed mounting (S1/P1).


LOW PROFILE PVC MOUNT CHANNEL:

Support for the fixture

LUME-PPS-LP-CL-96 & LUME-PPS-LP-CL-FT

– 96″ (PPS-96) or custom length (PPS-FT)

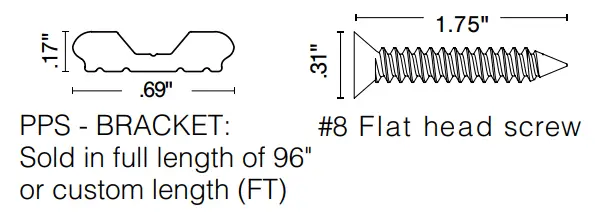

INCLUDED HARDWARE

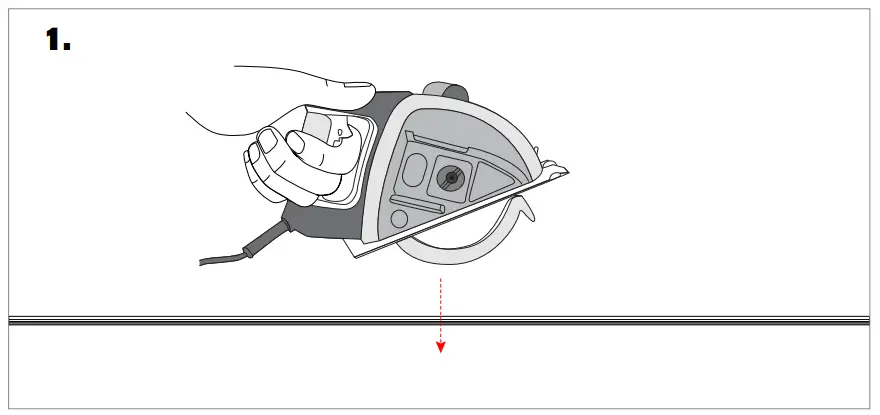

1. The PPS-BRACKET can be field cuttable and cut to whatever length your application requires. The PPS-BRACKET can be installed as a full length of 96″, multiple smaller pieces, or end to end for longer seamless runs.

2. Using pre-drilled pilot holes screw the #8 flat head screws to mount the PPS-BRACKET (1 screw every 16″).
   NOTE : For drywall applications mount directly into a stud

3. Using pre-drilled pilot holes, use the #8 flat head screws to mount the PPS-BRACKET.

4. The PPS-LP-CL-96 or PPS-LP-CL-FT can be field cuttable and cut to whatever length your application requires. The PPS-LP-CL-96 or PPS-LP-CL-FT can be installed as a full length of 96″, multiple smaller pieces, or end to end for longer seamless runs.

5. To mount, pinch the upper half of the PPS-LP-CL-96 or PPS-LP-CL-FT while you pivot it around one side of the PPS-BRACKET and push-in until you hear it snap into place. The PPS-LP-CL-96 or PPS-LP-CL-FT flexes around the PPS-BRACKET to create a solid, and secure snap on connection.


Customer Support

© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com
Specification subject to change. Rev-11-09-21
