R-BOX-NEMAZ3 Installation Instructions
– Floor Mounting –
Contents
R-BOX-NEMA3 Battery Storage System
Fix the Floor Mounting Base with expansion screws
Untwist latches to remove the top cover of main cabinet
Fix the main cabinet to Floor Mounting Base with M6 screws.
Place the batteris into cabinet as shown in pic ture and fix them to cabi net with M6 Screws.
Place and lock the top cover to main cabinet by twisting the latches.
R-BOX-NEMA3 Installation Instructions – Wall Mounting –

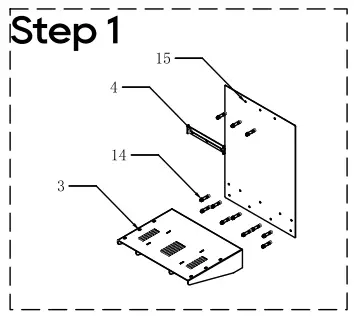

Fix the Wall Mounting Base and Wall Mounting Plate to wall with expansion screws by Positioning Board.

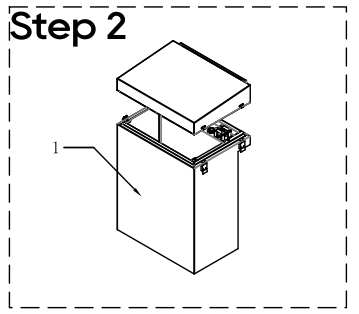

Untwist latches to remove the top cover of main cabinet.

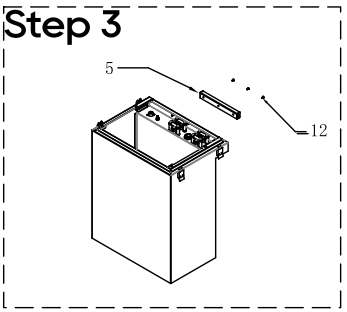

Fix the Wall Mounting Adapter to Cabinet with M4Screws

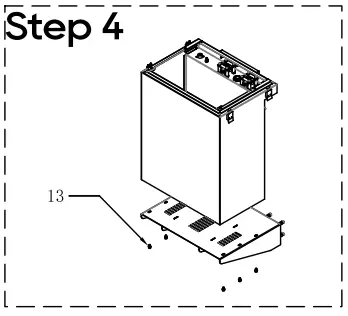

Install the main cabinet to wall by aligning Wall Mounting Adapter to Wall Mounting Plate. Then to fix the main cabinet to Wall Mounting Base with M6 Screws.
Place the batteries into cabinet as shown in pic- ture and fix them to cabinet with M6 Screws.
Place and lock the top cover to main cabinet by twisting the latches.
Packing List
| NO. | Items | Quantit | Specifications | Pictures |
| 1 | Main Cabinet | 1 pcs | 20.9″x15.8″x28.9″ 530×400.3×734.7mm |  |
| 2 | Floor Mounting Base | 1 pcs | 20.9″x11.9″x2.8″ 530×301.2x7Omm |  |
| 3 | Wall Mounting Base | 1 pcs | 20.9″x16.1″x4. 7″ 530x409Xx120mm |  |
| 4 | Wall Mounting Plate | 1 pcs | 10.6″x0.6″x2.1″ 270x15x53mm |  |
| 5 | Wall Mounting Adapter | 1 pcs | 9.8″x0.8″x1.2″ 250x20x3Omm |  |
| 6 | Battery to Busbar Power Cable (Positive) | 1 pcs | UL10269-4AWG-220mm- Orange-Amphenol 5.7mm Positive+ SC25-6 |  |
| 7 | Battery to Busbar Power Cable (Positive) | 1 pcs | UL10269-4AWG-310mm- Orange-Amphenol 5.7mm Positive+ SC25-6 |  |
| 8 | Battery to Busbar Power Cable (Negative) | 1 pcs | UL10269-4AWG-260mm-Black -Amphenol 5.7mm Negative+ SC25-6 |  |
| 9 | Battery to Busbar Power Cable (Negative) | 1 pcs | UL10269-4AWG-330mm-Black -Amphenol 5.7mm Negative+ SC25-6 |  |
| 10 | Battery to Cabinet Earthing Cable | 1 pcs | UL1015-10AWG-250mm Yellow/Green-SC6-6+SC6-6 |  |
| 11 | Battery to Bat- tery Earthing Cable | 1 pcs | UL1015-10AWG-120mm Yellow/Green-SC6-6+SC6-6 |  |
| 12 | M4 Screw | 3 pcs | GB/T 70.3-2000 M4x0.3″ (8mm) |  |
| 13 | M6 Screw | 10 pcs | ISO 10644G-2014 M6x0.5″(12mm) |  |
| 14 | Expansion Screw | 12 pcs | GB/T 22795(TCQ)-2008 M8x2.0″(50mm) |  |
| 15 | Positioning Board | 1 pcs | 20.9″x28.7″x0.06″ 530x730x1.5mm |  |
| 16 | Warning label | 1 pcs | 2.0″x3.9″ 50mmx100mm |  |
