UNIVERSAL

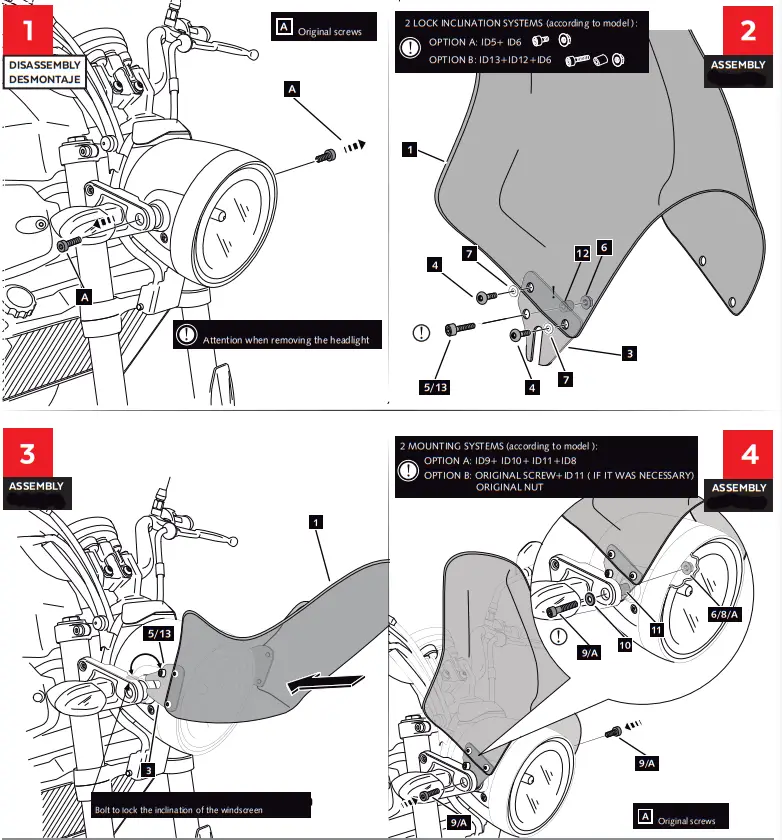

MOUNTING INSTRUCTIONS
REF 1309
WINDSHIELD TOP MODEL
Instruction Manual
Contents

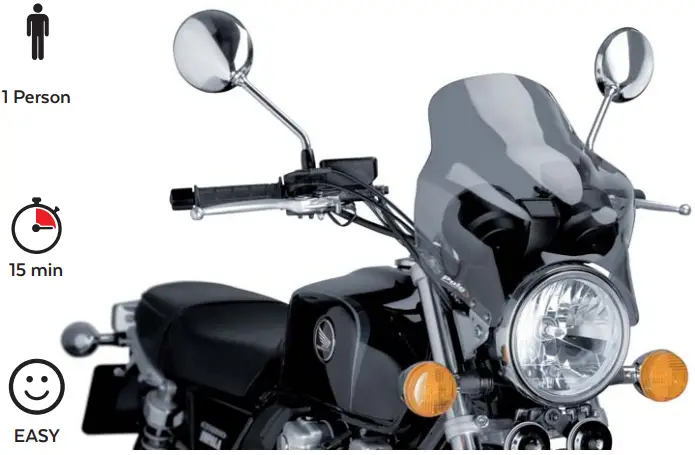

1309 Top Windscreen
Do not use thread-lock glue on screws/nuts as it can produce cracking on the plastic.
It would be convenient to re-tight the windshield screws, specially the ones that are fixed to the motorcycle, whenever you maintain the vehicle.
Thanks for your attention.
| ID | PART | DESCRIPTION | QTY | REF |
| 1 |  |
TOP model windshield screen | 1 | 10105H/NM3 |
| 2 |  |
Inox left support | 1 | SOPORT2PIP2-L06 |
| 3 | |
Inox right support | 1 | SOPORT2PIP2-R06 |
| 4 |  |
M6x8 ISO 7380 screw | 4 | TORNIAI7380-300 |
| 5 |  |
M6 DIN 934 Nut | 2 | TUERCAEM6G-0213 |
| 6 |  |
M6x12 DIN912 screw | 4 | TORNIAD912-0230 |
| 7 |  |
Ø6,1 xØ11 x1mm plastic washer | 4 | ARANDEPNVCN0246 |
| 8 | |
M8 DIN6923 hexago.grafil nut | 2 | TUERCEG6923-249 |
| 9 |  |
M8x35 DIN 912 allen screw | 2 | TORNI-AD912-196 |
| 10 | |
Ø18 xØ8 x1,5mm flat washer | 2 | ARANDPD125A-018 |
| 11 |  |
Ø15 xØ8 x9mm Arrowhead | 2 | CASQUI8159-0266 |
| 12 | |
Ø12 xØ6 x8,5mm Arrowhead | 2 | CASQUI—–0298 |
| 13 | |
M6x20 DIN 912 Screw | 2 | TORNI-AD 912-489 |
| 14 |  |
30x30x7mm microporous adhesive (**) | 2 | ADHESI-M30DX7– |
(**) TO INSERT BETWEEN THE SCREEN AND THE BIKE PANEL, IF IT WAS NECESSARY

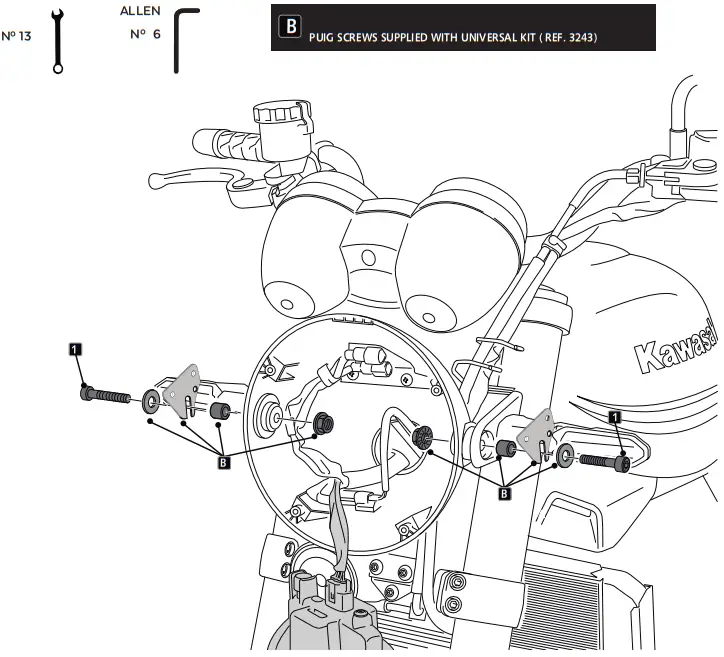

MOUNTING INSTRUCTIONS
REF 10931
| ID | PART | DESCRIPTION | QTY | REF |
| 1 | |
M8x40 DIN 912 screw | 2 | TORNI-AD912-475 |
