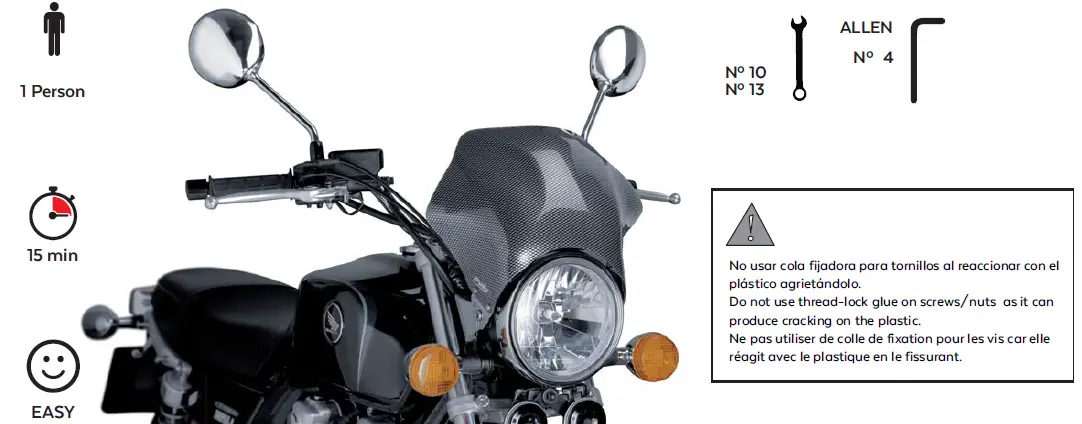

Puig 0013 Raptor Windscreen
Product Information
- Product Name: Windshield Raptor Model
- Product Reference: 0013
- Manufacturer: Puig
Website: www.puig.tv, www.puigusa.com
Email: [email protected], [email protected]
Mounting Instructions
- Estimated Time: 15 minutes
- Difficulty Level: Easy
Parts List
| ID | PART | DESCRIPTION | QTY | REF | |
|
1 |
RAPTOR model windshield screen |
1 |
10111A/F/H/N/R/WM3 |
||
| 2 | Inox left support | 1 | SOPORT2PIP2-L06 | ||
| 3 | Inox right support | 1 | SOPORT2PIP2-R06 | ||
| 4 | M6x8 ISO 7.380 screw | 4 | TORNIAI7380-300 | ||
| 5 | M6x12 DIN912 screw | 2 | TORNIAD912-0230 | ||
| 6 | M6 DIN 934 Nut | 4 | TUERCAEM6G-0213 | ||
| 7 | Ø6,1 xØ11 x1mm plastic washer | 4 | ARANDEPNVCN0246 | ||
| 8 | M8 DIN6923 hexago.grafil nut | 2 | TUERCEG6923-249 | ||
| 9 | M8x35 DIN912 allen screw | 2 | TORNI-AD912-196 | ||
| 10 | Ø18 xØ8 x1,5mm flat washer | 2 | ARANDPD125A-018 | ||
| 11 | Ø15 xØ8 x9mm Arrowhead | 2 | CASQUI8159-0266 | ||
| 12 | Ø12 xØ6 x8,5mm Arrowhead | 2 | CASQUI—- 0298 | ||
| 13 | M6x20 DIN912 Screw | 2 | TORNI-AD912-489 | ||
| 14 | 30x30x7mm microporous adhesive (**) | 2 | ADHESI-M30DX7– | ||
Mounting Instructions – Disassembly
A. Lock inclination system:
- Option A: ID5+ ID6
- Option B: ID13+ID12+ID6
Mounting Instructions – Assembly
A. Mounting system:
- Option A: ID9+ ID10+ ID11+ID8
- Option B: Original screw+ID11 (if necessary) + Original nut
Additional Information
- Product Name: Kit for Kawasaki Z900RS ’18-
- Product Reference: 10931
PUIG SCREWS SUPPLIED WITH UNIVERSAL KIT ( REF. 3243)
Parts List
| ID PIEZA/PART | DESCRIPTION | QTY | REF |
|---|---|---|---|
1  |
Tornillo M8x40 DIN 912 | 1 | TORNI-AD912-475 |
