Now you can see!
SMART PLATE
LICENSE PLATE RECOGNITION CAMERAS
INSTALLATION GUIDE
 Image sensor |
 I6-320LPR-MVF1 1 / 2.8” CMOS |
I6-320LPR-MVF2 1 / 2.8” CMOS |
| Effective Pixels | 1920×1080 | 1920×1080 |
| Frame rate | 1-25/30FPS In Normal Mode 1-50/60FPS in HFR Mode*** |
1-25/30FPS In Normal Mode 1-50/60FPS in HFR Mode*** |
| Day/night | ICR | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on | Day: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on |
| Lens | 2.8-12mm MVF(103.4°-32.4°) | 7-22mm MVF (44°-17.6°) |
| IR distance | 60m (4 High Power IR LED) | 60m (4 High Power IR LED) |
| Image enhancement | True WDR(120dB), BLC, HLC, ROI | True WDR(120dB), BLC, HLC, ROI |
| Noise reduction | 3D-DNR | 3D-DNR |
| Privacy mask | Yes | Yes |
| Motion detection | Yes | Yes |
| Standard analytics | Camera Tampering | Camera Tampering |
| AI analytics | LPR: License plate recognition | LPR: License plate recognition |
| LPR database | 10000 plates | 10000 plates |
| LPR recognition speed | 0-70 Km/h | 0-70 Km/h |
| Max LPR recognition
distance |
15 m | 26 m |
| Video compression | H.265S/H.264S*, H.265+/H.264+/H.265/H.264, MJPEG** | H.265S/H.264S*, H.265+/H.264+/H.265/H.264, MJPEG** |
| Streams | 3 | 3 |
| SD card | Event/Schedule based Main/Sub-Stream recording
(Up to 128Gb) |
Event/Schedule based Main/Sub-Stream recording
(Up to 128Gb) |
| Audio | Two-way Audio | Two-way Audio |
| Alarm | 1 IN + 1 OUT | 1 IN + 1 OUT |
| Power supply | DC12V/~910mA / PoE/~11W | DC12V/~910mA / PoE/~11W |
| Working temperature | -30°C~60°C, 10%~90% Humidity | -30°C~60°C, 10%~90% Humidity |
| Protection | IP67 | IP67 |
| Dimensions | 271.8×92.4×79.4mm | 271.8×92.4×79.4mm |
| Junction box | PR-JB14IP66 – PR-JB14IP64 | PR-JB14IP66 – PR-JB14IP64 |
*Main-Streams Only, **Sub-Streams Only, *** No true-WDR
SMART PLATE CAMERAS CAPABILITIES AND KEY STRENGTHS
 |
Industry leading accuracy (99% in optimal conditions) |
 |
Fast reading (2 license plates per second) |
 |
Built-in SD Card |
 |
More than 50 international license plates supported |
 |
Vehicle speed: 0-70 km/h / 40 Mp/h |
 |
Excellent night performances |
 |
Ability to distinguish relevant signsfrom irrelevant ones. |
 |
On-board artificial intelligence based on deep learning algorithms |
 |
Dedicated parking management software |
 Image sensor |
I6-340LPRN-MVF1 |
I6-340LPRN-MVF2 |
| Effective Pixels | 2592×1520 | 2592×1520 |
| Frame rate | 1-25/30FPS In Normal Mode 1-50/60FPS in HFR Mode*** |
1-25/30FPS In Normal Mode 1-50/60FPS in HFR Mode*** |
| Day/night | ICR | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on | Day: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on |
| Lens | 2.8-12mm MVF(100.4°-49°) | 8-32mm MVF (41°-15.5°) |
| IR distance | 60m (4 High Power IR LED) | 60m (4 High Power IR LED) |
| Image enhancement | True WDR(120dB), BLC, HLC, ROI | True WDR(120dB), BLC, HLC, ROI |
| Noise reduction | 3D-DNR | 3D-DNR |
| Privacy mask | Yes | Yes |
| Motion detection | Yes | Yes |
| Standard analytics | Camera Tampering | Camera Tampering |
| AI analytics | LPR: License plate recognition | LPR: License plate recognition |
| LPR database | 10000 plates | 10000 plates |
| LPR recognition speed | 0-70 Km/h | 0-70 Km/h |
| Max LPR recognition
distance |
15 m | 30 m |
| Video compression | H.265S/H.264S*, H.265+/H.264+/H.265/H.264, MJPEG** | H.265S/H.264S*, H.265+/H.264+/H.265/H.264, MJPEG** |
| Streams | 3 | 3 |
| SD card | Event/Schedule based Main/Sub-Stream recording (Up to 128Gb) | Event/Schedule based Main/Sub-Stream recording (Up to 128Gb) |
| Audio | Two-way Audio | Two-way Audio |
| Alarm | 1 IN + 1 OUT | 1 IN + 1 OUT |
| Weigand Output | D0, D1, GND | D0, D1, GND |
| Power supply | DC12V/~910mA / PoE/~11W | DC12V/~910mA / PoE/~11W |
| Working temperature | -30°C~60°C, 10%~90% Humidity | -30°C~60°C, 10%~90% Humidity |
| Protection | IP67 | IP67 |
| Dimensions | 271.8×92.4×79.4mm | 271.8×92.4×79.4mm |
| Junction box | PR-JB14IP66 – PR-JB14IP64 | PR-JB14IP66 – PR-JB14IP64 |
*Main-Streams Only, **Sub-Streams Only, *** No true-WDR
SMART PLATE CAMERAS CAPABILITIES AND KEY STRENGTHS
|
Industry leading accuracy (99% in optimal conditions) |
|
Fast reading (2 license plates per second) |
|
Built-in SD Card |
|
More than 50 international license plates supported |
|
Vehicle speed: 0-70 km/h / 40 Mp/h |
|
Excellent night performances |
|
Ability to distinguish relevant signsfrom irrelevant ones. |
|
On-board artificial intelligence based on deep learning algorithms |
|
Dedicated parking management software |
Contents
INSTALLATION GUIDE
PLATE SIZE
Target Height should be:
- More than 10% of the scene
- Less than 50% of the scene
Overall Target Size should be:
- More than 6% of the scene
- Less than 50% of the scene
A thumb rule will be: “if you can read the plate, so can the camera”.
Use the table below to know where to install the camera distance-wise and to select a proper lens.
| License plate Width (CM) | Lens | Max. Recognition Distance (Metres) | Min. Recognition Distance (Metres) |
| 36 (Standard NZ Size) | 2.8-12mm | 10.24 | 1.05 |
| 36 (Standard NZ Size) | 7-22mm | 19.21 | 2.40 |
| 36 (Standard NZ Size) | 8-32mm | 26.88 | 3.36 |
These distances are approximations and should be used as guide.
License plate camera tilt angle should be within -5° ~ 5°
Make sure there are no obstacles between the camera and license plate
Make sure the detection area is in focus
APPLICATION: GATE ENTRANCE/EXIT
INSTALLATION HEIGHT
Recommended Height: 1.2 M – 1.5 M (Parking Lots)
DETECTION AREA (ROI)
When it comes of gate control, we recommend to draw the detection area where the vehicle slows down: near a speed bump, entrance gate, stop sign (etc..)
EXAMPLE OF GOOD AND BAD INSTALLATION
APPLICATION: STREET MONITORING
INSTALLATION HEIGHT
Recommended Height: 4m – 6m (Junctions Or Roads)

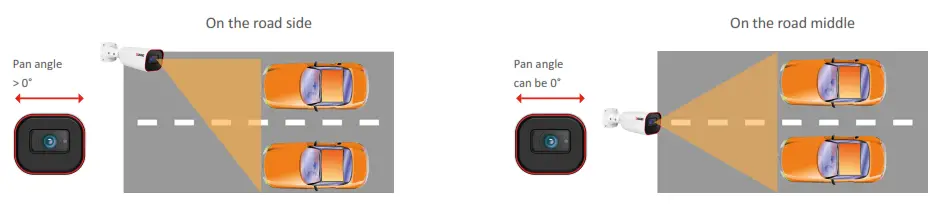

When it comes of street monitoring LPR cameras can be installed:
DETECTION AREA (ROI)
When it comes of street monitoring, we recommend to draw the detection area only in the closer lane, at the bottom of the screen, covering about one third of the area.
EXAMPLE OF GOOD AND BAD INSTALLATION
Main aspects to be considered before installing the LPR camera are:
Vehicle Speed
The speed of the vehicle is strictly connected to the camera exposure time: if the exposure time is not the right one, the images will be “blurred”.
Provision-ISR LPR cameras, recognize vehicle’s plates at a speed up to 70km/h and work with exposure times suitable for capturing clear images, without the typical “light trails” caused by the vehicle movement.
Environmental Conditions
The shooting conditions can significantly change during the 24 hours. The same location, can be clearly visible when lit by the low sun, or extremely dark at night, during a storm.
Provision-ISR LPR cameras relay on the most advanced image-processing technology able to provide the best results in a variety of environmental conditions.
External Interferences
By interferences we mean all those lighting sources that can affect the recognition process: from the front or rear headlights of the vehicle, to the license plate illuminator, passing through the lighting fittings along the street.
DAY & NIGHT
The best night results will be achieved when the camera is at night mode with IR ON.
This can be achieved by setting the camera to “Scheduled Day/Night” which will solve the following problems:
- Headlights directly from the Vehicle will cause the image to switch from B/W mode to color mode.
- Street-lights might cause the camera to stay in color mode while the LPR detection area is not well lit.
RECOMMENDED IMAGE SETTINGS FOR DAY & NIGHT
Go to a web broswer and enter the IP Address of the camera and log in. Then go to Config >Image > Display Settings
The image settings that work well during the day, won’t necessarily work during the night as well. To solve the issue, it is recommended to use 2 sets of configurations:
We have 2 ways to switch between day and night:
- Automatically, if there isn’t background lighting
- By schedule, if the camera doesn’t switch automatically
RECOMMENDED DAY MODE IMAGE SETTINGS
Brightness: Default value
Day/Night Mode: Day
Infra-Red Mode: Auto
Max. (Shutter): According to the live scene.
For static vehicles (gate) use ~1/100.
The faster the vehicle speed, the smaller the value needs to be set (~1/500)
Gain Mode: Auto
Gain Value: ~10
RECOMMENDED NIGHT MODE IMAGE SETTINGS
Brightness:
If the license plate is reflective, the brightness should be set to ~5. (General Image will be darker)
Day/Night Mode: Night
Infra-Red Mode: Auto
Max. (Shutter): According to the live scene. For static vehicles (gate) use ~1/100. The faster the vehicle speed, the smaller the value needs to be set (~1/750)
Gain Mode: Auto
Gain Value: ~10
The above recommened settings above are a guide only and may need changing slightly depending on the environment
BRIGHTNESS
Setting a lower brightness to the camera (2) will cause the image to be darker overall, but it will be better for reflective license plates
GAIN
Under insufficient light environments, Higher Gain values can improve the image brightness, but will create image noise
SHUTTER UPPER LIMIT
In the evening, the shutter values will start to increase to allow more light in the sensor.
Higher shutter limit results with blurrier image for moving objects, which can decrease recognition ability (1/25 is higher than 1/750)
More light enters the sensor, fast moving objects appear blurry
Less light enters the sensor, the image is generally sharper.

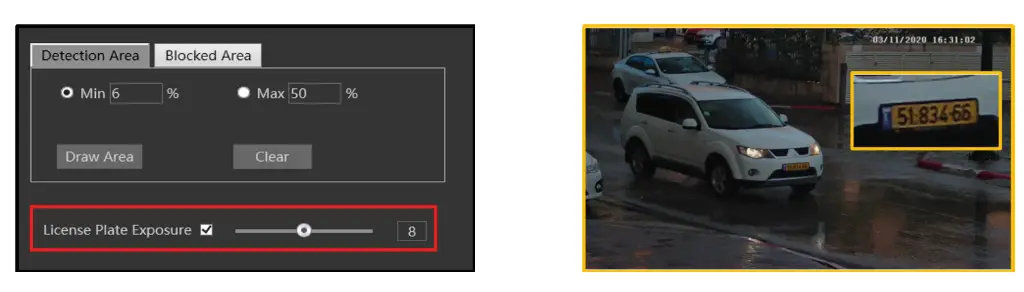

LICENSE PLATE EXPOSURE
This setting is used to perform automatic exposure based on the area marked for license plate recognition (detection area).
The idea is to get visible plate, with less consideration on other parts of the image.
Note: when the image is already too bright/dark, this feature won’t be enough for capturing license plates. Repositioning the camera or changing the detection area might be needed.
SETTING UP LICENCE PLATE RECOGNITION ON THE NVR
On the NVR go to Settings > Events and Analytics > Analtyics > LPR
Click the tick box next to enable and set the schedule you would like to capture number plates.
Set the Detection Area required to capture the number plate and set the Plate Region to Oceania – New Zealand.
Set the plate expsoure to 3.
Set the Plate size between 1% to 50% however the recommended default for the most accurate results. Tick Display range to see how the minimum and maximum sizes to comapre.
It is advised to park a vehicle in the area whilst setting up the detection area of plate size so it is most accurate (if it is feasible to do so).
Click Apply.

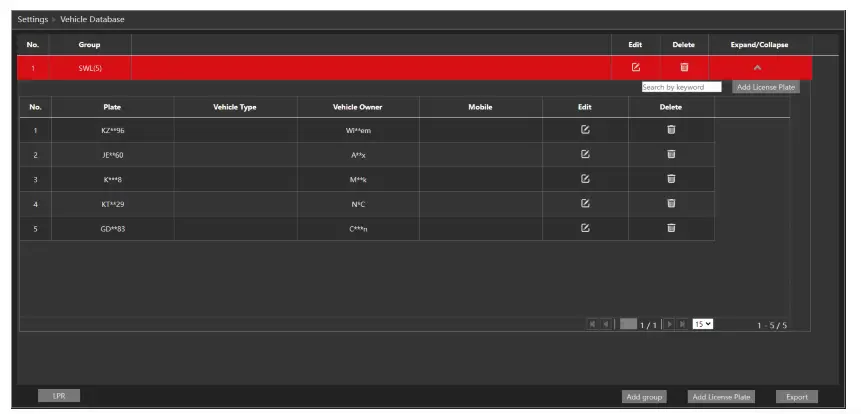

Click on Vehicle Database under LPR.
Add a Group and type the name of the group.
Add the Licence plate, type the plate, vehicle type, vehicle owner and select the group then click OK.
To add multiple number plates at once, click Add Licence Plate > Bulk Entry and upload the .CSV file. The format has to be:
Column A – (B1) Plate
Column B – (B2) Vehicle Owner
Column C – (B3) Mobile
Column D – (N1) Vehicle Type

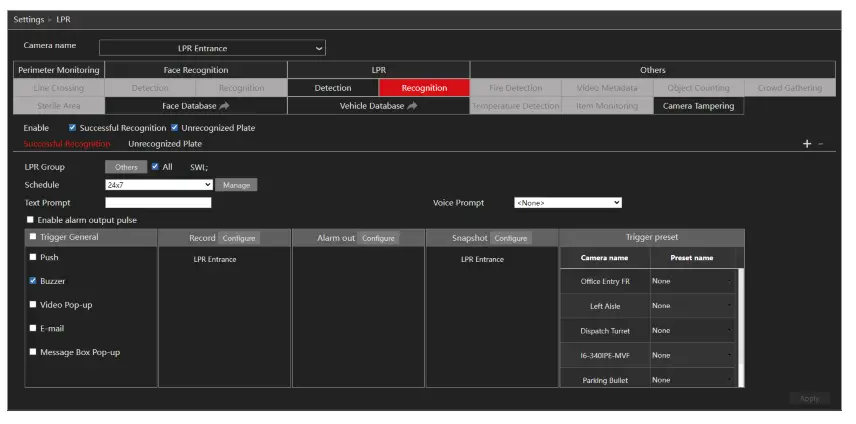

Go back to LPR > Recongition.
This menu tells the NVR what is to be done when a Number Plate matches or does not match the database.
Enable Successful Recongition and/or Unrecognised
Plate and select the Number Plate Group
Enable the Triggers that need to be trigggered upon a matching plate
Make sure the camera is selected in Record, Enable
Alarm out if you need to trigger a 3rd party device, and make sure snapshot is enabled.
If a PTZ is at site and it needs to go to a Preset position coving the LPR Camera, select the camera and the preset. The PTZ will then move upon LPR activation.
Click Apply
The recognition settings above are the same for Unrecognised Plate. The + symbol on the right is to create other triggers for other groups of number plates.
SEARCH FOR A NUMBER PLATE
On the NVR go to Analytics > Vehicle > By Event
Select the date to search
Select the LPR camera, Under Camera name.
Select Event and choose Plate Recognition – Successful
Recognition and/or Plate Recognition-Unrecognised Plate.
Click Search
This will bring up all the Licence Plates the LPR camera has captured.
If you know the Licence Number Plate, type this is next to Plate then click search.
Once the NVR has completed the search, click on the number plate and this will play a short clip of the vehicle driving past the camera.
Click the 3 little dots in the top right corner of each plate and it will open up a screen.
Click Register to add the Licence Plate to the database or click playback to view the short video clip of the vehicle going past.
To backup the video select the number plate and click backup.
PROTECTING YOUR PRIVACY
