DI-320AU-MVF
40M IR 1080P ULTRA HD ANALOG
MOTORIZED VARI-FOCAL LENS DOME/TURRET CAMERA
User Manual
Contents

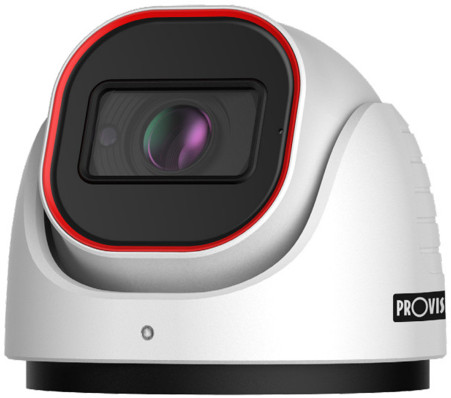

DI-320AU-MVF Motorized Vari Focal Lens Dome Turret Camera
HD ULTRA SERIES
Series dedicated to the installer who’s looking for a premium-level camera able to guarantee excellent performances also under extreme light conditions.
Equipped with a 2.8-12mm motorized lens, this 2MP dome/turret camera is designed for medium distance surveillance (up to 40m) for both indoor and outdoor scenarios.
The camera combines ultra-low light capabilities, true WDR and motorized lens making it ideal for “complicated” scenes and low light conditions.
Featuring 4in1 technology selectable by a protected DIPswitch the camera is ideal for Plug & Play over existing analog infrastructure.
MAIN FEATURES
- 2MP
- Ultra-Low Illumination
- Ultra Series
- True WDR
- 1920×1080 Resolution
- 2.8-12mm Vari-Focal (96°-34° )
- 3D-DNR
- 4 in 1 (DIP Switch AHD/TVI/CVI/CVBS + PAL/NTSC)
- IP67
- COC support
SPECIFICATIONS
| Image Sensor | 1/2.8″ 2MP Sensor |
| Image Format | 16:9 |
| Effective Pixels | 1945×1109 |
| Scanning System | Progressive |
| Resolution | 2MP: 1920×1080 AHD/TVI/CVI CVBS: 700TVL |
| FPS | 25/30FPS |
| Min. Illumination | Color: 0.001lux @F1.2, AGC ON B/W: 0lux with IR |
| D&N | True Day&Night-ICR |
| IR LED | 3 LED Array (40m) |
| OSD Menu | Available via CoC Only |
| CoC Support | Yes |
| Day & Night Mode | Ext/Auto/Day/Night |
| Backlight Compensation | BLC/HLC |
| S/N Ratio | ≥52dB (AGC OFF) |
| White Balance | Auto |
| Noise Reduction | 3D-DNR |
| Video Output | 2MP AHD/TVI/CVI/CVBS + PAL/NTSC (Selected by DIP Switch) |
| Privacy Mask | Yes |
| D-Effect | Mirror + Flip |
| WDR | True (120dB) + Digital |
| Lens (Field Of View) | 2.8-12mm Mega-Pixel Motorized Vari-Focal (96°-34°) |
| Power | DC12V/660mA |
| Operation Temperature | -30°C ~ 50°C, 10% ~ 90% humidity |
| Protection Rate | IP67 |
| Dimensions | Φ113*99.6mm |
| Net Weight | 695g |
| Junction Box | PR-JB14IP66 – PR-JB14IP64 – PR-WB-A |

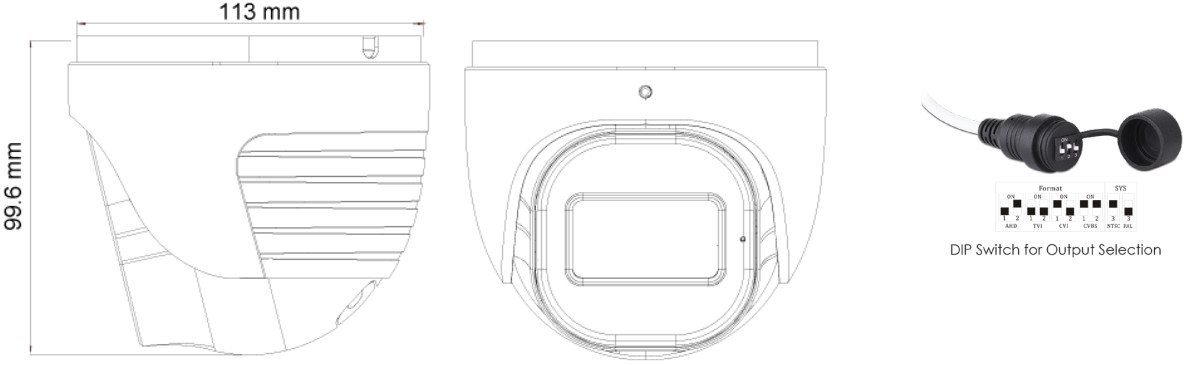

DIMENSIONS

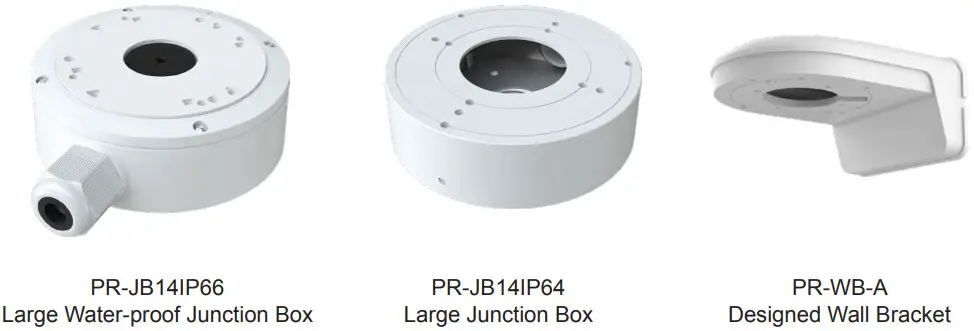

ACCESSORIES
