PROSCEND 850G-6PI Industrial 6 Port GbE Managed PoE Switch Industrial 5G Cellular Router
Product Information

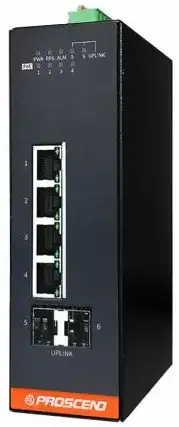

- Product Name: 850G-6PI Industrial Ethernet Switch
- Version: 1.00
RJ45 Connector Pinouts
The pin assignment of RJ45 connector is shown in the following table:
| Pin | Description |
|---|---|
| 1,2 | T/Rx+, T/Rx- |
| 3,6 | T/Rx+, T/Rx- |
| 4,5 | T/Rx+, T/Rx- |
| 7,8 | T/Rx+, T/Rx- |
PoE Pinouts
- V+: Power supply positive
- VX: Power supply negative
- X: Spare
Connecting Power

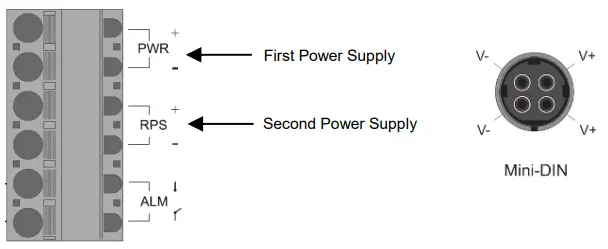

- The 850G-6PI Industrial Ethernet Switch can be powered from three power supplies (input range 48~57 VDC). Two power inputs on the terminal block and one Mini-DIN power inlet are on the top panel of the switch. Insert the positive and negative wires (AWG 12-24) into V+ and V- contacts on the terminal block respectively and use a flat-head screwdriver to push in and open the wire clamp.
- You can use either “Terminal Block” or “Mini-DIN” for primary power and “Terminal Block” for the secondary power source, to be a Redundant
- Power Input. Check the polarity while connecting.
WARNING: The DC power should be connected to a well-fused power supply
LED Indicators
| LED | Description |
|---|---|
| PWR/RPS | PWR/RPS is powered. (Color On: Green / Off: Red) |
| ALM | Alarm for abnormal power status or function. (Color On: Green / Blinking: Green / Off: Red) |
| RJ45 LAN port Link/Act | Ethernet LINK UP. (Color On: Green / Blinking: Green / Off: Red) |
| RJ45 LAN port Speed | Ethernet LINK UP at 1000Mbps. (Color On: Green / Off: Red) |
| UPLINK | Ethernet LINK DOWN or LINK UP at 10Mbps/100Mbps. (Color On: Green / Off: Red) |
| PoE | PoE PD (Powered Device) connected. (Color On: Green / Blinking: Green / Off: Red) |
RJ45 Connector Pinouts
The pin assignment of RJ45 connector is shown in the following table
| Pin | Description | PoE Pinouts |
| 1,2 | T/Rx+, T/Rx- | V+ |
| 3,6 | T/Rx+, T/Rx- | V- |
| 4,5 | T/Rx+, T/Rx- | X |
| 7,8 | T/Rx+, T/Rx- | X |
Alarm Relay and Ground

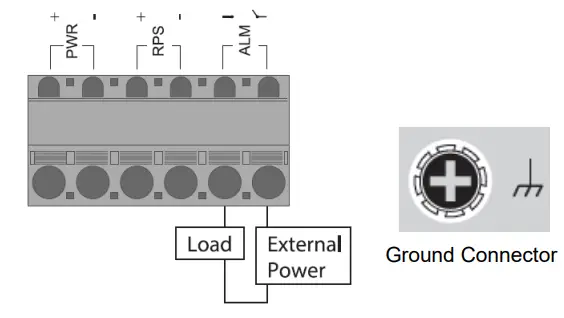

- The alarm relay output contacts are shown as ALM next to the DC terminal block connector as the figure below.
- The alarm relay out is “Normal Open”, and it will be closed when it is detecting any predefined failure such as power failures.
- The relay output with current carrying capacity of 1A @ 24 VDC.
- The switch must be properly grounded for optimum system performance
DIN-rail Mounting

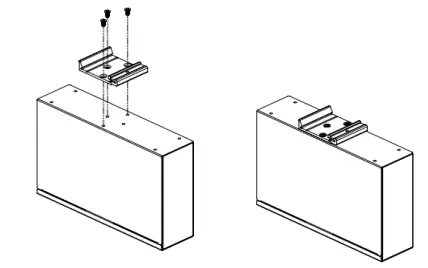

- STEP 1: Use the screws to install the DIN-rail kit to attach at the rear side of the switch
- STEP 2: Hook the unit onto the DIN-rail.
- STEP 3: Push the bottom of the unit towards the DIN-rail until it locks in place.
DIP Switch Setting
| DIP | Function Description |
| 1 (PWR) | ON: Primary power alarm reporting is enabled. OFF: Primary power alarm reporting is disabled. |
| 2 (RPS) | ON: Redundant power alarm reporting is enabled. OFF: Redundant power alarm reporting is disabled. |
Web Interface Connect & Login
- Factory default IP: 192.0.2.1
- Login with default account and password
Username: root
Password: 2wsx#EDC
Reset Button
| Function | Operation |
| Reboot | Press the Reset button for 2 seconds
and release. |
| Reset to factory default | Press the Reset button for 10 seconds and release. |
NOTE
Please scan below QR Code to download online resources. Download Link: https://www.proscend.com/en/product/850G-6PI.html
