SHOWER SYSTEM FAUCET
Installation instruction
Contents
PRAARX503BN Single Handle 6 Spray Shower Faucet
MB/BN/BG/CH/ORB
CARE INSTRUCTIONS Rinse the product with clear water. Dry the product with a soft cloth.
DO NOT:
Use abrasive cleansers, cloths, or paper towels. Use any cleaning agents containing acid polish, wax, alcohol, ammonia, bleach, solvent or any other corrosive or harsh cheminalc cleansers.
IMPORTANT
We recommends using a professional plumber for all installation and repair.
Please inform yourself about the canadian plumbing code`s regulations and your local municipality plumbing codes before instaillation.the canadian plumbing code requires the installation of urge arresting devices to eliminate water hammering.allow an adequate opening in order to easily access connections or other plumbing devices for maintenance or repair.
RECOMMENDED TOOLS
* Apply plumber’s putty under the plastic cover deck plcta to seal your installation.
The model shown in the installation steps may differ from the one in box however connection type and installation steps are the same.

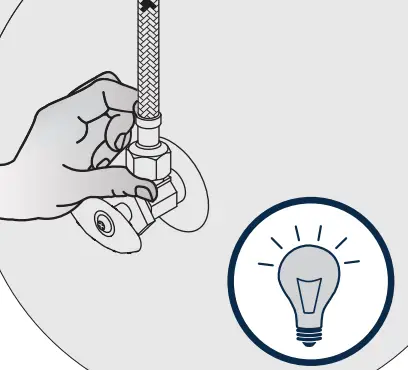

CONNECTION ADVICE
* Apply plumber’s putty under the plastic cover deck plcta to seal your installation.
The model shown in the installation steps may differ from the one in box however connection type and installation steps are the same.
INSTALLATION STEPS
PRODUCT DRAWING
| No | Description |
| A | Pressure balanced diverter valve |
| A-1 | Valve |
| A-2 | Face plate with sealjoint |
| A-3 | Diverter knob kit |
| A-4 | Trim cap |
| A-5 | Allen screw |
| B | Shower head |
| C | Shower arm and flange kit |
