PD504-Series Wireless Microphone UHF
Ref. nr.: 179.004; 179.006
INSTRUCTION MANUAL
V1.5
Contents
PD504-Series Wireless UHF Microphone
Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.
Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock.
Keep the manual for future reference.
- Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
- The unit contains voltage carrying parts. Therefore, do NOT open the housing.
- Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
- Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
- The unit is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
- When unplugging the unit from a mains outlet, always pull the plug, never the lead.
- Do not plug or unplug the unit with wet hands.
- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
- If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
- To avoid fire and shock hazard, do not expose the unit to rain and moisture.
- All repairs should be carried out by a qualified technician only.
- Connect the unit to an earthed mains outlet (220240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
- If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.
- To prevent accidents in companies, you must follow the applicable guidelines and follow the instructions.
- Do not repeatedly switch the fixture on and off. This shortens the lifetime.
- Keep the unit out of the reach of children. Do not leave the unit unattended.
- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
- Do not force the controls.
- This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
- If this product has a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
- If the battery is damaged, please replace with same specifications battery. And dispose the damaged battery environment friendly.
- If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
- Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
- Keep away from electronic equipment that may cause interference. – Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
- Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
- Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
- Keep the original packing material so that you can transport the unit in safe conditions.
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.
The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!
NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other.
Specifications can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.
UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.
OVERVIEW
- Power ON/OFF
- IR Sensor
- Display
- Channel selection buttons
- IR learn button
- Volume controller for 4 microphones channels
- BNC antenna connector
- Mix output 6.3mm Jack connector
- Balanced XLR output microphone channel D
- Balanced XLR output microphone channel C
- Balanced XLR output microphone channel B
- Balanced XLR output microphone channel A
- DC power Jack for external power supply (12V DC 1000mA)
DISPLAY
- RF Signal Strength Number of bars corresponds to RF signal strength.
- AF Audiosignal Strength Number of bars corresponds to AF audiosignal strength.
- Radio frequency
- Transmission channel

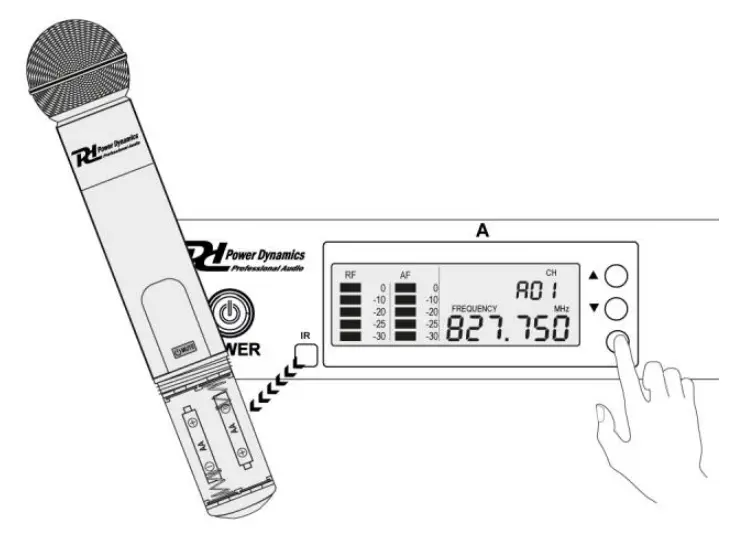

OPERATION
- Switch on the receiver with the power switch.
- Screw or open the battery cover of microphone and put new or full charged battery inside. Press the power switch on the microphone for 2 seconds, to switch on. Select your transmission channel, with the ▲ and ▼ button on the receiver. Hold the IR sensor of microphone close to the IR sensor of the receiver. Press shortly on the SET button of the respective channel to synchronize the microphone.
- When the receiver and the microphone have been set to the same transmission channel, the RF bargraph on the receiver’s display will indicate that a radio signal is being received.
Noted: how more numbers of bars are displayed, how better is the reception. - Screw or close the battery cover onto the microphone again.
For optimum receiving:
- Reposition the receiver so there is nothing obstructing a line of sight to the microphones (including the audience).
- Avoid placing microphone and receiver where metal or other dense materials may be present.
- Place the receiver on the top of the equipment rack.
- Remove nearby sources of wireless interference, such as cell phones, two-way radios, computers, media players, WiFi devices, and digital signal processors.
- Charge or replace the microphone battery.
- Keep microphones more than two meters (6 feet) from each other.
- Keep the microphones and receiver more than 5 meters (16 feet) apart.
- During sound check, mark trouble spots and ask presenters or performers to avoid those area.

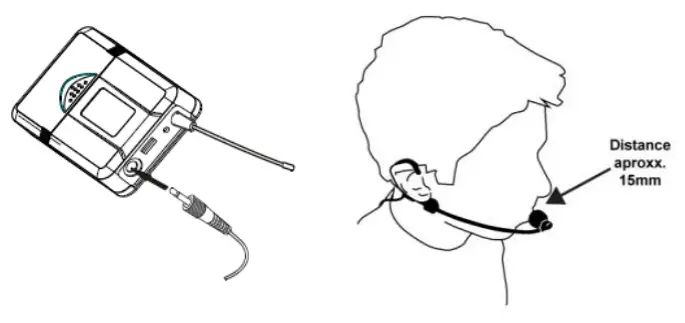

HEADSET MICROPHONE
Connect the connecter of supplied headset microphone to the connecting jack of bodypack.
Position the headset microphone approx. 15 mm (1/2 inch) from the opening of your mouth.
RADIO FREQUENCY
|
Channel |
European Frequency | Australia / New Zealand Frequency | ||||||
| MIC A | MIC B | MIC C | MIC D | MIC A | MIC B | MIC C | MIC D | |
| 1 | 827.750 | 823.500 | 830.250 | 824.750 | 579.700 | 554.050 | 570.400 | 561.650 |
| 2 | 830.250 | 824.750 | 827.750 | 823.500 | 570.400 | 561.650 | 579.700 | 554.050 |
| 3 | 827.900 | 823.800 | 830.300 | 825.750 | 568.500 | 554.300 | 573.750 | 557.050 |
| 4 | 830.300 | 825.750 | 827.900 | 823.800 | 573.750 | 557.050 | 568.500 | 554.300 |
| 5 | 864.100 | 825.500 | 864.900 | 831.650 | 569.450 | 558.100 | 569.700 | 558.850 |
| 6 | 864.900 | 831.650 | 864.100 | 825.500 | 569.700 | 558.850 | 569.450 | 558.100 |
| 7 | 831.900 | 824.350 | 863.550 | 826.550 | 571.950 | 560.350 | 572.500 | 553.500 |
| 8 | 863.550 | 826.550 | 831.900 | 824.350 | 572.500 | 553.500 | 571.950 | 560.350 |
| 9 | 830.400 | 824.550 | 863.750 | 826.300 | 566.550 | 554.150 | 573.250 | 559.050 |
| 10 | 863.750 | 826.300 | 830.400 | 824.550 | 573.250 | 559.050 | 566.550 | 554.150 |
| 11 | 828.450 | 823.950 | 864.750 | 825.600 | 568.350 | 555.300 | 572.950 | 557.950 |
| 12 | 864.750 | 825.600 | 828.450 | 823.950 | 572.950 | 557.950 | 568.350 | 555.300 |
| 13 | 827.500 | 824.250 | 864.250 | 831.300 | 569.500 | 555.550 | 570.050 | 553.350 |
| 14 | 864.250 | 831.300 | 827.500 | 824.250 | 570.050 | 553.350 | 569.500 | 555.550 |
| 15 | 828.650 | 827.000 | 863.250 | 830.350 | 575.000 | 551.200 | 569.950 | 552.800 |
| 16 | 863.250 | 830.350 | 828.650 | 827.000 | 569.950 | 552.800 | 575.000 | 551.200 |
| 17 | 831.750 | 828.800 | 863.450 | 826.050 | 580.950 | 558.350 | 571.650 | 565.950 |
| 18 | 863.450 | 826.050 | 831.750 | 828.800 | 571.650 | 565.950 | 580.950 | 558.350 |
| 19 | 824.700 | 831.500 | 826.800 | 829.050 | 569.750 | 558.600 | 575.500 | 561.350 |
| 20 | 826.800 | 829.050 | 824.700 | 831.500 | 575.500 | 561.350 | 569.750 | 558.600 |
| 21 | 829.300 | 823.750 | 863.100 | 827.850 | 570.700 | 562.400 | 570.950 | 563.150 |
| 22 | 863.100 | 827.850 | 829.300 | 823.750 | 570.950 | 563.150 | 570.700 | 562.400 |
| 23 | 831.100 | 824.150 | 864.950 | 828.750 | 573.200 | 564.650 | 573.800 | 557.800 |
| 24 | 864.950 | 828.750 | 831.100 | 824.150 | 573.800 | 557.800 | 573.200 | 564.650 |
| 25 | 829.200 | 823.250 | 863.200 | 826.250 | 567.800 | 558.450 | 574.500 | 563.350 |
| 26 | 863.200 | 826.250 | 829.200 | 823.250 | 574.500 | 563.350 | 567.800 | 558.450 |
| 27 | 825.850 | 823.450 | 830.800 | 828.300 | 569.600 | 559.600 | 574.200 | 562.250 |
| 28 | 830.800 | 828.300 | 825.850 | 823.450 | 574.200 | 562.250 | 569.600 | 559.600 |
| 29 | 831.200 | 824.450 | 863.800 | 827.800 | 570.750 | 559.850 | 571.300 | 557.650 |
| 30 | 863.800 | 827.800 | 831.200 | 824.450 | 571.300 | 557.650 | 570.750 | 559.850 |
| 31 | 827.550 | 864.150 | 824.650 | 830.500 | 570.000 | 561.550 | 570.300 | 562.300 |
| 32 | 824.650 | 830.500 | 827.550 | 864.150 | 570.300 | 562.300 | 570.000 | 561.550 |
| 33 | 828.150 | 864.350 | 824.850 | 831.400 | 580.300 | 557.500 | 571.000 | 565.100 |
| 34 | 824.850 | 831.400 | 828.150 | 864.350 | 571.000 | 565.100 | 580.300 | 557.500 |
| 35 | 824.200 | 864.700 | 827.450 | 830.700 | 569.100 | 557.750 | 574.350 | 560.500 |
| 36 | 827.450 | 830.700 | 824.200 | 864.700 | 574.350 | 560.500 | 569.100 | 557.750 |
| 37 | 828.400 | 863.350 | 826.150 | 830.850 | 576.250 | 555.500 | 571.200 | 557.100 |
| 38 | 826.150 | 830.850 | 828.400 | 863.350 | 571.200 | 557.100 | 576.250 | 555.500 |
| 39 | 827.250 | 864.850 | 829.600 | 823.300 | 572.550 | 563.800 | 573.100 | 556.950 |
| 40 | 829.600 | 823.300 | 827.250 | 864.850 | 573.100 | 556.950 | 572.550 | 563.800 |
| 41 | 828.250 | 830.100 | 826.450 | 864.550 | 567.150 | 557.600 | 573.850 | 562.500 |
| 42 | 826.450 | 864.550 | 828.250 | 830.100 | 573.850 | 562.500 | 567.150 | 557.600 |
| 43 | 831.800 | 825.250 | 829.950 | 827.700 | 568.950 | 558.750 | 573.550 | 561.400 |
| 44 | 829.950 | 827.700 | 831.800 | 825.250 | 573.550 | 561.400 | 568.950 | 558.750 |
| 45 | 831.000 | 828.000 | 828.950 | 825.400 | 575.600 | 554.650 | 570.550 | 556.250 |
| 46 | 828.950 | 825.400 | 831.000 | 828.000 | 570.550 | 556.250 | 575.600 | 554.650 |
| 47 | 830.750 | 825.650 | 827.400 | 829.100 | 570.100 | 559.000 | 570.650 | 556.800 |
| 48 | 827.400 | 829.100 | 830.750 | 825.650 | 570.650 | 556.800 | 570.100 | 559.000 |
| 49 | 832.000 | 823.000 | 863.000 | 865.000 | 566.000 | 551.000 | 573.500 | 558.500 |
| 50 | 863.000 | 865.000 | 832.000 | 823.000 | 573.500 | 558.500 | 566.000 | 551.000 |
CLASS 1
0700
Frequency 823 Mhz – 832 Mhz A license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Licensing of wireless microphone equipment is the user’s responsibility and licensability depends on the user’s classification, application and frequency. Tronios strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing.
TECHNICAL SPECIFICATION
| PD504H | PD504B | |
| 179.004 | 179.006 | |
| Operating frequency EU: | 823 – 832 Mhz / 863.000 – 865.000 Mhz Class 1 | |
| Operating frequency NZ/AUS: | 550 – 585Mhz | |
| RF output EU: | <10mW | |
| RF output NZ/AUS: | <100mW | |
| Frequency response: | 60Hz – 18kHz | |
| Frequency stability: | <15ppm | |
| THD: | <1% | |
| Signal to noise ratio: | >97dB | |
| Power supply: | 100-230VAC / 50-60Hz | |
| Dimensions: | 235 x 420 x 44mm | |
| Weight: | 1.7Kg | |
| Handheld | Bodypack | |
| Operating frequency: | 823 – 832 Mhz / 863.000 – 865.000 Mhz Class 1 | |
| Operating frequency NZ/AUS: | 550 – 585Mhz | |
| Battery: | 2x AA (handheld) | 2x AA (bodypack) |
| Dimensions: | 250 x ø 51mm | 75 x 60 x 23mm |
| Weight: | 0,4kg | 0,2kg |
The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
European Union
Tronios B.V.,
Bedrijvenpark Twente Noord 18,
7602KR Almelo, The Netherlands
2014/35/EU
2014/30/EU
2011/65/EC
United Kingdom
Tronios Ltd.,
130 Harley Street,
London W1G 7JU, United Kingdom
S.I. 2016:1101
S.I. 2016:1091
S.I. 2012:3032
Specifications and design are subject to change without prior notice.
www.tronios.com
Copyright © 2022 by Tronios The Netherlands
