Installation Kit PNI Green Gouse S02 for 2 solar
panels for metal sheet roof
Installation Manual
Contents

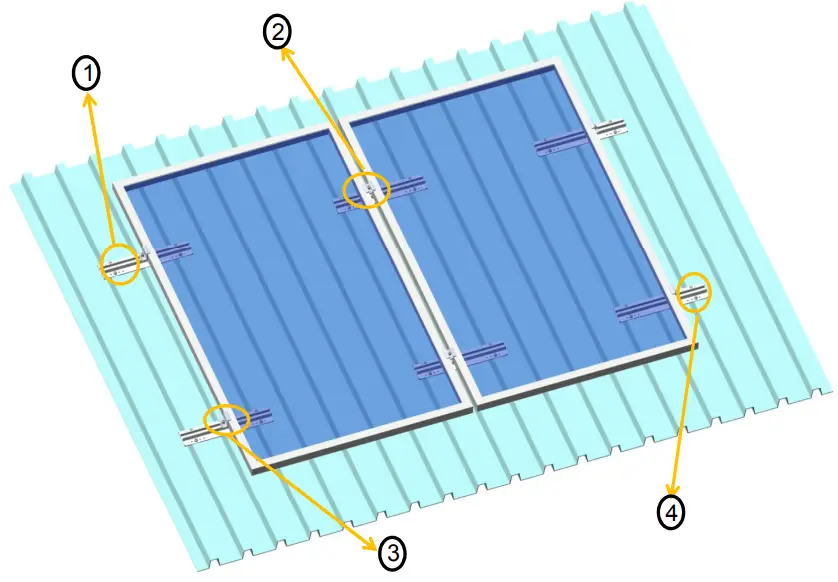

Overview
Components:
| 6 pcs | Mini Rail with EPDM sealing tape |  |
| 2 pcs | Mid Clamp |  |
| 4 pcs | End Clamp |  |
| 24 pcs | Cut Thread Self Tapping Screw |  |
TOOLS OVERVIEW
 |
Cordless screwdriver |
 |
Torque wrench |
 |
Chalk line |
 |
Tape Measure |
PNI S02 MINI RAIL SYSTEM ASSEMBLY
- MEASURE AND FASTEN ALLMINI RAILS
Fasten Mini Rails with self-tapping screwson the roof.
- FASTENINGTHE MODULE
A.Insert Mid Clamp& End Clamp in theMini Rail
B.Attached the Solar Modules to the Mini Rail
C. Fasten Mid/End Clamps,then installation finished
