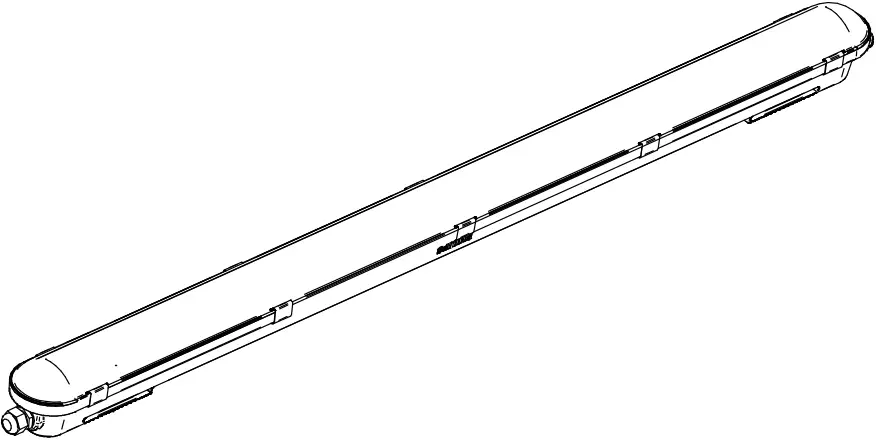

CoreLine waterproof
WT120C G2
Please refer to InterAct commissioning guide to enable wireless InterAct Ready functionality
|
System light output (Lm) |
 |
||
| WT120C G2 LED19S/840 PSD L600 |
1900 |
0,9 |
 |
| WT120C G2 LED27S/840 PSD L1200 |
2700 |
1,4 |
|
| WT120C G2 LED40S/840 PSD L1200 |
4000 |
1,4 |
|
| WT120C G2 LED34S/840 PSD L1500 |
3400 |
1,7 |
|
| WT120C G2 LED60S/840 PSD L1500 |
6000 |
1,7 |
|
| WT120C G2 LED80S/840 PSD L1500 |
8000 |
1,7 |
|
| WT120C G2 LED27S/840 PSU TW3 L1200 |
2700 |
1,5 |
|
| WT120C G2 LED40S/840 PSU TW3 L1200 |
4000 |
1,5 |
|
| WT120C G2 LED34S/840 PSU TW3 L1500 |
3400 |
2,1 |
|
| WT120C G2 LED60S/840 PSU TW3 L1500 |
6000 |
2,1 |
|
| WT120C G2 LED80S/840 PSU TW3 L1500 |
8000 |
2,1 |
|
| WT120C G2 LED40S/840 PSU WEC L1200 |
4000 |
1,4 |
|
| WT120C G2 LED40S/840 PSU TW1 WEC L1200 |
4000 |
1,5 |
|
| WT120C G2 LED60S/840 PSU WEC L1500 |
6000 |
1,7 |
|
| WT120C G2 LED60S/840 PSU TW1 WEC L1500 |
6000 |
1,8 |
|
| WT120C G2 LED19S/840 PSU RCA |
1900 |
0,9 |
|
| WT120C G2 LED40S/840 PSU RCA |
4000 |
1,4 |
|
| WT120C G2 LED60S/840 PSU RCA |
6000 |
1,7 |
|
| WT120C G2 LED40S/840 WIA L1200 |
4000 |
1,4 |
|
| WT120C G2 LED65S/840 WIA L1500 |
6500 |
1,7 |
|
| WT120C G2 LED40S/840 WIA TW3 L1200 |
4000 |
1,5 |
|
| WT120C G2 LED65S/840 WIA TW3 L1500 |
6500 |
2,1 |
|
| WT120C G2 LED80S/840 WIA L1500 |
8000 |
2,1 |
|
| WT120C G2 LED80S/840 WIA TW3 L1500 |
8000 |
2,1 |
|
| WT120C G2 LED 57S/840 PSU PCO TW3 L1500 |
5700 |
2,1 |
|
| WT120C G2 LED 57S/840 PSU PCO TW3 L1500 |
5700 |
2,1 |
|
Type |

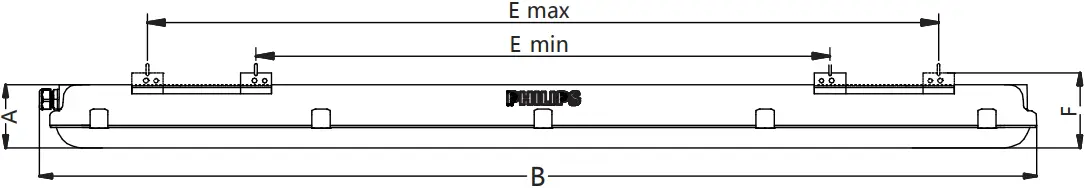

Dimension (mm) | Nr. of clips | ||||||
| A | B | C | D | Emin | Emax |
F |
||
| WT120C G2 LED18S L600 |
76 |
665 |
80 | 38 | 308 | 512 | 85 |
6 |
| WT120C G2 LED27S L1200 |
1215 |
538 | 1062 |
10 |
||||
| WT120C G2 LED40S L1200 | ||||||||
| WT120C G2 LED34S L1500 |
1515 |
838 | 1362 |
12 |
||||
| WT120C G2 LED60S L1500 | ||||||||
| WT120C G2 LED65S L1500 | ||||||||
| WT120C G2 LED80S L1500 | ||||||||

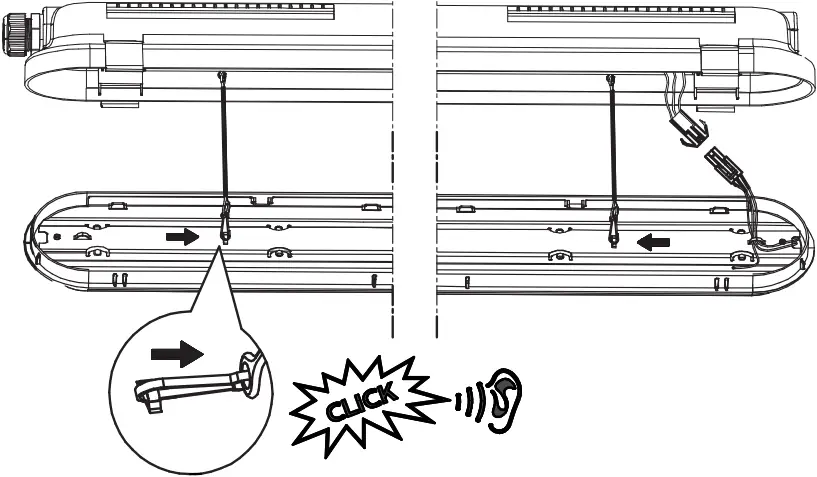

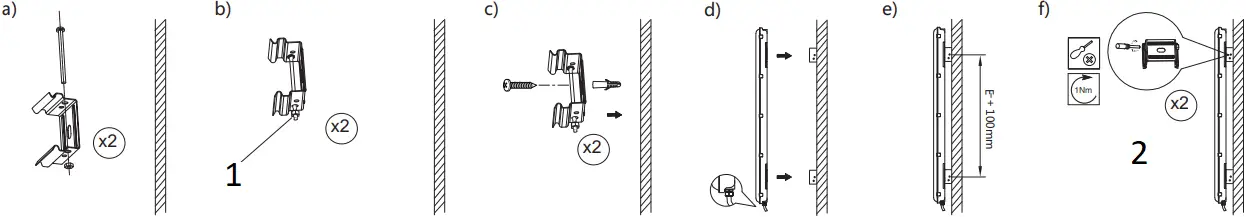

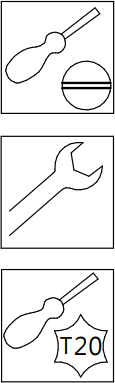

- OPTIONAL ANTI-VANDAL MOUNTING
- wire suspension

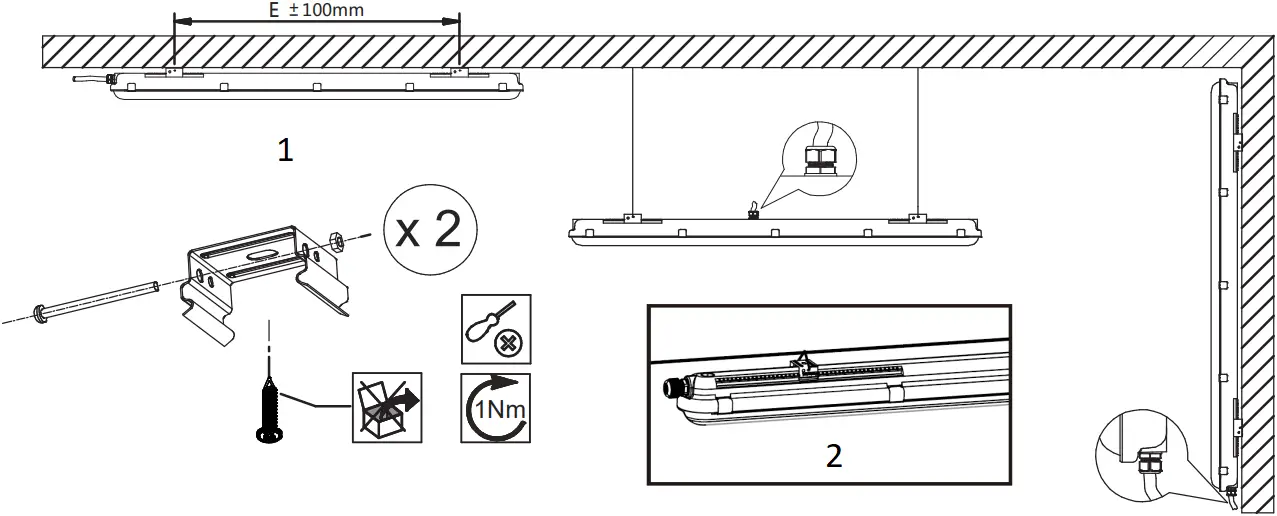

[1]

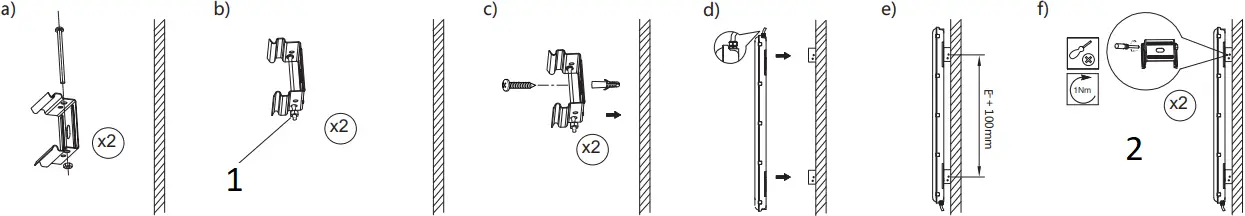

Vertical installation
- Do not tighten the nut
- Mandatory!
Tighten the nut (antivandal)
[1a]
- Do not tighten the nut
- Mandatory!
Tighten the nut (antivandal)
[1b]
Switch off the power supply before installation

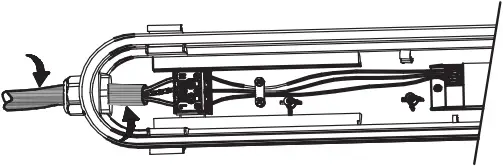

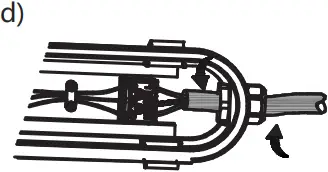

WEC & RCA & IA1 & WIA versions
- ∅ 0,75-2,5 mm²
- ∅ 8-12 mm
[2a]
Switch off the power supply before installation
PSD versions

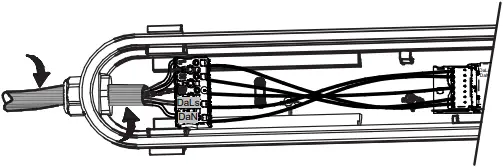

- DaLs – DALI Line
DaN – DALI Null - ∅ 0,75-2,5 mm²
- ∅ 8-12 mm
[2b]
Switch off the power supply before installation
TW3 versions
- 0,75-2,5 mm²
- ∅6-12 mm
- Cross-section for inner wires is 2.5mm²
- Torque wrench required!
[2c]

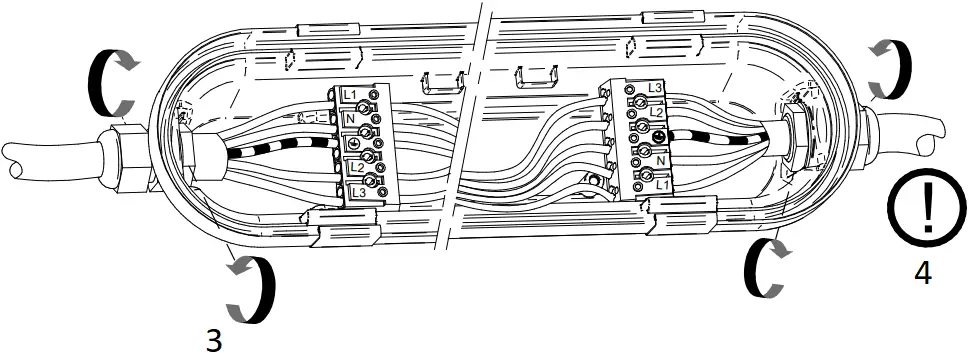

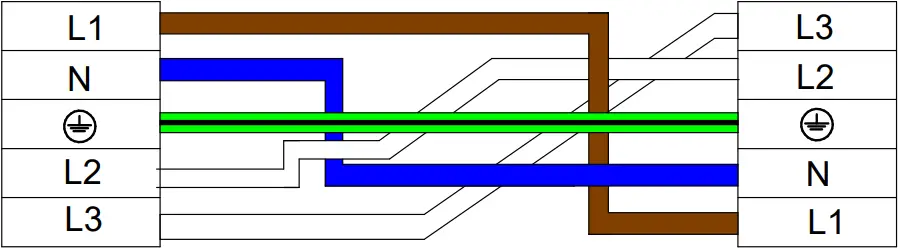

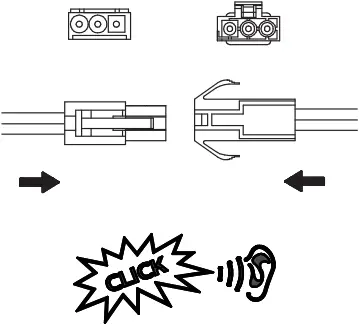

Through wiring
[2d]

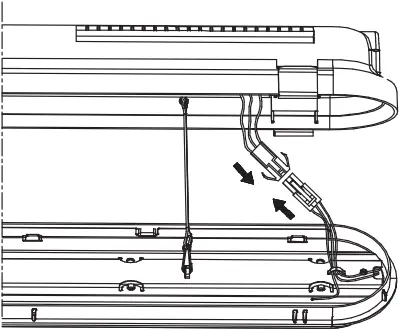

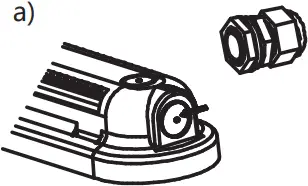

Install cable in other location (optional)

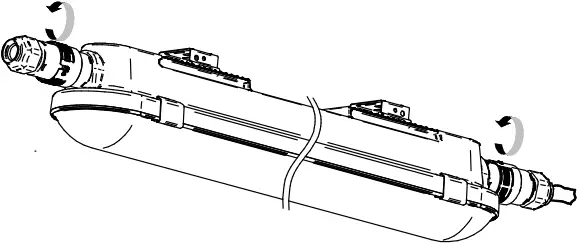

Switch off the power supply before installation
- Must be free of burrs to keep IP65 protection
[3]

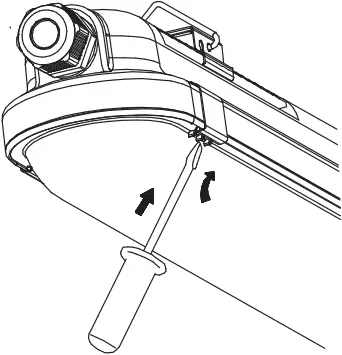

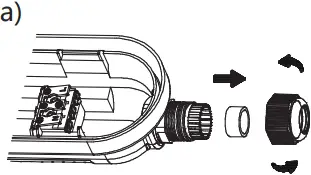

Replacement of Silicone Plug (optional)
- New Silicone Plug
- ∅12-14 mm
[4]

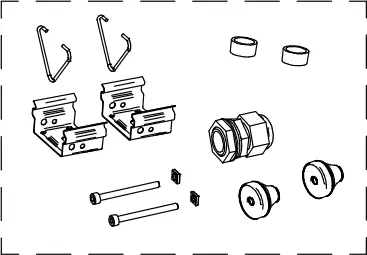

Use only optical sub-assembly which is delivered with housing in one box!
[5]
Switch off the power supply before installation

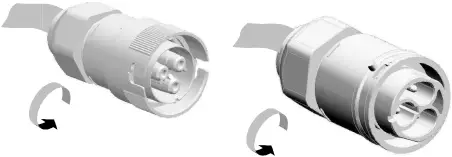

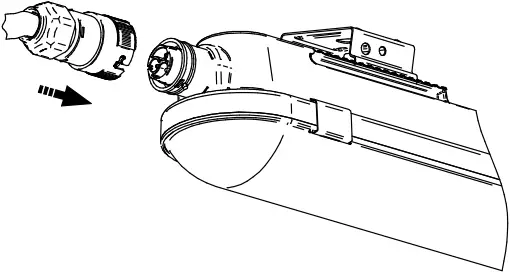

WEC versions
- 1,5-2,5 mm²
- ∅mm
[6a]
WEC versions
[6b]
WEC versions
[6c]
WEC versions
WEC versions
[6d]

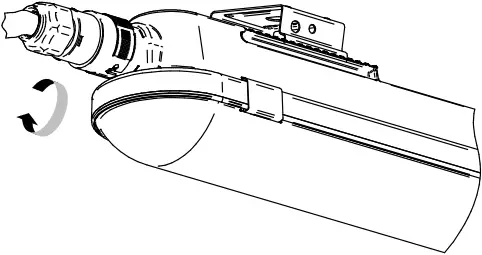

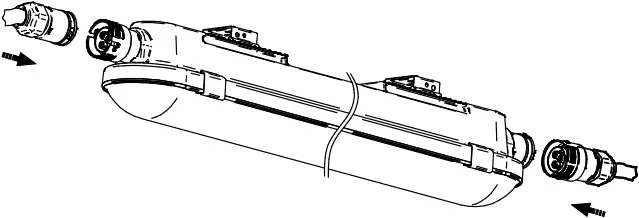

WEC versions Through wiring
[6e]
WEC versions
[6f]
WEC versions
[6g]
Through wiring WEC versions
[6h]
WEC versions
[6i]
[7]

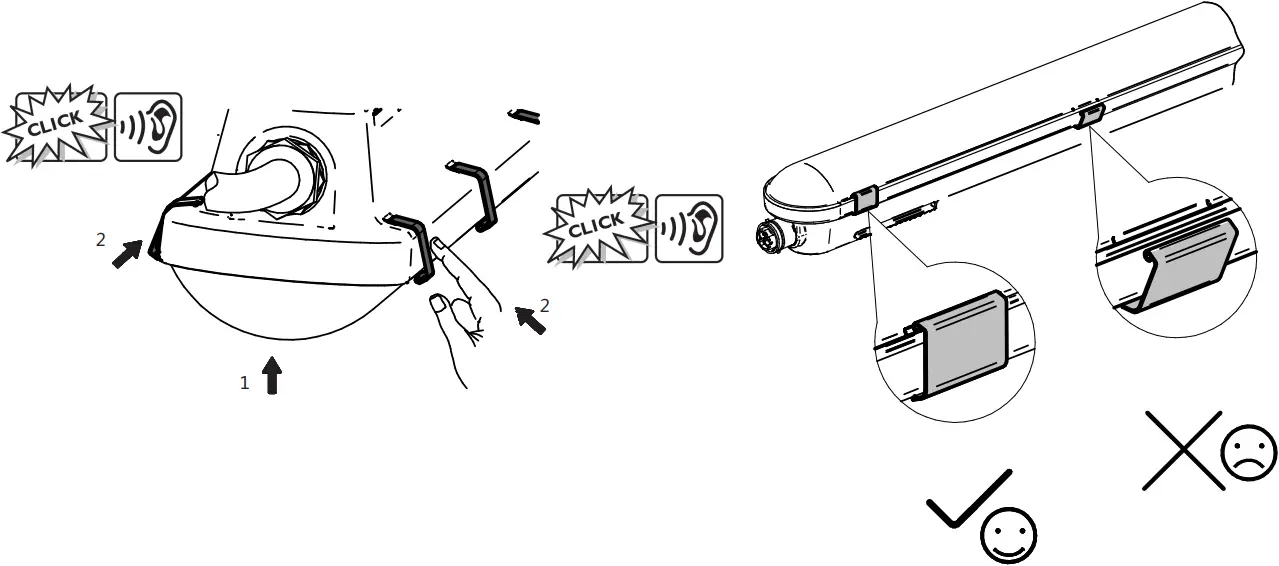

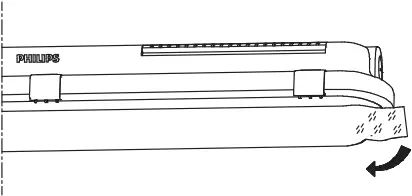

Remove protection foil after installation and before usage!
[8]
[9]

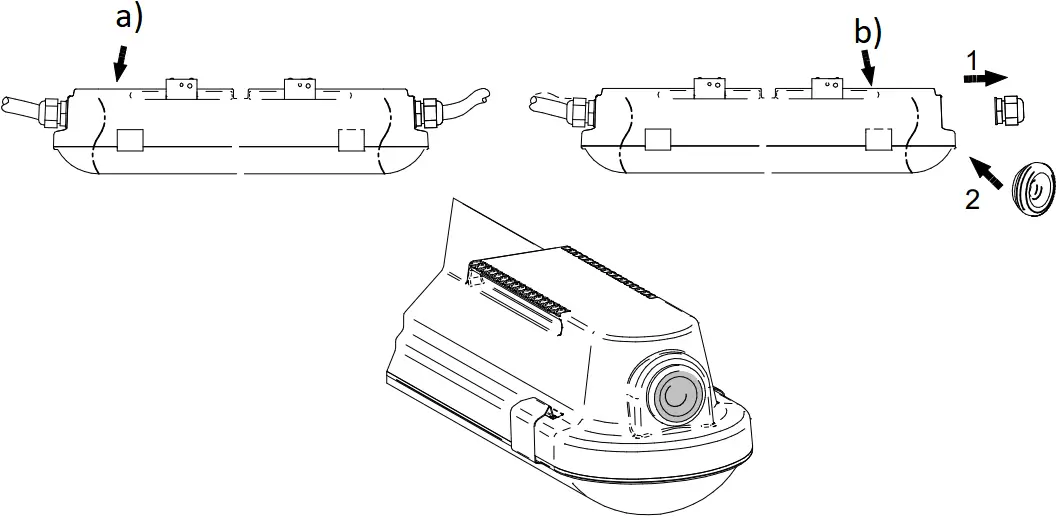

a) Start of line
b) End of line
[10]
SERVICE
Light source (LED) is non-user replaceable. The light source contained in this luminaire shall only be replaced by the manufacturer or his agent or a similar qualified person.
Do not touch electronic components!
Electronic components maybe under high voltage.
Caution, risk of electric shock
ATTENTION
OBSERVE PRECAUTIONS FOR HANDLING
ELECTROSTATIC SENSITIVE DEVICES

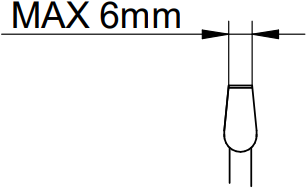

Maximal screwdriver size:

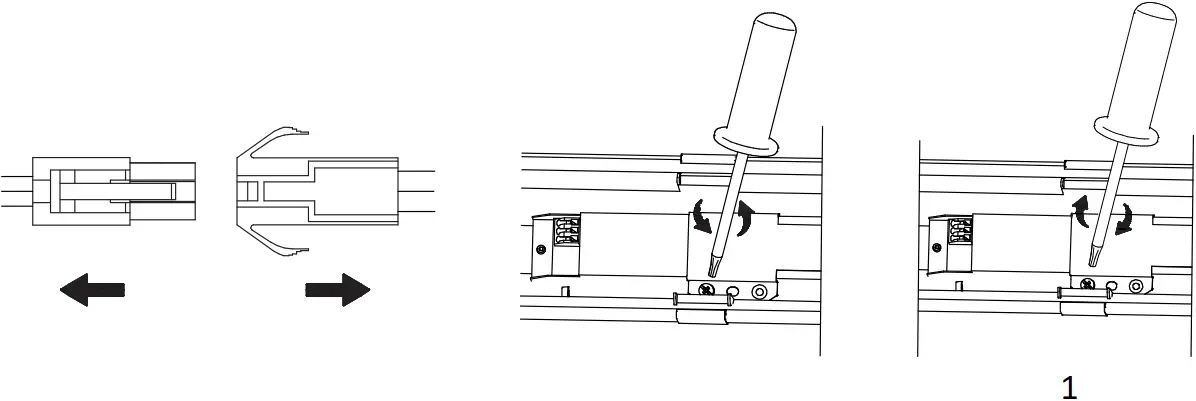

[11a]
- New driver
[11b]

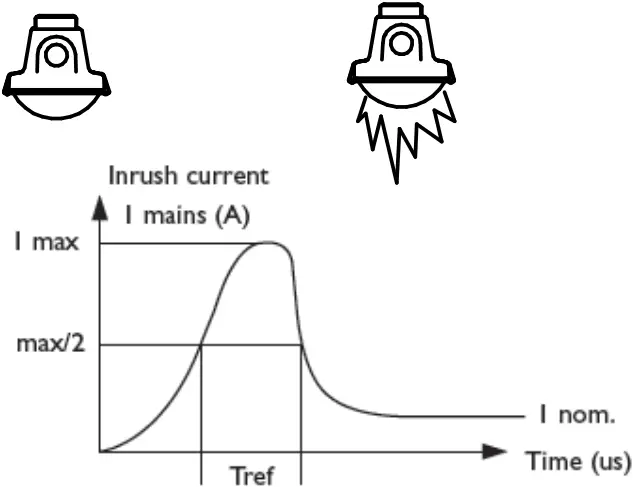

| LED19S LED27S | LED34S | |||||
| Driver type |
PSU (Certa) |
PSU (Xitanium) | PSD | PSU (Certa) | PSU (Xitanium) |
PSD |
|
Ipeak [A] |
14.2 | 15.1 | 19.4 | 14.2 | 15.1 | 19.4 |
| Tref [μs] | 222 | 230 | 200 | 222 | 230 |
200 |
| Max. Nr of products | ||||||
|
Drivers / MCB 16A type B [max.] |
36 | 33 | 30 | 36 | 33 | 30 |
| Drivers / MCB 10A type B [max.] | 22 | 20 | 18 | 22 | 20 |
18 |
|
Drivers / MCB 16A type C [max.] |
61 | 56 | 51 | 61 | 56 | 51 |
| Drivers / MCB 10A type C [max.] | 37 | 34 | 31 | 37 | 34 |
31 |
|
LED40S |
|||||
| Driver type | PSU (Certa) | PSU (Xitanium) | PSD | IA1 |
WIA |
|
Ipeak [A] |
14.2 | 15.1 | 19.4 | 22 | 19 |
| Tref [μs] | 222 | 230 | 200 | 270 |
230 |
| Max. Nr of products | |||||
|
Drivers / MCB 16A type B [max.] |
36 | 33 | 30 | 22 | 24 |
| Drivers / MCB 10A type B [max.] | 22 | 20 | 18 | 13 |
15 |
|
Drivers / MCB 16A type C [max.] |
61 | 56 | 51 | 37 | 40 |
| Drivers / MCB 10A type C [max.] | 37 | 34 | 31 | 22 |
24 |
|
LED60S/65S |
|||||
| Driver type | PSU (Certa) | PSU (Xitanium) | PSD | IA1 |
WIA |
|
Ipeak [A] |
14.2 | 17.8 | 20.9 | 22 | 19 |
| Tref [μs] | 222 | 282 | 192 | 270 |
230 |
| Max. Nr of products | |||||
|
Drivers / MCB 16A type B [max.] |
36 | 24 | 29 | 22 | 24 |
| Drivers / MCB 10A type B [max.] | 22 | 15 | 18 | 13 |
15 |
|
Drivers / MCB 16A type C [max.] |
61 | 40 | 49 | 37 | 40 |
| Drivers / MCB 10A type C [max.] | 37 | 24 | 30 | 22 |
24 |
|
LED80S |
|||
| Driver type | PSU (Certa) | PSU (Xitanium) |
PSD |
|
Ipeak [A] |
15 | 17.8 | 20.9 |
| Tref [μs] | 240 | 282 |
192 |
| Max. Nr of products | |||
|
Drivers / MCB 16A type B [max.] |
31 | 24 | 29 |
| Drivers / MCB 10A type B [max.] | 19 | 15 |
18 |
|
Drivers / MCB 16A type C [max.] |
52 | 40 | 49 |
| Drivers / MCB 10A type C [max.] | 32 | 24 |
30 |
Maintenance instructions
– Do not stare into LED light beam.
– The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
– The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
– Above average concentration of sulfur effects the useful lifetime of the product.
E.g: Light color changes from white to blue. Typically in chicken & pig farms.
– For use in environments where an accumulation of conductive dust on the luminaire may be expected
– Do not install the luminaire on the location where it is exposed to heavily grease, esp. mineral oil and distillates (petroleum), heavy naphthenic treated with hydrogen.
– This product is not suitable for cold & humid storage areas, especially where obvious temperature gradients are present, such as ventilation opening, door, etc.
– Do not install the luminaire on locations where it is exposed to direct sunlight.
UV radiation will damage the material over time resulting in loss of waterproof sealing and IP65 rating.
ATTENTION
OBSERVE PRECAUTIONS FOR HANDLING
ELECTROSTATIC SENSITIVE DEVICES
Disconnect before servicing
Luminaire has basic insulation between Low Voltage supply and control conductors.
The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual and/or other instructions as may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty. Bolts with indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque specification to assure maximum strength over lifetime.
This product contains a light source of energy efficiency class: see table or label.
Zhaga-D4i and SR certified compatibility – For Zhaga-D4i/SR-Certified based luminaires only Zhaga-D4i/SR-Certified components/sensors are to be used (see also: https://www.zhagastandard.org/products / https://www.lighting.philips.co.uk/oem-emea/products/driving-connected-lighting). The functional compatibility of two SR-certified and/or Zhaga-D4i controllers/sensors to be used in combination, as well as the override possibility of any line-switch function used in an SR-based/Zhaga-D4i luminaire, is to be released by the master controller/sensor supplier. If using a NEMA 7-pin socket on an SR-based luminaire, a full system verification is required. Not following this advice can/will cause risk of damage and non-compliance for which Signify cannot take any responsibility.
Please inform yourself about the local waste disposal, separation and collection system for electrical and electronic products and packaging. Please act according to your local rules and do not dispose your old product and packaging with your normal household waste. The correct disposal of the packaging, your product and/or batteries will help prevent potential negative consequences for the environment and human health. Batteries should be disposed separately from the municipal waste stream via designated collection facilities. When disposing a product that contains non-user replaceable batteries, the non-user replaceable batteries shall be removed by a professional
