PHILIPS Logo HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator
Instruction Manual

HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator

Battery removal instructions for professionals Sonicare Cordless Power Flosser Series
The built-in rechargeable battery must only be removed by a qualified professional when the appliance is discarded. Before removing the battery, make sure that the battery is completely empty.
Take any necessary safety precautions when you handle tools to open the appliance and when you dispose of the rechargeable battery. Be sure to protect your eyes, hands, fingers, and the surface on which you work.
When you handle batteries, make sure that your hands, the product and the batteries are dry.
To avoid accidental short-circuiting of batteries after removal, do not let battery terminals come into contact with metal objects (e.g. coins, hairpins, rings). Do not wrap batteries in aluminum foil. Tape battery terminals or put batteries in a plastic bag before you discard them.
To remove the rechargeable battery, you need a pair of wire cutters/scissors, a flat-head (standard) and Philips screwdriver.

  1. To deplete the rechargeable battery of any charge, unplug the charging cable from the back of the Cordless Power Flosser, turn on the device and let it run until it stops. Repeat this step until you can no longer turn on the device.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - nozzle

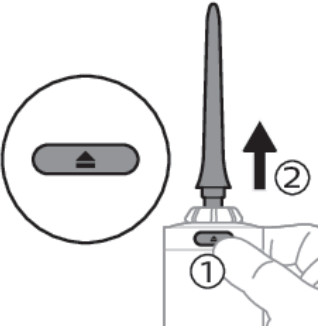

  2. Remove and discard the nozzle. To remove the nozzle, press the nozzle release button and pull the nozzle from the handle.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - reservoir

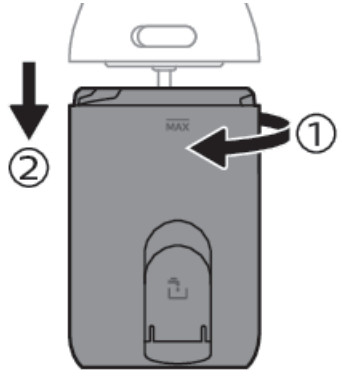

  3. Detach the reservoir from the handle.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - prying
  4. Hold the top of the handle with one hand and remove the top cover by prying it with a flat-head screwdriver.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - top cover
  5. Locate and remove all 4 screws under the top cover with a Philips screwdriver.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - button slider
  6. Remove the nozzle release button slider.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - lock arms
  7. Remove the lock arms.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - device
  8. Push the nozzle retention ring into the device. The nozzle retention ring should be fully flushed with the body.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - bottom

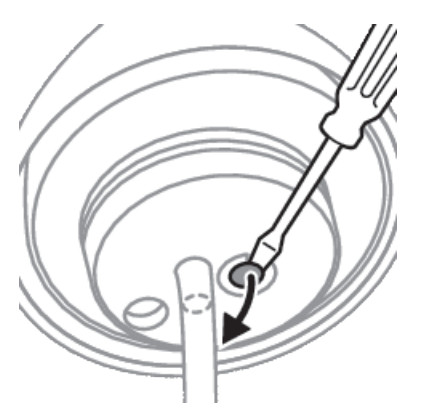

  9. At the bottom of the handle, remove the screw cover by prying it with a flat-head screwdriver.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - Philips

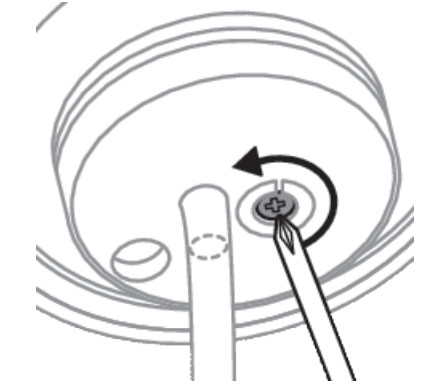

  10. Remove the screw with a Philips screwdriver.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - bottom cover
  11. Grab the bottom cover and pull the internal assembly from the handle.
  12. Pull the bottom cover away from the assembly.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - directly connected
  13. Locate and cut the wires directly connected to the battery.PHILIPS HX3866-41 Series Sonicare Power Flosser Cordless Oral Irrigator - battery
  14. Slide the battery from the battery cradle Caution: Be aware of the sharp edges of the battery tabs to avoid injury to your fingers.
  15. Cover the battery contacts with tape to prevent any electrical short from residual battery charge.
  16. The rechargeable battery can now be recycled and the rest of the product discarded appropriately.
