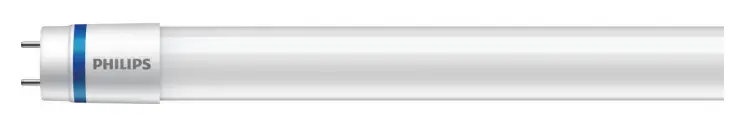

PHILIPS 8.9T8-MAS-48-840-IF16-P MasterClass InstantFit T8 LED Tubes
Contents
Introduction
8.9T8/MAS/48-840/IF16/P/DIM 10/1
The MasterClass InstantFit T8 lamps provide hassle-free installation with simple lamp-for-lamp replacements. They deliver what we promise, with at least 40% energy savings, flicker-free performance, and the life you would expect. Other lamps claim compatibility but only MasterClass InstantFit (UL Type A) has been proven to work with over 200 ballasts and drivers, delivering even light output, with proven energy savings and a long average lifetime. End users will be delighted being under these comfortable and high quality lamps with no visible flicker and optimized optics. Energy managers will enjoy these lamps too as they can count the savings delivered by our lamps. To enjoy more energy savings, the MasterClass InstantFit lamps can be paired with the Advance T LED drivers to create a Type C system. With available 70,000 hour life, 7-year limited warranty and a shatter-prevention polycarbonate lens, Philips MasterClass InstantFit TLED lamps deliver benefits for all.
Product Data
| General Information | Beam Angle (Nom) | 180 degree(s) | ||
| Cap-Base | G13 [Medium Bi-Pin Fluorescent] | Luminous Flux | 1,600 lm | |
| Nominal lifetime | 70,000 hour(s) | Color Designation | Cool White (CW) | |
| Switching Cycle | 50,000 | Correlated Color Temperature (Nom) | 4000 K | |
| Lighting Technology | LED | Luminous Efficacy (rated) (Nom) | 179 lm/W | |
| EU RoHS compliant | Yes | Color Consistency | <6 | |
| Color rendering index (CRI) | 80 | |||
| Light Technical | LLMF At End Of Nominal Lifetime (Nom) | 70 % | ||
| Color Code | 840 [CCT of 4000K] |
MasterClass InstantFit (UL Type-A) T8
| Operating and Electrical | |
| Line Frequency | 20K to 120K Hz |
| Input Frequency | 20K to 120K Hz |
| Power Consumption | 8.9 W |
| Lamp Current (Max) | 300 mA |
| Lamp Current (Min) | 90 mA |
| Wattage Equivalent | 32 W |
| Starting Time (Nom) | 0.5 s |
| Warm-up time to 60% light | 0.5 s |
| Power Factor (Fraction) | 0.9 |
| Voltage (Nom) | 120-277,347 V |
| UL Type | UL Type A |
| Temperature | |
| Ambient temperature range | -20 °C to 45 °C |
| T-Case Maximum (Nom) | 40 °C |
| Controls and Dimming | |
| Dimmable | Only with specific dimmers |
| Mechanical and Housing | |
| Bulb Finish | Frosted |
| Bulb Material | Plastic |
| Product Length | 1,200 mm |
| Bulb Shape | T8 |
| Approval and Application | |
| Energy Saving Product | Yes |
| Approval Marks | RoHS compliance UL certificate DLC |
| compliance | |
| Energy Consumption kWh/1000 h | – kWh |
| Application Conditions | |
| can it be used in closed luminaires | Yes |
| Product Data | |
| Order product name | 8.9T8/MAS/48-840/IF16/P/DIM 10/1 |
| Full product name | 8.9T8/MAS/48-840/IF16/P/DIM 10/1 |
| Order code | 565606 |
| Material Nr. (12NC) | 929003025504 |
| Numerator – Quantity Per Pack | 1 |
| EAN/UPC – Product/Case | 046677565602 |
| Numerator – Packs per outer box | 10 |
| EAN/UPC – Case | 50046677565607 |
Dimensional Drawing
| Product | D1 | D2 | A1 | A2 | A3 |
| 8.9T8/MAS/48-840/ IF16/P/DIM 10/1 |
25.7 mm | 26.3 mm | 1,198.1 mm | 1,205.2 mm | 1,212.3 mm |
Photometric Data
General uniform lighting – 8.9T8/MAS/48-840/IF16/P/DIM 10/1
Spectral Power Distribution Colour – 8.9T8/MAS/48-840/IF16/P/DIM 10/1

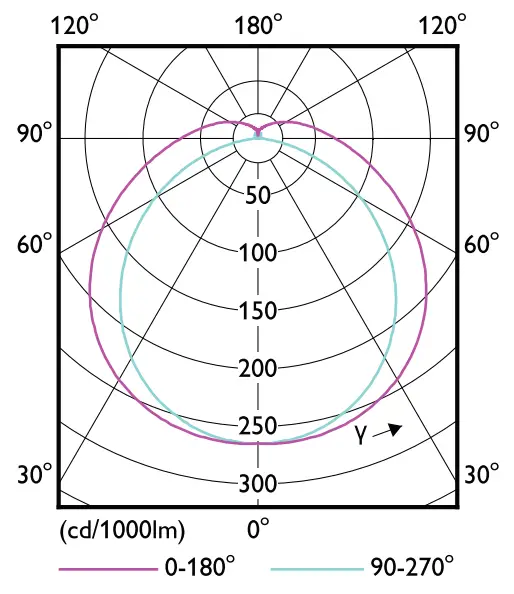

Light Distribution Diagram – 8.9T8/MAS/48-840/IF16/P/DIM 10/1
Lifetime
Lumen Maintenance Diagram – 8.9T8/MAS/48-840/IF16/P/DIM 10/1

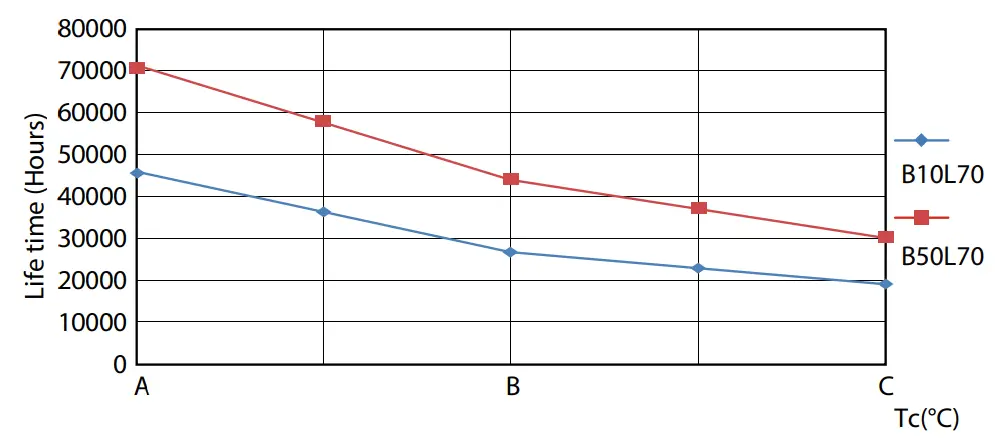

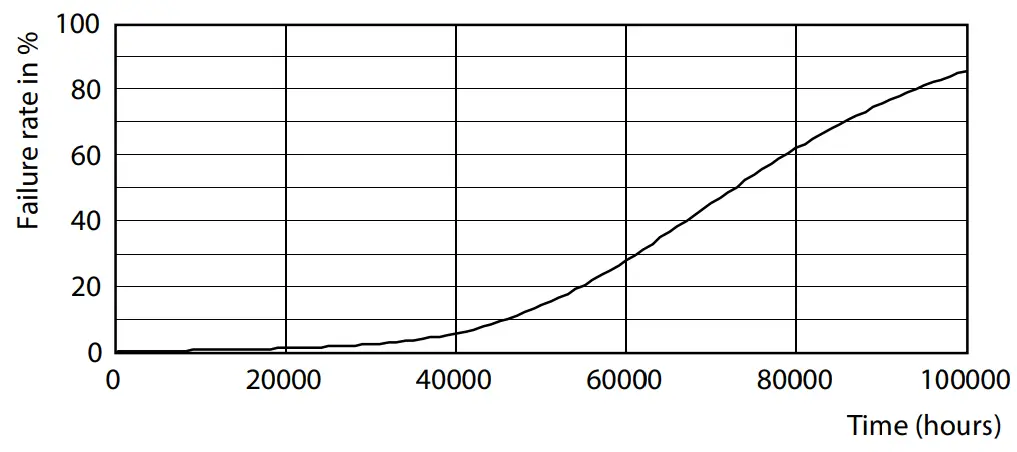

Life Expectancy Diagram – 8.9T8/MAS/48-840/IF16/P/DIM 10/1
Life Expectancy Diagram – 8.9T8/MAS/48-840/IF16/P/DIM 10/1
Life Expectancy Diagram – 8.9T8/MAS/48-840/IF16/P/DIM 10/1
Lumen Maintenance Diagram – 8.9T8/MAS/48-840/IF16/P/DIM 10/1
