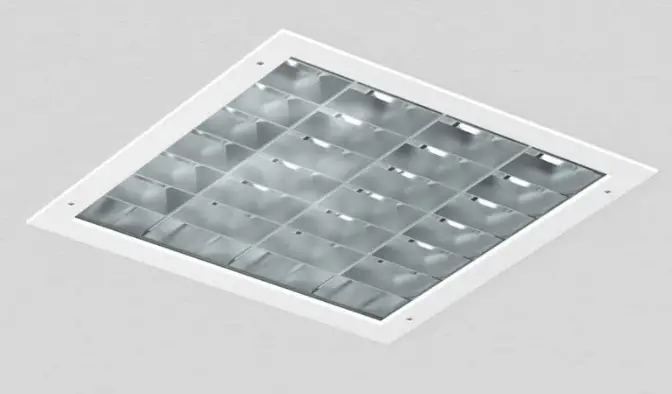

PETRIDIS Lighting 594 RVS-OVS LED
Product Information
- Luminaire Name: RVS-OVS Led
- Instruction: Surface Mounted Pendant
- Mounting Options: Recessed, Track, Ceiling

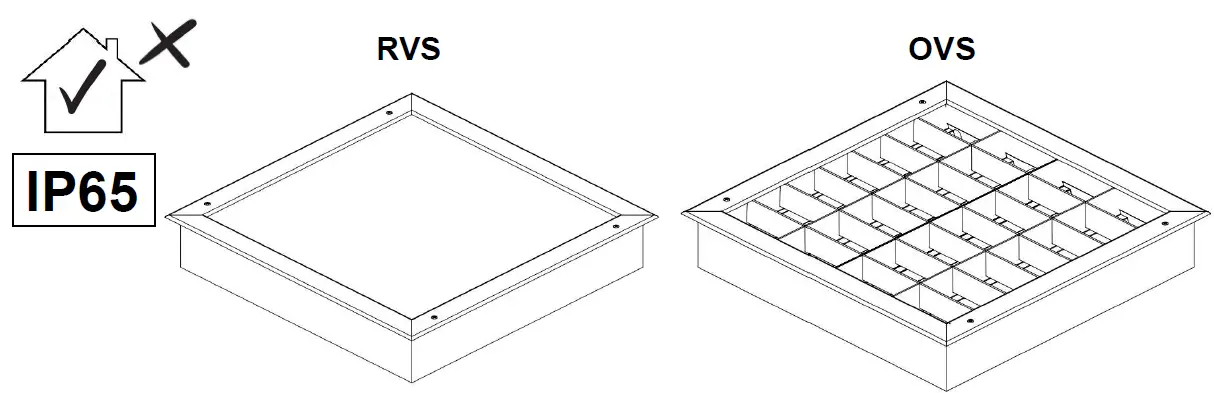

- IP Rating: IP65
- Available Sizes: RVS-OVS 594, RVS-OVS 592

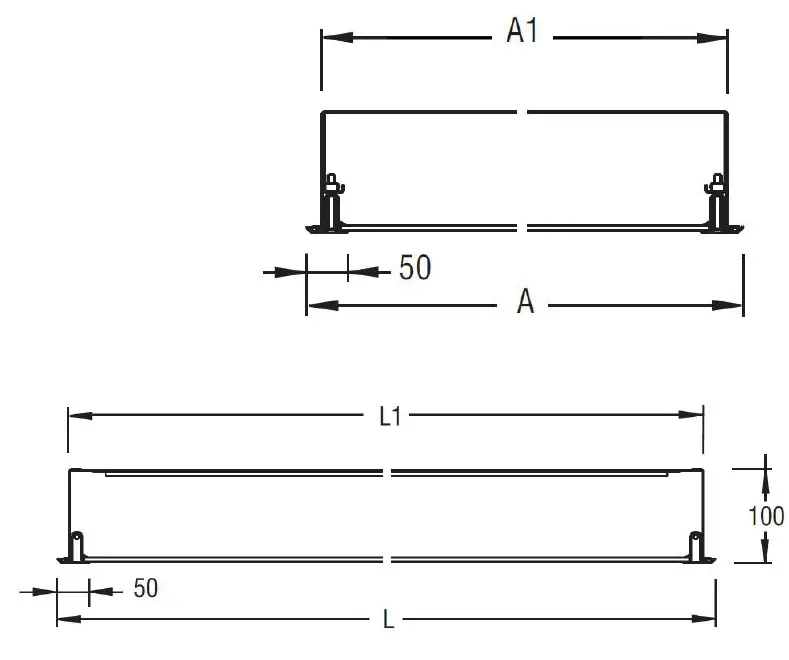

| A (mm) | L (mm) | A1 (mm) | L1 (mm) | Weight (Kg) | |
|---|---|---|---|---|---|
| RVS-OVS 594 | 598 | 598 | 580 | 580 | RVS: 10.8 Kg, OVS: 11.6 Kg |
| RVS-OVS 592 | 298 | 1192 | 280 | 1180 | RVS: 12 Kg, OVS: 12.4 Kg |
| RVS-OVS 592 | 298 | 1498 | 280 | 1480 | RVS: 15 Kg, OVS: 15.8 Kg |
| RVS-OVS 594 | 598 | 1198 | 580 | 1180 | RVS: 20.7 Kg, OVS: 22.2 Kg |
Product Usage Instructions
This luminaire should be installed by qualified personnel with the installation instructions in mind. Always carry out installation and maintenance with the input voltage switched off to prevent electrical hazards. Do not touch the surfaces of the luminaire during operation and immediately after the luminaire has been switched off as it may have high temperatures. Do not customize the luminaire under any circumstances.
Mounting Options
- Surface Mounted Pendant: Use M6 screws for installation to plasterboard ceiling. A1+2mm X L1+2mm for installation. Earth connection is required.

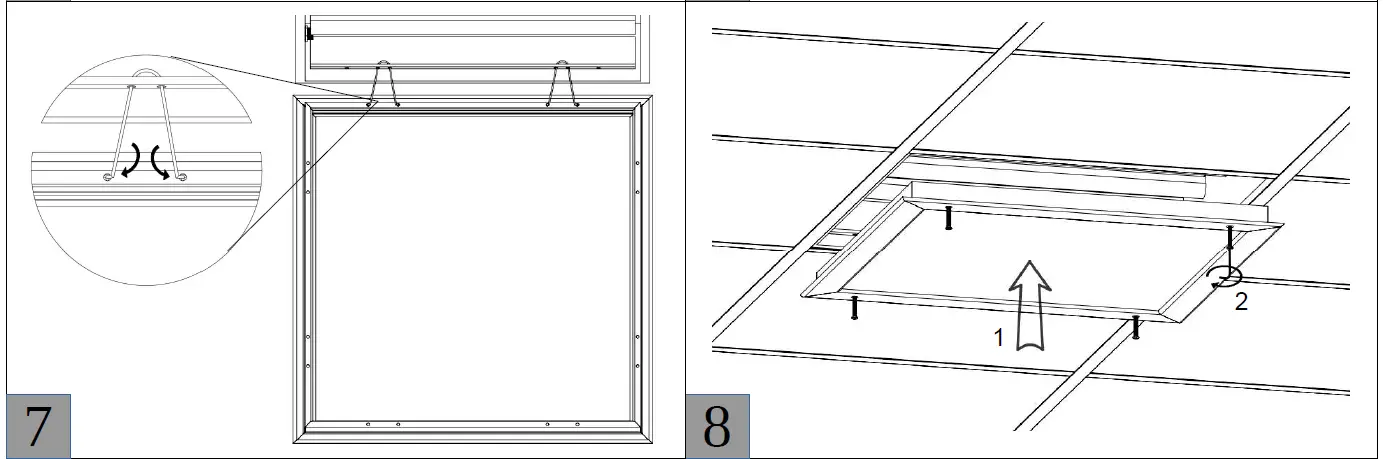

- Recessed: For installation to panels in mineral fiber.
Weight support is necessary from ceiling to metal structure. Earth connection is required. - Track: For installation to panels in mineral fiber. Earth connection is required.

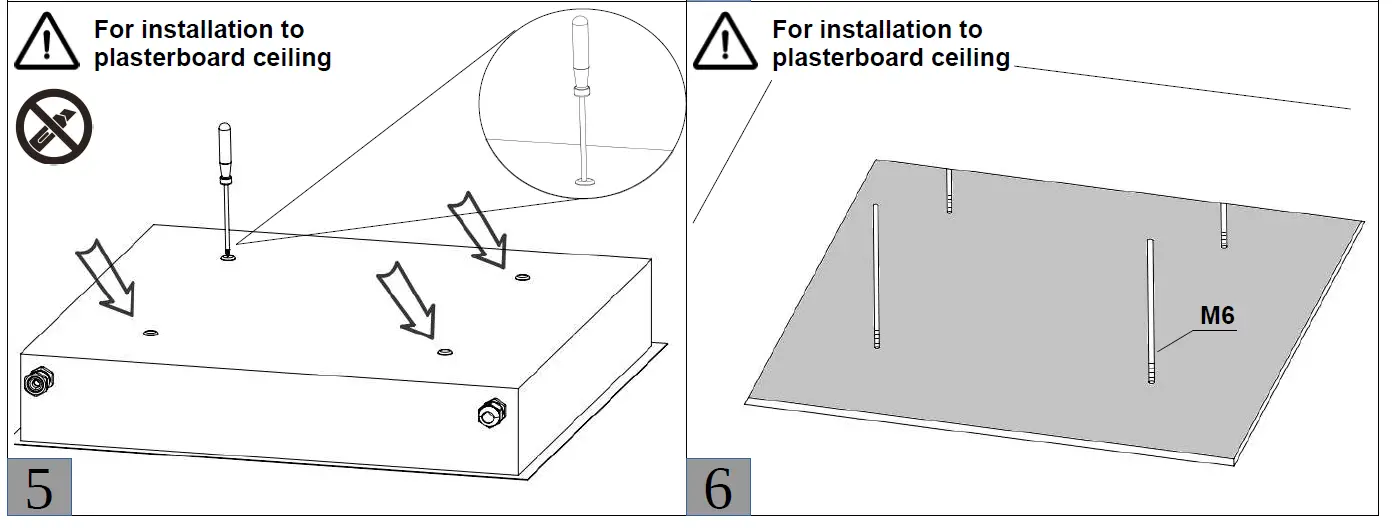

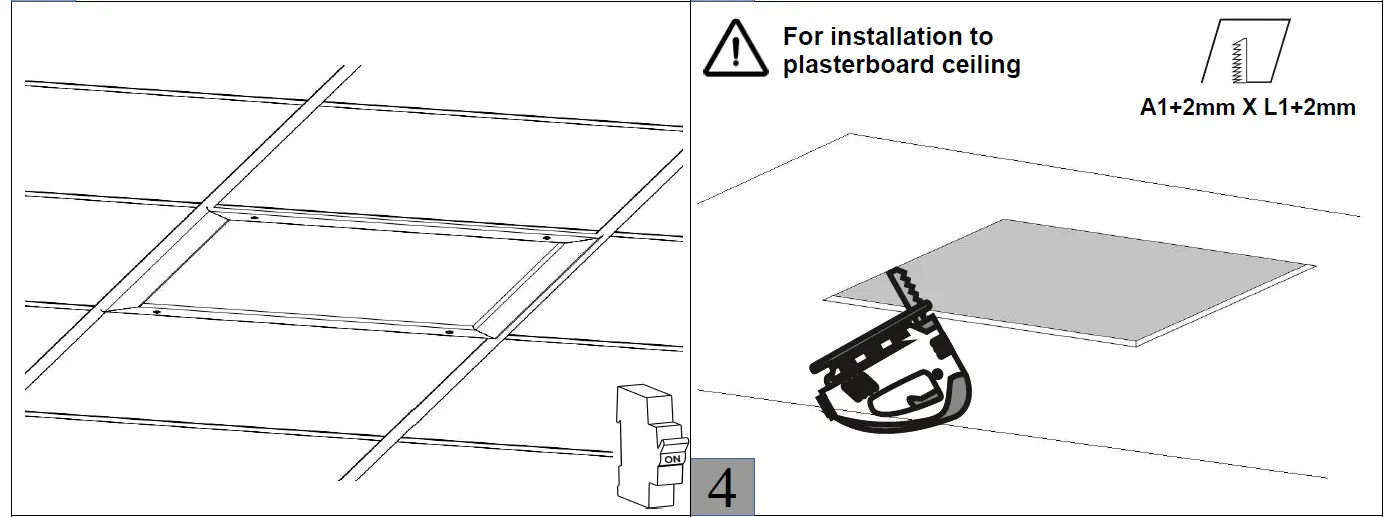

- Ceiling: For installation to plasterboard ceiling. Use M6 screws for installation. A1+2mm X L1+2mm for installation. Earth connection is required.
Proper installation and use of the luminaire is a prerequisite for the warranty. All light fixtures are recyclable and should not be disposed of as household waste.
Luminaire Name: RVS-OVS Led
Instruction: Surface Mounted
Pendant Recessed
Track Ceiling
| SPECIES | A (mm) | L(mm) | A1(mm) | L1(mm) | Weight (Kg) RVS/OVS |
| RVS-OVS 594 | 598 | 598 | 580 | 580 | 10,8/11,6 |
| RVS-OVS 592 | 298 | 1192 | 280 | 1180 | 12/12,4 |
| RVS-OVS 592 | 298 | 1498 | 280 | 1480 | 15/15,8 |
| RVS-OVS 594 | 598 | 1198 | 580 | 1180 | 20,7/22,2
|

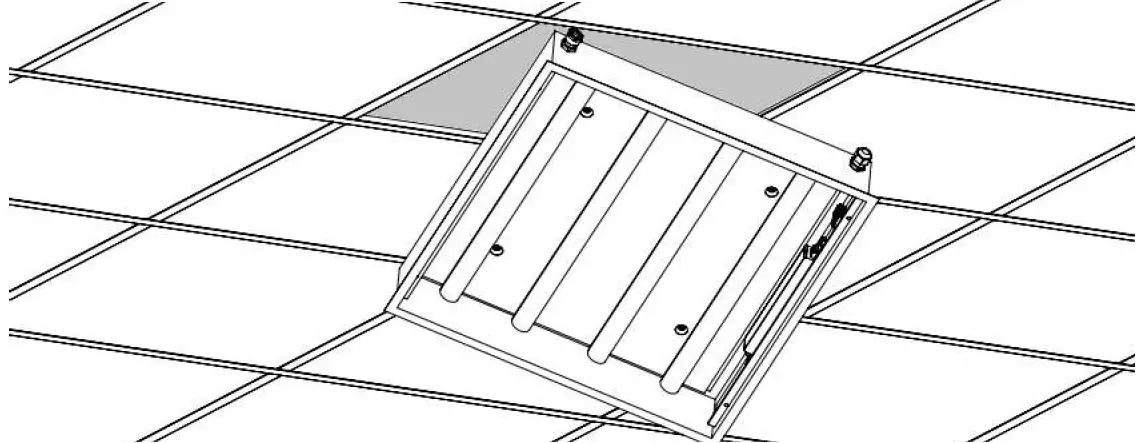

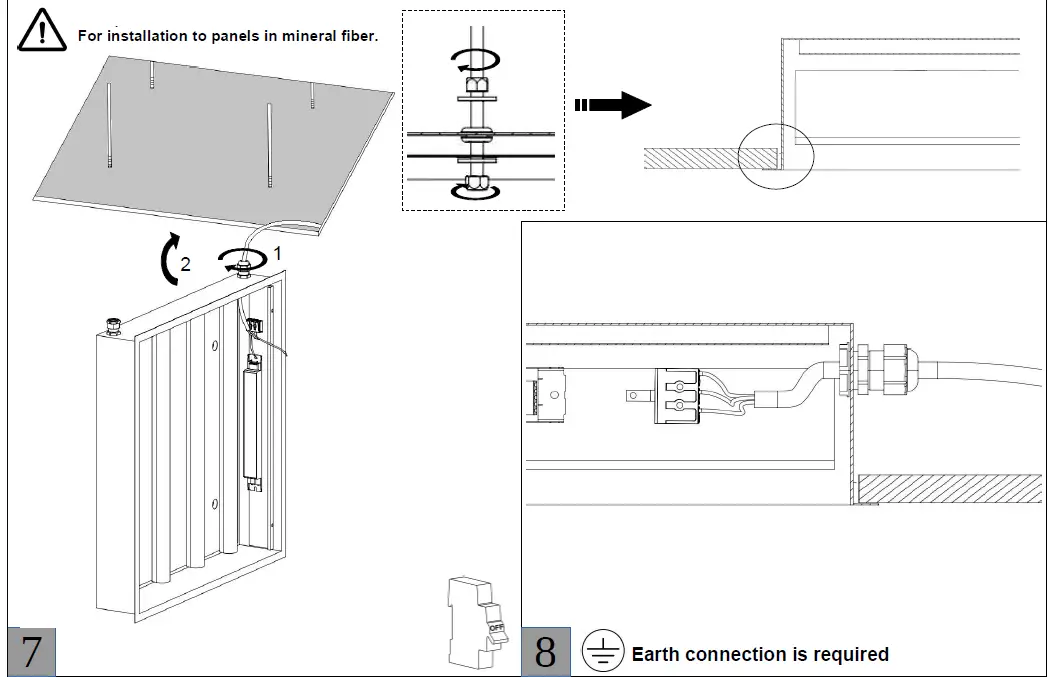

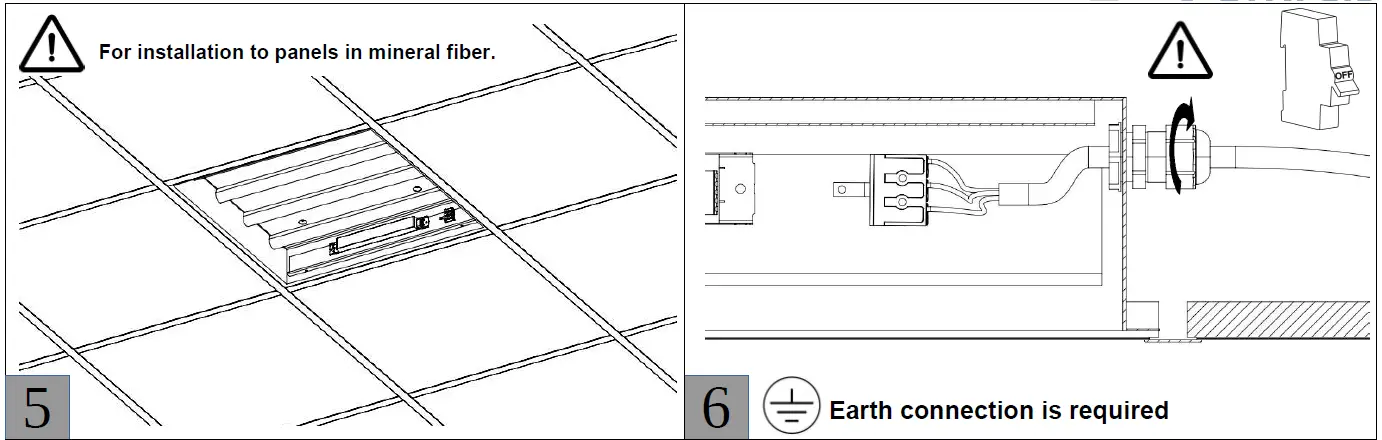

For installation to panels in mineral fiber.
Weight support, if it is necessary, from ceiling to the metal structure.
Installation of the luminaire should be done by qualified personnel with these installation instructions in mind. Installation and maintenance of the luminaire should always be carried out with the input voltage switched off. Do not touch the surfaces of the luminaire during operation and immediately after the luminaire has been switched off, which may have high temperatures on it. Under no circumstances may you allow the customization of the luminaire. Proper installation and use of the luminaire is a prerequisite for the warranty. All light fixtures are recyclable, do not be disposed of as household waste
CAUTION, risk of electric shock ”
Dust-tight
Jet – proof
The CE- mark indicates conformity to the relevant EU guidelines
Recommended room temperature: 25 °C.
This product contains a light source of energy efficiency class C
After Sales Service [email protected]
