PERGAM LM2B03E-SBA Smart Remote Laser User Guide
- High definition digital camera provides images of inspection points with measured values on 2.7” display.
- Removeable SD card to download and store data or use Bluetooth option to upload image, data and time stamp to the cloud (model LM2B03E-SBA).
- Compatible with Android and IOS devices!
- Operates on readily available rehargeable commercial AA batteries.
- Reliable: self-check and automatic calibration on start-up ensures accurate survey.
- Remote detection from 98’+ distance for safe inspections.
Contents

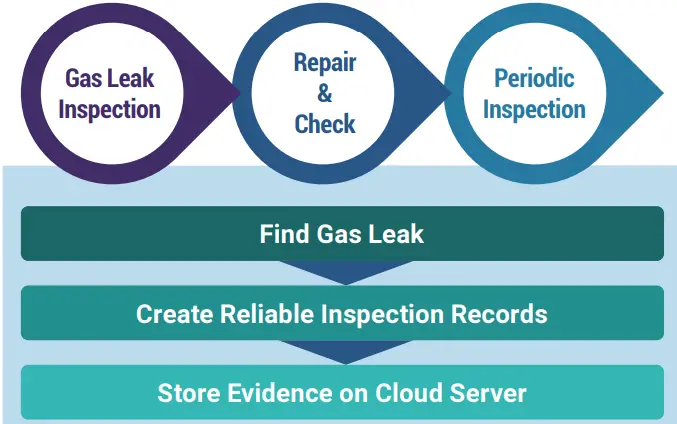

Features of devices with Bluetooth (Version : LM2B03E-SBA)
Allow users to manage the Entire Maintenance Process.
New Product & Service
Main Specifications
| ITEMS | SPECIFICATIONS |
| Model LM2B03E-SBA | Bluetooth enables data storage via communication with the cloud |
| Model LM2B03E-SNA | No Bluetooth |
| Target gas | Methane(CH4)Methane containing gases (e.g. natural gas) |
| Unit | ppm×m |
| Detection limits | 1~50,000 ppm×m |
| Detection accuracy | ±10% at 100,1000 ppm×m (distance 6.5’) |
| Detection response time | 0.1 second |
| Detection distance | 0 ~ 98.4 ft. |
| Power supply | Designation batteries (AA Ni-MH Battery)Panasonic Corporation: eneloop, eneloop pro, eneloop lite* |
| Continuous operating time | Full operation (@ 25°C) : 2.5 hours Battery : Panasonic eneloop used (Panasonic “eneloop Pro” is 3.5 hours) |
| Laser safety | IEC60825-1:2014Guide laser beam (green)Output level : 5mW (Class 3R) Below Measuring laser beamOutput level : 10mW (Class1) Below
|
| Explosion proof standard | Ⅱ 3 (1) G EX ic [op is Ga] ⅡA T4 GcATEX : EN60079-0, -11, -28 IECEx : IEC60079-0, -11, -28 |
| Protection class | Dust and drip proof construction (IP54 equivalent) |
| Environmental conditions | Operating temperature range : 1°F ~ 122°FOperating humidity range : 30–90% (No condensation) |
| Dimensions and weight | Dimensions: 2.2” (W) × 7.9” (H) × 2.1” (D)Weight: 17.6 oz When 4 batteries (eneloop) are installed |
| Measurement data storage | Recorded on an installed microSD card (capacity 16 Gb). |
- Batteries are not included with this device. Four batteries are required and must be supplied by the user.
