Basic Segment Coupler
KFD2-BR-1.PA.1500
Contents
KFD2-BR-1.PA.1500 Basic Segment Coupler
- Output: 24 … 26 V/400 mA
- Couples PROFIBUS PA devices transparently to PROFIBUS DP
- High-power trunk for high device count and long cable lengths
- Installation in Zone 2/Class I, Div. 2
- Up to 1.5 MBit auto-adapting
- PROFIBUS DP terminator selectable
- Power Rail support
Function
The FieldConnex® basic Segment Coupler is an all-in-one gateway and fieldbus power supply for connecting PROFIBUS PA to PROFIBUS DP transparently. The power output suits long cable lengths and high device counts. Device couplers provide explosion protection for live work at the spur where needed.
Communication is transparent between DP and PA. The gateway of the Segment Coupler makes each PA device appear as if it was connected to DP: This relates to addressing, cyclic/acyclic data exchange, and the transfer rate. Segment design is clear and easy to understand without subnetworks. The gateway itself is configuration-free. All in all, these features significantly reduce engineering work.
Availability and a long service life are achieved through a passive impedance filter and a design optimized for low heat dissipation. The fieldbus diagnostic handheld (FDH‑1) connects directly to test plug sockets located on the plug-in terminal.
Connection
Technical Data
| General specifications | |
| Design / Mounting | Cabinet installation |
| Supply | |
| Connection | Power Rail or terminals 11 (L+), 12 (L-) |
| Rated voltage | 20 … 30 V DC |
| Ripple | ≤ 10 % |
| Rated current | 640 mA … 365 mA |
| Power dissipation | max 2.5 W |
| Fieldbus connection | |
| PROFIBUS PA | |
| Connection | 3+, 6+, 2-, 5-, 1 shield, 4 shield |
| Rated voltage | 24 … 26 V |
| Rated current | max. 400 mA |
| Terminating impedance | 100 Ω , integrated |
| PROFIBUS DP | PROFIBUS with RS-485 transmission technology |
| Connection | terminals 7 RxD/TxD-P, 8 RxD/TxD-N, 9 shield, 10 FE |
| Baud rate | 1.5 MBit/s max. |
| Indicators/operating means | |
| Switch | PROFIBUS DP terminator |
| LED PWR | green: Power on |
| LED DP/ERR | red 2 Hz flashing: DP error red on: Hardware error red off: DP communication detected |
| LED PA | red 2 Hz flashing: No PA communication or overload Off: PA communication OK |
| Galvanic isolation | |
| PROFIBUS DP/PROFIBUS PA | functional insulation acc. to IEC 62103, rated insulation voltage 50 V AC /70 V DC |
| PROFIBUS DP/Supply | basic insulation according to IEC/EN 61010, rated insulation voltage 253 V AC /357 VDC |
| PROFIBUS PA/Supply | basic insulation according to IEC/EN 61010, rated insulation voltage 253 V AC /357 VDC |
| Directive conformity | |
| Electromagnetic compatibility | |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Standard conformity | |
| Electromagnetic compatibility | NAMUR NE 21 |
| Degree of protection | IEC/EN 60529 |
| Fieldbus standard | EN 50170/2 |
| Climatic conditions | DIN IEC 721 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient conditions | |
| Ambient temperature | -40 … 60 °C (-40 … 140 °F) |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) |
| Relative humidity | < 95 % non-condensing |
| Shock resistance | 15 g 11 ms |
| Vibration resistance | 1 g 10 … 150 Hz |
| Pollution degree | max. 2, according to IEC 60664 |
| Corrosion resistance | acc. to ISA-S71.04-1985, severity level G3 |
| Mechanical specifications | |
| Connection type | Terminals |
| Core cross section | up to 2.5 mm |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | 180 g |
| Mounting | DIN rail mounting |
| Data for application in connection with hazardous areas | |
| Certificate | TÜV 16 ATEX 7831 X |
| Marking | 1 II 3G Ex ec IIC T4 Gc |
| Directive conformity | |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 |
| International approvals | |
| CSA approval | CSA 16.70064204 |
| Approved for | Class I, Division 2, Groups A, B, C, D Class I, Zone 2, Ex nA IIC T4 Gc |
| IECEx approval | IECEx TUR 16.0006X |
| Approved for | Ex ecc IIC T4 Gc |
| General information | |
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperlfuchs.com. |
Assembly
Accessories
 |
UPR-03 | Universal Power Rail with end caps and cover, 3 conductors, length: 2 m |
 |
KFD2-EB2 | Power Feed Module |
 |
KFD2-EB2.R4A.B | Power feed module, redundant supply |
Basic Segment Coupler
Additional Information

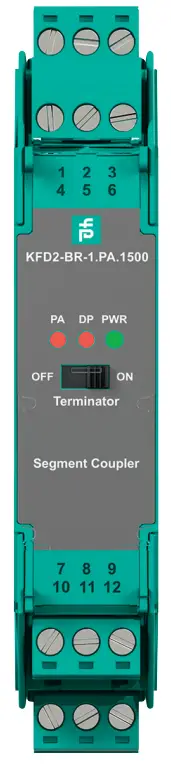

Dimensions and Assembly
Description:
- Extendable lugs
- PROFIBUS DP connection
- Switch: Terminator for PROFIBUS DP
- LED PA: Status of PROFIBUS PA
- LED DP: Status of PROFIBUS DP and hardware
- LED PWR: Status of power supply
- Removable terminal with test plug sockets
- PROFIBUS PA trunk connections
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
