Panasonic TH-75SQE1 4K UHD Signage Monitor
Contents
Important Information
The 4K-resolution SQE1 series supports portrait installation and 24/7 continuous operation with high 500cd/m² brightness and advanced connectivity. It is suited to installation in public spaces and commercial facilities
TH-75SQE1

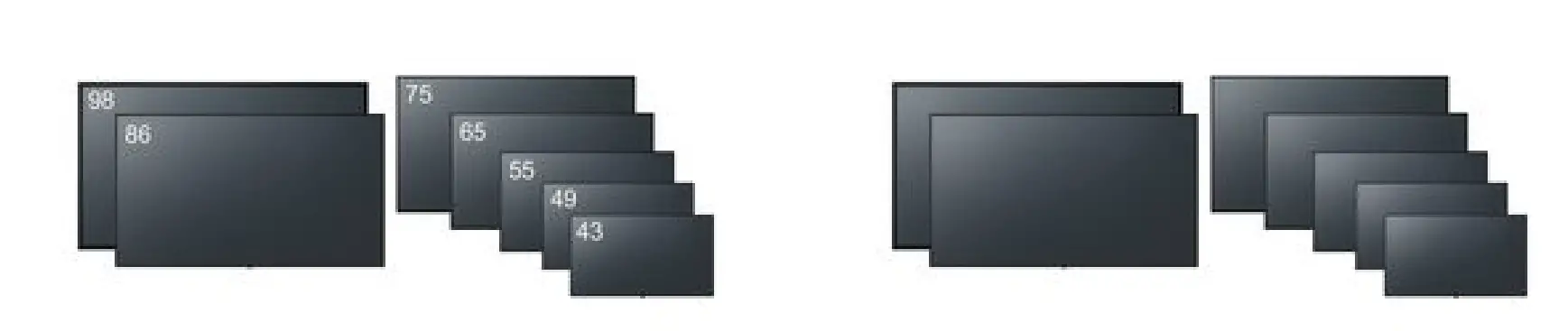

Four times higher resolution quality than Full HD has been achieved to display 4K/60p video that expresses images in detail. Compatible with a wide range of applications, for a design that blends into spaces. Supports portrait installation, and 24/7 continuous operation. Ideal for installation in public spaces. A slot with Intel® SDM (Smart Display Module) specifications has been adopted. Equipped with four HDMI input terminals that support HDMI CEC. The SQE1 Series has a USB Type-C terminal to connect with a PC or tablet. Also compatible with Crestron Connected™.
Key Features
75″, 500 cd/m2, 4K with slim and stylish design and 24/7 operation

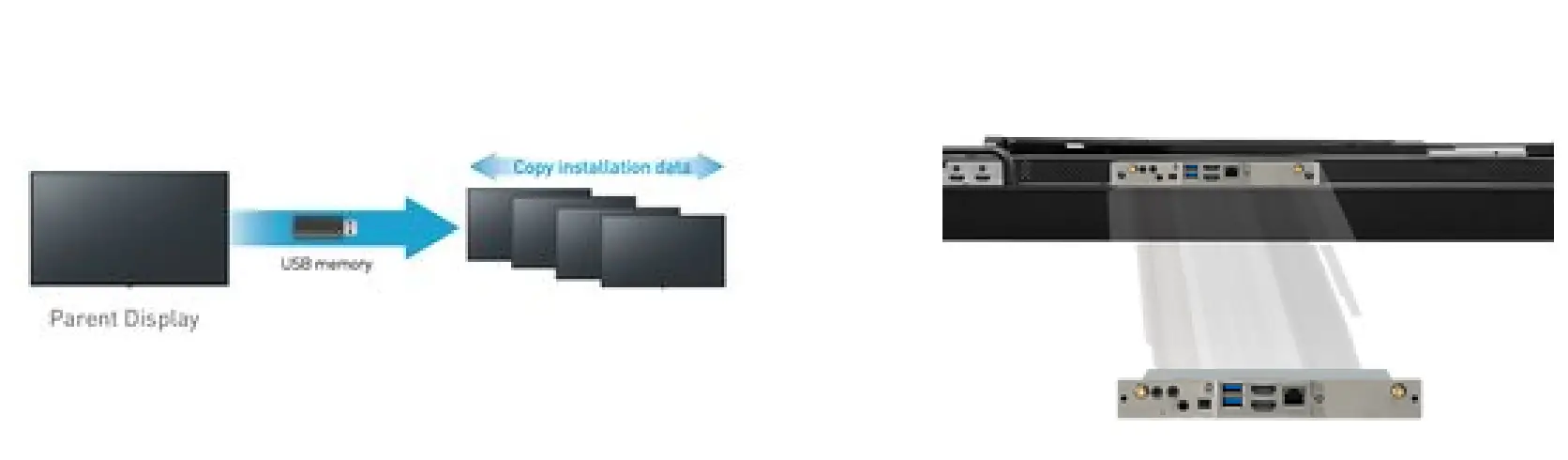

4K USB Media Player: eliminates the need for external devices and allows updates via LAN Slot with Intel® SDM (Smart Display Module) specifications.
Equipped with 4 HDMI, USB Type-A and C, DP(In/Out) input terminals, supports HDMI CEC
Embedded Wi-Fi and HTML5 browser
Flexible and light installation either in portrait or landscape
Specifications
| Screen size (diagonal) (inch) | 75-inch class (1892.7 mm) |
| Panel Type | D-LED |
| Aspect Ratio | 16:9 |
| Effective display area (W x H) (mm) | 1649.6 x 927.9 mm |
| Effective display area (W x H) (inch) | 64.94″ x 36.53″ |
| Resolution | 3840 x 2160 |
| Brightness (typ.) | 500 cd/m2 |
| Contrast Ratio | 1200:1 |
| Response Time | 8.0 ms (G to G) |
| Viewing angle [(T/B)/(L/R)] | 178° / 178° (CR>10) |
| Panel Surface Treatment | Anti-Glare Low Reflection (Haze 3 %) |
| Terminals | HDMI In | HDMI TYPE-A Connector x 4 (HDCP 2.2 supported) |
| Terminals | DisplayPort | IN DisplayPort x 1 |
| Terminals | DisplayPort | OUT DisplayPort x 1 |
| Terminals | PC In | Mini D-sub 15-pin x 1 (Female) |
| Terminals | Serial | D-sub 9-pin x 1 (Female), RS232C Compatible |
| Terminals | IR | In Stereo Mini Jack (M3) x 1 |
| Terminals | Audio | In Pin Jack x 2 (L/R) |
| Terminals | Audio | Out Stereo Mini Jack(M3) x1, SPDIF x 1 |
| Terminal | LAN | RJ45 x 1 |
| Terminals | Slot | x1 (Intel® SDM Specification Capability) |
| Terminals | USB | USB Connector (TYPE-A) x 2, (Type-C) x 1, Internal (Type-A) x 1 |
| Wi-Fi | Built-in, IEEE 802.11. a/b/g/n/ Dual Wi-Fi CERTIFIED |
| Built-in Speaker | 24 W [12 W + 12 W] |
| Power Requirements | 110–127 V AC, 50/60 Hz, 220–240 V AC, 50/60 Hz |
| Power Consumption | 334 W |
| Power Off Condition | 0 W |
| Stand-by Condition | Approx. 0.5 W |
| Dimensions (W x H x D) (mm) | 1684 x 968 x 100 mm *Excluding remote IR sensor |
| Dimensions (W x H x D) (inch) | 66.28″ x 38.09″ x 3.92″ *Excluding remote IR sensor |
| Weight (kg) | Approx. 37.4 kg |
| Weight (lbs.) | 82.5 lbs |
| Bezel width (mm) | 15.7 mm (T/R/L), 21.5 mm (B) |
| Bezel width (inch) | 0.62″ (T/R/L), 0.85″ (B) |
| Wall-hanging pitch (mm) | VESA Compliant 600 x 400 mm |
| Wall-hanging pitch (inch) | VESA Compliant 23.7″ x 15.8″ |
| Orientation*1 | Landscape/Portrait |
| Tilting angle*2 | 0-20 degrees forward with landscape/portrait setting |
| Operating time*3 | 24 h/day |
| Operating Environment | Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft) |
Note
- *When installing the display vertically, be sure that the power indicator comes to the right side.
- *Please contact your sales representative with regard to the tilt angle before installation.
- *In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.
