OUKANING HCX-AM-4001 4 Light Vintage Black Crystal Semi Flush Mount Branches Design Ceiling Light Instruction Manual

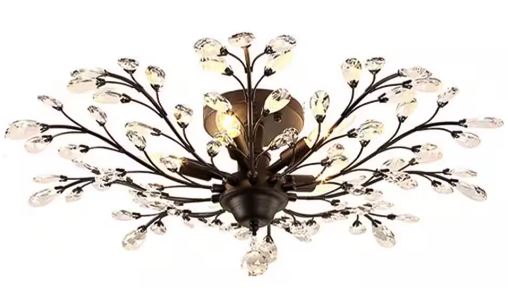

OUKANING HCX-AM-4001 4 Light Vintage Black Crystal Semi Flush Mount Branches Design Ceiling Light

Product Information

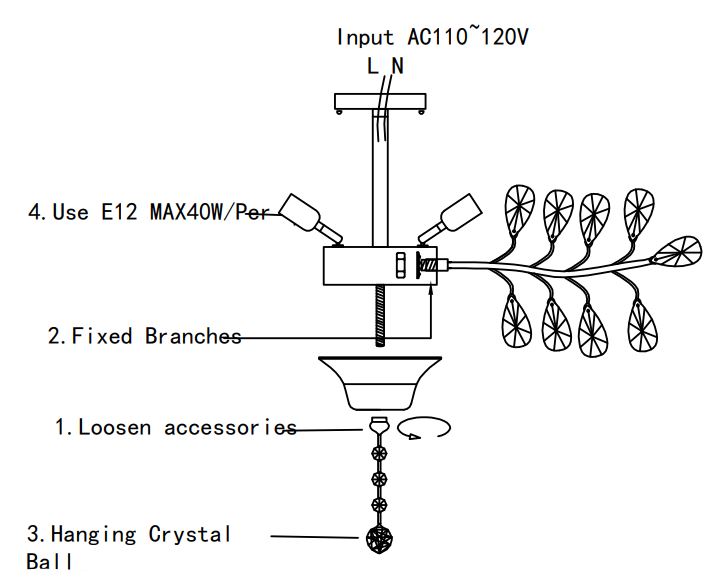

The product is a decorative lighting fixture with hanging crystal balls. It operates on an AC110~120V power supply and uses E12 MAX40W/Per bulb. The fixture consists of fixed branches that need to be assembled and accessories that need to be tightened.

Product Usage Instructions

1. Determine the direction of the branches.
2. Loosen the accessories.
3. Hang the crystal balls in the desired locations. There are three crystal balls numbered 1, 2, and 3.
4. Find the appropriate hole location on the branches.
5. Insert the pin through the crystal hole and ensure it goes all the way through.
6. Bend the excess pins to secure them. Make sure the bending needles are uniformly facing upwards.
7. Twist the tube of the fixture to the end to tighten it.

Note: The product comes with multiple quantities of certain items. The quantities are as follows: X10 for items marked as X10, X90 for items marked as X90, and X1 for items marked as X1.

INSTALLATION INSTRUCTION

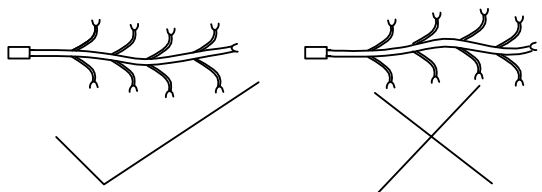

1. Determine the direction of the branches.

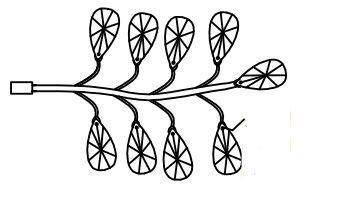

   1. Determine the Hole Location

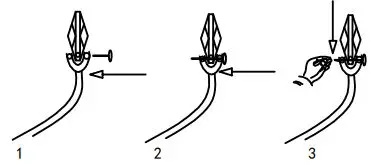

   2. The Pin Goes Through Crystal Hole
   3. Bend the excess pins to secure.
2. The Bending Needles are Uniformly Facing Upwards

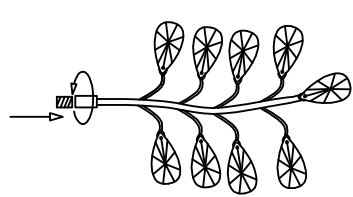

3. Twist the tube to the end

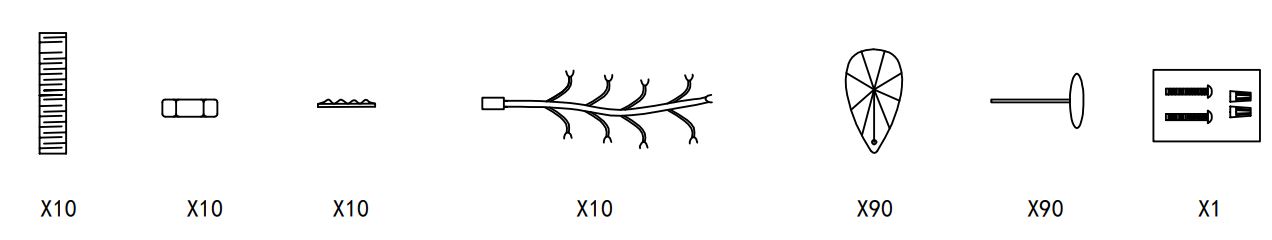

WHAT’S IN THE BOX
