Product Overview

Basic Operation

Button	Function	Operation Instruction
MFB	Power On	In ‘OFF’ status, long press for 3 seconds to power on (When powered on, it will automatically reconnect to the last paireddevice if there is pairing record.)
	Power Off	In ‘ON’ status,Long press for 5 seconds to power off
	Enter Into Pairing Mode	Power on for 2 seconds (direct earphone alternately flashes red/blue, and the headphone indicator lights up a blue light 30 seconds after pairing successfully
	Play/Pause	Short press when play music
	Redial a Call	Long press for 2 seconds
	Reconnect	Power on to automatically reconnect when there is pairing record.
	Voice Dialing	Double press
	Audio Switch	Short press 3 times to switch between phoneand headset during a calling.
	Answer a Call	Short press
	Hang up a Call	Short press
	Reject a Call	Long press for 2 seconds
Volume +	Volume Up	Short press
	Next Song	Long press for 2 seconds
Volume –	Volume Down	Short press
	Previous Song	Long press for 2 seconds
MIC Mute Off	Mute Off	The lever Angle is greater than 60 degrees
MIC Mute On	Mute On	The Angle of the lever is less than 60 degrees

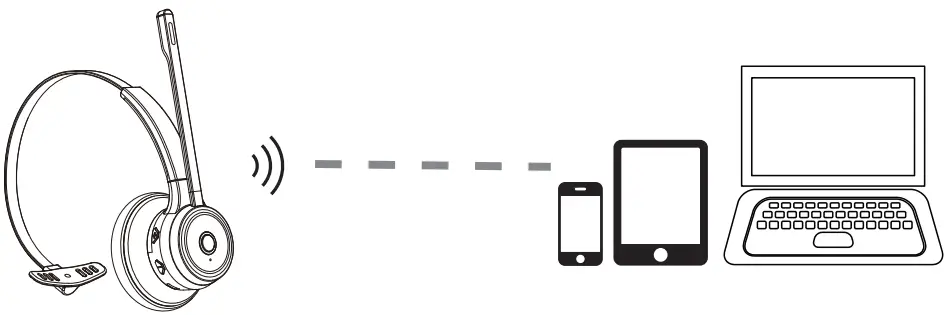

Bluetooth Pairing and Connection:

A. In ‘OFF’ status, long press 3 seconds to enter pairing mode with Blue & Red indicator light flashing alternately.
B. Search and click to connect ‘ BH369A ’ on your phone Bluetooth list,and blue indicator flashes after successfully connected. That means that you can play music from the headset at this time.
C. Press MFB/ volume+/ volume- on the Bluetooth headset to control the answer/hang up a call and play/ pause of the music, next/ previous song, volume up/ down.

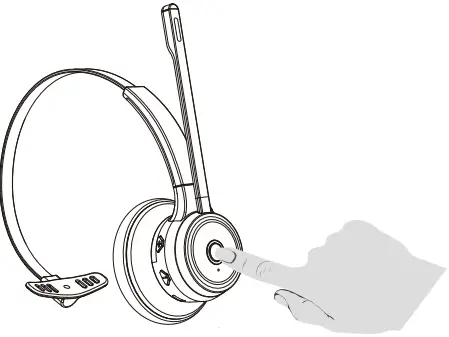

1. Long press MFB 3 seconds to enter into pairing mode, and blue & red indicator flash alternately

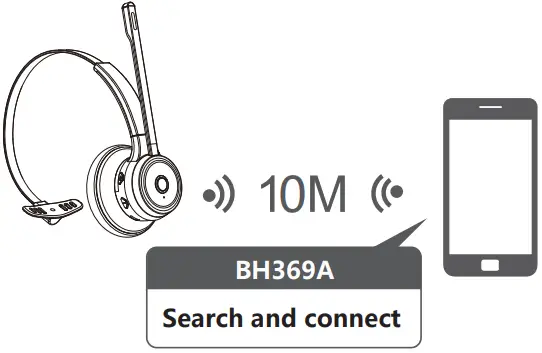

2. Search and click to connect BH369A on your phone Bluetooth list.


Dongle Connection:

Note: If the headset without dongle, please ignore this connection method

A. In ‘OFF’ status, long press 3 seconds to enter pairing mode with Blue & Red indicator light flashing alternately.
B. For the first time, after plugging in and powering on (pairing directly with Bluetooth headset), the red/blue light will cross latent flash when pairing, and the blue light will keep on after pairing successfully. If pairing fails, continue pairing. (When pairing, the red and blue lights flash alternately; Matching success blue light long on)
C. Second use, Headset startup – Connect back to transmitter (blue light flashes 10 times within 24 seconds) failed to connect back (red/blue light flashes alternately) Enter red/blue pairing mode — pairing (600 seconds)– Failed to connect after powering off headset, connect back to transmitter pairing mode

LED Indicator

Mode	LED Indicator
Power On	LED Blue flashes for 2 seconds
Power Off	LED Red flashes for 1 second
Pairing Mode	LED Red & Blue flash alternately
Unconnected Standby Mode	LED blue light once 30s
Connected Standby Mode	LED Blue flash once every 5 seconds
Playing Music	LED Blue flash once every 30 seconds
Talking	LED Blue flash once every 30 seconds
Delete Paired Record	LED Red & Blue flash alternately
Charging	LED Red light on
Full Charged	LED Blue light is on
Low Battery	LED red light blinks once every 180 seconds

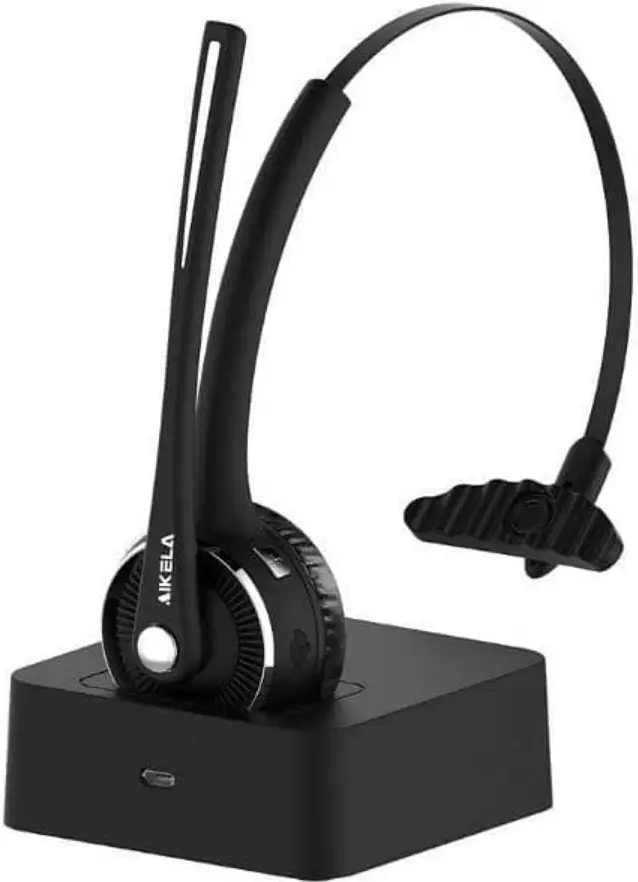

Charging

Please charge the BH369A at once when the Red LED flashes. Charging time takes about 2 hours. There will be solid and continuous LED Blue when full charged.

1.
2.

Notes：

1. Pls charge the BH369A at least one time every 3 months when not in use.
2. Charging when the item powered on, the headset will be automatically reset and powered off.

Product Specification:

Bluetooth Version	V5.3
Bluetooth Chipset	QCC3020/QCC3056
Operation Range	10 meters
CODEC Code	SBC CVSD
Battery Capacity	250mAh 3.7V
Charging Time	About 2 hours
Working Time	About 40 hours （80% volume）
Speaker Driver	30mm
Speaker Impedance	32ohms+/-15%
Sensitivity	94+/-2dB
Interface Type	TYPE-C Charging port/Charging base

Notes：*Actual use time will differ from environment and music

FCC STATEMENT

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
