ORACLE LIGHTING 4237-333 Bronco LED Dash Kit Installation

Product Information

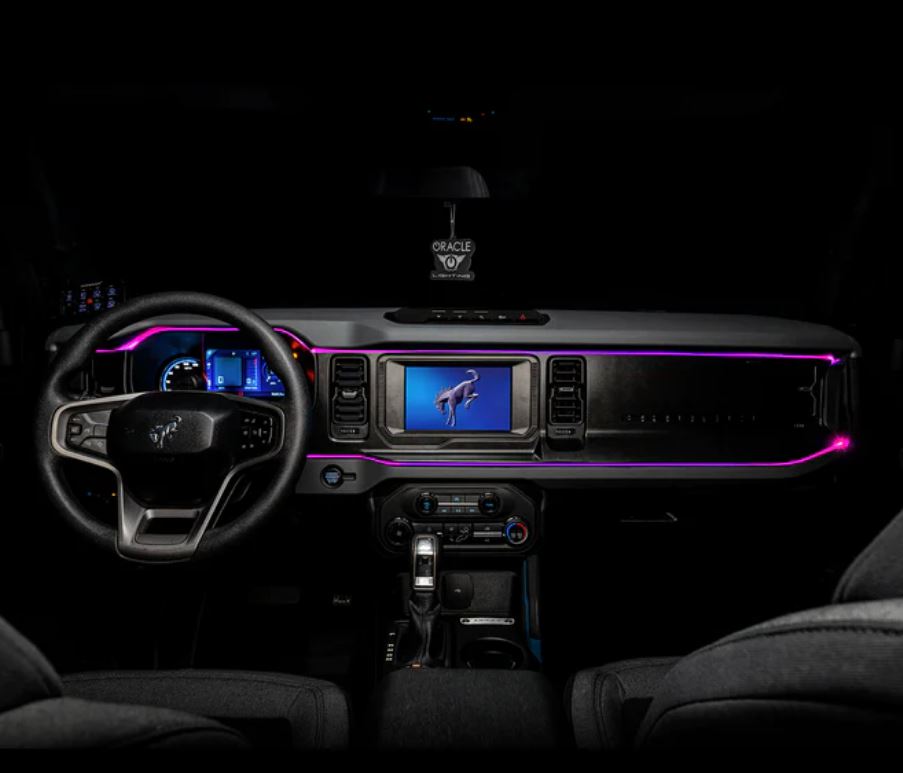

Product Name: ORACLE LIGHTING BRONCO LED DASH KIT
Product Part Number: 4237-333
Manufacturer: Oracle Lighting
Website: www.oraclelights.com
Address: 4401 Division St. Metairie, LA 70002
Technical Support Contact: 1 (800)407-5776

Product Usage Instructions

To install the ORACLE LIGHTING BRONCO LED DASH KIT, you will need the following tools:

Trim panel tool
T-30 Torx bit
7mm nut driver/socket
Philips screwdriver
CUTTING TOOL

Cutting tool Follow these steps to install the kit:

Start by measuring and cutting a 7.5ft section of cable in half. This step is only done on the bottom cable.
Remove any excess cable and store it in the glove box area.
Begin installing the cable as shown in the picture provided.
Continue installing the cable along the dash, slightly pulling the panel outward to help with the installation.
Refer to the provided diagram for proper cable routing. For additional technical support, please contact Oracle Lighting at the provided phone number.

INSTALLATION GUIDE

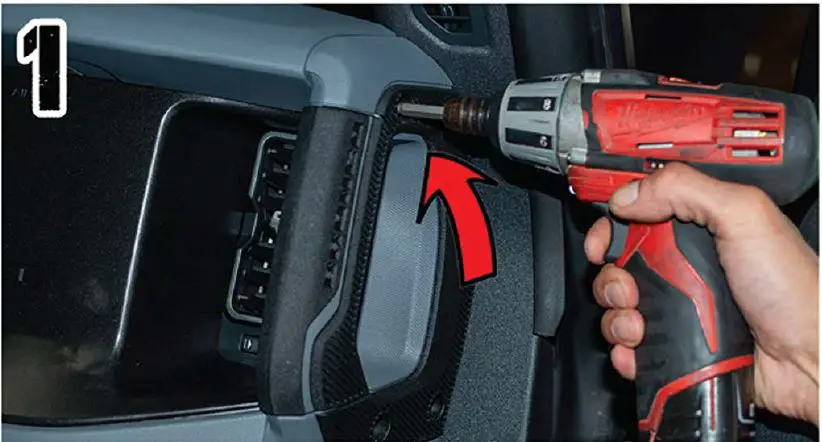

REMOVE T-30 TORX SCREWS ON DRIVER AND PASSENGER SIDE DOOR HANDLE (8) TOTAL

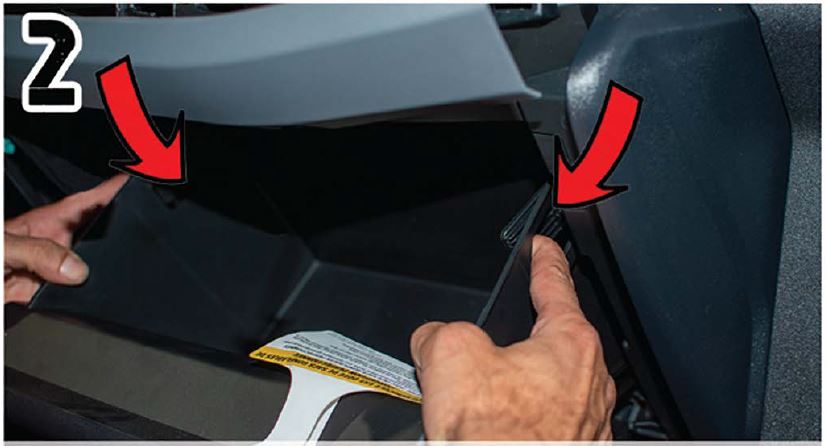

PUSH IN THESE (2) CLIPS TO DETACH THE GLOVE BOX

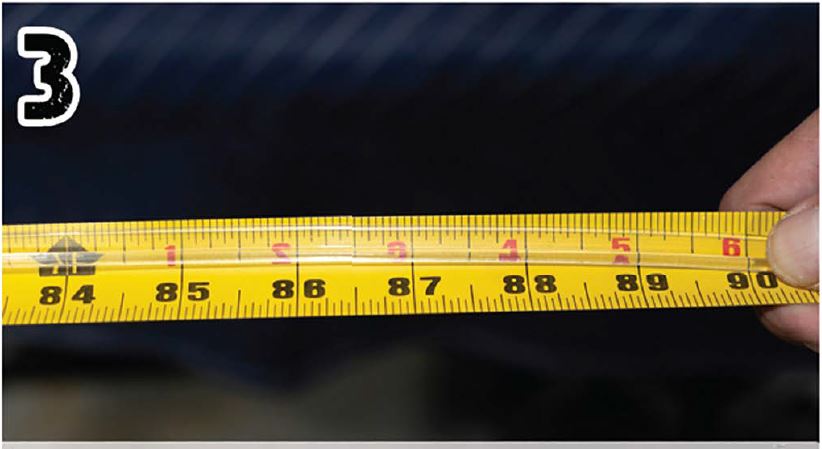

MEASURE AND CUT A 7.5FT SECTION OF CABLE

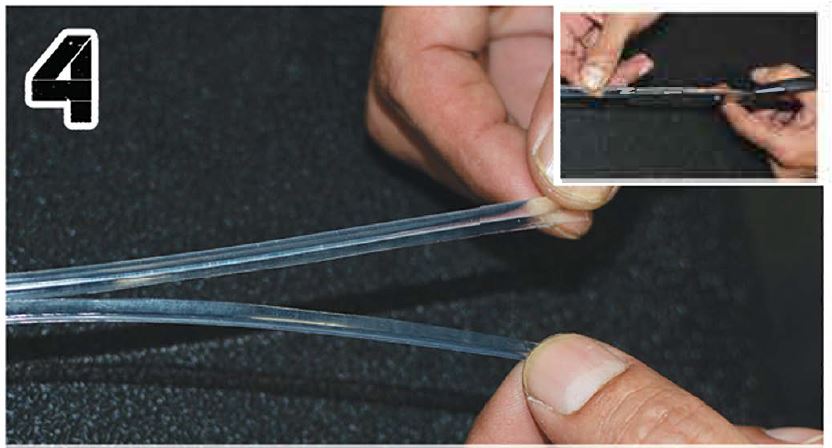

USE SHARP SNIPS OR SCISSORS TO TRIM MOUNTING FIN IN HALF (ONLY DONE ON BOTTOM CABLE)

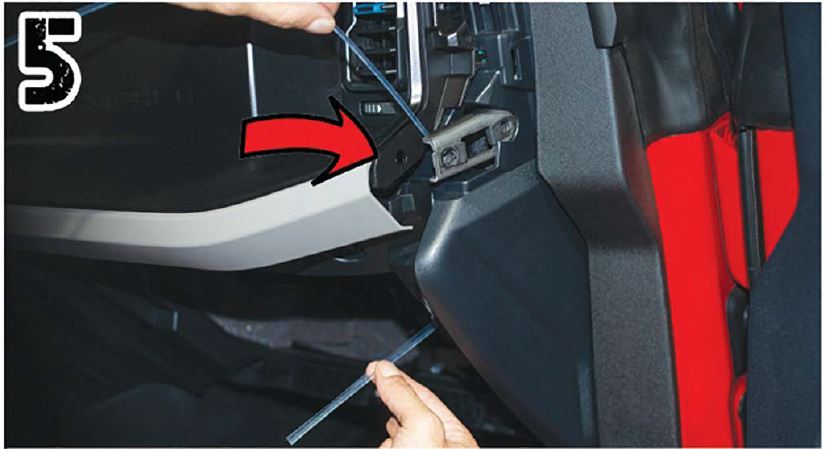

ROUTE CABLE THROUGH DASH LEAVING APPROX. BIN. OF EXCESS CABLE IN GLOVE BOX AREA

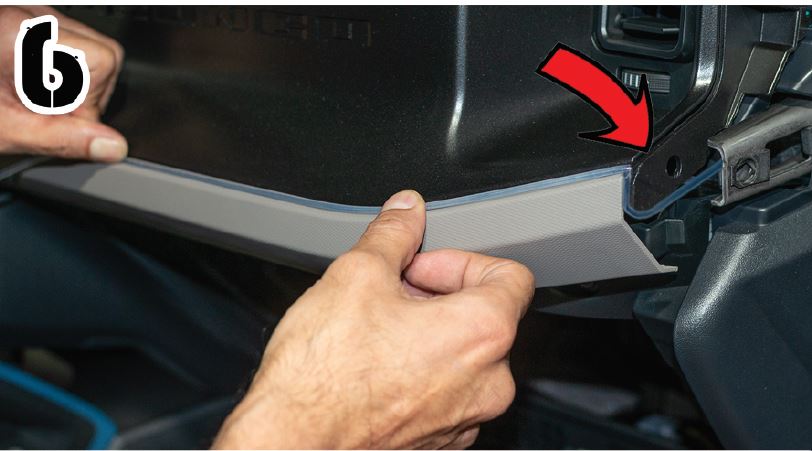

BEGIN INSTALLING CABLE AS SHOWN IN PIC ABOVE ENSURE CABLES ARE ROUTED SO NOT TO BE PINCHED WHEN RE-INSTALLING SIDE HANDLES

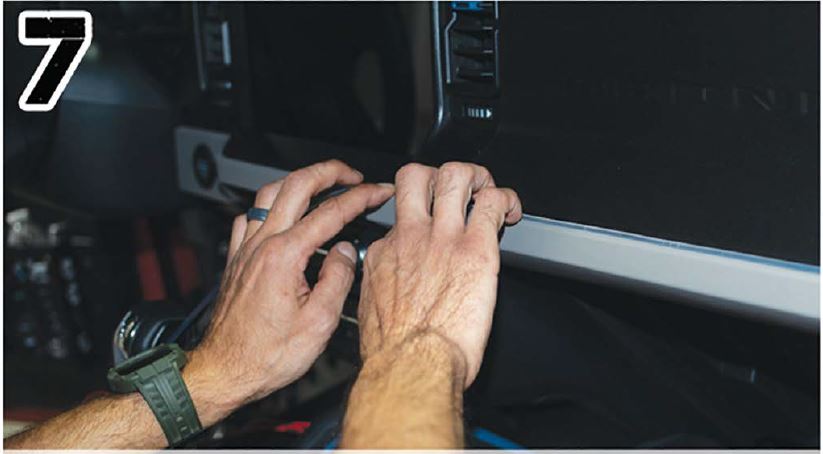

CONTINUE INSTALLNG CABLE ALONG DASH

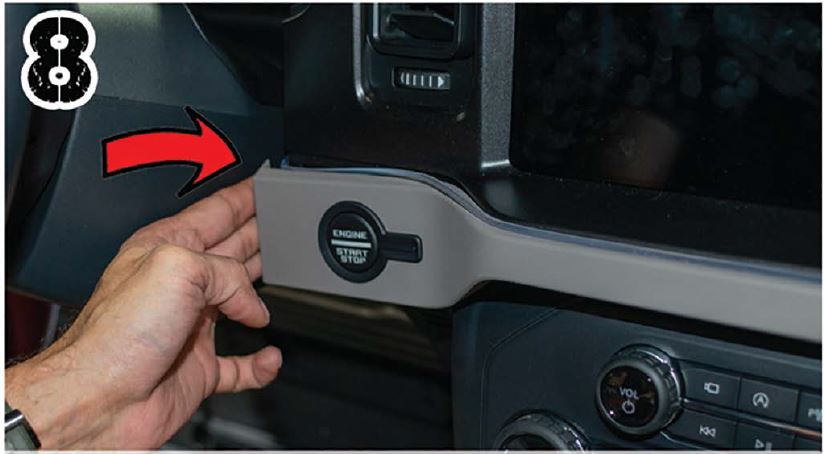

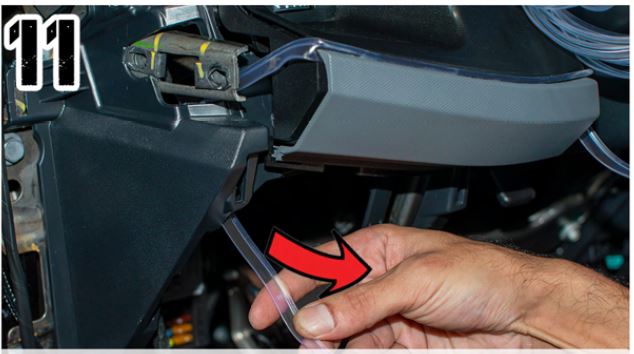

BEND CABLE AROUND CORNER WHILE INSTALLING (SLIGHTLY PULLING THIS PANEL OUTWARD HELPS)

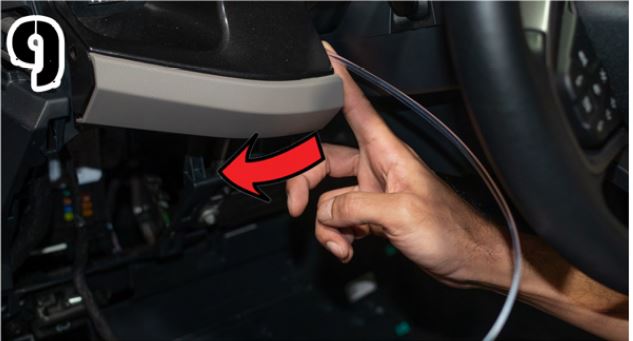

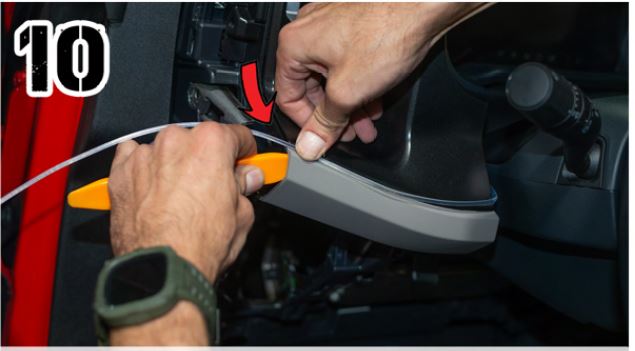

ROUTE CABLE AROUND STEERING COLUMN THEN BEGIN INSTALLING CABLE AS SHOWNUSE PANEL TOOL TO HELP SEPARATE THE PANEL TO ALLOW THE FIN TO PUSH IN
ROUTE CABLE END THROUGH DASH AS SHOWN (BE SURE TO LEAVE EXCESS CABLE FOR LIGHT HEAD)

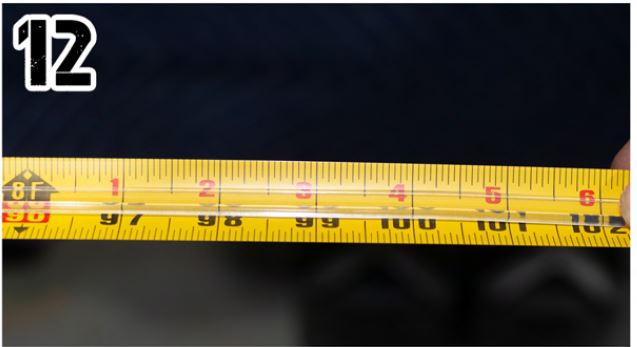

MEASURE AND CUT A 8.5FT SECTION OF CABLE
BEGIN RUNNING CABLE FROM PASSENGER SIDE TOWARDS DRIVER SIDE

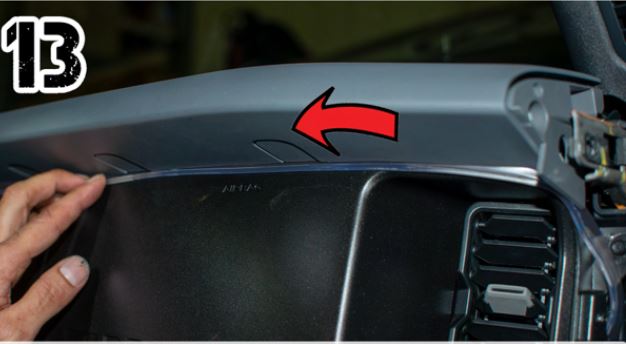

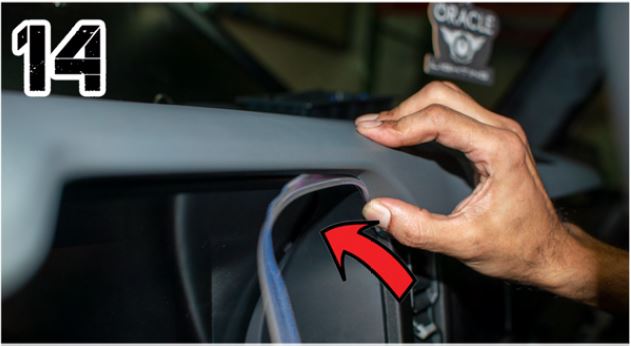

CONTINUE INSERTING CABLE ALONG TOP PORTION OF GAUGE CLUSTER

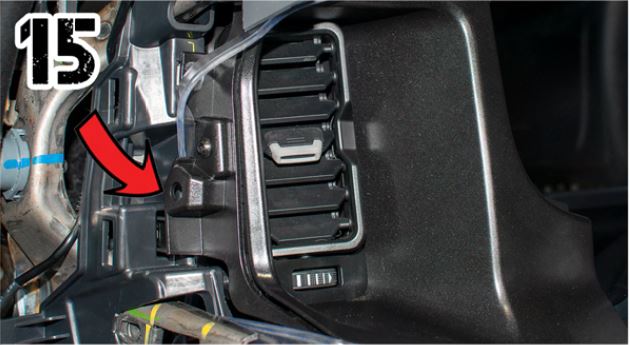

TOP CABLE WILL FEED INTO THIS LOCATION

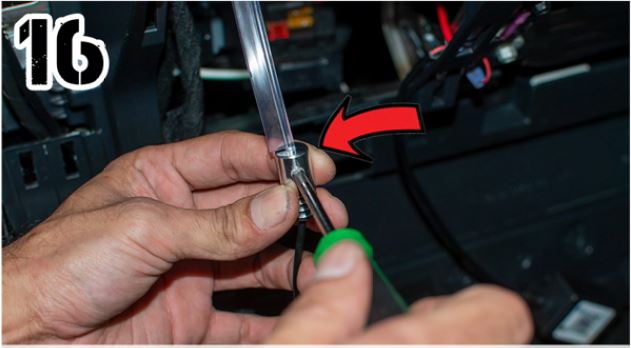

CONNECT (2) LIGHT HEADS TO CABLE END. (1) FOR THE TOP CABLE AND (1) FOR BOTTOM CABLE

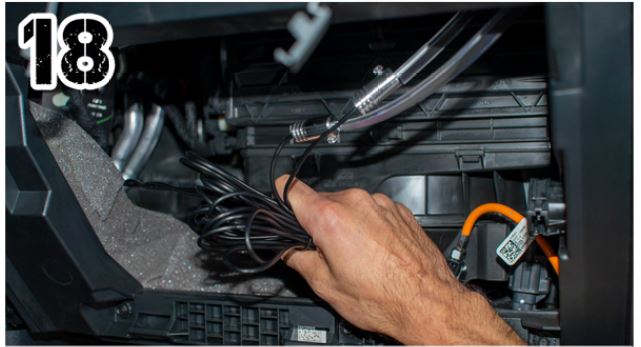

ATTACH (2) LIGHT HEADS TO TOP AND BOTTOM CABLES LOCATED IN GLOVE BOX AREA

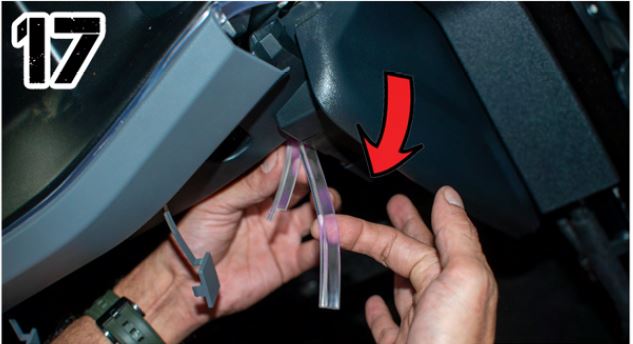

FEED CABLES INTO AREA BEHIND CENTER CONSOLE. RE-INSTALL ALL TRIM/PANEL PIECES

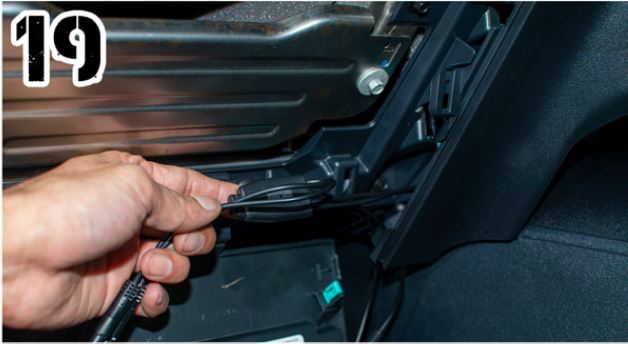

FEED CABLES INTO AREA BEHIND CENTER CONSOLE

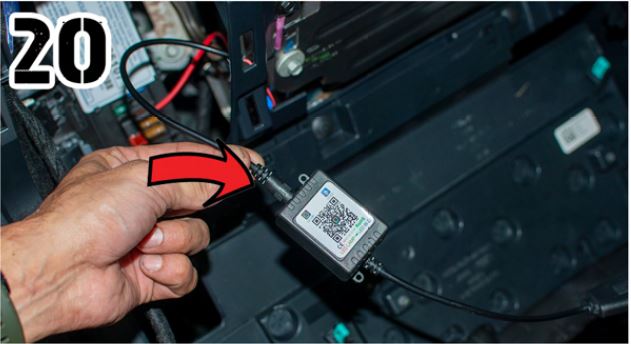

PLUG IN 12V AUX WIRE INTO BLUETOOTH CONTROLLER

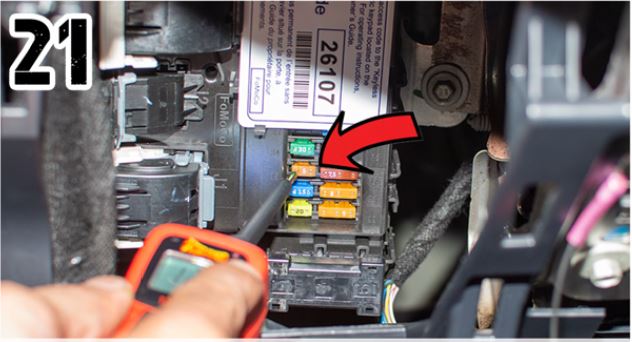

LOCATE 5A FUSE IN FUSE PANEL BY DRIVER SIDE DOOR. REMOVE THIS FUSE

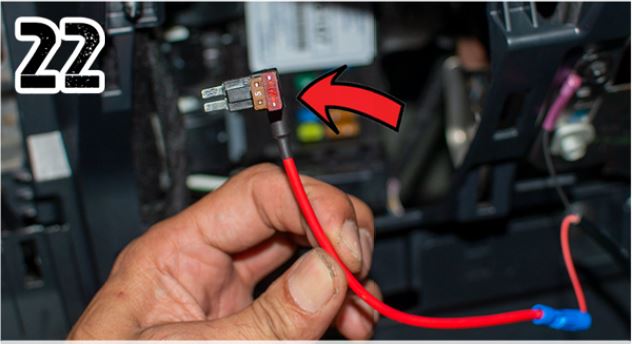

USING AN ADD-A-FUSE CIRCUIT, PLACE 5A FUSE INTO HOLDER

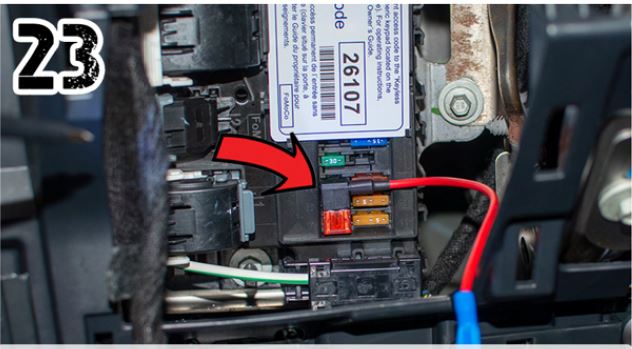

PLACE THE ADD-A-FUSE CIRCUIT INTO 5A FUSE SLOT

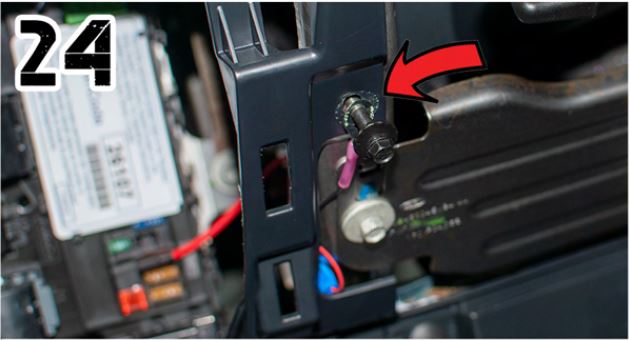

ADD-A-FUSE CIRCUIT CONNECTS TO RED WIRE. BLACK WIRE GROUNDS TO 7MM NUT
