Optoma ZH450ST Eco-Friendly High Brightness Short Throw Full HD Laser Projector Owner’s Manual
Contents
Introduction
The ZH450ST is one of Optoma’s most compact and hassle-free Full HD 1080p Dura Core laser projectors to date.
Designed for maintenance-free continuous operation, this 4200-lumen projector delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.¹
An added benefit, the ZH450ST features an external power supply offering more reliability, portability and energy efficiency.

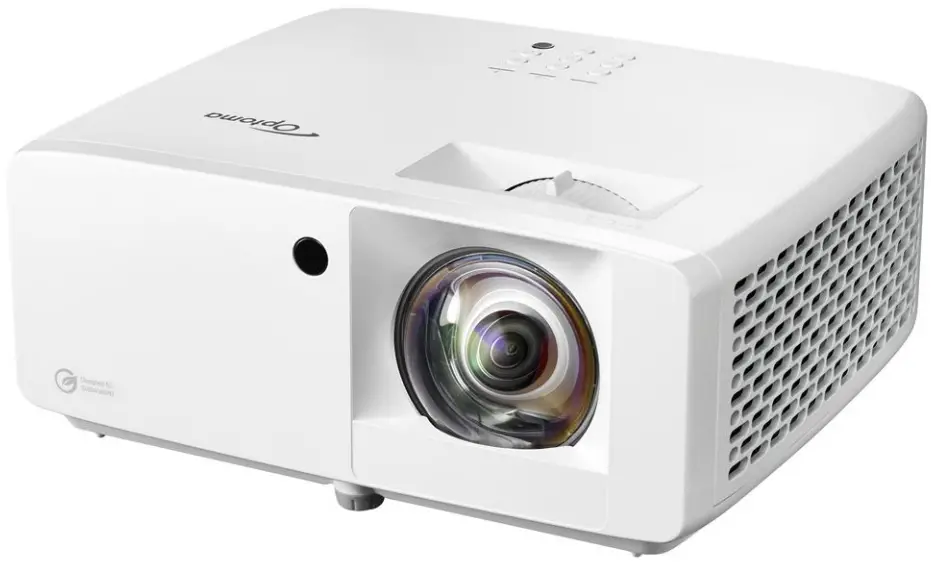

ZH450ST
Eco-friendly high brightness short throw Full HD laser projector
Features
- Bright Full HD 1080p Dura Core laser projector – 4200 lumens and IP6X certified.
- Compact and short throw lens for easy installation – 360-degree and portrait projection.
- Reduced power consumption for a long life span – Dura Core laser technology delivers 30,000 hours maintenance free laser light source.
- External power supply – More reliability, portability and energy efficiency.
Specifications
| EAN: 5055387666818, Colour: White | |
| UPC: 796435 44 658 1, Colour: White | |
| Display/image | |
| Display technology | DLP™ |
| Resolution | 1080p Full HD (1920×1080) |
| Brightness | 4,200 lumens |
| Contrast ratio | 1,800:1 |
| ANSI contrast ratio | 300,000 |
| Contrast ratio – dynamic | 2,000,000:1 |
| Native aspect ratio | 16:9 |
| Aspect ratio – compatible | 4:3,16:9,16:10 |
| Keystone correction – horizontal | +/-30° |
| Keystone correction – vertical | +/-30° |
| Displayable colors (millions) | 1073.4 |
| Horizontal scan rate | 15 ~ 140Khz |
| Vertical scan rate | 24 ~ 120Hz |
| Uniformity | 75% |
| Screen size | 36″ ~ 292″ diagonal |
| Lamp info | |
| Light source type | Laser |
| LASER life | 30,000 hours |
| Optical | |
| Throw ratio | 0.496:1 |
| Projection distance | 15.75″ – 125.98″ |
| Zoom type | Fixed |
| Focal length (mm) | 7.51 |
| Native offset | 116% |
| Connectivity | |

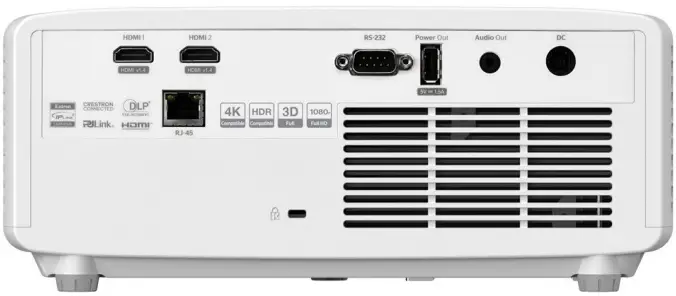

| Connections | Inputs 2 x HDMI 2.0 Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A Control 1 x RS232, 1 x RJ45 |
| General | |
| Noise level (typical) | 32Db |
| Noise level (max) | 34dB |
| PC compatibility | FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| 2D compatibility | NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) |
| 3D compatibility | Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)ver-Under: 1080p24, 720p50 / 60 |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock, Password protected interface |
| IP rating | IP6X |
| OSD / display languages | 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| 24/7 operation | Yes |
| 360° operation | Yes |
| Operating conditions | 0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m |
| Remote control | Card style |
| Speaker count | 1 |
| Watts per speaker | 15W |
| In the box | AC power cord Remote control 1x CR2025 battery Basic user manual |
| Optional wireless models | UHD Cast Pro |
| Power | |
| Power supply | External power supply, 100V ~ 240V, 50-60Hz |
| Power consumption (standby) | <0.5W |
| Power consumption (min) | 119W |
| Power consumption (max) | 173W |
| Weight and dimensions | |
| Dimensions (W x D x H) | 10.79″ x 8.5″ x 4.49″ |
| Gross weight | 9.26 lbs |
| Net weight | 6.61 lbs |
