Contents
OPPO Pad 2 256GB 8GB RAM Tablet
Product Information
- Specifications:
- Model: OPD2202
- Screen parameter: 29.49 cm (11.61”)
- Battery: Rechargeable Lithium-ion Battery DC 3.89 V
- Battery Capacity: 9230 mAh / 35.9 Wh (Capacity), 9510 mAh / 36.99Wh (Typical)
- Camera: 8 Megapixels (Front), 13 Megapixels (Rear)
- SAR Value: CE SAR0mm, 1.028 W/Kg10g
Product Usage Instructions
- Power:
- The device can be powered wirelessly using a compatible wireless charger. To comply with RF exposure requirements, when using the wireless charging mode, please place the device at a minimum distance of 10cm from your body.
- Wireless Charge For Stylus:
- The device supports wireless charging for the stylus. Simply place the stylus on a compatible wireless charger to charge it.
- Volume:
- The volume of the device can be adjusted using the volume buttons located on the side of the device.
- USB Type-C Port:
- The device has a USB Type-C port for charging and data transfer. Use a compatible USB Type-C cable to connect the device to a power source or another device.
- Frequently Asked Questions (FAQ):
- Q: What is the SAR value of the device?
- A: The SAR value of the device is CE SAR0mm, 1.028 W/Kg10g.
- Q: Can I use wireless chargers with this device?
- A: Yes, the device supports wireless charging. To comply with RF exposure requirements when using in wireless charging mode, please place the device at a minimum distance of 10cm from your body.
- Q: What are the radio wave specifications of the device?
- A: The device supports Bluetooth 2.4G, Wi-Fi 2.4G and 5G, and WPT (Wireless Power Transfer). The frequency ranges from 2.4GHz to 5.85GHz. The maximum output power varies for different frequencies.

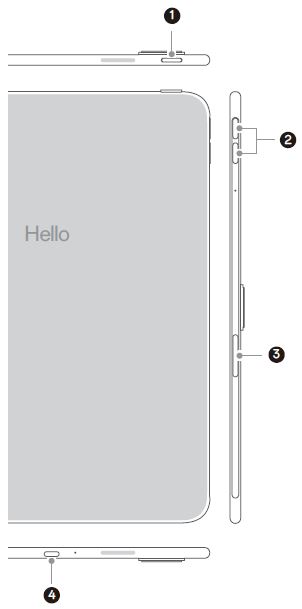

Must Know
- Power
- Volume
- Wireless Charge For Stylus
- USB Type-C port
Specification
| Model | OPD2202 | |
| Screen parameter | 29.49 cm ( 11.61” ) | |
| Dimension | 258.03 × 189.39 × 6.54 (mm) | |
| Battery | Rechargeable Lithium-ion Battery DC 3.89 V 9230 mAh / 35.9 Wh (Capacity) 9510 mAh / 36.99Wh (Typical) | |
| Camera | 8 Megapixels (Front)
13 Megapixels (Rear) |
|
| SAR Value | CE SAR（0mm） | 1.028 W/Kg（10g） |
Note: The SAR values above are the highest values reported for this device.
Hi · Res
- This product conforms to the High-Resolution Audio standard defined by the Japan Audio Society.
- The High-Resolution Audio logo is used under license from Japan Audio Society.
- To experience Hi-Res Audio, you need to purchase an OPPO Hi-Res
- Audio headset accessory or other Hi-Res Audio headsets.
Radio Waves Specifications
| Radio | Frequency | Output Power. Max |
| Bluetooth | 2.4-2.4835GHz | 14.58dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 15.65dBm(EIRP) |
| 5G Wi-Fi | 5.15-5.25GHz | 17.53dBm(EIRP) |
| 5.25-5.35GHz | 14.42dBm(EIRP) | |
| 5.47-5.725GHz | 15.26dBm(EIRP) | |
| 5.725-5.85GHz | 11.52dBm(EIRP) | |
| WPT | 110～148.5KHz | 42dBuA/m@10m |
Note: Your device supports a wireless charger and to comply with RF exposure requirements when using in the wireless charging mode please place the device at a minimum distance of 10cm from your body.
Copyright © Guangdong OPPO Mobile Telecommunications Corp., Ltd. 2023.
- All rights reserved.
- Model: OPD2202
- MADE IN CHINA
- V1.0
