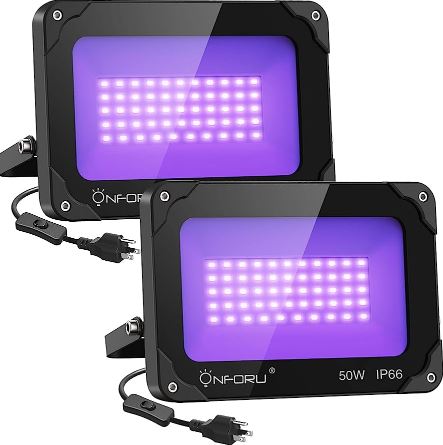

ONFORU G20UV UV LED Flood Light
UV LED FLOOD LIGHT
Product Manual
MODEL:
- G20UV
- D50UV
- D100UV
COMPONENTS AND STRUCTURE
- Cover
- LED Light Source
- Lamp Bracket
Specifications:
| Model | Power Consumption | Beam Angle | Dimensions | Weight |
|---|---|---|---|---|
| G20UV | 20W | 385-400nm | 153*91*28mm | 0.41KG |
| D50UV | 50W | 385-400nm | 258*168*40mm | 0.95KG |
| D100UV | 100W | 385-400nm | 329*208*35mm | 1.55KG |
Note:
The intended purpose of this special purpose product: This light is used to create atmosphere. It is not suitable for household room illumination. The light source is not intended for use in other applications.
PREPARATION
- Flathead Screwdriver
- Screwdriver
- Electric Drill
- Eye Protection
- Pliers
- Step Ladder
Manufacturer:
Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si
Address: qian wan yi lu 1 hao A dong 201 shi qian hai shen gang he zuo qu Shen Zhen, Guang Dong, 518000, CN
Email: [email protected]
Website: www.onforuleds.com
EU Representative:
MDH LIGHTING LTD
Suite 302, 292 Strovolos Avenue, 2048 Strovolos Nicosia,Cyprus
Email: [email protected]
UK Representative:
MDH LIGHTING LTD
69 Aberdeen Avenue, Cambridge CB2 8DL, United Kingdom
Email: [email protected]
Made in China
Product Usage Instructions
Installation
- Choose a suitable location to install the UV LED Flood Light.
- Use the provided tools (Flathead Screwdriver, Screwdriver,Electric Drill, Pliers) to securely attach the Lamp Bracket to the desired surface.
- Connect the LED Light Source to the Lamp Bracket.
- Ensure proper eye protection when working with the UV LED Flood Light.
- Use a Step Ladder if necessary to reach the installation area.
Usage
- Ensure that the UV LED Flood Light is connected to a suitable power source (220-240V, 50Hz).
- Turn on the UV LED Flood Light using the designated power switch.
- Adjust the beam angle if required for optimal coverage.
- The UV LED Flood Light emits UV light at a wavelength of 385-400nm. Take necessary precautions to avoid direct exposure to the UV light.
Please refer to the product manual for further instructions and safety guidelines.
UV LED FLOOD LIGHT
MODEL:
- G20UV
- D50UV
- D100UV
COMPONENTS AND STRUCTURE
- Cover
- LED Light Source
- Lamp Bracket
SPECIFICATIONS
| UV LED FLOOD LIGHT | |||
| Model | G20UV | D50UV | D100UV |
| Input Voltage |
220-240V～ 50Hz |
||
| Input Current |
0.11A |
0.22A |
0.45A |
| Rated Power |
20W |
50W |
100W |
| Wavelength |
385-400nm |
||
| Chromaticity coordinate |
x=0.1763 y=0.0317 |
||
| CRI / Farbwiedergabeindex |
-1.9 |
||
| Power factor |
≥0.9 |
||
| Beam Angle |
120° |
||
| IP Rating |
IP66 |
||
| ta |
-20-40°C |
||
| DIMENSIONS | ||||
| Model | G20UV | D50UV | ||
| DIMENSIONS | / | 153*91*28mm | 258*168*40mm | |
| Weight | 0.41KG | 0.95KG | ||
| Max Projected Area |
0.0105 m² |
0.0265 m² |
||
| Model | D100UV | |||
| DIMENSIONS | 329*208*35mm | |||
| Weight | 1.55KG | |||
| Max Projected Area | 0.0616 m² | |||
| Note | ||||
| The intended purpose of this special purpose product: This light is used to create atmosphere. It is not suitable for household room illumination，the light source is not intended for use in other applications. |  |
|||
PREPARATION
Check all components for damage, do not use the product if it is damaged.
SAFETY INFORMATION
Disconnect the power supply before attempting any work on the unit!
Installing these units involves work on the mains voltage supply; installation must therefore be carried out professionally In accordance with the appliance national wiring regulations And electrical operating conditions.
Be careful not to damage or cut the wire insulation (Covering) during installation. Do not let the wires touch any sharp edges.
INSTALLATION STEPS
- Product appearance may vary from image shown
- Recommended to be installed no higher than 5m
Step 1: According to the space (see the“A”part of the picture of two screw bits on the LED Light bracketdrill two mounting holes.
Step 2: Put the bracket onto the prepared mounting holes and then screw it on.
Step 3: Adjust the beam direction as you like,and then plug into the main socket.
Manufacturer / Hersteller:
Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si
Address: qian wan yi lu 1 hao A dong 201 shi qian hai shen gang he zuo qu Shen Zhen, Guang
Dong, 518000, CN
[email protected] www.onforuleds.com
MDH LIGHTING LTD
Suite 302, 292 Strovolos Avenue, 2048 Strovolos
Nicosia, Cyprus | [email protected]
MDH LIGHTING LTD
69 Aberdeen Avenue, Cambridge CB2 8DL,
United Kingdom | [email protected]
Made in China
