oneisall ON-G-SD15 Professional Dog Clipper User Guide

oneisall ON-G-SD15 Professional Dog Clipper

Feature

• X2 Operation Manual

• Ceramic blade with acute angle

• 5-length fine-tuning for the blade

  high performance environment-friendly lithium battery

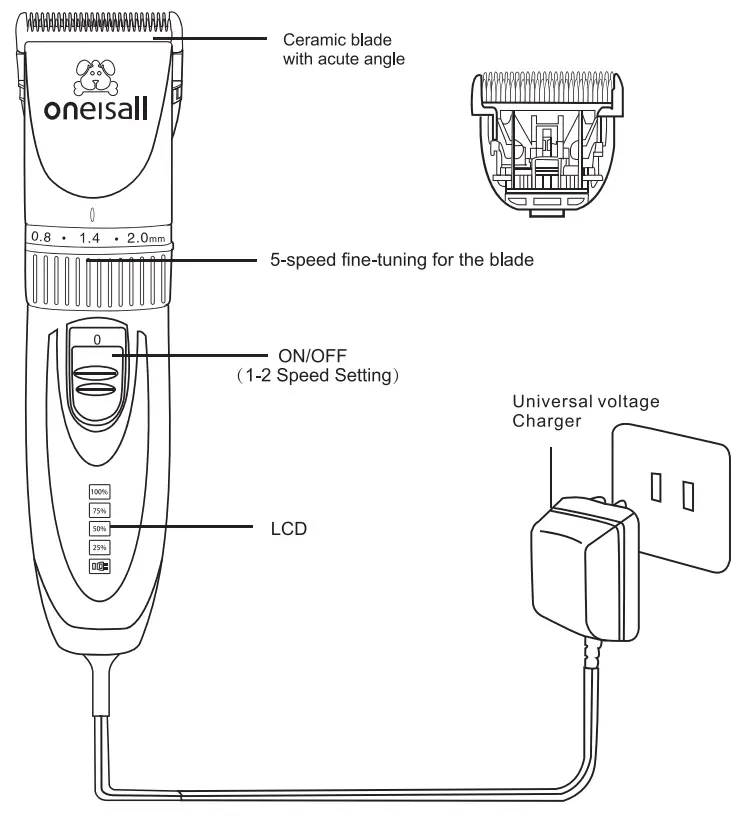

Each Part Name

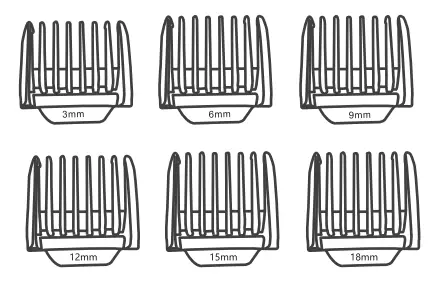

Llmlt11dcomb3-e-9-12-15-18mm

Cleaning brush

Unlverul vo1t,g1 ch1rger

Specification

Professional Hair Clipper	Motor	Operatingvoltage:3.7V
		Centering material: anti-wear brass
	Battery	2000mA high-performance environment-friendly battery
		Charging time: 3 hours
		Operating time with full charge: about 4 hours

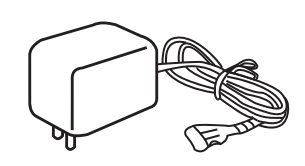

Specific Adapter	Input: 110V – 240V 50/60Hz
	Output: DC SV 1OOOmA

LCD

1 >Charging status indicator

Battery indicator/Remaining Battery performance		20%	40%	60%	BO%	100%
<20%	ON	Flashing light	OFF	OFF	OFF	OFF
<40%	ON	ON	Flashing light	OFF	OFF	OFF
<65%	ON	ON	ON	Flashing light	OFF	OFF
<BO%	ON	ON	ON	OFF	Flashing light	OFF
< 100%	ON	ON	ON	OFF	ON	OFF

2> Operating status display

Battery indicator/Remaining Battery performance		20%	40%	60%	BO%	100%
<100%	OFF	ON	ON	ON	ON	Flashing light
<BO%	OFF	ON	ON	ON	Flashing light	OFF
<60%	OFF	ON	ON	Flashing light	OFF	OFF
<40%	OFF	ON	Flashing light	OFF	OFF	OFF
<20%	OFF	Flashing light	OFF	OFF	OFF	OFF
<5%	Flashing light	ON	OFF	OFF	OFF	OFF

Fixed Length Function

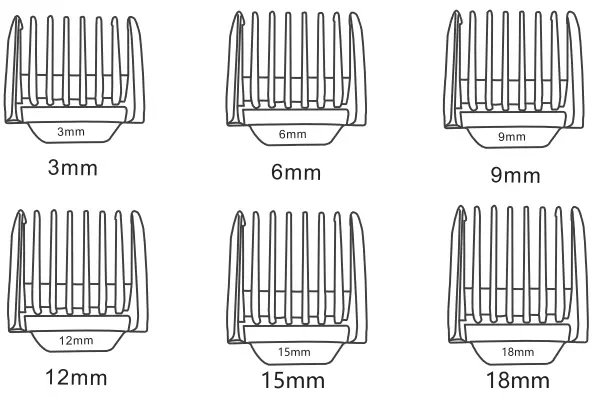

A: Limited comb function trim for crew cut or the side hair Special long (3,6,9, 12 ,15 ,18mm)6 kinds of length adjustment to control the length of hair

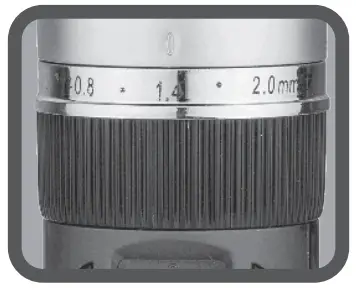

B: Blade limit regulator: 5 kinds of length adjustment from 0.8mm-2.0mm

1. Determine the need hair length
2. Select the appropriate limit comb

3. Fine tune the blade

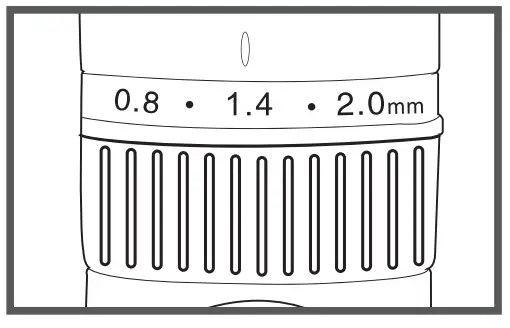

Moving the button left and right to adjust the blade (O.Bmm-2.0mm)

Limit comb installation:

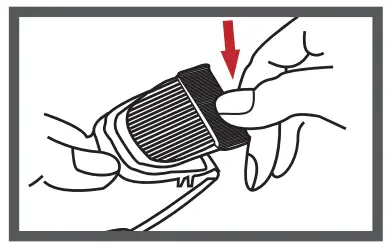

Like the picture, hold both sides and push when butting the button positions.
(Notes: the comb should not be loose or easy to fall off after being butted.)

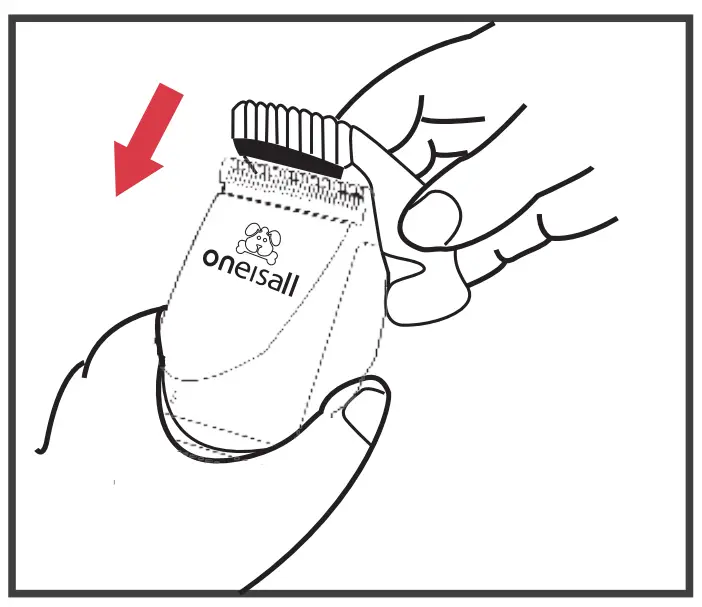

Limit comb dismantle
Remove the butted positions with hands on its both sides and then remove the comb.

Blade Removal & Installation

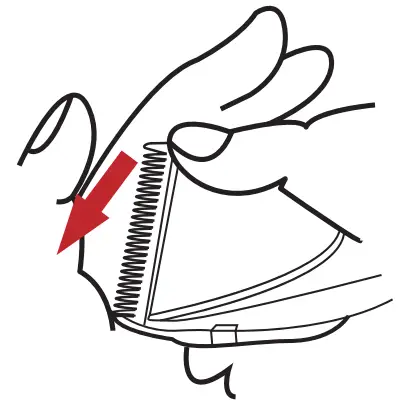

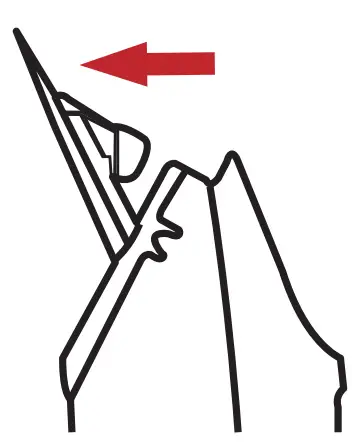

Blade Removal

• Like the picture, press down the moving blade with the thumb and then remove the blade.

• Please hold with the other hand to avoid the blade falling off.


Blade Installation

• Adjust the adjusting ring to 2.0mm before installing the blade

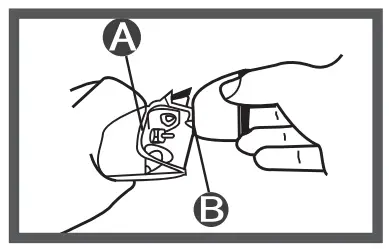

• Direct the blade (B) at the hair clipper’s slot (A) and plug in

• Push the blade down until it clicks


cleaning & Maintenance

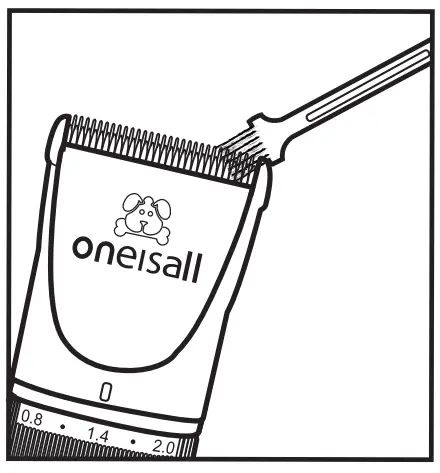

Taper Blade Cleaning

1. Clear up the blade with cleaning brush.

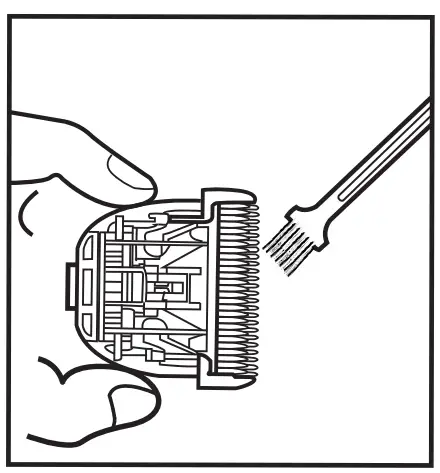

2. The blade can be removed out for cleaning.

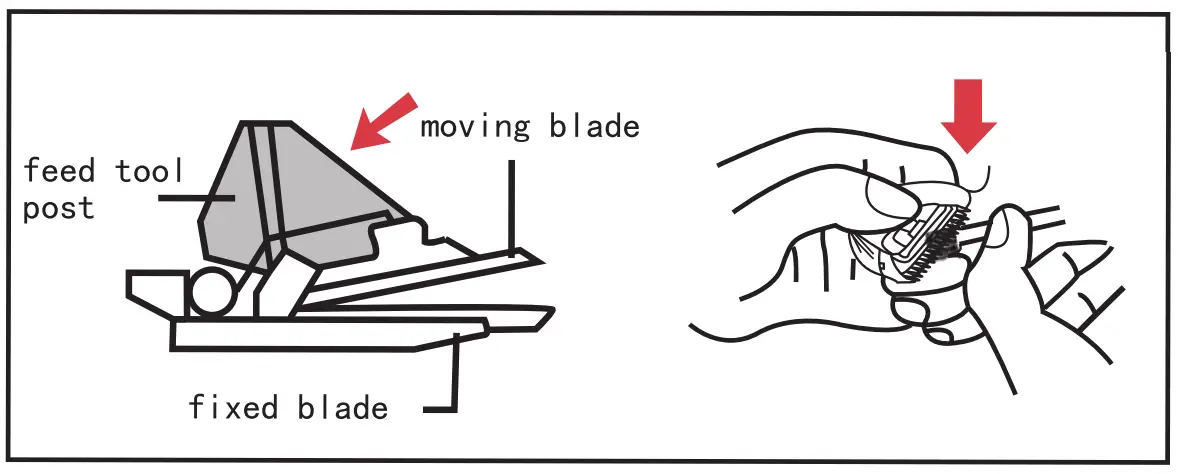

The moving blade can be turned back , and then cleaning the hair between the moving blade and the fixed blade.

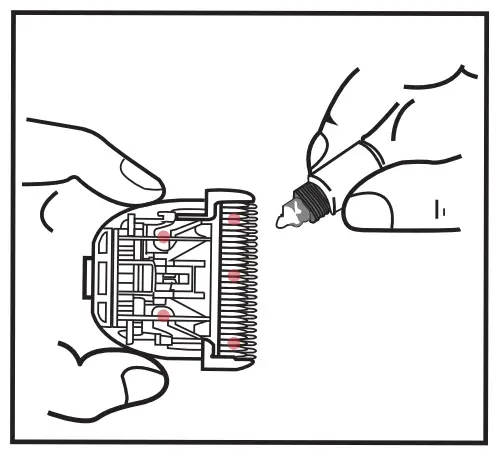

Taper Blade Maintenance

Before or after use, maintain the blade by dripping some oil on the red point places like the left picture. ( oil included )

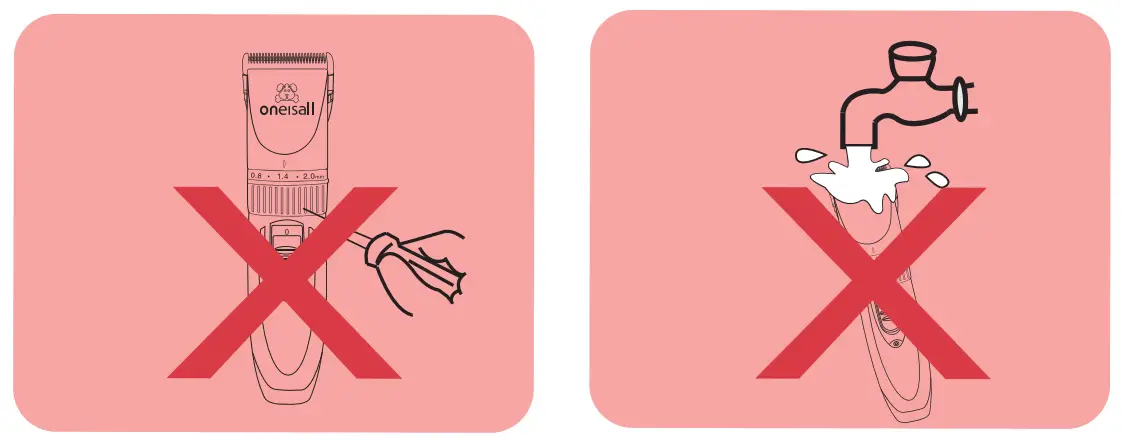

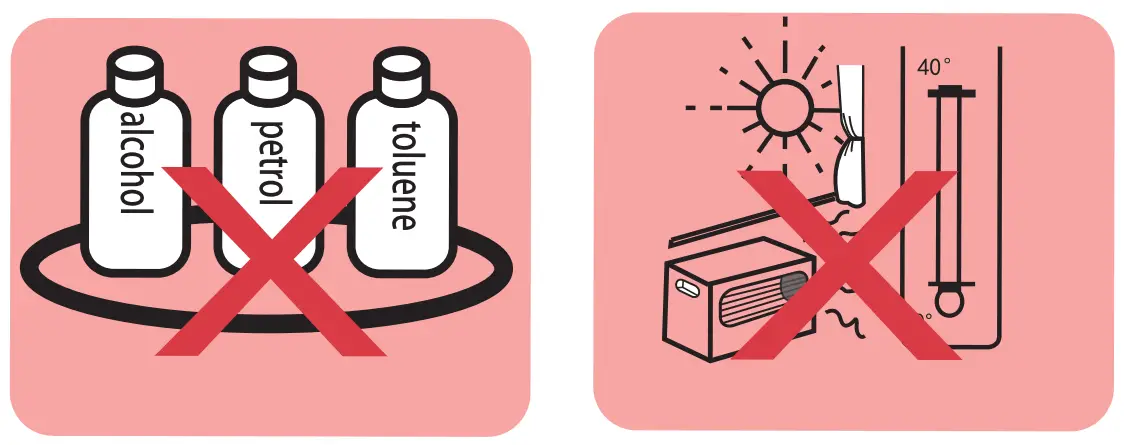

Precautions For Use

1. Please do not disassemble the product.
2. The hair clipper can not be washed.
   Please keep it away from wet conditions.

3. The product can only be cleaned by cloth with little water or mild soap solution.
4. Do not charge the product under environment above 40°C or below 0°c.


The product can produce little heat during using or charging, which is normal.
Please remove the battery safely and return it to the speciled places when the battery runs out. Never discard it casually.

Warranty Card

LIFETIME REPLACEMENT GUARANTEE

Thank you for your purchase. We’re very confident about the premium quality of our professional electric clippers for dogs, so we have backed them up with an unparalleled lifetime replacement guarantee. If you ever have any issues with your pet grooming kit, please contact us for a free replacement or refund. We will get back to you within 24 hours.

oneisall Customer Support Email:

1. [email protected]
2. [email protected]

Scan the QR-Code to get the product installation video and join us to get more prize
