OMETHEY K-35 Small Safe Box Instruction Manual
OMETHEY K-35 Small Safe Box

Warning Icon WARNING

  1. Do not lock the emergency key or emergency battery box into your safe.
  2. lf the safe box is not used for a long time, the battery should be removed to prevent leakage of liquid from damaging the electronic system.
  3. Purchase 4 AA batteries in advance, this safe does not contain batteries

IMPORTANT

If you experience any problems with your safe, please contact us. Many issues can be resolved quickly without the product being returned.

After-sales Email[email protected]

BOX CONTENTS

  1. Knob
    Box Contents
  2. Emergency Key Cover
  3. Yellow Light (Digital Indicator Light)
  4. Red Light (Low Battery Reminder
  5. Green Light
  6. Emergency Power Jack
  7. Confirming Button
  8. Bolts
    Box Contents
  9. Battery Compartment
  10. Setting Button
  11. LED Light
  12. Emergency Keys*2
    Box Contents
  13. Expansion Screws*6
    Box Contents
  14. Foot Mats*4
    Box Contents
  15. Emergency Battery Box
    Box Contents
  16. Instruction Manual
    Box Contents

SET UP THE CODE

Step 1:Open the door with the key
Installation

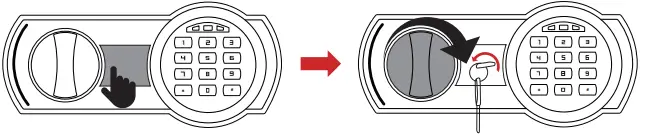

  1. Locate the emergency keyhole by press the left side of the emergency key cover.
  2. Align the emergency key with the keyhole and fully insert, turn it counterclockwise to the limit, and hold on it.
  3. Then rotate the knob clockwise to open the door.
    Warning Icon NOTICE: 1.When you rotate the knob to open, you must have the key fully inserted and turned counterclockwise to the limit, keeping the key until the safe unlocked and opened.
  4. Use the key to unlock, the led light will not light up. Use the password the led light will light up.
  5. Please keep the keys in a secure place, do not lock the keys inside the safe.

Step 2:Install Battery
Installation

  1. After first opening, keep the safe open and locate the battery case; prepare 4 brand-new AA 1.5 Volt alkaline batteries (not included).

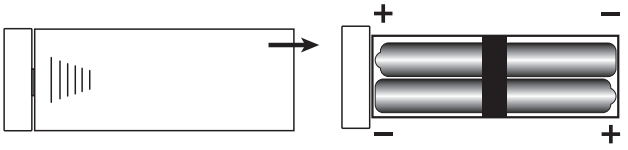

  2. Remove the internal battery case cover and install the 4 AA batteries by matching the + & – electrode.
    Warning Icon NOTICE: 1.Rechargeable battery is not recommended as it may destroy the internal electronic components of your safe.
  3. please use brand-new batteries, do not mix used batteries with new batteries.
  4. If the red light on, that means the battery is low, please replace batteries

Step3: Set up the code
Installation

  1. Open the safe, keep the safe opening press 0 twice, then press the setting button for one second, the safe beeps 3 times, the yellow light flash twice at the same time.
  2. Input your second code, 3-8 digits and press #, Repeat the code, then press # to confirm.
  3. The yellow light flash twice and then disappear, then the green light on indicate success setting.
  4. Testing the code before you close the door.

Warning Icon NOTICE:

  1. 20 seconds without any operation after pressing the setting button, it will go back to standby mode, you need to retry from STEP3;
  2. Please set up both of two codes immediately after receiving the safe.
  3. After you set the first code successfully, you should wait the green light off, then start setting the second code.
  4. The safe beep twice and green light on indicating that the code has been set successfully, three beeps indicate that the two codes input are inconsistent, please repeat the procedures.
  5. The default code are 159, after the new code has been set successfully, the default code will be covered.

THREE WAYS TO OPEN THE DOOR

  1. The first way to open: Use the emergency key.
    Installation

    Insert the emergency key into the right keyhole, turned counterclockwise to the limit, then rotate the knob clockwise to open the safe (Suitable for the first opening, forgot code, or weak battery).
  2. The second way to open: Use the code.
    Installation
    After installing the battery, enter your code and then press the # to confirm, the green light on, rotate the knob clockwise to open the safe(Suitable for quick access and daily use).
  3. The third way to open: Use the emergency battery box + code.
    Installation

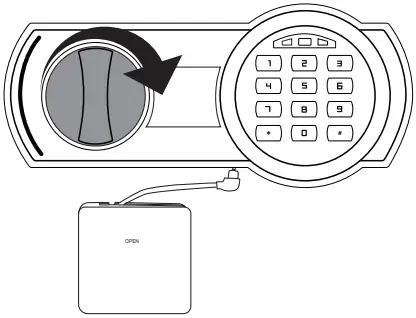

    When the battery of your safe is out of power and you can’t find the keys, please insert 4 AA batteries in the emergency battery box, plug the emergency power cord into the emergency power jack (on the bottom of the panel), then enter the correct code to open the door.(Suitable for the battery is out of power and the key can not be found).

CLOSE THE DOOR

Close the door and rotate the knob counterclockwise.
