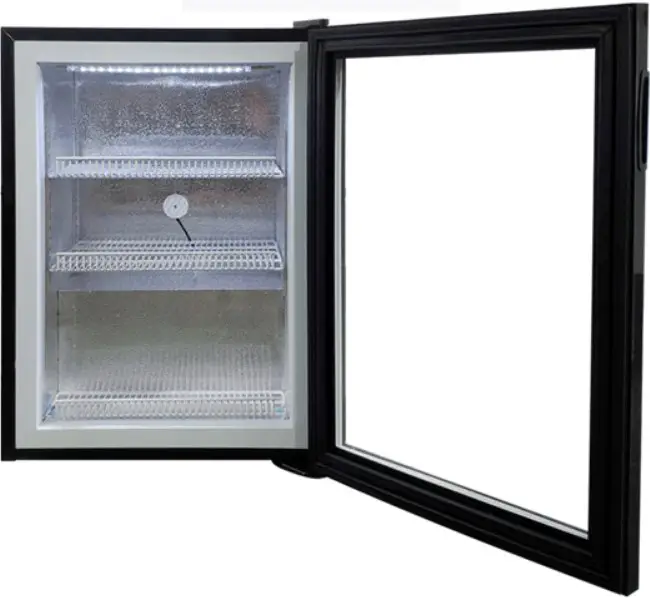

OMCAN FR-CN-0098NB Countertop Display Freezer User Manual
Parts Breakdown
| Item No. | Description | Position |
| AD668 | Mesh Enclosure for 47239 | 1 |
| AC789 | Screw for 47239 | 2 |
| AC790 | Temperature Control Knob for 47239 | 3 |
| AC791 | Lamp Switch for 47239 | 4 |
| AC792 | Temperature Controller Holder for 47239 | 5 |
| AC793 | Temperature Controller for 47239 | 6 |
| AC794 | Power Line for 47239 | 7 |
| AC795 | Body for 47239 | 8 |
| AC796 | Top Hinge Box Buckle for 47239 | 9 |
| AC797 | M4 Nut for 47239 | 10 |
| AC798 | Top Hinge Box for 47239 | 11 |
| AC799 | M5 Nut for 47239 | 12 |
| AC800 | Gasket for 47239 | 13 |
| AC801 | Lock Washers for 47239 | 14 |
| AC802 | Top Hinge for 47239 | 15 |
| AC803 | Big Shelf for 47239 | 16 |
| AC804 | Small Shelf for 47239 | 17 |
| AC805 | Door Gasket for 47239 | 18 |
| AC806 | Glass Door for 47239 | 19 |
| AC807 | Hinge for 47239 | 20 |
| AC808 | Base Angle for 47239 | 21 |
| AC809 | M6 Nut for 47239 | 22 |
| AH278 | Compressor NUG60LR for 47239 | 23 |
| AC811 | M6 Nut for 47239 | 24 |
| AC812 | Floor Presser for 47239 | 25 |
| AC813 | M6 Nut for 47239 | 26 |
| AC814 | Lock Washers for 47239 | 27 |
| AC815 | N6 Nut for 47239 | 28 |
| AC816 | Base Angle for 47239 | 29 |
| AC817 | Condenser for 47239 | 30 |
| AC818 | Draught Fan for 47239 | 31 |
