Offgridtec Narootei5n9cefabq Mounting Clamp for Attachment User Guide

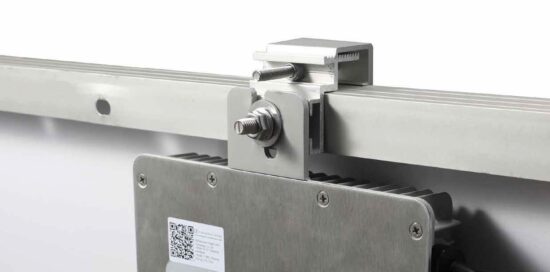

Feature
- Solid and durable, made of aluminum and stainless steel
- Fitting with the PV module frame height from 28-50 mm
- For attaching other devices to the back of the PV module,especially for microinverters
- Suitable for all brands of micro inverters
- Easy installation
- Available in Silver and Black

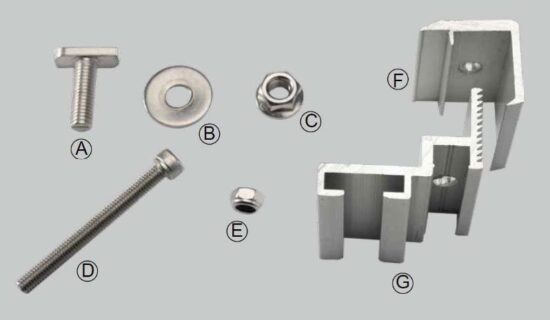

Part List
A. Stainless Steel T Bolt M8*30
B. Staiinless Steel Flat Washer D26*2
C. Stainless Steel Flange Nut M8
D. Stainless Steel HEX Bolt M6*55
E. Stainless Steel HEX Selflock Nut M6
F. AL6063-T5 Clamp L type
G. AL6063-T5 Gear Clamp adjustable
Step 1
Slide the Self lock nut (E) into the groove of Clamp G, right matching the position of screw hole.
Step 2
Connect the Clamp F and Clamp G by HEX bolt (D) through each of screw hole on the clamps and half locked by Selflock nut (E)
Tips: The wall of the groove where Selflock nut (E) stay could be regarded as stopper when turning the bolt
