76MM Manual-cutter Dot Matrix Printer
(Model: OCPP-762)
Contents
762 Cutter Dot Matrix Printer
Features：
- 76MM impact dot matrix receipt printer;
- Support cash drawer kick out;
- Compatible with EPSON;
- With Black mark detection function;
- Multiple interfaces available: Serial /parallel/USB;
- Easy operation and elegant appearance;
Specifications:
| Printing method | 9 pins serial dot matrix |
| Print font | FONT A: 33 or 35; FONT B: 40 or 42 |
| Column capacity | 400dots |
| Character size | ANK, Font A:9*9dots, Font B:7*9dots Simplified Chinese, traditional Chinese:16*16dots |
| Character set | Buyer option |
| Character per line | 400dots |
| Printing speed | 4.5lines/sec |
| Receive buffer | Selectable as 45 bytes or 4k bytes using Dip switches |
| Paper width | 75.5±0.5mm |
| Copy capability | One original and two copies |
| Ribbon | ERC-39 |
| MCBF(life) | 10,000,000 lines |
| Driver | Win9X/Win ME/Win2000/Win2003/WinNT/Win XP/Win Vista/Win 7/Linux |
| CPU | 32 bit |
| Storage environment | Temperature (-10~60°c) humidity (10~90%) |
| Working environment | Temperature (0~50°c) humidity (10~90%) |
| Dimension | 215X135X105mm |
| Gross weight | 3. 5KG |
| Cutter | Manual-cutter |
| Paper end sensor | Yes |
| Paper thickness | 0.06-0.08mm |
| Roll paper | 75.5±0.5mm* φ65mm |
| Interface | Serial/ USB/ LAN |
| Command | Compatible with EPSON |
| Cash drawer control | DC 12-24V/1A |
| Power supply | DC24V/2.5A |
Notes: It uses a highly reliable Japanese print head(SEIKO F347) with a life span rated at more than 10,000,000 lines.
Product Details:

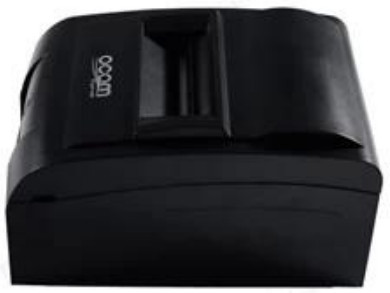

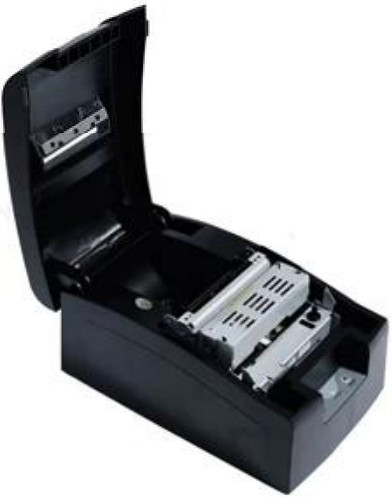

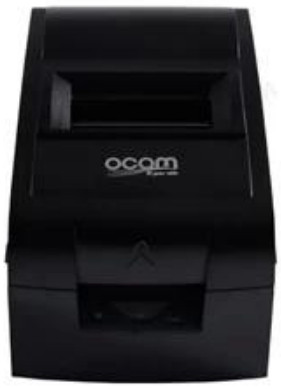

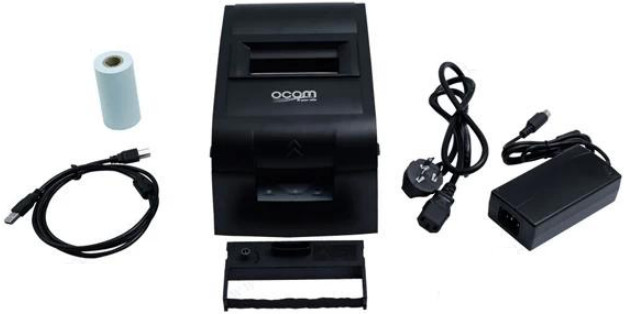

Product Picture
Features
Simple but not easy
 |
76MM impact dot matrix receipt printer; Easy operation and elegant appearance; |
 |
Support cash drawer kick out; |
 |
Compatible with EPSON; With Black mark detection function; |
 |
Multiple interfaces available: Serial /parallel/USB; |

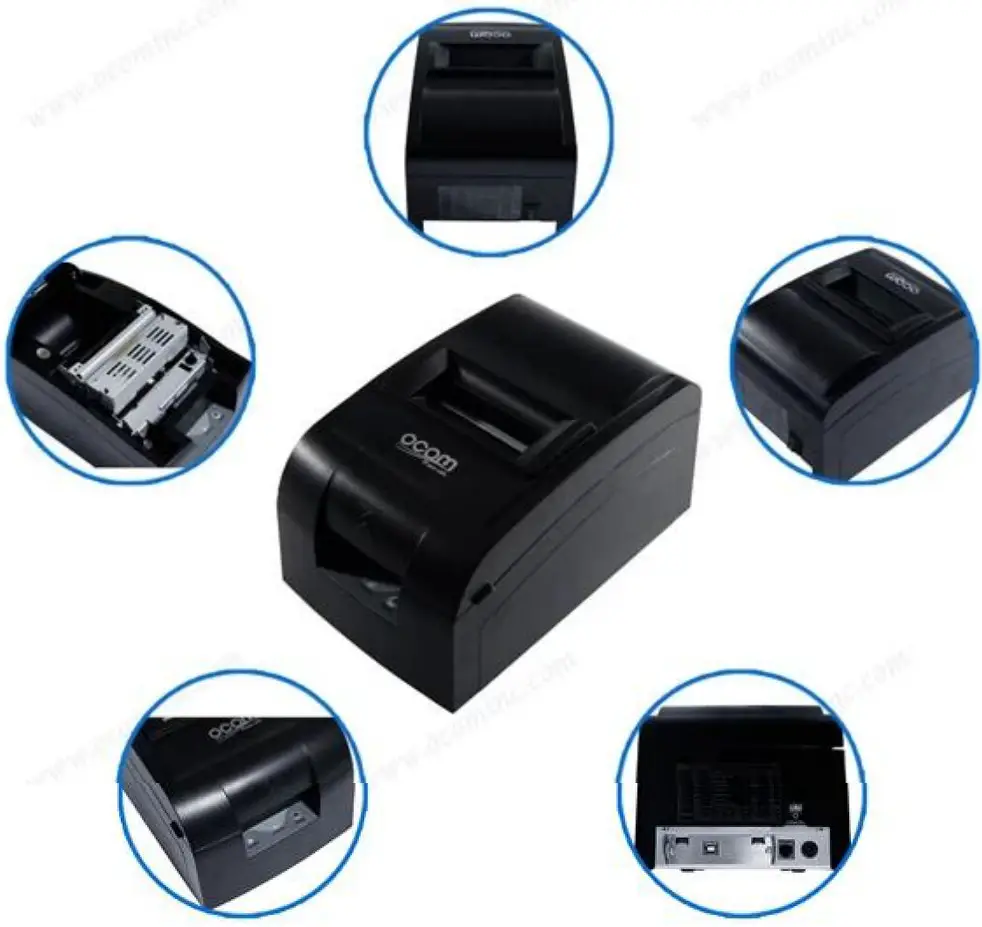

All-round show
Application Area
Catering: hotel, restaurant, fast-food restaurant, coffee shop, bakery and cake shop
Retailer. Business Street, boutique, department store, cosmetics shop and high-class barbershop
Recreation: sauna, spa, night club, theme park, casino and point of sales for lottery ticket
Commercial: information management terminals for parking lot, inn, aviation, subway, station and wharf
Parameter
| Printing method | 9 pins serial dot matrix |
| Print font | FONT A: 33 of 33; FONT B: 40 or 42 |
| Column capacity | 400dots |
Capacity
| Verified | Product Hane | Producton Line Capacity | Actus Units Produced (Previeus Year) |
| Thermal Printer | 40,000 Sets / Month | 250,000 Sets | |
| Dot Matrix Printer | 15,000 Sets / Month | 10.000 Sets | |
| Bluetooth Printer | 30,000 Sets / Month | 20.000 Sets | |
| Barcode Scanner | 40,000 Sets | Month | 20,000 Sets | |
| POS Machine | 5,000 Sets / Month | 10.000 Sets | |
| Magneitc Card Reader and Writer | 45,000 Sets / Month | 50,000 Sets |
Quality Assurance
OCOM is dedicated to providing most cost-effective products and services with highest quality that will meet customers’ satisfication.
Since the establishment, OCOM has been sticking strictly to the standard and requirements of ISO9001: 2000 in the processes of research, design, manufacturing and services. OCOM’s products have passed CE, FCC, TUV, RoHS and other certifications.
We make strictly IOC, IPQC and OOC inspection per industrial standard. All the products must pass 24-48 hours aging test before shipment.Some designated models can have as long as 24 months warranty.

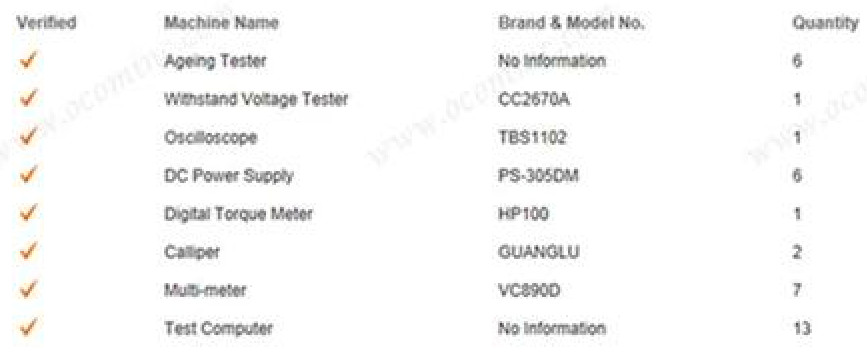

Test Equipments
Certificates
Packing and Shipment
Payment
Customers Reference
Over the years, OCOM keep efforts on marking “OCOM” as an internationally recognized brand, and we have estabilshed goods relationship with our customers and have friendly communication with each other.
Why you choose us?
Company Profile
OCOM has a professional terms including marketing, R&D, quality control production and sales service. The management members have worked in the FORTUNE 500 companies as senior managers for many years, All of the sales have more then 5 years experience, which help us to meet and exceed the customers’ satisfaction.
OCOM has been sticking to the quality system of ISO9001:2008. We make strictly IQC, IPQC and OQC inspection per industrial standard. All the products must pass 24-48 hours aging last before shipment. Some designated models can have as long as 24 months warranty. We have the mass production capabilities thal produce Frougands of printars and scanners a week. Based on our strong capacity, the normal lead time for main products is about 3 to 7 days even for bulk order.
Inteqmty based, Strive for excellence, Winewin cooperation”. We would ike eslablish stabie and reliable partnerships with customers all over the world. GEM/ODM is welcome.
Contact Us
Any queries, please contact us immediately, big supprise is waiting for you.
Sales Center:
Address: Unit 701, Block 14, Zhongxing Industrial Park, Chuangye Road, Nanshan District, Shenzhen 518054, China;
Websites: https://www.possolution.com.cn ; https://www.ocominc.com ;
E-mail: [email protected] , [email protected] ;
Skype: ocaminc2000, ocominc;
MSN: [email protected], [email protected];
Trademanager: szocominc, cn1500439666:
QQ: 2485890637,190852203:
Tel/Fax: +86.755.8606.3207,
Relevant documents:
*Specification
*IP Address Configure Manual
*Instruction Manual
*Driver for all windows system
*Driver for Linux
*Printer Parameters Setting Tools
*CD Files
