OCBS-W231-4B Bluetooth Wireless QR Code 2D Barcode Scanner Instruction Manual

OCBS-W231-4B Bluetooth Wireless QR Code 2D Barcode Scanner

Specifications

• Model: OCBS-W231-4/B
• Wireless Communication: 433Mhz or Bluetooth
• Communication Distance:
  • 433Mhz: Indoor – 100m, Outdoor – 300m (Max)
  • Bluetooth: Indoor – 10m, Outdoor – 20m (Max)
• Equipped With Communication and Charging Base
• Soft Plastic Cover for Lens Protection
• No Need for Driver, Plug and Play
• Data Storage Capacity: More than 10,000 pieces
• Multiple Scanners can be Connected to One Receiver (433Mhz)
• Supported Barcodes: Code 39, UPCA, PDF417, Data Matrix, QR Code, and more
• Interface: USB (Wireless Receiver Cable)
• Operating Temperature: -10°C to 45°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 5% to 85%
• Storage Humidity: 5% to 95%
• Durability: Withstands multiple 1.5m drops to concrete
• Input Power: DC 5V, 280mA
• Charging Time: 6 hours
• Battery Capacity: 1500mAh
• Lumination: Inside – 3,000 LUX max, Outside Sunlight – 86,000 LUX max
• IP Grade: IP42

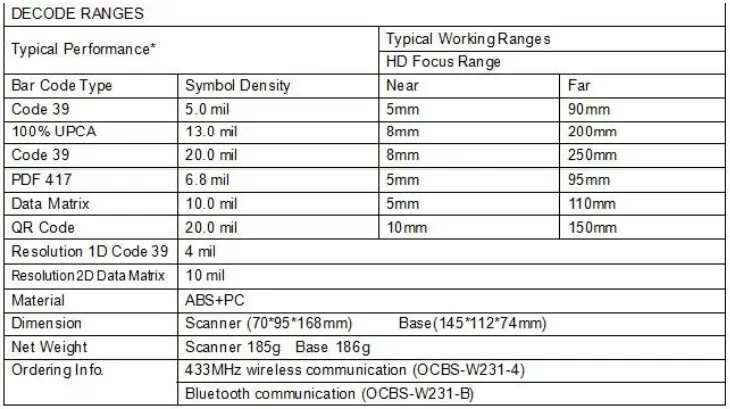

• Decode Ranges: Vary depending on the barcode type
• Material: ABS+PC
• Scanner Dimensions: 70*95*168mm
• Base Dimensions: 145*112*74mm
• Scanner Net Weight: 185g
• Base Net Weight: 186g

Model: OCBS-W231-4/B

Features

1. 433Mhz Wireless communication distance outdoors is 300m, indoor 100m; Bluetooth wireless communication distance outdoors is 20m, and 10m indoors;
2. Equipped with communication and charging base
3. A soft plastic cover to protect the lens and outline greatly enhances the anti-drop performance;
4. The barcode on computers’ and mobile phones’ screens can be scanned;
5. No need for a driver, plug and play;
6. Can store more than 10,000 pieces of data;
7. Multiple scanners can be connected to one receiver (433mhz).

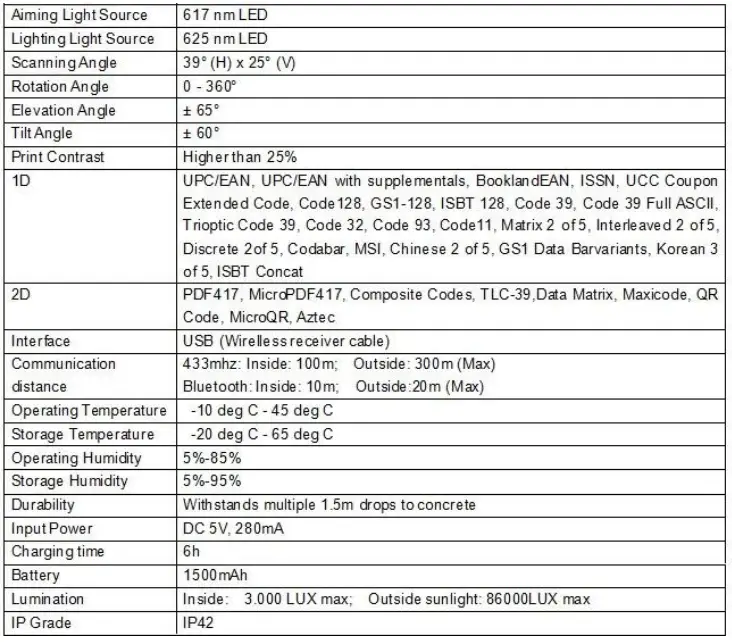

Parameters

FtVE CORE STRENGTHS

HIGH-SPEED SCANNING EFFICIENCY OF CHOICE

FAST SCAN,HIGH RECOGNITION RATE

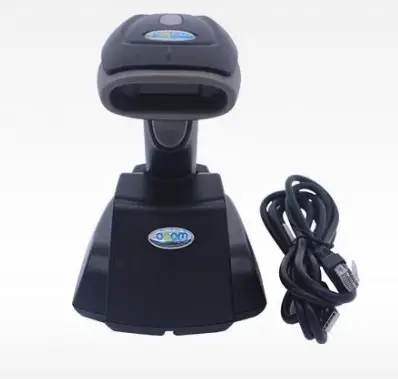

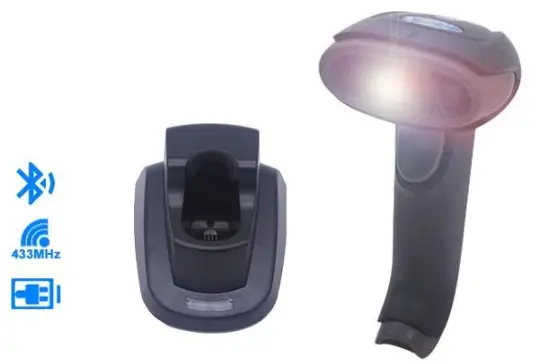

CRADLE FOR CHARGING AND WIRELESS COMMUNICATION

STABLE STRUCTURE, DURABLE AND HIGH RUB RESISTANCE

NO NEED FOR DRIVER PLUG-AND-PLAY

THE PRODUCT FAMILY

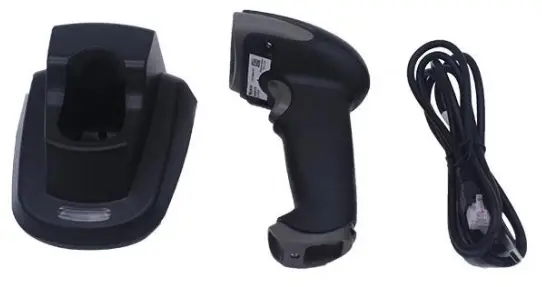

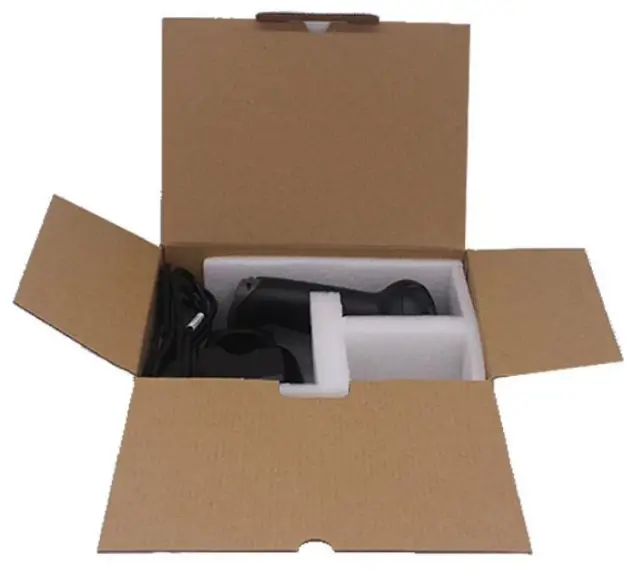

PRODUCT PACKAGING FIGURE

WIDE RANGE OF APPLICATION,RICH TYPE OF DECODING
IT’S APPLICATED AT ANY PLACE, THE MORE AND MORE CUSTOMERS TEND TO USE OCOM SCANNER

PRODUCT INORMATION
