LENTON
FORM MOUNTING KIT, 89 MM
CATALOG NUMBER
LK810
Owner’s Manual
Contents

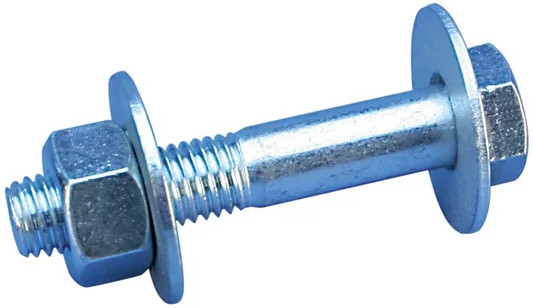

LK810 LENTON Form Mounting Kit
The form mounting kit is used in conjunction with nVent LENTON Interlok grommets. These kits/bolts are used to secure the nVent LENTON Interlok couplers in repeatable locations in the formwork. Once a coupler is placed over a grommet, the form mounting kit bolt is tightened, which expands the grommet, thus holding the coupler on location.
FEATURES
Durable and reusable
Standard bolt uses standard sockets and wrenches
PRODUCT ATTRIBUTES
Material: Steel
Length: 89 mm
Thread Size: 5/8″ UNC
Unit Weight: 0.3 kg
ADDITIONAL PRODUCT DETAILS
Prior to installation, please read and understand the detailed instructions and safety notices provided in the nVent LENTON Interlok Instruction Manual.

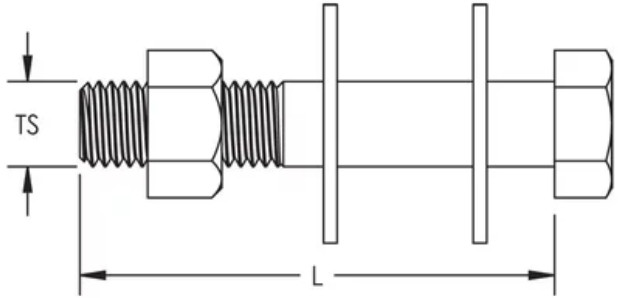

DIAGRAMS
WARNING
nVent products shall be installed and used only as indicated in nVent’s product instruction sheets and training materials.
Instruction sheets are available at www.nvent.com and from your nVent customer service representative. Improper installation, misuse, misapplication or other failure to completely follow nVent’s instructions and warnings may cause product malfunction, property damage, serious bodily injury and death and/or void your warranty.
