nVent JBS-100-E Single Entry Power Connection with Junction Box

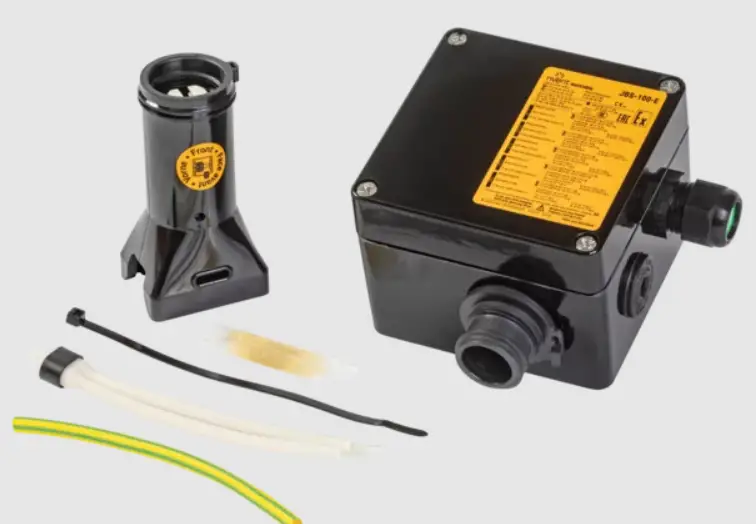

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-PRODUCT-IMAGE

Product Information

  • Product Name: JBS-100-E, JBS-100-EP, JBS-100-L-E, JBS-100-L-EP – Available Languages: English (EN), German (DE), French (FR), Dutch (NL), Norwegian (NO), Swedish (SV), Danish (DA), Finnish (FI), Italian (IT), Spanish (ES), Polish (PL), Russian (RU), Czech (CZ), Hungarian (HU), Croatian (HR)
  • Product Types: BTV, QTVR, XTV(R), KTV, HTV
  • Rated Voltage: JBS-100-E(P): 480 Vac, JBS-100-L-E(P): 277 Vac
  • Maximum Pipe Temperature: Tmax intermittent, Tmax continuous, 1000 h cumulative Tmax power off
  • Heater Types: BTV, QTVR, XTV, XTVR, KTV, HTV, VPL

Product Usage Instructions

  1. Installation:
    • Before installing the product, read the installation instructions completely.
    • To prevent electrical shock, short circuit or arcing, the product must be installed correctly and water ingress must be avoided during the installation.
    • The purchaser should inform the manufacturer about any external effects or aggressive substances that the equipment may be exposed to.
  2. Safety Precautions:
    • Prolonged or repeated contact with the sealant in the core sealer may cause skin irritation. Wash hands thoroughly.
    • Overheating or burning the sealant will produce fumes that may cause polymer fume fever. Avoid contamination of cigarettes or tobacco. Refer to MSDS VEN 0033 for further information.
  3. Specific Conditions for Use:
    • For ATEX and IECEx approvals, specific conditions for use apply.
    • For voltages >254Vac and BTV, QTVR, XTV(R), KTV or HTV heating cables, use a power cable with continuous temperature resistance of minimum.
    • Use a metallic power cable gland approved for use in hazardous areas.
    • The maximum operating current shall be reduced to maximum 20 A. Please refer to the complete user manual for detailed instructions and safety information.

Single entry power connection with junction box

BS-100-E BS-100-EP BS-100-L-E
BS-100-L-EP
TB 20 ATEX 1008 U AS21UKEX0657U Lighted version(1)
II 2 G Ex eb IIC Gb II 2 D Ex tb IIIC Db		 Lighted version(2)
II 2 G Ex eb mb IIC Gb II 2 D Ex tb mb IIIC Db
ECEx PTB 20.0014U Ex eb IIC Gb Ex tb IIIC Db Ex eb mb IIC Gb Ex tb mb IIIC Db
nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-05 JBS-100-E(P):
ТС RU C-BE.МЮ62.В.00054/18
Ex e IIC Gb U Ex tb IIIC Db U
Ex e mb IIC Gb U Ex tb mb IIIC Db U Ta –55°C…+56°C IP66
ООО “ТехИмпорт”
JBS-100-L-E(P):
ТС RU C-BE.МЮ62.В.00054/18
Ex e IIC Gb U Ex tb IIIC Db U
Ex e mb IIC Gb U Ex tb mb IIIC Db U Ta –55°C…+40°C IP66
ООО “ТехИмпорт”
nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-06 Non lighted versions(1):
Ex eb IIC Gb Ex tb IIIC Db		 Lighted versions(2):
Ex eb mb IIC Gb Ex tb mb IIIC Db
nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-07

Ex eb IIC T* Gb
Ex eb mb IIC T* Gb
nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-08 Non lighted versions(1):

CL I ZN 1 AEx eb IIC T* Gb ZN 21 AEx tb IIIC T*°C Db
Ex eb IIC T* Gb Ex tb IIIC T*°C Db

 Lighted versions(2):
CL I ZN 1 AEx eb mb IIC T* Gb
ZN 21 AEx mb tb IIIC T*°C Db
Ex eb mb IIC T* GbEx mb tb IIIC T*°C Db

* For system Temperature Code, see heating cable or design documentation.

  1. Non lighted versions:
  2. Lighted versions:

Warning: To prevent elec tri cal shock, short cir cuit or arc ing, this prod-uct must be in stalled cor rect ly and water ingress must be avoid ed before and during the in stal la tion.

Warning: The purchaser should make the manufacturer aware of any external effects or aggressive substances that the equipment may be exposed to.
Before installing this product, read the installation instructions completely.

Caution: Prolonged or repeated contact with the sealant in the core sealer may cause skin irritation. Wash hands thoroughly. Overheating or burning the sealant will produce fumes that may cause polymer fume fever. Avoid contamination of cigarettes or tobacco. Consult MSDS VEN 0033 for further information.

Rated voltage: JBS-100-E(P): 480 Vac**

JBS-100-L-E(P): 277 Vac
Ambient temperature JBS-100-E(P): –55°C to +56°C**

JBS-100-L-E(P): –40˚C to +40˚C up to 277 V for BTV, QTVR, XTV(R), KTV, HTV and VPL.

** Specific conditions for use apply for ATEX and IECEx.

Maximum pipe temperature:

Heater type Tmax continuous Tmax intermittent 1000 h cumulative Tmax power off
BTV 65°C 85°C –
QTVR 110°C 110°C –
XTV 121°C 250°C –
XTVR 150°C 250°C (2000 h) –
KTV 150°C 250°C –
HTV 205°C 260°C (2000 h) –
VPL See tables below – 260°C

VPL: Maximum pipe temperature in dependence of heater type, voltage and current

Heater Type 230 Vac 254 Vac 277 Vac 20 A 25 A 30 A
5VPL2-CT 230°C 225°C 225°C 180°C – 235°C 150°C – 180°C ≤150°C
10VPL2-CT 210°C 200°C 195°C 180°C – 235°C 150°C – 180°C ≤150°C
15VPL2-CT 180°C 145°C 105°C ≤180°C 150°C – 180°C ≤150°C
20VPL2-CT 150°C Not allowed ≤150°C ≤150°C ≤150°C
Heater Type 385 Vac 400 Vac 480 Vac 20 A 25 A 30 A
5VPL4-CT 230°C 230°C 230°C 180°C – 235°C 150°C – 180°C ≤150°C
10VPL4-CT 215°C 215°C 205°C 180°C – 235°C 150°C – 180°C ≤150°C
15VPL4-CT 195°C 195°C 160°C ≤180°C 150°C – 180°C ≤150°C
20VPL4-CT 150°C 150°C 150°C ≤150°C ≤150°C ≤150°C

Specific conditions for use using ATEX or IECEx approvals:
For ambient temperatures >+40°C:
Use a power cable with continuous temperature resistance of minimum +90°C
Use a metallic power cable gland approved for use in hazardous areas (for example GL-38-M25-METAL).

For voltages >254Vac and BTV, QTVR, XTV(R), KTV or HTV heating cables:
Use a power cable with continuous temperature resistance of minimum +90°C
Use a metallic power cable gland approved for use in hazardous areas (for example GL-38-M25-METAL).
For pipe temperature > 150°C and XTV(R), KTV or HTV heating cables, the maximum operating current shall be reduced to maximum 20 A.

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-01

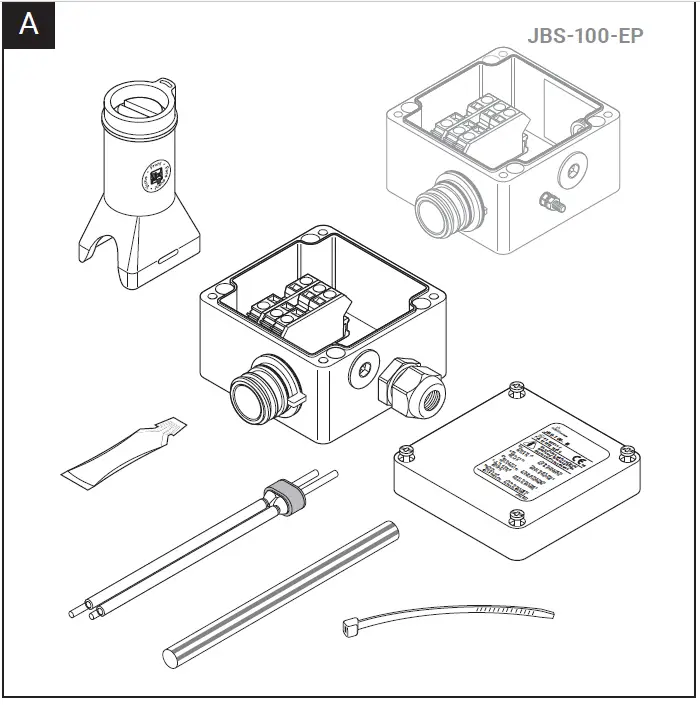

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-02

Tool Required

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-03

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-04

Assembly

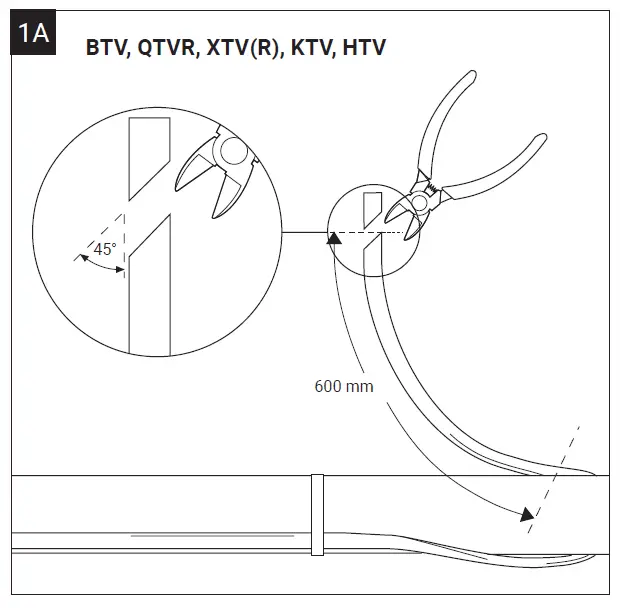

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-09

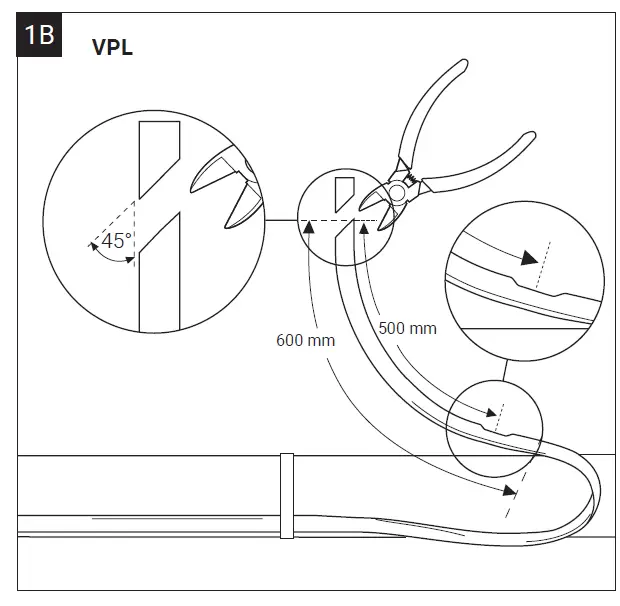

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-10

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-11

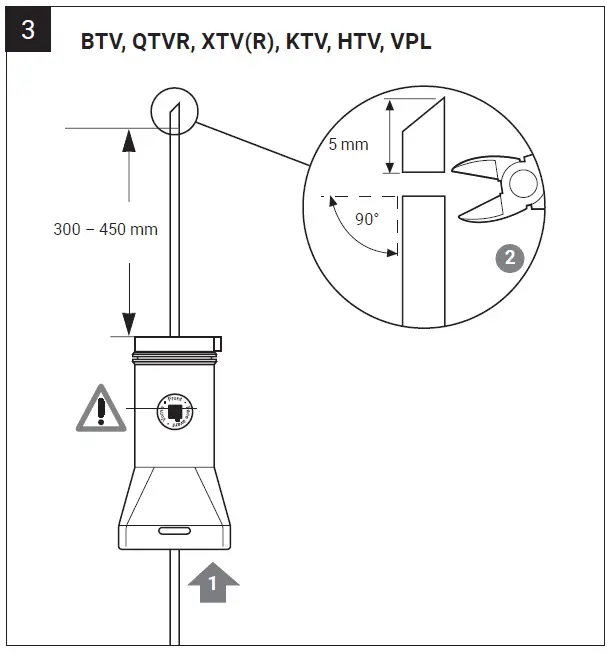

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-12

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-13

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-14

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-15

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-16

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-17

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-18

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-19

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-20

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-21

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-22

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-23

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-24

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-25

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-26

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-27

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-28

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-29

Remove the tubes and dispose of them in the core sealer plastic bag.

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-30

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-31

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-32

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-33

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-34

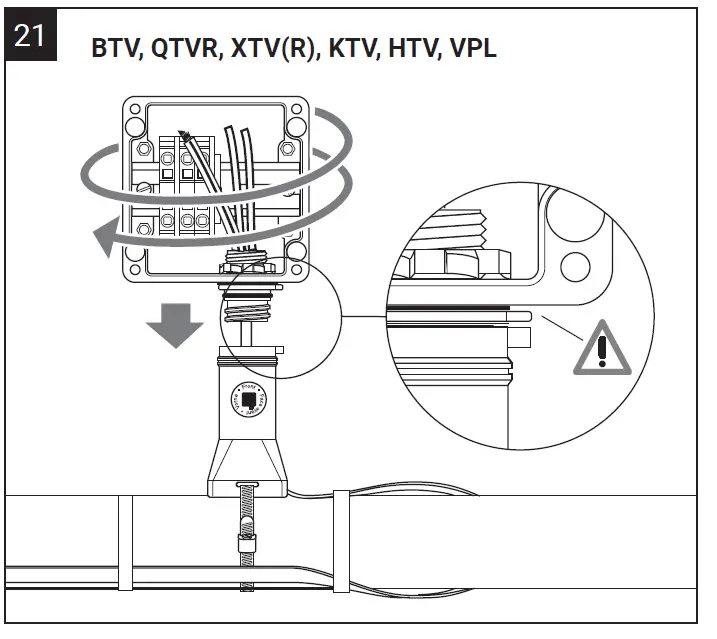

BTV, QTVR, XTV(R), KTV, HTV, VPLnVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-35

OPTION: To change direction of box opening: Loosen locknut. Lift box and rotate.

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-36

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-37



nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-38

Install power cable and gland. Pull in power and ground wires, strip off 13 mm of insulation and terminate. (For -EP version only: connect earth plate to ground according to local requirements).

nVent-JBS-100-E-Single-Entry-Power-Connection-with-Junction-Box-39

Install lid.
τ = 1.02 to 1.47 Nm
Apply insulation and cladding.
Weather seal the stand entry. Leave these instructions with the end user for future reference.
