nVent HOFFMAN DAH101 Semiconductor Heater
Product Information
| Product Name | DIN Rail Clips |
|---|---|
| Model Number | 87567870 |
| Description | DIN Rail Clips are used for mounting the heater onto DIN rails or panels. |
Product Usage Instructions
DIN Rail Mounting
- If using the DIN rail method of mounting, remove the DIN clip from the heater if necessary.
- Slide the heater onto the DIN rail, aligning it with the mounting holes.
- Snap the DIN rail clip onto the DIN rail to secure the heater in place.
Panel Mounting
- Remove the DIN clip from the heater if necessary.
- Slide the panel mounting clips onto the heater, placing them in diagonal corners when applicable.
- Locate and drill two .140 inch diameter (#28 drill) holes in the panel corresponding to the holes in the panel mounting clips.
- Install screws through the holes in the clips and panel, and tighten them to 15 in-lbs.
Heater

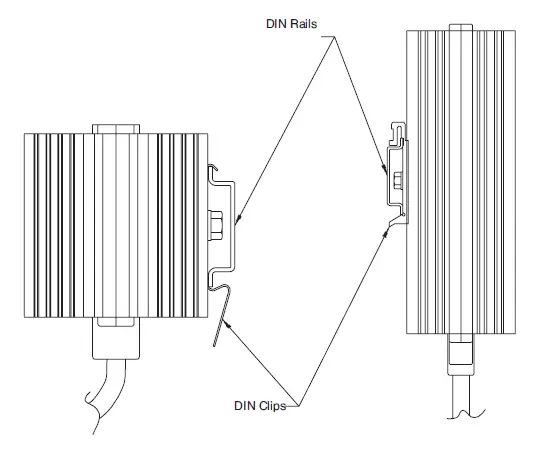

DIN RAIL MOUNTING

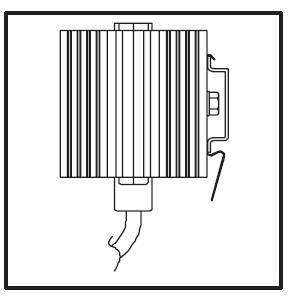

If using the DIN rail method of mounting, simply snap heater onto the DIN rail using the DIN rail clip as shown.

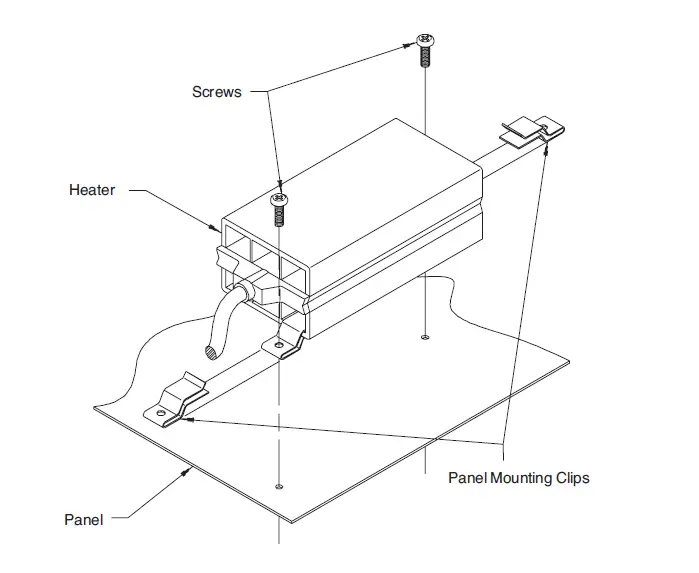

PANEL MOUNTING
- Remove DIN clip from heater if necessary. (DIN clips are shown on the reverse side of this sheet).
- Slide panel mounting clips onto heater as shown.
Note: Clips are mounted in diagonal corners when applicable. - Locate and drill two .140 inch diameter (#28 drill) holes in the panel corresponding to the holes in the panel mounting clips.
- Install screws through holes in clips and panel. Tighten to 15 in−lbs.
