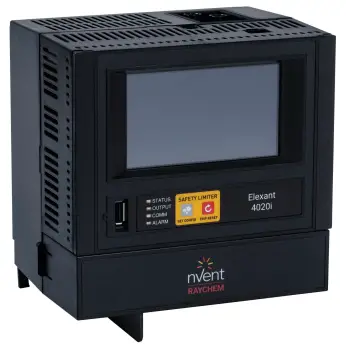

nVent 10380-027 Elexant Control Module
nVent RAYCHEM ELEXANT 4020i-MOD is a set of replacement modules for the ELEXANT 4020i heat tracing controller.
FEATURES
- Available with intrinsically safe barrier and limiter.
- Simple to install
- Reliable during long life: 2-year product warranty available
SPECIFICATIONS
- Current Alarm: 0.1 – 100 A
- Autocycle: 1 – 750 h
- Ground Fault Alarm: 10 – 500 mA
- Ethernet: 10/100 Base-T
- Max Power Supply Input Wire Size: 16.8 mm²
- Max Heating Cable Output Wire Size: 16.8 mm²
- Max Ground Terminal Wire Size: 16.8 mm²
- Control Max Current: 63A @ 40°C
- Voltage Alarm: 80 – 300 V
- Control Max Voltage: 690 VAC Nominal, 50/60Hz
- Relative Humidity: 0% to 90%, Noncondensating
- Control Relay Type: Double-Pole, Solid-State; Double-Pole, Mechanical
- Communication: RS-485; Ethernet
- Control Algorithms: On/Off, Proportional, PASC, Always On, Always Off
- Temperature Control Range: −200 to 700 °C
- Temperature Alarm: −200 to 700 °C
- Operating Temperature: −40 to 70 °C
