nureva HDL410 Audio Conferencing System User Guide

HDL410

QUICK START GUIDE

PACKAGE CONTENTS

A
A

B  C D E

EF G H

YOU WILL NEED

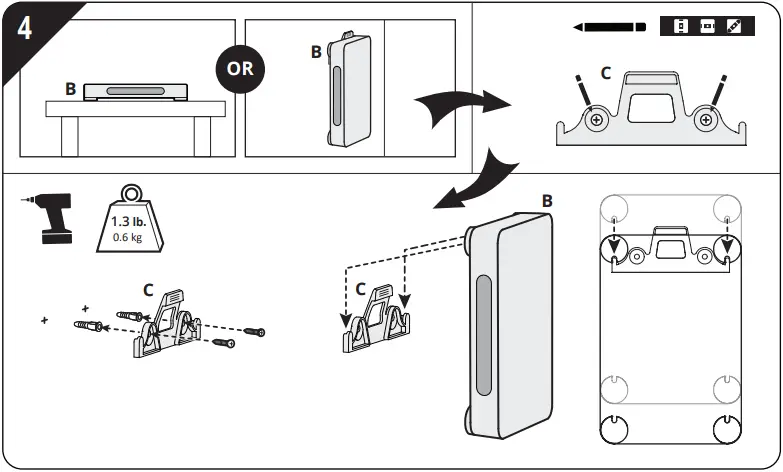

#10 pan head anchors
or
M5 pan head anchors

CAT5e

#10 pan head screws
or
M5 pan head screws

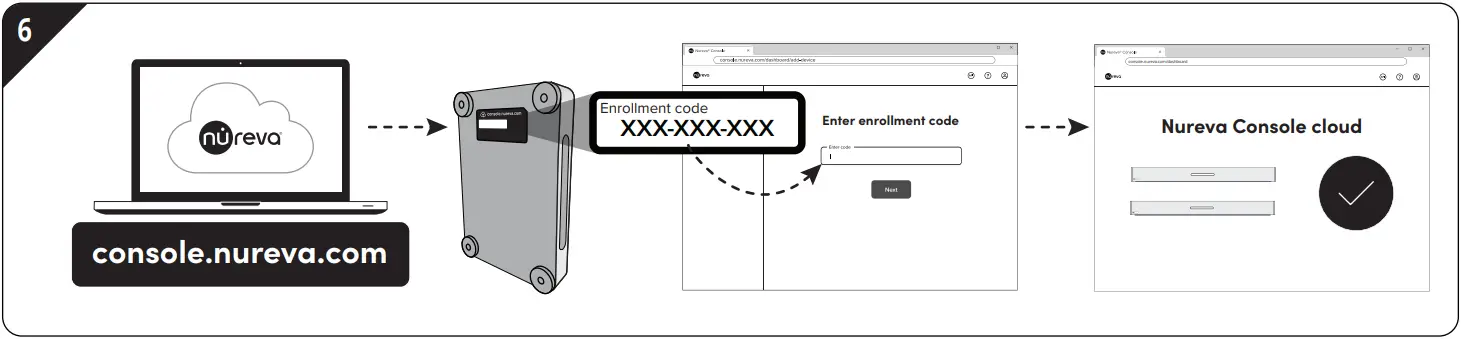

console.nureva.com

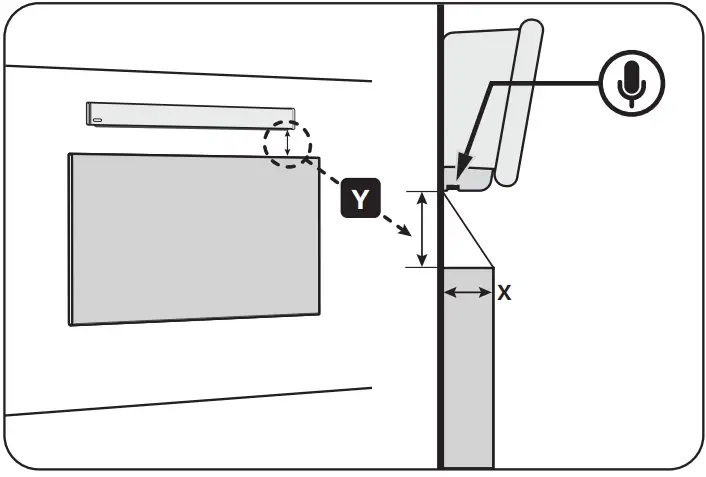

X	Y
0″ – 2″ 2″ – 4″ 4″ – 8″	3″ 6″ 12″
0 – 4 cm 4 – 8 cm 8 – 20 cm	6 cm 12 cm 30 cm

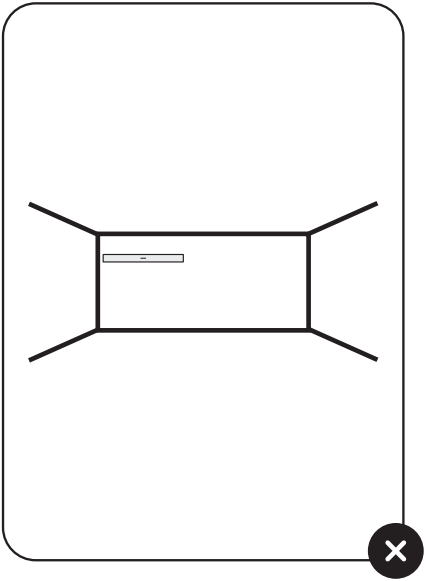

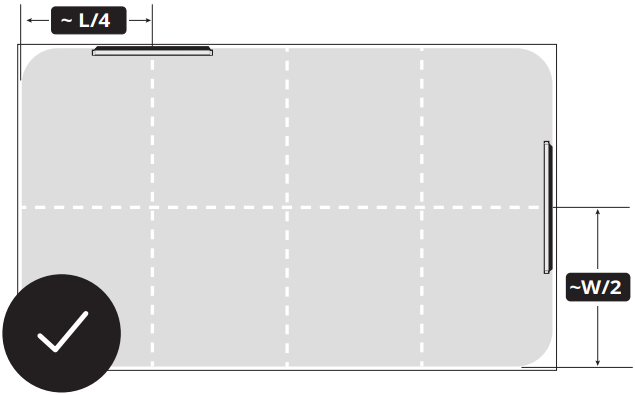

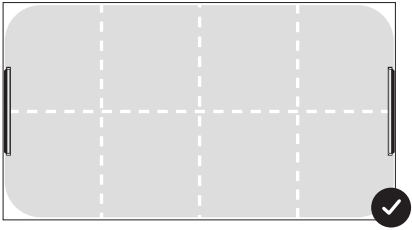

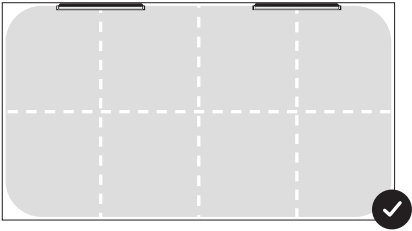

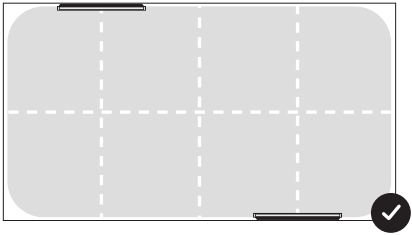

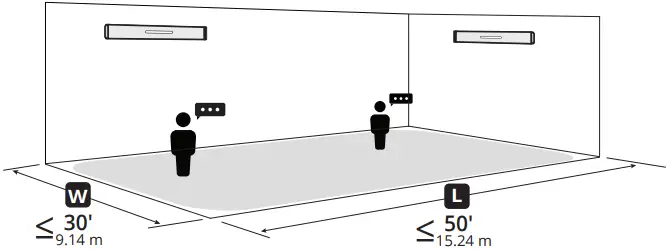

COVERAGE

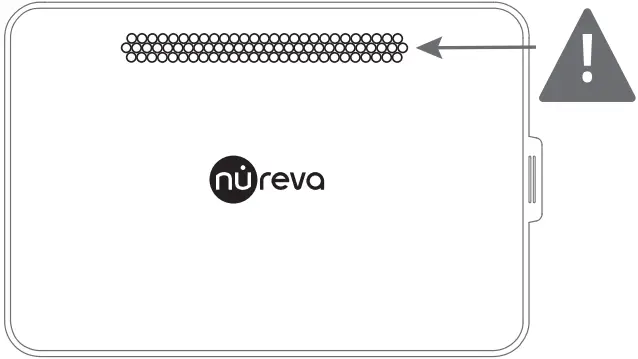

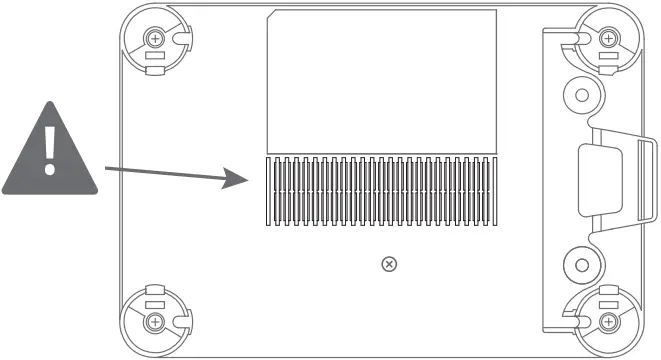

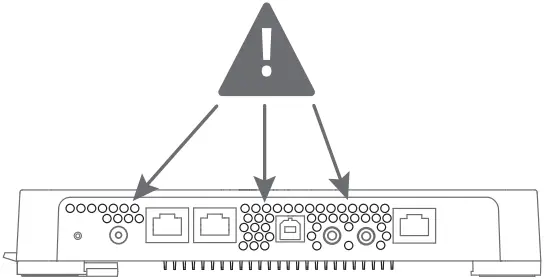

IMPORTANT

Ensure that all ventilation holes are free and clear of obstructions

[email protected]     support.nureva.com

1. Nureva Ethernet cable
2. Power cable
3. Ethernet
4. Network connection
5. USB – A
6. USB – B
7. In-room computer

REMOTE CONTROL

1. End Call
2. Mute
3. Adjust LED Brightness
4. Volume
5. Answer Call

© 2022 Nureva Inc. All rights reserved. Nureva and the Nureva logo are trademarks or registered trademarks of Nureva Inc. in the United States, Canada and other countries.

101961-03
