NuGenLED NG-BL-WW LED UV Bar Light Instruction Manual

NuGenLED NG-BL-WW LED UV Bar Light

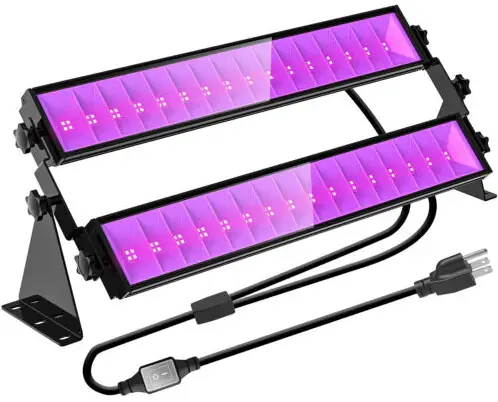

LED UV BAR LIGHT

Model No: BL-WW-80W
BL-WW-160W
EASY INSTALLATION
WATERPROOF AND DURABLE
SAVING ENERGY
HEIGHTEN ATMOSPHERE
NO POWER DESIGN

Features

• Universal voltage AC120V±10% 50-60Hz.
• Products without power supply design, adopts high-voltage linear IC design, stable quality, long life.
• Light source SMD3030 design, increase the LED luminous surface, more conducive to LED heat dissipation.
• The lamp shell is made of stretched aluminum profile, which has high thermal conductivity and good heat dissipation effect;
• Compact structure, firmness, corrosion resistance, IP65 waterproof level;
• Simple installation, convenient disassembly, the irradiation angle can be adjusted 360 degrees, and the
  scope of application is wide;
• Double row combination, each row can be adjusted individually or together to adapt to various lighting scenarios;
• High-efficiency luminous LED, energy saving and environmental protection.

Application

Large-scale stage performances, evening parties, urban lighting projects, bars, KTV, stage, clubs, family gatherings, birthdays and other indoor and outdoor scenes.

Parameters

BL-WW-SOW
Data sheet	Min	Typical	Max	Unit
Input Voltage(Vin)	108	120	132	(V)AC
Input Current(lin)	400	430	470	mA
Input Frequency(F)	47	60	63	Hz
Total Power(P)	44	48	54	w
Power Factor(Pf)	0.94	0.95	0.96	_
Operating Temperature(To)	-20	25	50	oc
Working Humidity(Hop)	50	75	90	%RH
IP Level(IP)	_	65	–	_
Luminous Flux(<D)	50	54.6	60	Lm
Beam Angle(0)	/	90×110	/	0
Life Time	/	50000	/	H
Warranty	_	3		Year

BL-WW-160W
Data sheet	Min	Typical	Max	Unit
Input Voltage(Vin)	108	120	132	(V)AC
Input Current(lin)	400	430	470	mA
Input Frequency(F)	47	60	63	Hz
Total Power(P)	88	96	108	w
Power Factor(Pf)	0.94	0.95	0.96	_
Operating Temperature(To)	-20	25	50	oc
Working Humidity(Hop)	50	75	90	%RH
IP Level(IP)		65		_
Luminous Flux(<D)	100	109	120	Lm
Beam Angle(0)	/	90×110	/	0
Life Time	/	50000	/	H
Warranty	_	3	_	Year

DIMENSIONS

BL-WW-SOW

BL-WW-160W

IES REPORT

BL-WW-SOW Spectrum Test Report

Color Parameters :

Chromaticity Coordinate : x=0.1732y=0.0397/u'=0.2214v'=0.1140
CCT=lOOOOOK(Duv=- 0.1942) Dominant WL:Ld=446 .6nmWL :Lc = --nm Purity=92 .3%
Ratio : R=6 . 6% G=59.2% B=34 . 2% Peak WL : Lp=399 . 4nm FWHM=12.4nm
Render Index : Ra=1 7 . 6 AvgR=20 . 7 TM30 : Rf=0 Rg=-75

Rl =56	R2 =26	R3 --0	R4 =0	RS --50	R6 =3	R7 =4	Rl5=82
R8 =3	R9 =O	RlO=O	Rl l-0	R12=0	R13=74	R14-13

Photo Parameters:

Flux = 52 . 71 lm Eff . : 1 . 18 lm/W Fe = 8 . 060 W
Photosynthet ic :PPF :15.542umol/s PAR WATT : 4499. l mW(400 - 700nm)

Electrical parameters:

V = 1 1 9 . 98 V I= 0.3940 A P - 44 .61 W PF= 0.9436
LEVEL:OUT WHITE:OUT

BL-WW-160W Spectrum Test Report

Color Parameters:

Chromaticity Coordinate : x=0 . 1726 y=0 . 0418/u'=0 . 2 188 v ' =0 . 1191
CCT=lOOOOOK(Duv=- 0 . 1904) Dominant WL : Ld =448 . lnm WL : Lc = --nm Purity=91 . 9%
Ratio : R=6 . 2% G=59 . 4% B=34 . 4% Peak WL: Lp=398 . 0nm FWHM=l l . 9nm
Render Index : Ra=17.9 AvgR=21.1 TM30 : Rf=0 Rg=-83

Rl =53	R2 =29	R3 =O	R4 =O	R5 =49	R6 =3	R7 =6	RI5=82
R8 =3	R9 -=O	RI O=O	Rll=O	Rl2=0	RI3=77	R14=15

Photo Parameters:

Flux=99.39 lm Eff.: 1.11 lm/W Fe=1 .65 W
Photosynthetic : PPF : 25 . 604umol/ s PAR WATT:7393.6mW(400-700nm)

Electrical parameters:

V=120.06VI=0.7885AP-=89.33WPF=0.9437
LEVEL:OUT WHITE:OUT

INSTALLATION

Single light:

Double light:

1. Drill 4 holes on the wall , then screw 4 expansion pipes into the holes.

2. Tighten 4 MS screws into brackets to fix the light on the wall.

PACKAGING

Single light

Double light

Series	Unit	Package Size	Total number of packages	Single Net Weight	Gross weight
Single pack	1 pcs	370*325*455mm	12 pcs	0.88kg	13kg
Two packs	2 pcs	463*218*455cm	12 pcs	0.88 kg	13kg
Four packs	4 pcs	325*292*455cm	12 pcs	0.88 kg	13kg

Packaging accessories:

Single light	Single light bracket x2	Knob screw x2	MS screw x4
		Spring lock washer x2	Plastic expansion pipe x4

Double light	Double lights bracket x2	Knob screw x6	MS screw x4
		Spring lock washer x6	Plastic expansion pipe x4
		Connector bracket x2

Using Tips

• Linear UV light, only suitable for AC120V±10% of the country or region use;
• In the handling/storage, please pay attention to handle gently, do not heavy pressure, do not break.
• When installing lamps and lanterns, the wiring place should be insulated to prevent electricity leakage.
• Maintenance/repair/replacement of LED lamps, please turn off the power;
• Can not be used in flammable, explosive, high temperature, water leakage and corrosive places.
• Installation please find a professional electrician to install.
• The lamps and lanterns should be repaired or replaced by professional personnel in case of failure.
