CONEX-NSA12 Motorized Actuator
User Manual
CONEX-NSA12 Actuator
USER’S MANUAL
Contents

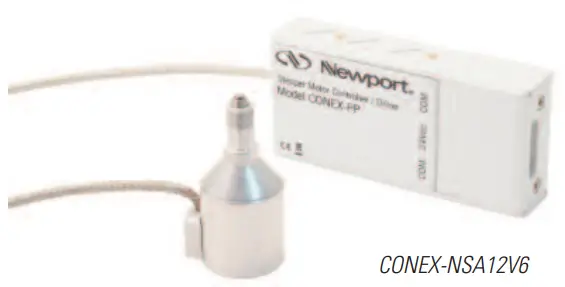

CONEX-NSA12 Motorized Actuator
Designed as micrometer replacement, the CONEX-NSA12 linear actuator is ideal for remote adjustment of sensitive, hard-to-reach optical mounts. Typical applications include optimizing the alignment of a laser cavity, zeroing in on coherence lengths, or just adjusting the pointing of a beam over a long distance.
The CONEX-NSA12 provides 11 mm motorized travel with sub-micron resolution. It can drive up to 28 N load. With its backlash eliminating spring mechanism and 5/32” non-rotating chromevanadium steel ball bearing this actuator is ideal for applications that require repeatability.
The CONEX-NSA12 is easily mounted via its 0.375” x 40 pitch threaded shaft. This mechanical interface is compatible with many Newport mounts and manual stages. A mounting nut and wrench are included.
Specifications
CONEX-PP Controller Specifications
| Description | Single-axis motion controller and driver for Intelligent Stepper Motors |
| Motor Output Power | 24 VDC peak, 2.5 A peak PWM amplifier |
| Control Loop | PI Control of motor phase current with programmable idle phase 2 kHz servo rate Backlash Compensation |
| Motion | Point-to-point motion with S-gamma profile and jerk time control |
| Computer Interface | USB +5V (USB): <0.5 A, Windows Compatible |
| Programming – Natural user defined units | Natural user defined units 40+ intuitive, 2-letter ASCII commands |
| Safety Feature | End of range checks Power limit checks Watchdog timer |
| Power Requirements | +24 V (FC-PS40): <1.67 A |
| Dimensions in. (mm) | 4.33 x 2.06 x 0.98 (110 x 52.2 x 25) |
| Cable Length ft. (m) | 9.8 (3) |
| CONEX-NSAl2 Actuator Specifications | |
| Drive Type Micro Step Drive Stepper | Micro Step Drive Stepper |
| Travel (mm) | 11 |
| Minimum Incremental Motion (pm) | 0.2 |
| Uni-directional Repeatability, Guaranteed (1) (pm) | 2. |
| Bi-directional Repeatability, Guaranteed W(2) (pm) | 10 or± 5 |
| Maximum Speed (mm/s) | 0.9j3) |
| Axial Load Capacity (+Cx) (N) | 28 |
- Shown are peak to peak, guaranteed specifications or ± half the value as sometimes shown. For the definition of typical specifications which are about 2X better than the guaranteed values, visit www.newport.com.
- After backlash compensation.
- Speed is reduced by half for vacuum compatible versions.
Note: Also available in vacuum compatible version, CONEX-NSA12V6.
1.2 Environmental Specifications
CAUTION
The CONEX-PP motion controller and positioners are high-precision laboratory instruments. Only use and store in a clean laboratory environment. Avoid mechanical shock to positioners.
| Max operating temperature | 5 °C to 40 °C |
| Recommended operating temperature Operating relative humidity | 20 °C to 25 °C |
| Operating relative humidity | <85%, non-condensing |
| Storage temperature | 0–60 °C |
| Storage relative humidity | <85%, non-condensing |
| Altitude | <2000 m (6,562 feet) |
| Installation | category II |
| Pollution | degree 2 |
| Use location | Indoor use only |
1.3 Conex-NSA12V6 Color Coded Wiring Diagram
| Wire Color | Signal | Wire Size |
| White | Homing Signal | 28 AWG |
| Green | Phase A+ | 28 AWG |
| Red | +5 V | 28 AWG |
| Orange | Phase B- | 28 AWG |
| Blue | Phase B+ | 28 AWG |
| Yellow | Phase A- | 28 AWG |
| Black | GND (0 V) | 28 AWG |
| Brown | Not user | 28 AWG |
Newport Corporation, Global Headquarters
1791 Deere Avenue, Irvine, CA 92606, USA
PHONE: 1-800-222-6440 1-949-863-3144
FAX: 1-949-253-1680 EMAIL: [email protected]
Complete listings for all global office locations are
available online at www.newport.com/contact
www.newport.com
Newport Corporation, Irvine, California and Franklin,
Massachusetts; Every and Beaune-la-Rolande,
France and Wuxi, China have all been certified compliant
with ISO 9001 by the British Standards Institution.
Santa Clara, California is DNV certified.
EDH0354En1014 — 09/23
