NEEWER Nl660 LED Video Light
Contents
Applications

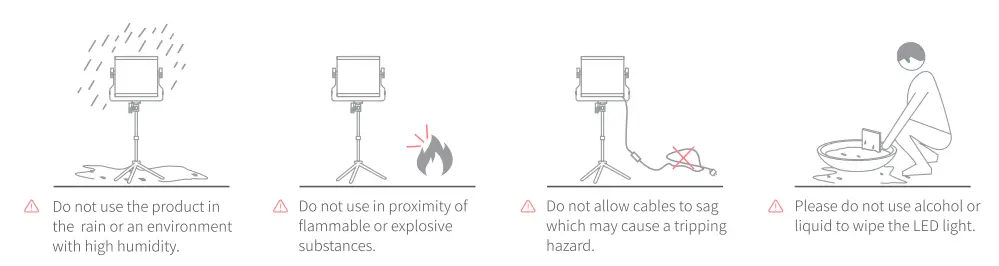

Safety Notes
Functions

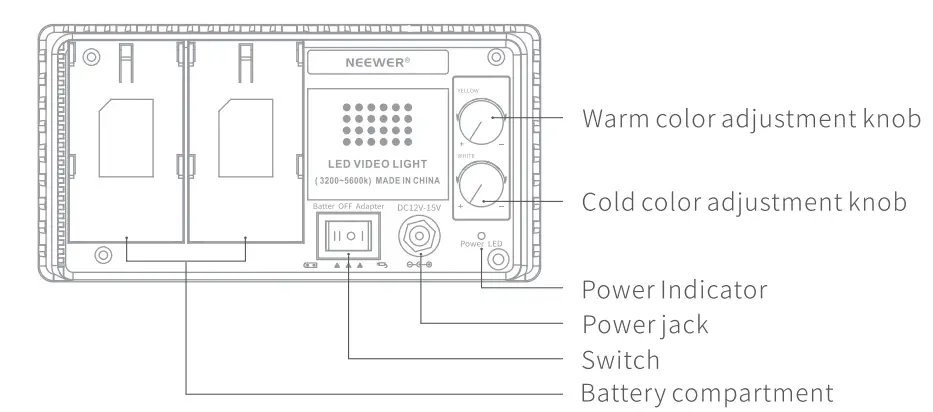

Control panel
This illustration is only applicable to the following models: NL480 / NL660 / NLS00 / NL600.
Adjusting cool and warm colors
Control panel
This illustration is only applicable to NL480S / NL660S models.
installation steps

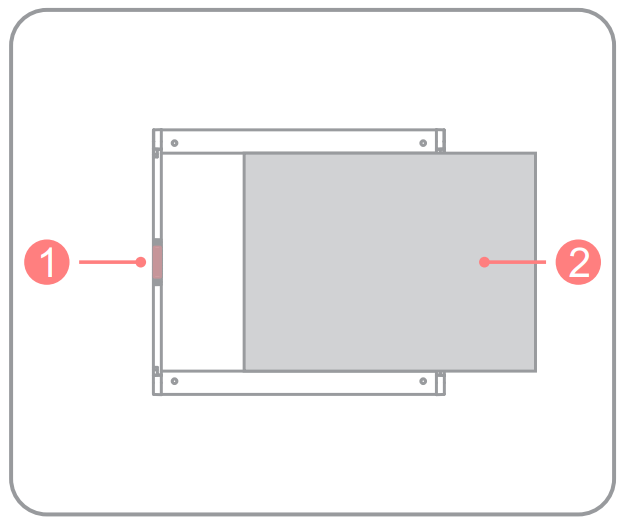

Install the diffuser
① Diffuse r lock
② Diffuser

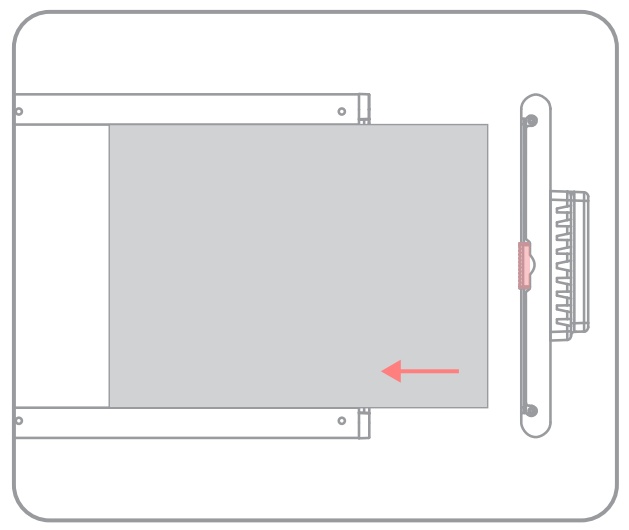

Insert the diffuser ② into the light slot on the left, and lift up the diffuser latches at both ends to secure.

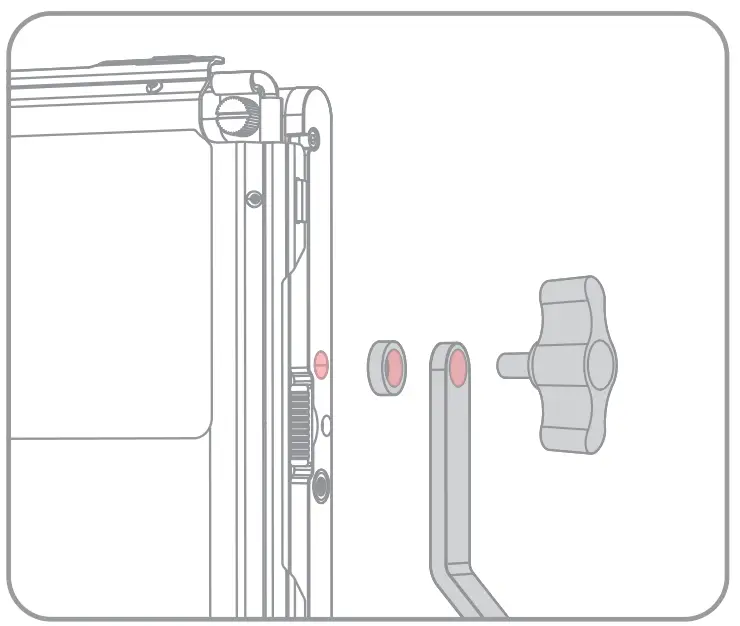

Attach the U-shaped Bracket
Attach the U-shaped Bracket on the LED light using the securing knobs and washers supplied
Install the barn doors
① Screw
② Nut
Align the four ② nuts with the screw holes of the lamp body, and then turn clockwise until they a re locked.
Place the barn doorframe on the front of the lamp body and align with the holes.
Align the screw with the hole, and then turn clockwise until it is secure.

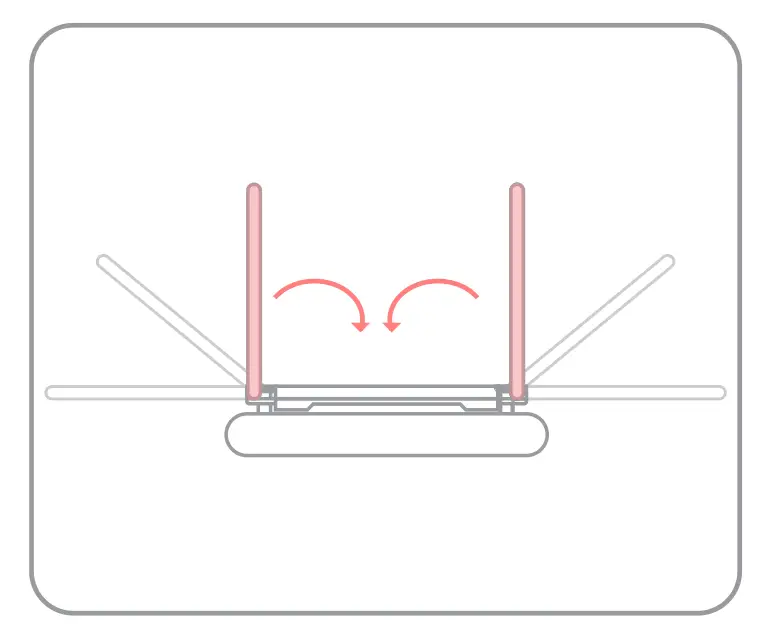

Close up the barn doors.
Mount the bracket and adjust the angle of the barn doors as required
Turn the bracket fixing knob counterclockwise u nti I it is released.
Align the hole position with the bracket and turn the bracket adjuster until it is locked.
Use the securing knobs on both sides to loosen or tighten which will allow you to adjust the lamp body to a suitable position, and then secure it firmly.
You can also adjust the angle of the light or restrict the light zoneby deploying and adjusting the barn doors.
Warning
- Please do not look directly at the light when in use as it may cause damage to your eyesight.
- Do not obstuct the product heat dissipation vents with a cloth or any other object to prevent damaging the product.
- Do not touch the light if your hands are wet to avoid serious injury.
- Turn off the power when not in use.
- Do not modify the circuit or disassemble the product without permission.
- Please use the adapter supplied with the accessories, or use a su itable compatible battery.
- Failure to observe all steps and warnings detailed in the manual will void the warranty.
Product Specifications
| Model | NL480INL480S | NL660 INL660S | NL500 | NL600 |
| LEDs | 480 | 660 | 500 | 600 |
| Power | 28W | 40W | 28W | 38W |
| Lumen | 0.5M 13000LUX
lM 4000LUX |
0.5M l 7000LUX
lM S000LUX |
0.5M 16000LUX
lM S000LUX |
0.5M 21000LUX
lM 6600LUX |
| Dimensions | 212*200*48mm | 232*200*48mm | 212*200*48mm | 232*200*48mm |
| CRI | 97 | |||
| Battery voltage | 7.2V | |||
| Input voltage | DC IN 12-lSV | |||
| Color temperature | 3200-5600K(+ 100) | |||
