WELCOME TO NAPOLEON!
Congratulations on your Napoleon grill! You’ve just upgraded your grilling game.

Ready to assemble your new grill?
There may be visual differences between illustrations and model purchased. Remove all parts from packaging before assembling the grill. Set up this assembly on a solid, level and horizontal surface.

• Tools not included.

WHAT’S IN  THE BOX

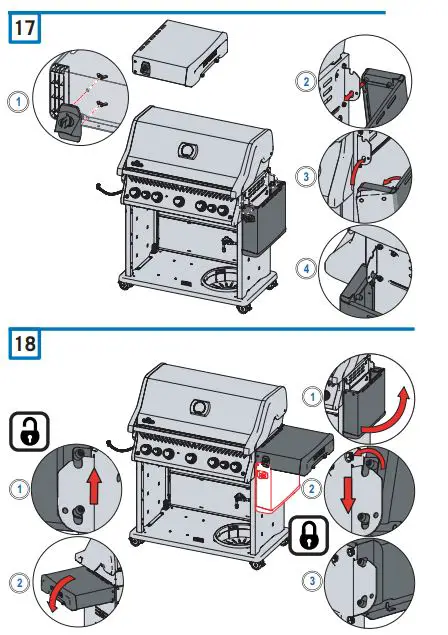

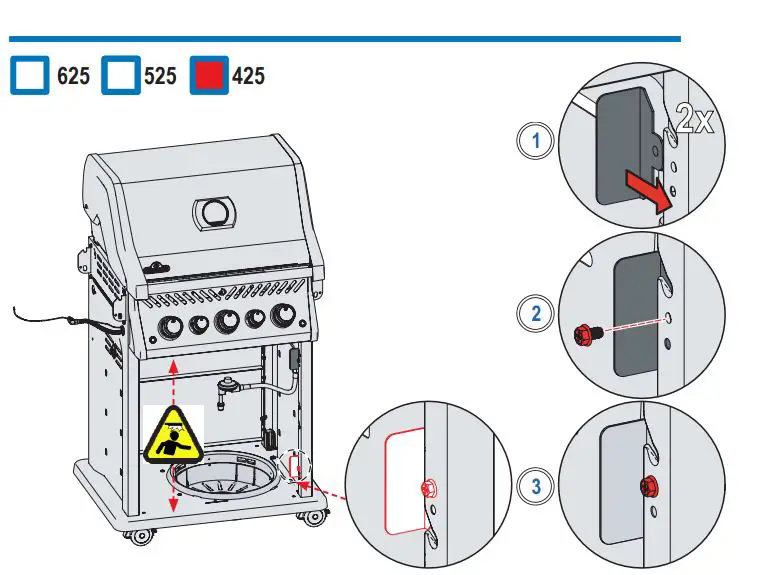

INSTALLATION INSTRUCTION

	Part #	RSE425RSIB	425RSIB-PHM	RSE525RSIB	525RSIB-MK	RSE625RSIB
1	N010-1031-SS	x
	N010-1031-BK	x
	N010-1031-PHM		x
	N010-1034-SS			x
	N010-1034-BK			x
	N010-1034-MK				x
	N010-1233-SS					x
	N010-1233-BK					x
2	S91003	x		x	x	x
	S91010		x
	N051-0018-BK1HT				x
3	N385-0307-SER	x		x	x	x
	N385-0307-BK-SER		x
4	N510-0013	x	x	x	x	x
5	S87014	x	x	x	x	x
6	N010-1149-SER	x
	N010-1466-SER		x
	N010-1150-MK-SER			x	x
	N010-1235-SER					x
7	N240-0040	x	x	x	x	x
8	N570-0104	x	x	x	x	x
9	N350-0087	x	x	x	x	x
10	N100-0058	x	x	x	x	x
11	N720-0082	x	x	x	x	x
	N135-0056RB-BK1HT				x
12	N160-0043	x	x	x	x	x
13	S87010	x	x
	S87013			x	x
	S87017					x
14	S87001	x	x	x	x	x
15	N520-0050	x
	71501	ac	x
	N520-0049			x	x
	N520-0048					x
16	S83043	x	x
	S83008	ac	ac
	S83024			x	x
	S83044			ac	ac
	S83045					x
	S83021					ac
17	N455-0097	x	x	x	x	x
18	N200-0118-GY1SG	x
	N200-0118-BK1FL		x
	N200-0127-GY1SG			x
	N200-0127-BK1FL				x
	N200-0135-GY1SG					x
19	N585-0145-GY1SG	x
	N585-0145-BK1FL		x
	N585-0121-GY1SG			x
	N585-0121-BK1FL				x
	N585-0144-GY1SG					x
20	N710-0062	x	x	x	x	x
	62007	ac	ac	ac	ac	ac
21	N475-0363-GY1SG	x
	N475-0363-BK1FL		x
	N475-0449-GY1SG			x
	N475-0449-BK1FL				x
	N475-0499-GY1SG					x
22	N080-0364	x	x	x	x	x
23	N350-0076LY	x	x	x	x	x
24	N710-0094	x	x
	N710-0108			x	x
	N710-0120					x

	Part #	RSE425RSIB	425RSIB-PHM	RSE525RSIB	525RSIB-MK	RSE625RSIB
25	N080-0378-GY1SG	x		x		x
	N080-0378-BK1SG		x		x
26	N430-0002			x	x	x
27	N080-0365	x	x	x	x	x
28	N750-0016	x	x	x	x	x
29	N357-0021LY	x	x	x	x	x
30	N455-0112	x	x	x	x	x
31	N160-0023	x	x	x	x	x
32	N255-0064	x	x	x	x	x
33	N720-0055	x	x	x	x	x
34	W105-0010	x	x	x	x	x
35	N080-0380-GY1SG	x
	N080-0380-BK1SG		x
	N080-0387-GY1SG			x		x
	N080-0387-BK1SG
36	N570-0118			x	x	x
37	N130-0015	x	x	x	x	x
38	N510-0015	x	x	x		x
39	N590-0292-GY1SG	x
	N590-0292-BK1FL		x
	N590-0282-GY1SG			x
	N590-0282-BK1FL				x
	N590-0326-GY1SG					x
40	N475-0356-GY1SG	x		x		x
	N475-0356-BK1FL		x		x
41	N530-0032	x	x	x	x	x
	N530-0033	x	x	x	x	x
	N530-0034	x	x	x	x	x
	N530-0035	x	x	x	x	x
	N530-0036	x	x	x	x	x
	N530-0037	x	x	x	x	x
	N530-0038	x	x	x	x	x
	N530-0039	x	x	x	x	x
	N530-0042	x	x	x	x	x
	N530-0043	x	x	x	x	x
	N530-0046	x	x	x	x	x
42	N255-0027	x	x	x	x	x
43	N590-0261	x		x		x
	N590-0261-BK0TX		x		x
44	N570-0126	x	x	x	x	x
45	N370-0845CE	p	p	p	p	p
46	N010-0869-SS-SER	x
	N010-0869-BK-SER	x
	N010-0869-MK-SER		x
	N010-0984-SS-SER			x
	N010-0984-BK-SER			x
	N010-0984-MK-SER				x
	N010-1221-SS-SER					x
	N010-1221-BK-SER					x
47	N010-1148-SER	x		x		x
	N010-1467-SER		x		x
48	N080-0422-SER	x		x	x	x
49	N370-0928-SER	x		x	x	x
	N370-0928-BK-SER		x
50	N555-0097	x	x	x	x	x
51	N325-0094-SER	x		x	x	x
	N325-0094-BK0TX-SER		x		x
52	N105-0011	x	x	x	x	x
53	N370-0745	ac	ac	ac	ac	ac
54	N010-1232-CE-SER	x		x	x	x
	N010-1470-CE-SER		x
55	N555-0091	x	x	x	x	x
56	N335-0098-M06	x		x	x	x

	Part #	RSE425RSIB	425RSIB-PHM	RSE525RSIB	525RSIB-MK	RSE625RSIB
	N335-0098-BK1TX		x		x
57	S83010	x		x		x
	S83012		x		x
58	N010-1428	x	x	x	x	x
59	N240-0026	x	x	x	x	x
60	N570-0128	x		x	x	x
	N570-0128-BK4FL		x
61	N710-0063	x	x	x	x	x
62	N010-1238-SER	x
	N010-1240-SER	x
	N010-1471-SER		x
	N010-1472-SER		x
	N010-1144-SER			x
	N010-1146-SER			x
	N010-1628-MK-SER				x
	N010-1236-SER					x
	N010-1237-SER					x
63	N010-1113	x	x
	N010-1101LY			x	x
	N010-1220					x
64	N660-0007LY	x	x	x	x	x
65	N160-0045	x	x	x	x	x
66	N380-0040-BK	x	x	x	x	x
67	N387-0014	x		x		x
	N387-0014LY-BK		x		x
68	N380-0039	x		x		x
	N380-0039-BK		x		x
69	N387-0013	x		x		x
	N387-0013LY-BK		x		x
	N387-0014LY-BK				x
70	N370-1043-SER	x	x	x	x	x
	62050	x	x	x	x	x

Accessories Parts List

	Description	RSE425RSIB	425RSIB-PHM	RSE525RSIB	525RSIB-MB	RSE625RSIB
69912	Rotisserie Kit-CE	ac	ac	ac	ac	ac
69913	Rotisserie Kit-GB	ac	ac	ac	ac	ac
69915	Rotisserie Kit-IL	ac	ac	ac	ac	ac
61427	Cover	ac	ac
61527	Cover			ac	ac
61627	Cover					ac
56425	Cast Iron Griddle	ac	ac
56365	Cast Iron Griddle			ac	ac	ac
67732	Smoker Tray	ac	ac	ac	ac	ac
62007	Grease Trays Foil (5 pieces)	ac	ac	ac	ac	ac
S82002	Caster Kit	ac	ac	ac	ac	ac

• x – standard part
• p – propane
• n – natural
• ac – accessory

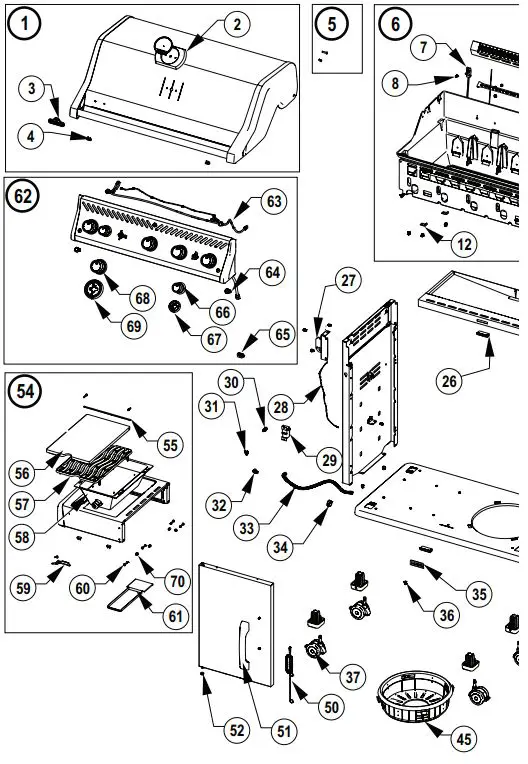

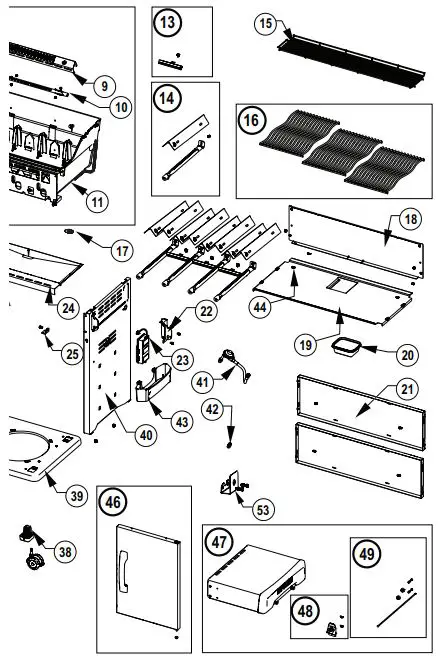

PARTS DISCRIPTION

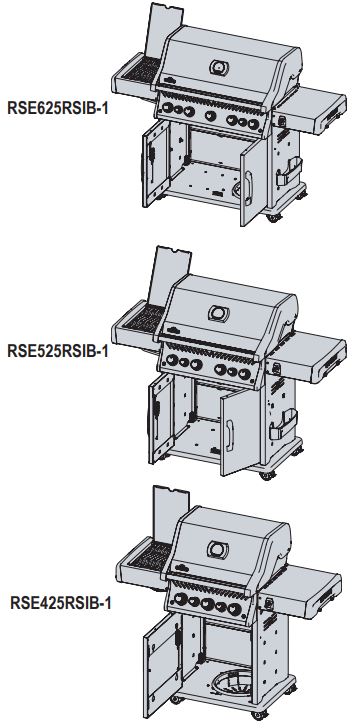

MODEL

Napoleon products are protected by one or more U.S. and Canadian and/or foreign patents or patents pending.

• PHONE: +31 345-58-8655
• EMAIL [email protected]
• ONLINE www.napoleon.com
• NAPOLEON GRILLS EUROPE De Riemsdijk 22, 4004 LC, Tiel The Netherlands
• N415-0637CE | Revision: ___ Mar 25, 2022
