G15BR-TX ARC Sports Bar
Instruction Manual
I-SHEET PART NUMBER: INST-00267
PART NUMBER: G15BR-TX
PRODUCT: SPORT BAR
APPLICATION: 15-21 COLORADO/CANYON
G15BR-TX ARC Sports Bar
HARDWARE HWKT-11804X
| 3/8”X1” CARRIAGE BOLT | 8 |
| 3/8” FLANGED NUT | 8 |
| PARTS INCLUDED | QTY |
| CENTER LIGHT MOUNT ASSEMBLY | 1 |
| DRIVER SIDE ASSEMBLY | 1 |
| PASSENGER SIDE ASSEMBLY | 1 |
| BACKING PLATE | 2 |

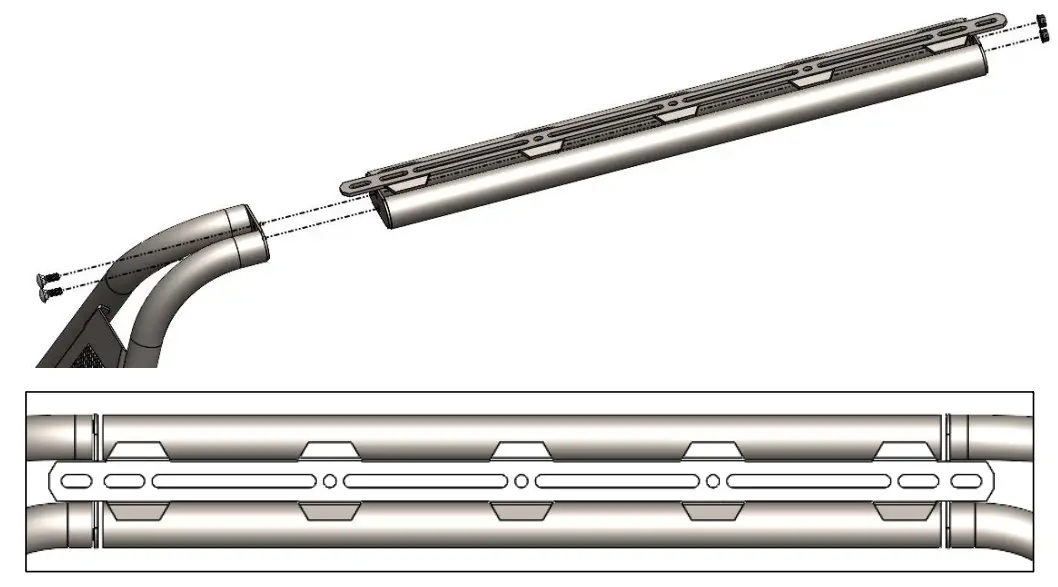

Step 1: Attach the Center section to the driver and passenger side assemblies using the supplied 3/8” x 1” carriage bolt (x4) and 3/8” fanged nut (x4) and leave finger tight for now.
*NOTE: Begin with the upper bolt and nut first to have easier access to the lower fasteners. *

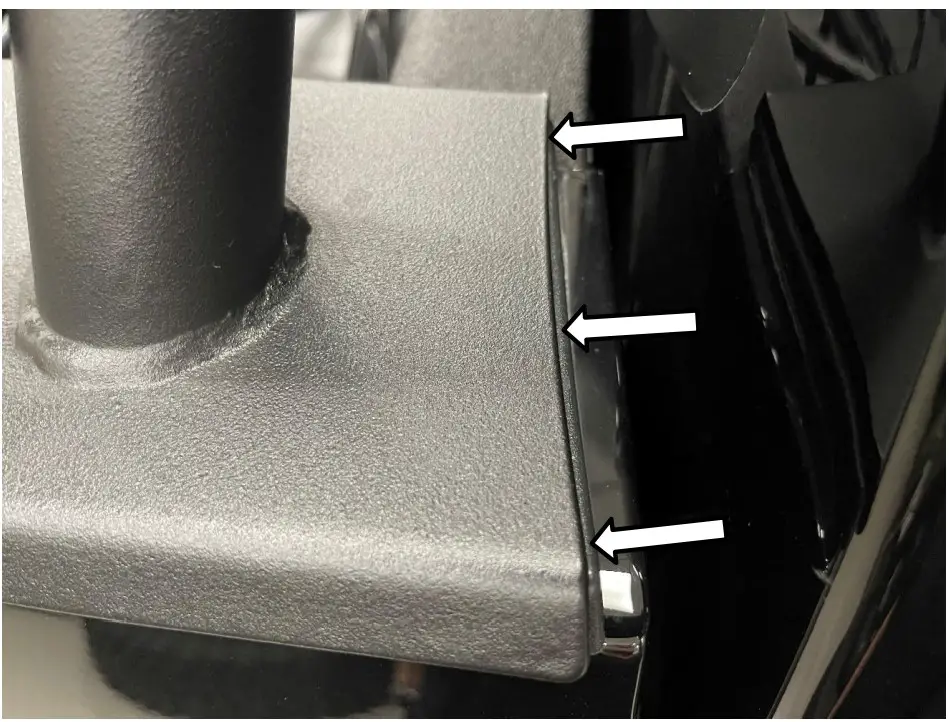

Step 2: With additional help, carefully place Sport Bar onto bed rails aligning edge with the plastic cap on both sides.

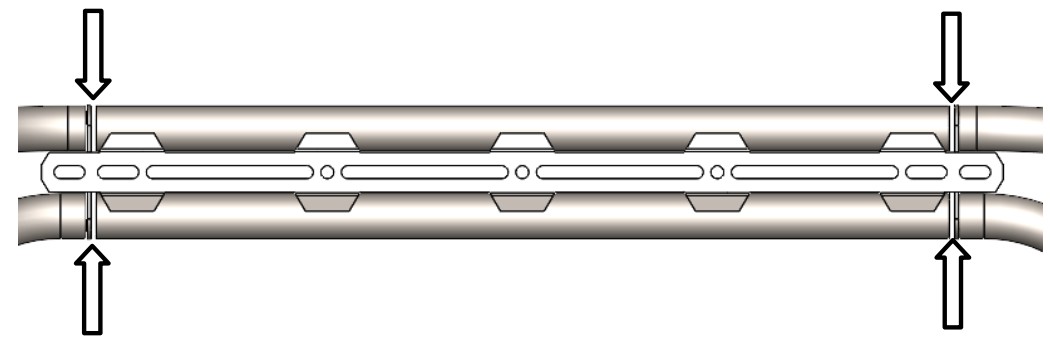

Step 3: Next, fully tighten the carriage bolts in the center section.

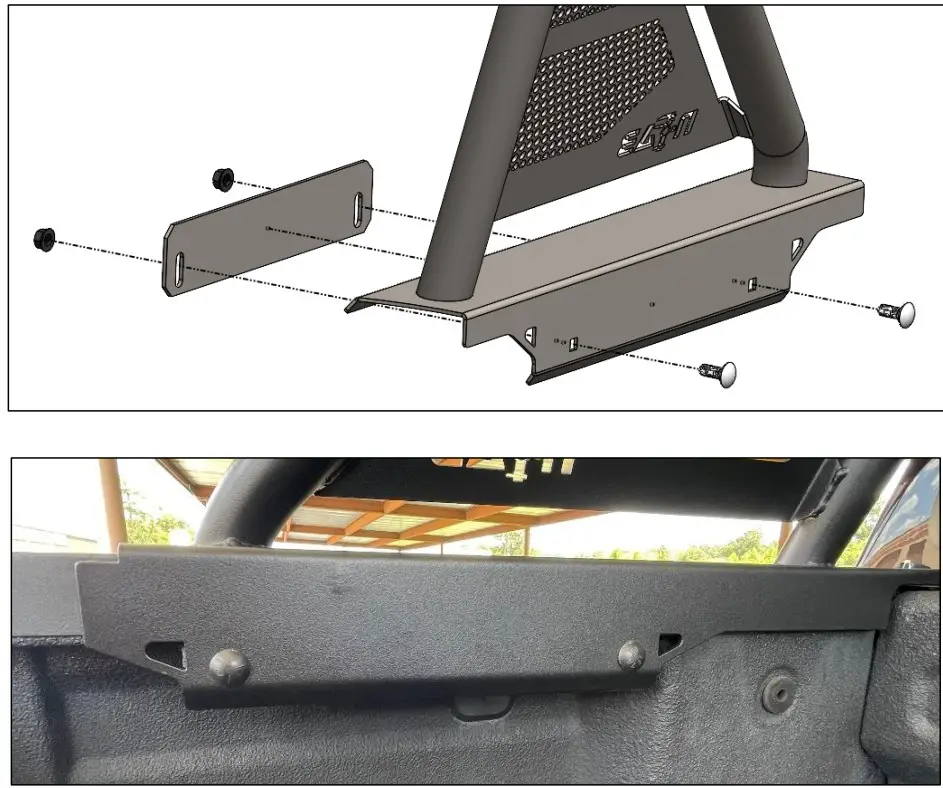

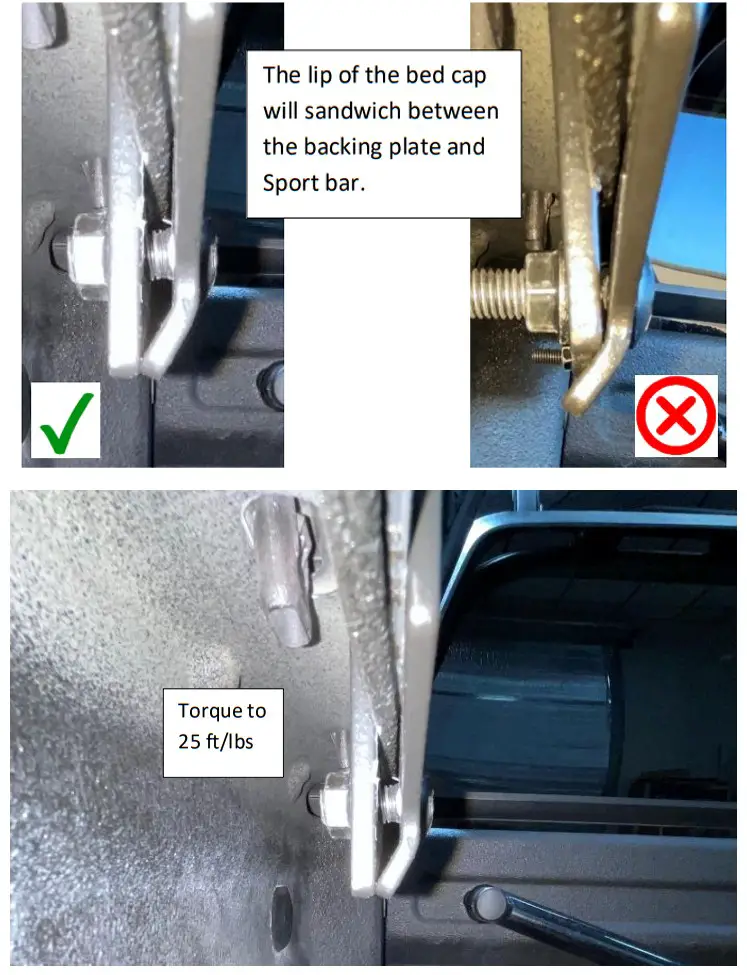

Step 4: Install the driver and passenger side backing plate brackets using the supplied 3/8” x 1” carriage bolts and 3/8” flanged washers **NOTE ** The bracket will mount with the holes closer to the edge facing down.
I-SHEET PART NUMBER: INST-00267
PART NUMBER: G15BR-TX
PRODUCT: SPORT BAR
APPLICATION: 15-21 COLORADO/CANYON
