MOTIONBLINDS Motorized Curtain Rail Installation Guide

Contents

MOTIONBLINDS Motorized Curtain Rail

Product Information

The product is a motorized curtain rail designed for use with curtains. It is manufactured by Coulisse DIY B.V. and the model number is MN210097_202205011. The rail length (RL) is calculated by subtracting 13 cm from the width (W) of the curtain. The belt length (BL) is calculated by multiplying the system size (S) by 2.

Product Usage Instructions

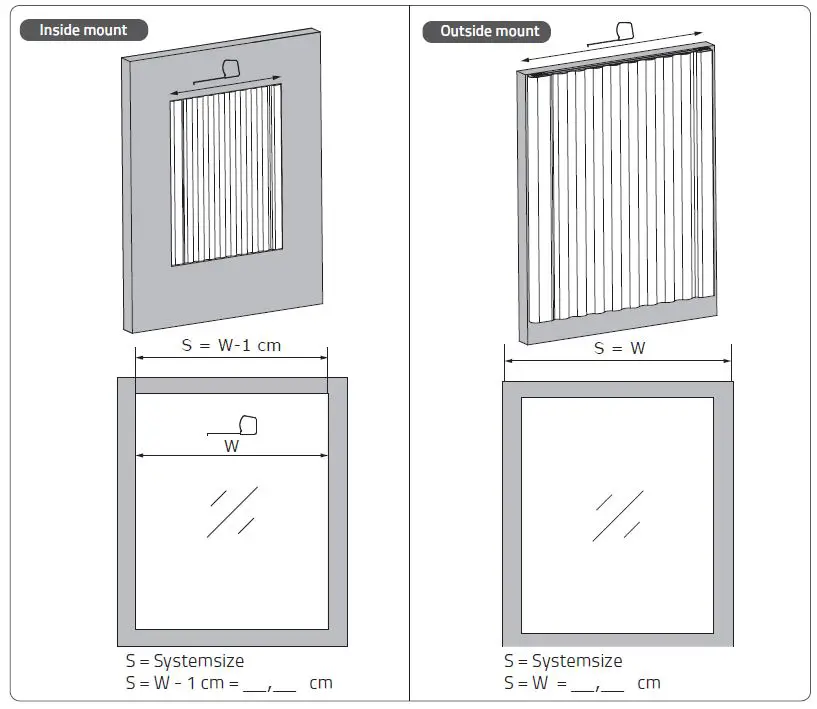

Decide whether you want to mount the curtain rail inside or outside the window frame.
If mounting inside, calculate the system size (S) by subtracting 1 cm from the width (W) of the curtain. If mounting outside, the system size (S) is equal to the width (W) of the curtain.
If the minimum length of the rail is 15 cm, calculate the rail length (RL) by subtracting 13 cm from the system size (S). This will give you the total rail length.
Calculate the belt length (BL) by multiplying the system size (S) by 2.

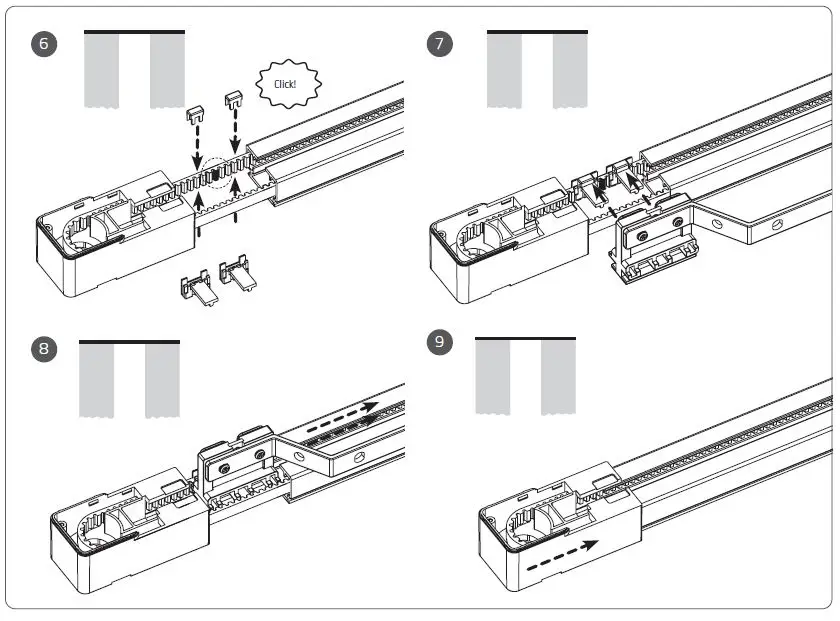

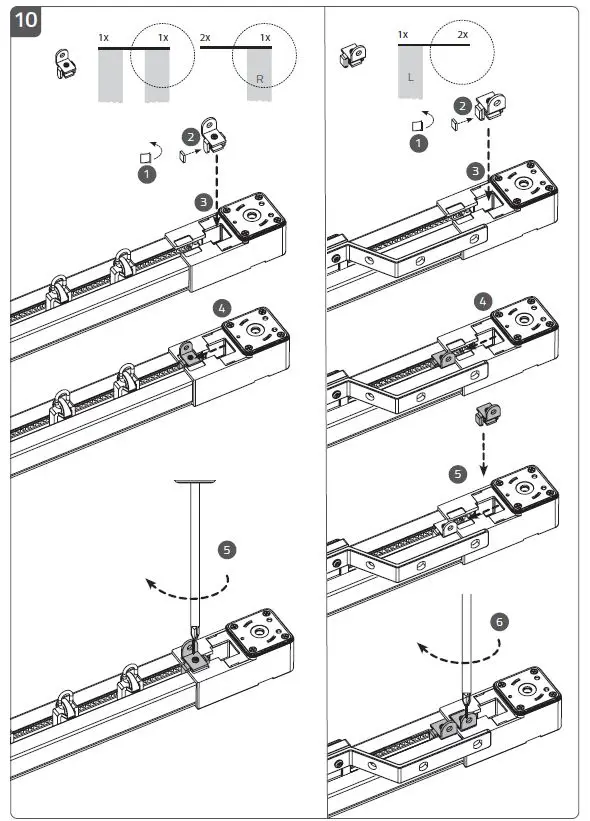

Assemble the curtain rail according to the provided diagrams and instructions.
Make sure to tighten all screws fully.
If using a motor, position it on the side without the motor and click it into place after tightening the screws.

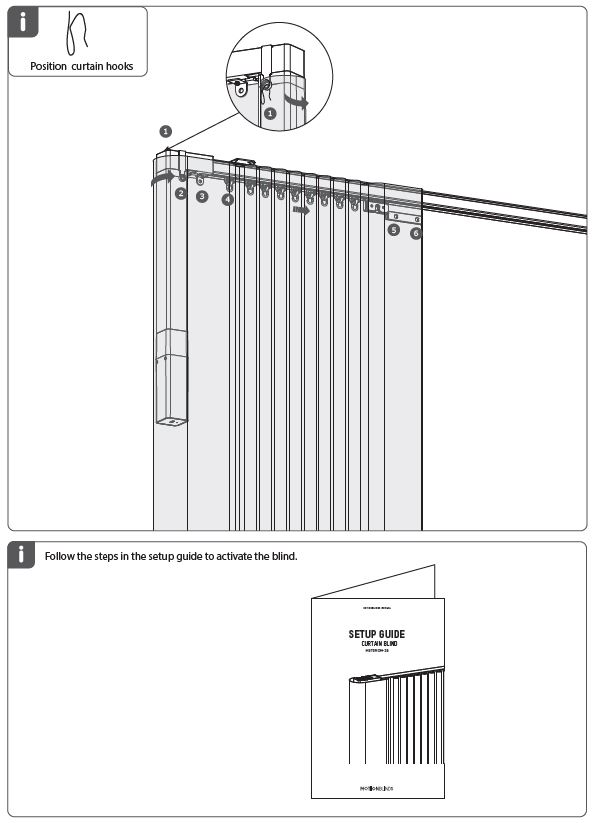

If the width of the curtain is less than or equal to 110 cm, use 2 curtain hooks on each side. If the width is greater than 110 cm, use 3 curtain hooks on each side.
Follow the setup guide to activate the motorized curtain rail.

Please refer to the complete user manual for more detailed instructions and diagrams.
