Hybrid Integra 42 Speakers
Installation Guide
Hybrid
Installation Guide
Hybrid 42, 52, 53, 62, 63
Hybrid Integra 42, 52, 62

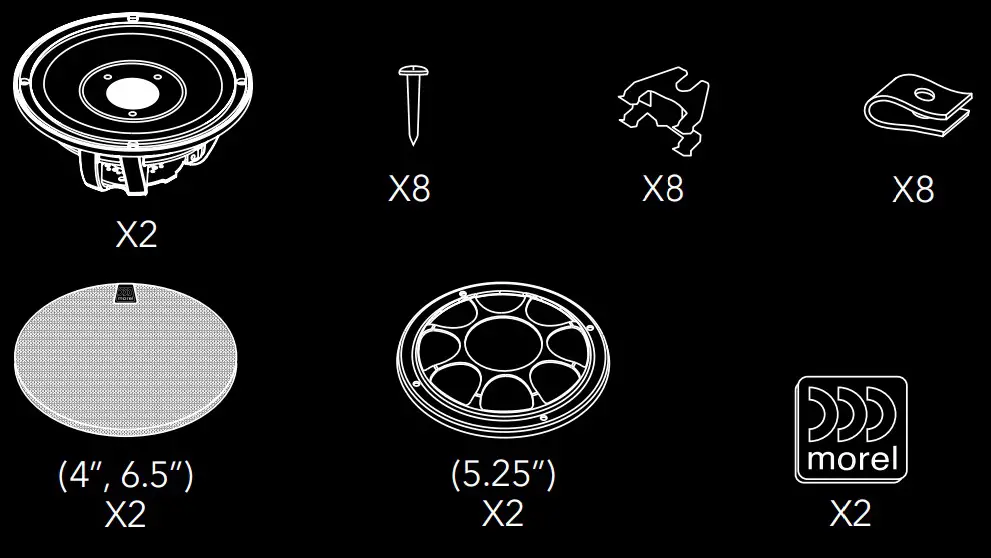

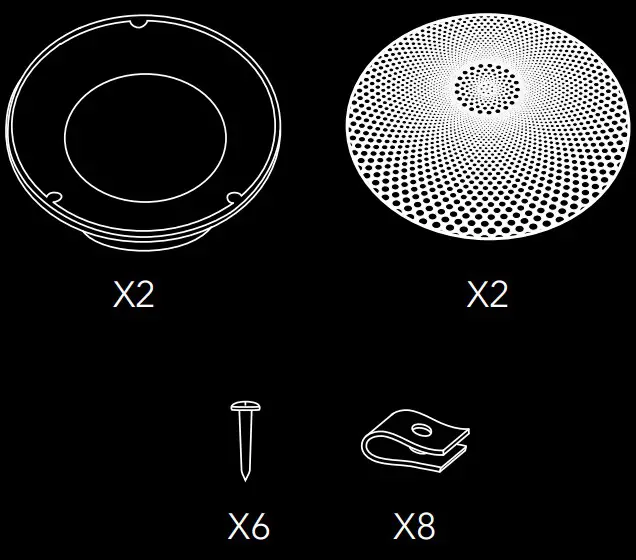

Components
MW4MKII, MW5MKII, MW6MKII, MT300,
CDM700, MXR240.4, MXR250.4i, MXR300.4
Contents
Hybrid Integra 42 Speakers
Dear Customer,
Thank you for choosing Morel for your car audio speaker solution.
Morel prides itself on engineering and producing the best high-fidelity speaker systems.
We hope you enjoy your Hybrid speakers for years to come.
If you have any questions, please contact your Morel dealer or Morel support at www.morelhifi.com

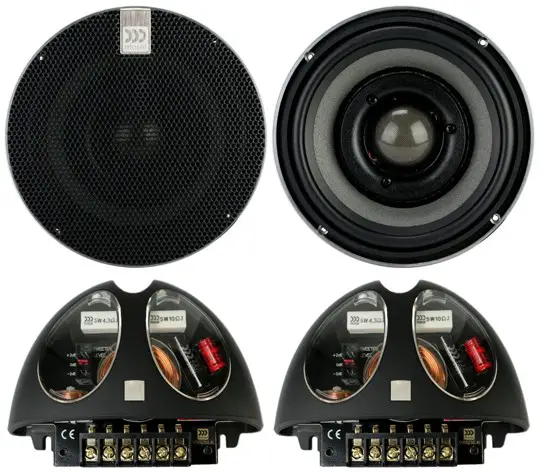

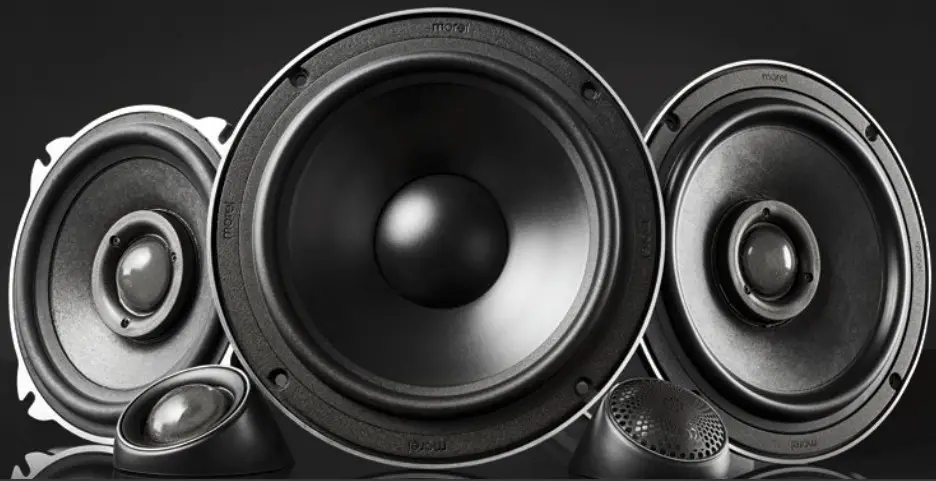

Hybrid Components
Hybrid 4″, 5.25″, 6.5″ Woofer Hybrid 4″, 5.25″, 6.5″ Integra
MT300 Tweeter
CDM700 Midrange
MXR240.4/250.4i/300.4

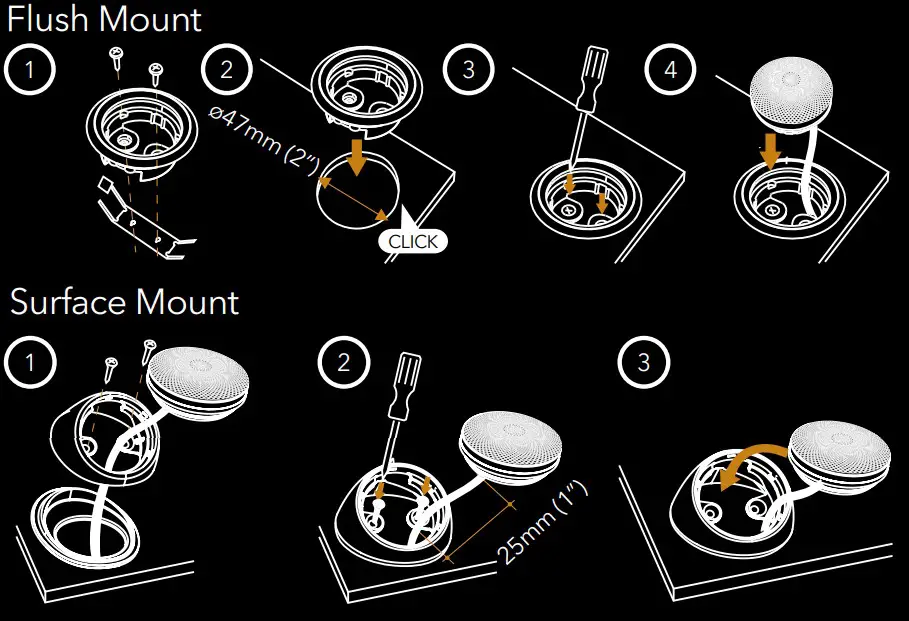

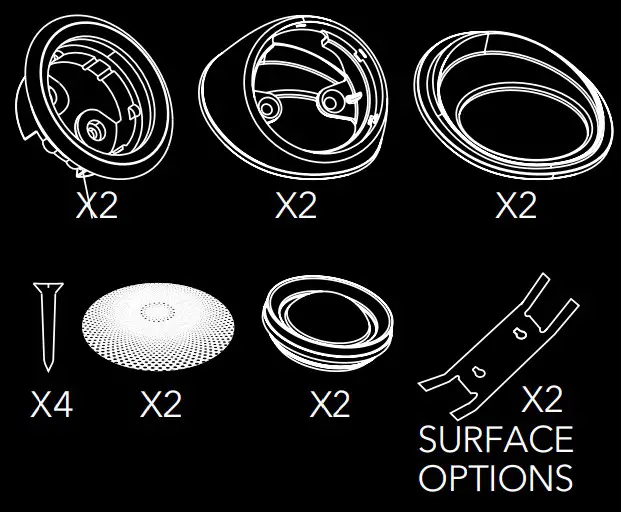

Hybrid Woofer/Integra, Tweeter, Crossover mounting

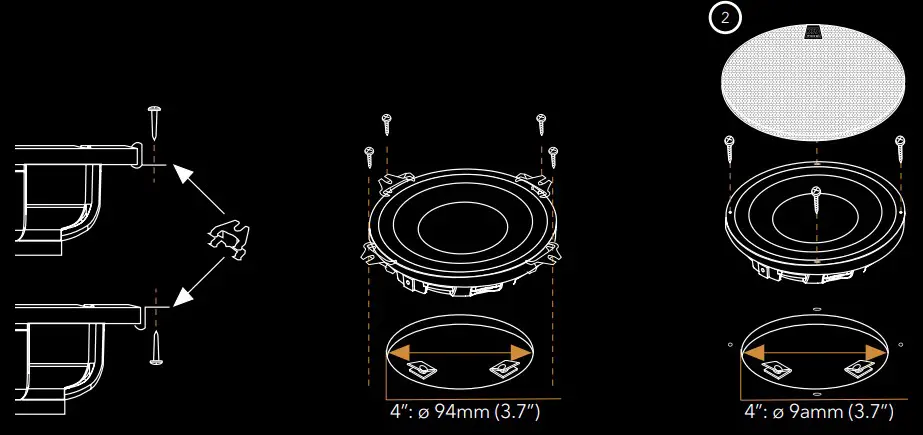

Unit 4″
Use the screw clips in any combination, with or without plastic frame.

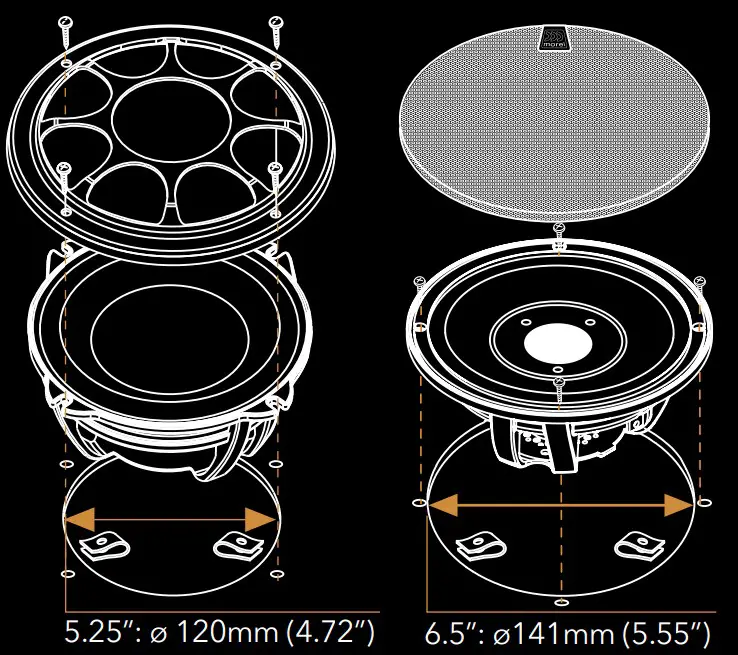

These clips can be used either way up or down depending onthe installation requirement.Unit 5.25″,6.5″

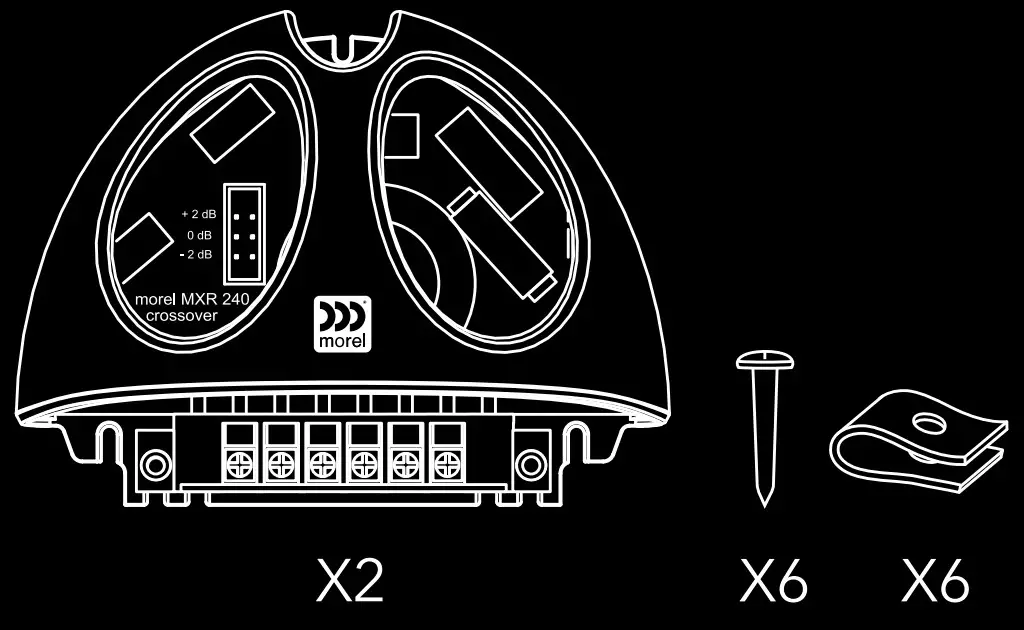

Crossover mounting
MT300 Tweeter
CDM700 Midrange
Use the screw clips in any combination, with or without the plastic frame. These clips can be used either way up or down depending on installation requirements.
2-WAY System

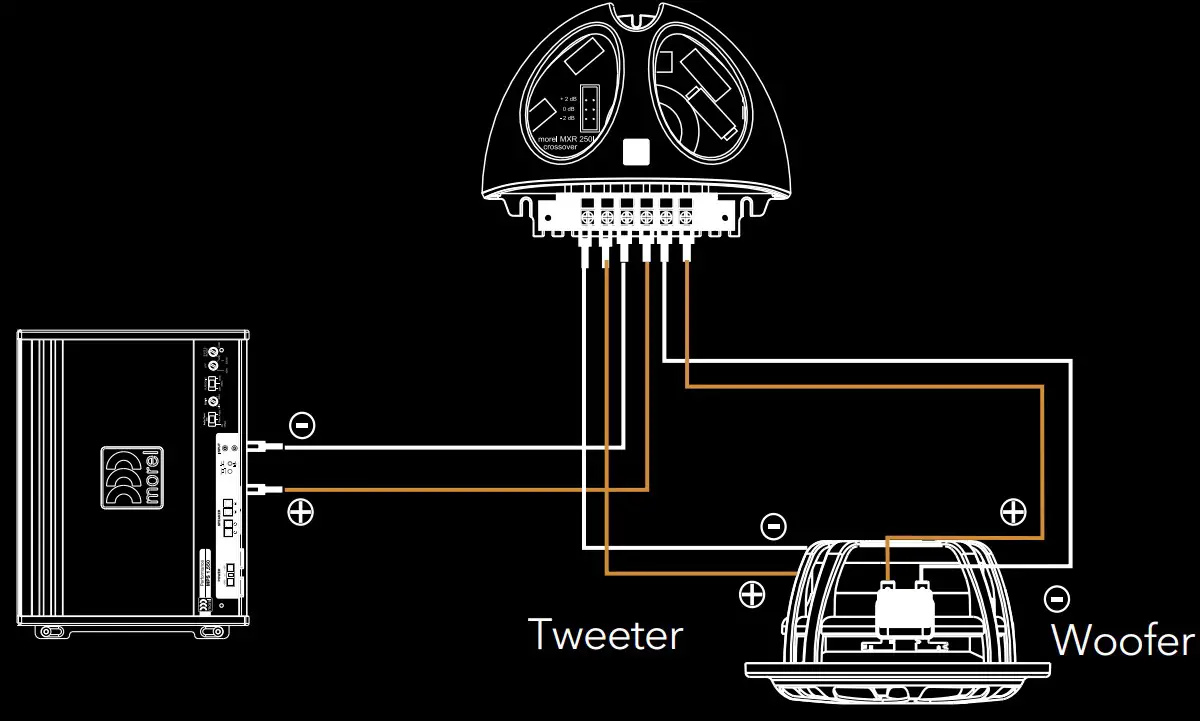

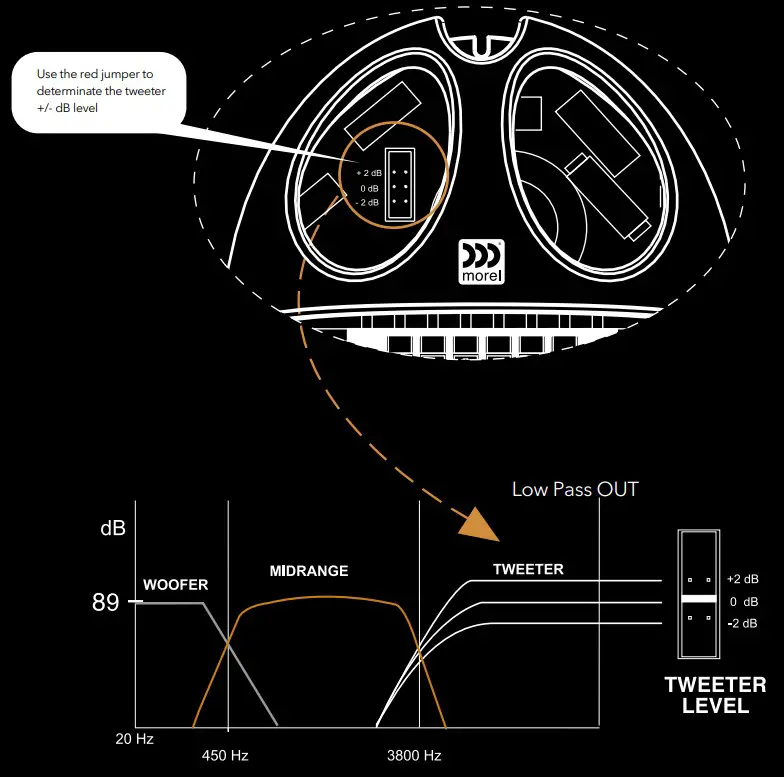

2-WAY System Wiring
ACTNVE SETUPRecammended Active Crazzovers
2ay Compansre Syzems
Tusstar HP: 2500Hz@ 1205 or 2408 slope
Wosfer LP. 2500H: @ 1268 or 24cB slope

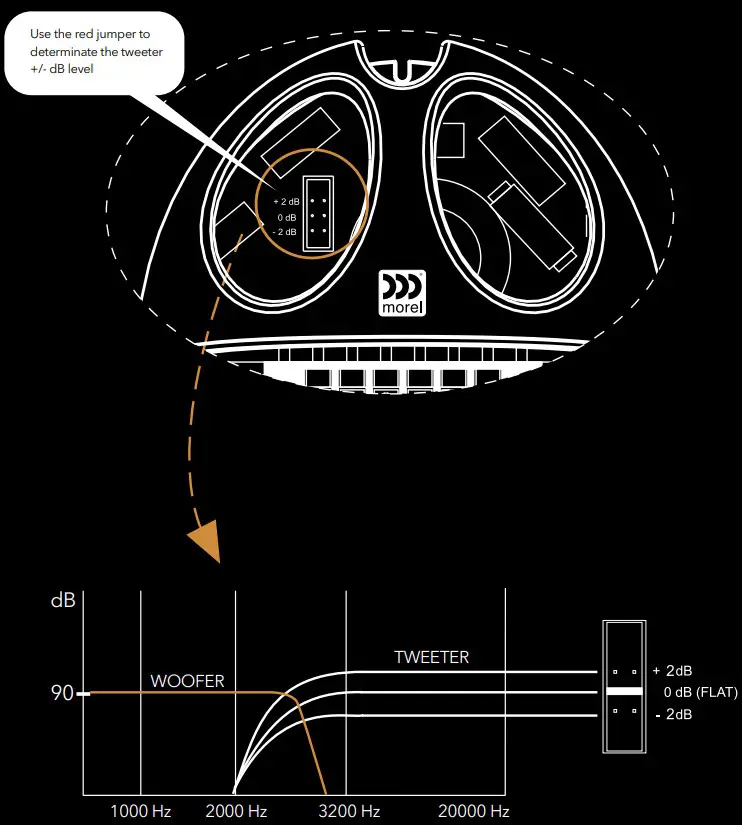

PASSIVE SET UP 2-WAY System Alignment
3-WAY System
3-WAY System Wiring
ACTNVE SET UP (Outputs must be filtered)Recommended Adtive Crossover
Tusster HP: 2500H: @ 1268 slope
Micrangs LP: 2,500z @ 1208 dope
Micrange HP: S00Hz@ 125 dope
WecferLP: 500Hz @ 1205 depe

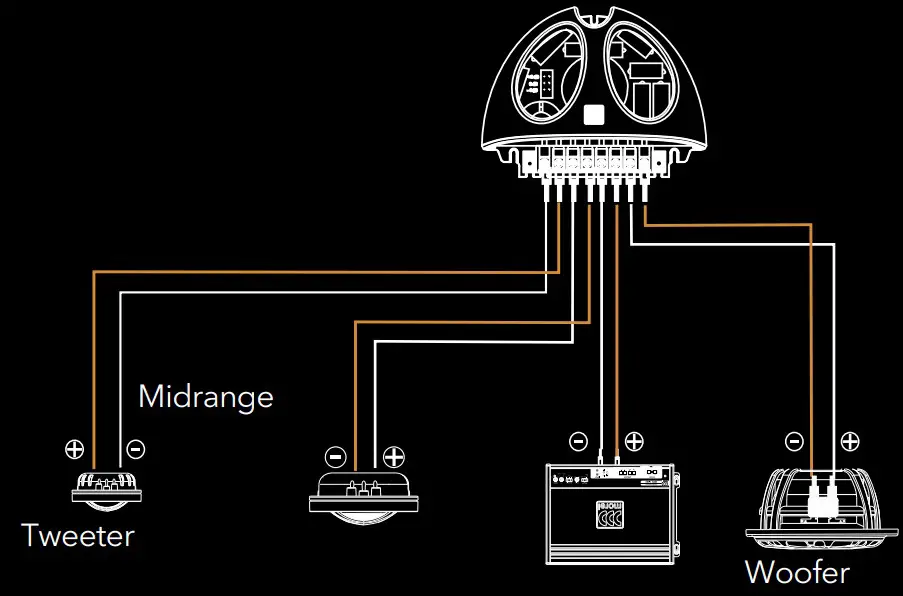

PASSIVE SET UP3-WAY System Alignment
Integra System
Hybrid Integra System Wiring

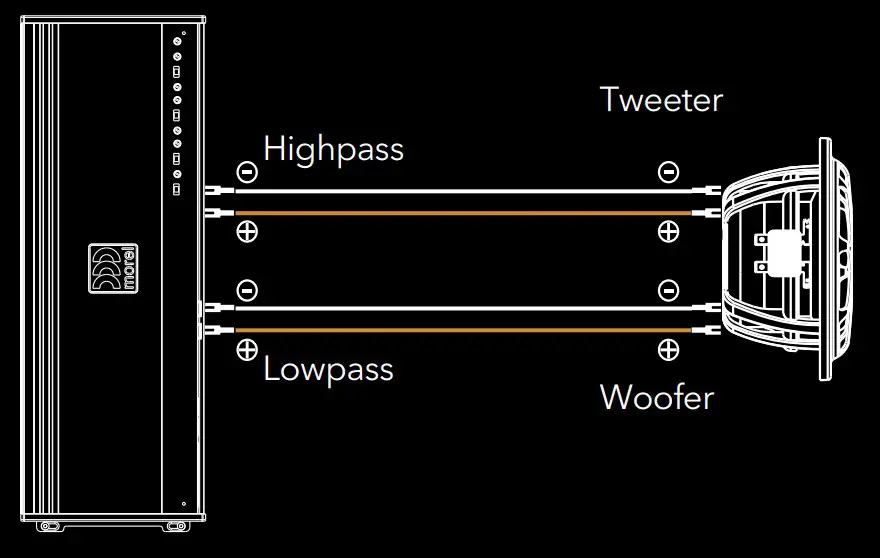

ACTNVE SET UP Recommended Active Crossover
Tweeter HP: 2,500Hz @ 12dB or 24dB slope
Woofer LP: 2,500Hz @ 12dB or 24dB slope
PASSIVE SET UP Hybrid Integra System Alignment
Specifications
DRIVER UNIT |
HYBRID MW4MKII | HYBRID MWSMKII | HYBRID MW6MKII | HYBRID INTEGRA 42 | HYBRID INTEGRA 52 |
HYBRID INTEGRA 62 |
Nominal Impedance (Ohms) | 4 | 4 | 4 | 4 | 4 | 4 |
Power Handling Wrms | 100 | 120 | 140 | 80 | 90 | 100 |
Max. Trans.Pwr Handling Wrms | 300 | 500 | 600 | 250 | 250 | 300 |
Sensitivity (2.83V/1M) | 89 dB | 90dB | 91 dB | 89dB | 90dB | 91dB |
Frequency Response Hz | 50-4200 | 45-3000 | 35-3000 | 80-5000 | 70-3800 | 65-3300 |
Resonant Freq. Fs Hz | 82 | 56 | 45 | 92 | 82 | 75 |
Voice Coll Diameter mm (inch) | 54 (2.1) | 54 (2.1) | 54 (2.1) | 54 (2.10) | 54 (2.1) | 54 (2.1) |
Voice Coil Height mm (inch) | 10.50 (0.41) | 10.50 (0.41) | 11 (0.47) | 12 | ||
Voice Coil Type/ Former | Aluminwn | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Voice Coil Wire | Hexatech”‘ aluminum | Hexatechn’ aluminum | HexatechTM aluminum | HexatechTM aluminum | Hexatech’ aluminum | Hexatecti’m aluminum |
DC Resistance (Ohms) | 3.2 | 3 | 3 | 3 | 3.3 | 3.3 |
Voice Coll Induct. @1 kHz (MH) | 0.21 | 021 | 022 | 0.17 | 026 | 0.31 |
Magnet System | Hybrid mar vented | Hybrid rear vented | Hybrid rear vented | Neodymium | Neodymium | Neodymium |
HE-Magnetic Gap Height mm (inch) | 4 (0.18) | 4 (0.18) | 4 (0.16) | 4 (0.16) | 5 (020) | 5 (0.20) |
B-Flux Density (T.M.) | 0.83 | 0.83 | 0.83 | 0.9 | 0.9 | 0.85 |
BL Product/BXL | 4.16 | 4.2 | 42 | 3.97 | 5.16 | 4.85 |
Max. Linear Ex./Xmax mm (inch) | 7±3.5 (0.28*0.14) | 7*3.5 (0.28 ± 0.14) | 7*3.5 (0.281.0.14) | 4±2 (0.16*0.08) | 5.50*2.75 (0.22*0.11) | 7±3.5 (0.281.0.14) |
Suspension Compliance CMS – mm/N | 0.57 | 0.78 | 1.1 | 0.66 | 0.6 | 0.42 |
Electrical Q Factor QES | 0.63 | 0.59 | 0.56 | 0.45 | 0.39 | 0.67 |
QTS | 0.46 | 0.45 | 0.44 | 0.36 | 0.32 | 0.54 |
QMS | 1.74 | 1.8 | 2.08 | 1.72 | 1.85 | 2.86 |
Mech.Resistance RMS – Ohm/meter | 1.98 | 116 | 1.5 | 1.44 | 1.7 | 1.52 |
Moving Mass MMS – gr/ ounce | 6.8 | 9.9 | 11 | 4.4 | 6.11 | 8.12 |
Equiv. Can Air Load VAS – L (cut) | 3.17 (0.11) | 8.87 (0.31 | 21 (0.74) | 1.40 (0.04) | 2.72 (0.37) | 3.80 (0.13) |
Effective Piston Area SD sq.cm (sq. inch) | 64 (9.92) | 90 (13.95) | 119 (18.45) | 39 (6.04) | 57 (8.83) | 80 (37.8) |
Cone Type | One-piece formed | One-piece formed | One-piece formed | Formed Paper | Famed Paper | Formed Paper |
Cone Material | DPC | DPC | DPC | Composite cellular fiber | Composite cellular fiber | Composite cell. fiber |
Unit Diameter mm (Inch) | 104 (4) | 135 (5.25) | 165 (6.50) | 104 (4.0) | 135 (5.25) | 165 (6.5) |
Mounting Depth mm (inch) | 50 (21) | 60 (2.36) | 61 (2.40) | 50 (2.1) | 60 (2.36) | 61 (2.40) |
Mounting Cutout mm (inch) | 95 (3.74) | 120 (4.72) | 141 (5.55) | 95 (3.74) | 120 (4.72) | 141 (5.55) |
Net Weight Kg (lb) | 0.53 (1.1716) | 0.60 (1.32) | 0.60 (1.32) | 0.50 (1.10) | 0.60 (1.32) | 0.75 (1.65) |
TWEETER / MIDRANGE | MT300 | CDM700 |
Nominal Im edance Ohm | 6 | 8 |
Power Handlin WRms | 130 | 100 |
Max Transient Power Handlin W 10ms | 350 | 300 |
Sensitivit 2.83V/1M dB | 93 | 90 |
Fre uenc Res onse Hz | 1600-25000 | 600-6000 |
FS Hz | 1200 | 480 |
Voice Coil Diameter mm inch | 28 (1.125) | 54 (2.125) |
Voice Coil Former | Aluminum | Aluminum |
Voice Coil Wire | HexatechTm Aluminium | Hexatechm, Aluminium |
DC Resistance Ohm | 5.2 | 3.5 |
Magnet Sstem | Double Magnet Neodymium | Neodymium Rear Vented |
Dome Tupe | Acuflexm Hand Coated Soft Dome | Coated Soft Dome |
Dome Material | Silk | Silk |
Unit Diameter mm inch | 43.00 (1.69) | 88.00 (3.50) |
Mountin Depth mm inch | 13.20 (0.52) | 21.00 (0.83) |
Mountin Cutout mm (inch) | 47.00 (2.00) | 75.50 (2.97) |
Net Weight Kg (lb) | 0.067 (0.134) | 0.25 (0.55) |
CROSSOVER | MXR240.4 | MXR250.4i | MXR300.4 |
Crossover Point | W: 2200Hz / 18dB T: 2200Hz / 12dB | 2200Hz / 12dB | W: 500Hz / 12dB M:18dB/ 2200Hz/ 12dB T: 2200Hz / 6dB |
Crossover Controls | Tweeter+/- 3dB | Tweeter+/- 2dB | Tweeter+/- 2dB |
Wiring Options | N/A | N/A | N/A |
* Morel operates a policy of continuous product design improvement, consequently specifications are subject to alteration without prior notice.
Morel, Ness Ziona, 70400 Israel.
Tel: +972-8-9301161
Fax: +972-8-9301312
E-mail: [email protected]
Morel America, Chandler, AZ, USA
Toll free number:1-877-667-351 1
Fax: 1-718-721-1560
E-mail: [email protected]
www.morelhifi.com
