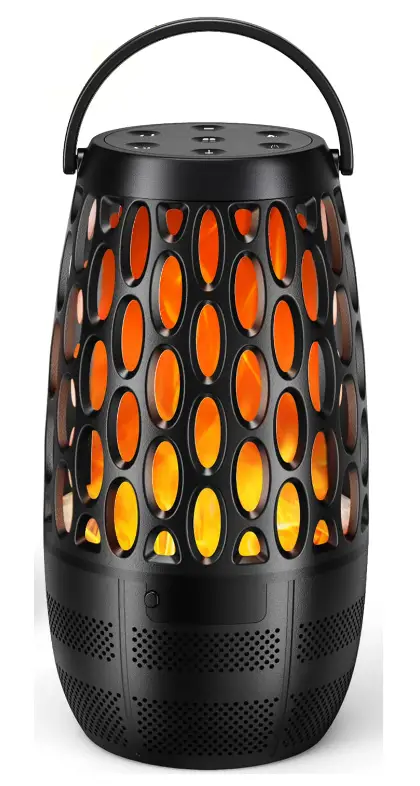

MOFOKEAY 230426 Outdoor Bluetooth Speakers
Contents
CONTROL PANEL
Flame
Light on/Off/Cycle Modes
Power
Tum the Speaker On/Off
Bluetooth
Activate Party Sync Mode
Plus
Next Song/Volume Up
Minus
Last Song/Volume Down
Play/Pause
Play/Pause the Song
Battery
Check the Battery Level
QUICK START
Speaker
- Power on the ()
- Connect to a Bluetooth enabled device
- Begin listening!
Light
Modes: Flicker !Pulsing ISolid
- Single click the Flame () button to turn on & cycle through the modes.
- Press and hold the Flame () button to turn off the light without cycling through the modes.
CONNECT TO A DEVICE
- Press and hold the power () button.
- Turn on the Bluetooth feature in your device’s settings.
- If you are connecting this speaker for the first time, you can find the Bluetooth device “SY126” on your list, then pair with Bluetooth; once you hear the voice prompt “Connected”, It means the connection is successful.
This speaker will be “Parent” speaker.
Note:
If you are connecting multiple speakers for the first time, please follow the steps below to enter the Party Sync Mode.
- Turn on Party Sync Mode on the Parent speaker by single clicking the Bluetooth button ( ), you will hear “didi “.
- Power on the second speaker and single click the Bluetooth button ( ) to turn on Party Sync Mode, you will hear “didi “.
This speaker and all additional will be called the “Child”. - If you want more speakers to join Party Sync Mode, just repeat steps 5.
- If you have already connected to Party Sync Mode before, just turn on all the speakers first, wait for
- seconds, and the “Parent” speaker will connect automatically; but for the connection between the “Parent” and “Child”, you need to single click the Bluetooth button on the “Parent” and “Child” speakers, after hearing the “didi” sound, it means you reenter the Party Sync Mode successfully.
Tip: Disconnecting Speakers
- Single click the Bluetooth ( ) button on any Child speakers to disconnect from the Parent, click the Bluetooth( ) button again to reconnect.
- Single click the Bluetooth ( ) button on Parent speaker to disconnect all Child speakers, click the Bluetooth ( ) button again to reconnect.
- The buttons on the Parent speaker can control all Child speakers except the Light button.
Tip: Indicating the Parent Speaker
When multiple speakers are connected the LED lights of the control panel will slowly blink to indicate which speaker is the Parent.
TROUBLESHOOTING
Connecting To Bluetooth
If II SY126 11 does not show up in your Bluetooth menu, try:
- Turning the device’s Bluetooth off, wait 15 seconds, then turn it back on.
- Turning the II SY126 11 off, wait 15 seconds, then turn it back on.
- Forget 11SY12611 from all other near-by mobile devices.
Sound Quality
If the audio being streamed to II SY126 11 is skipping or has poor sound quality, try:
- Moving the Main II SY126 11 closer to the connected device.
- Moving all paired II SY126 11 Speakers closer to the Main Speaker.
- Checking for interference between the device and the Main Speaker (walls, metal structures, ect).
LISTENING
Audio can be adjusted from the Control Panel or directly on your device.
- Plus(+)
Single click= next song Press and hold =volume up - Minus(-)
Single click= restart song Press and hold= volume down
BATTERY
When charging, the blue grid in the working state will increase gradually according to the amount of electricity; When discharging, the number of squares of the gray icon will gradually increase according to how much power is consumed.
It is recommended to charge the speaker to 100% before each use to achieve the longest playtime.
To charge, connect the included Type-C to USB Cable to a USB output.
The lights on the battery level () will flash while charging. Once fully charged, the lights will be always-on mode.
Recharging time: 5-6 Hours.
TECH SPECS
- Pairing Name: SY126
- Version: 5.3
- Pairing Capacity: Up to 100Speakers
- Water Resistant: IPX6
- Battery Type: Li-Ion 3.7 V DC 1,800mAh
- Recharging Time: 5-6 Hours (from 0%}
- Type-C Input: 5V/1A
- Playtime: Up to 12Hours
varies by audio volume and light brightness. - Max Output Power: 10w
- Transmission Distance: 50ft
- RF Frequency: 2.40 GHz-2.48 GHz
- Drive Unit: <1>57mm
- Impedance: 4 ohm
- Sensitivity: -85dBm
- S.P.L.: 95 dB
- Dimensions: 7.411x 3.9 1
- Weight: 1.25 lbs
