SPLIT-TYPE AIR CONDITIONERS
Revision A:
• MSZ-GS06/09/12/15/18/24NA – U1,
MSY-GS09/12/15/18/24NA – U1,
MSZ-GS30/36NA2 – U1 and
MSY-GS30/36NA2 – U1
have been added.
OBB874 is void.
INDOOR UNIT
No. OBB874
REVISED EDITION-A
MSZ-GS18NA
MSY-GS18NA
Contents
MSY-GS30NA-U1 Premier Cooling Only Wall Mounted Indoor Unit
PARTS CATALOG
Models
| MSZ-GS06NA – U1 MSZ-GS09NA – U1 MSZ-GS12NA – U1 MSZ-GS15NA – U1 MSZ-GS18NA – U1 MSZ-GS24NA – U1 MSZ-GS30NA – U1 MSZ-GS36NA – U1 MSZ-GS30NA2 – U1 MSZ-GS36NA2 – U1 |
MSY-GS09NA – U1 MSY-GS12NA – U1 MSY-GS15NA – U1 MSY-GS18NA – U1 MSY-GS24NA – U1 MSY-GS30NA – U1 MSY-GS36NA – U1 MSY-GS30NA2 – U1 MSY-GS36NA2 – U1 |
Revision A:
• MSZ-GS06/09/12/15/18/24NA – U1, MSY-GS09/12/15/18/24NA – U1, MSZ-GS30/36NA2 – U1 and MSY-GS30/36NA2 – U1 have been added.
SERVICE PARTS LIST
MSZ-GS06NA MSZ-GS09NA MSZ-GS12NA MSZ-GS15NA MSY-GS09NA MSY-GS12NA MSY-GS15NA

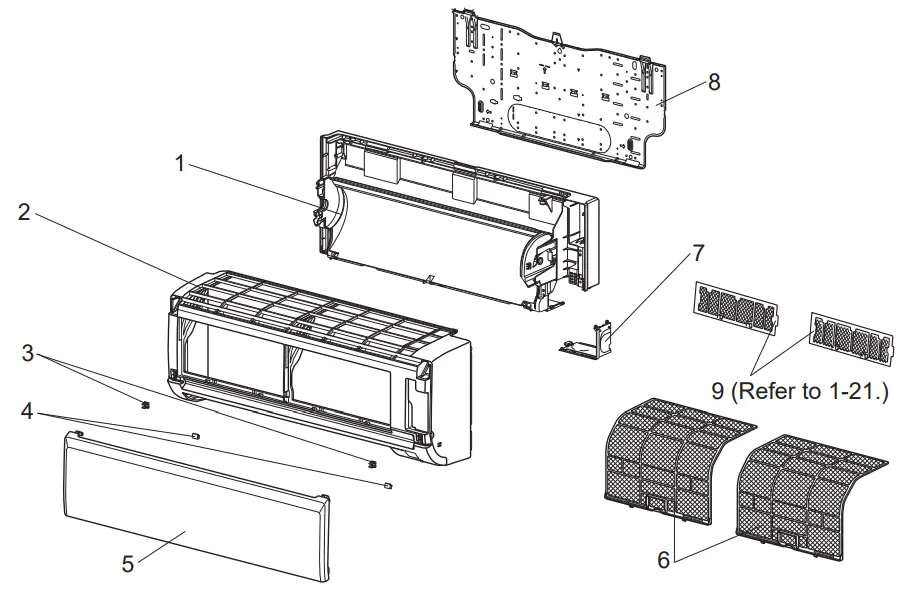

1-1. INDOOR UNIT STRUCTURAL PARTS
1-2. ACCESSORY AND REMOTE CONTROLLER
1-1. INDOOR UNIT STRUCTURAL PARTS
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS06NA – U1 | MSZ-GS09NA – U1 | MSZ-GS12NA – U1 | MSZ-GS15NA – U1 | MSY-GS09NA – U1 | MSY-GS12NA – U1 | MSY-GS15NA – U1 | Symbol in Wiring Diagram | Remarks |
| 1 | U01 A03 234 | BOX ASSEMBLY | 1 | 1 | 1 | 1 | 1 | ||||
| 1 | U01 A04 234 | BOX ASSEMBLY | 1 | 1 | |||||||
| 2 | U01 A04 000 | PANEL ASSEMBLY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Includes No. 3, 4, and 5 | |
| 3 | U01 A01 142 | CATCH | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 PCS/SET | |
| 4 | U01 A01 067 | SCREW CAP | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 PCS/SET | |
| 5 | U01 A02 010 | FRONT PANEL | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 6 | U01 A01 100 | AIR FILTER (NANO PLATINUM FILTER) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 PC/SET | |
| 7 | U01 A01 975 | CORNER BOX (RIGHT) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 8 | U01 A01 970 | INSTALLATION PLATE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 9 | — | AIR CLEANING FILTER (ANTI-ALLERGY ENZYME FILTER) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | MAC-408FT-E 2 PCS/SET |
1-2. ACCESSORY AND REMOTE CONTROLLER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS06NA – U1 | MSZ-GS09NA – U1 | MSZ-GS12NA – U1 | MSZ-GS15NA – U1 | MSY-GS09NA – U1 | MSY-GS12NA – U1 | MSY-GS15NA – U1 | Symbol in Wiring Diagram | Remarks |
| 10 | U01 A16 426 | REMOTE CONTROLLER | 1 | 1 | 1 | 1 | SH22A | ||||
| 10 | U01 A17 426 | REMOTE CONTROLLER | 1 | 1 | 1 | SH22B | |||||
| 11 | U01 A20 426 | REMOTE CONTROLLER HOLDER | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
MSZ-GS06NA MSZ-GS09NA MSZ-GS12NA MSZ-GS15NA MSY-GS09NA MSY-GS12NA MSY-GS15NA
1-3. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
1-3. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS06NA – U1 | MSZ-GS09NA – U1 | MSZ-GS12NA – U1 | MSZ-GS15NA – U1 | MSY-GS09NA – U1 | MSY-GS12NA – U1 | MSY-GS15NA – U1 | Symbol in Wiring Diagram | Remarks |
| 1 | U01 A02 510 | BEARING MOUNT ASSEMBLY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 2 | U01 A01 702 | DRAIN HOSE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 3 | U01 A01 235 | NOZZLE ASSEMBLY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 4 | U01 A01 040 | VANE-UPPER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5 | U01 A01 041 | VANE-LOWER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 6 | U01 A01 303 | VANE MOTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | MV | |
| 7 | U01 A08 308 | ROOM TEMPERATURE THERMISTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | RT11 | |
| 8 | U01 A38 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | ||||||||
| 8 | U01 A39 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | ||||||||
| 8 | U01 A40 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | ||||||||
| 8 | U01 A41 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | ||||||||
| 8 | U01 A42 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | ||||||||
| 8 | U01 A43 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | ||||||||
| 8 | U01 A44 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | ||||||||
| 9 | U01 A01 978 | CONDUIT PLATE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 10 | U01 A01 979 | CONDUIT COVER | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 11 | U01 A03 440 | POWER P.C. BOARD | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 12 | U01 A09 308 | INDOOR COIL THERMISTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | RT12, RT13 | |
| 13 | U01 A01 385 | VARISTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | NR11 | |
| 14 | U01 001 239 | FUSE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | F11 | T3.15AL250V |
| 15 | U01 A01 784 | V.A. CLAMP | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 16 | U01 A21 426 | INDOOR FAN MOTOR | 1 | 1 | 1 | 1 | 1 | 1 | 1 | MF | RC0J30-□□, Includes FAN MOTOR RUBBER MOUNT (2 PCS/SET) |
| 17 | U01 A01 333 | MOTOR BAND | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 18 | U01 A03 302 | LINE FLOW FAN | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
MSZ-GS06NA MSZ-GS09NA MSZ-GS12NA MSZ-GS15NA MSY-GS09NA MSY-GS12NA MSY-GS15NA
1-4. INDOOR UNIT HEAT EXCHANGER
1-4. INDOOR UNIT HEAT EXCHANGER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS06NA – U1 | MSZ-GS09NA – U1 | MSZ-GS12NA – U1 | MSZ-GS15NA – U1 | MSY-GS09NA – U1 | MSY-GS12NA – U1 | MSY-GS15NA – U1 | Symbol in Wiring Diagram | Remarks |
| 1 | U01 A07 620 | INDOOR HEAT EXCHANGER | 1 | 1 | 1 | 1 | 1 | ||||
| 1 | U01 A08 620 | INDOOR HEAT EXCHANGER | 1 | 1 | |||||||
| 2 | U01 A01 666 | UNION GAS | 1 | 1 | 1 | 1 | 1 | ø3/8 (ø9.52) | |||
| 2 | U01 A02 666 | UNION GAS | 1 | 1 | ø1/2 (ø12.7) | ||||||
| 3 | U01 A01 667 | UNION LIQUID | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ø1/4 (ø6.35) |
MSZ-GS18NA MSY-GS18NA
1-5. INDOOR UNIT STRUCTURAL PARTS
1-6. ACCESSORY AND REMOTE CONTROLLER
1-5. INDOOR UNIT STRUCTURAL PARTS
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS18NA – U1 | MSY-GS18NA – U1 | Symbol in Wiring Diagram | Remarks |
| 1 | E22 17A 234 | BOX ASSEMBLY | 1 | 1 | ||
| 2 | E22 N87 976 | CORNER BOX LEFT | 1 | 1 | ||
| 3 | E22 N94 000 | PANEL ASSEMBLY | 1 | 1 | Includes No. 4, 5, and 6 | |
| 4 | E22 F95 142 | CATCH | 2 | 2 | 2 PCS/SET | |
| 5 | E22 913 067 | SCREW CAP | 2 | 2 | 2 PCS/SET | |
| 6 | E22 N87 010 | FRONT PANEL | 1 | 1 | ||
| 7 | E22 N94 100 | AIR FILTER (NANO PLATINUM FILTER) | 2 | 2 | 1 PC/SET | |
| 8 | E22 N87 975 | CORNER BOX RIGHT | 1 | 1 | ||
| 9 | E22 N87 970 | INSTALLATION PLATE | 1 | 1 | ||
| 10 | — | AIR CLEANING FILTER (ANTI-ALLERGY ENZYME FILTER) | 2 | 2 | MAC-408FT-E 2 PCS/SET |
1-6. ACCESSORY AND REMOTE CONTROLLER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS18NA – U1 | MSY-GS18NA – U1 | Symbol in Wiring Diagram | Remarks |
| 11 | E22 13T 426 | REMOTE CONTROLLER | 1 | SH22C | ||
| 11 | E22 14T 426 | REMOTE CONTROLLER | 1 | SH22D | ||
| 12 | E22 41G 083 | REMOTE CONTROLLER HOLDER | 1 | 1 |
MSZ-GS18NA MSY-GS18NA
1-7. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
1-7. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
- The part quantity below indicates the required number of pieces per unit.
- The circled No. indicates that the part is not shown in the figure.
| No. | Part No. | Part name | MSZ-GS18NA – U1 | MSY-GS18NA – U1 | Symbol in Wiring Diagram | Remarks [Drawing No.] |
| 1 | E22 A89 509 | BEARING MOUNT ASSEMBLY | 1 | 1 | Includes SLEEVE BEARING | |
| 2 | E22 P72 702 | DRAIN HOSE | 1 | 1 | ||
| 3 | — | DRAIN CAP | 1 | 1 | [ SU26R611H01 ] | |
| 4 | E22 13T 235 | NOZZLE ASSEMBLY | 1 | 1 | Full assembly except DRAIN HOSE | |
| 5 | E22 N87 040 | HORIZONTAL VANE | 1 | 1 | ||
| 6 | E22 N87 303 | VANE MOTOR (HORIZONTAL) | 1 | 1 | MV1 | UP & DOWN |
| 7 | E22 J44 303 | VANE MOTOR (VERTICAL) | 1 | 1 | MV2 | RIGHT & LEFT |
| 8 | E22 13T 375 | TERMINAL BLOCK | 1 | 1 | TB | |
| 9 | E22 N87 095 | CONTROL P.C. BOARD HOLDER ASSEMBLY | 1 | 1 | ||
| 10 | E22 13T 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | |||
| 10 | E22 14T 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | |||
| 11 | E22 N87 784 | V.A. CLAMP | 1 | 1 | ||
| 12 | E22 N94 979 | CONDUIT COVER | 1 | 1 | ||
| 13 | E22 N94 978 | CONDUIT PLATE | 1 | 1 | ||
| 14 | E22 13T 308 | ROOM TEMPERATURE THERMISTOR | 1 | 1 | RT11 | |
| 15 | E22 K90 385 | VARISTOR | 1 | 1 | NR11 | |
| 16 | E22 C67 382 | FUSE | 1 | 1 | F11 | T3.15AL250V |
| 17 | E22 13T 440 | POWER P.C. BOARD | 1 | 1 | ||
| 18 | E22 N87 307 | INDOOR COIL THERMISTOR | 1 | 1 | RT12, RT13 | |
| 19 | E22 N87 333 | MOTOR BAND | 1 | 1 | ||
| 20 | E22 N87 541 | WATER COVER | 1 | 1 | ||
| 21 | E22 18A 333 | MOTOR BED | 1 | 1 | ||
| 22 | E22 29L 300 | INDOOR FAN MOTOR | 1 | 1 | MF | RC0J30- □□,Includes FAN MOTOR RUBBER MOUNT (2 PCS/SET) |
| 23 | E22 17A 302 | LINE FLOW FAN | 1 | 1 | ||
| 24 | E22 61F 303 | VERTICAL VANE MOTOR UNIT | 1 | 1 | Includes MV2 |
MSZ-GS18NA MSY-GS18NA
1-8. INDOOR UNIT HEAT EXCHANGER
1-8. INDOOR UNIT HEAT EXCHANGER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS18NA – U1 | MSY-GS18NA – U1 | Symbol in Wiring Diagram | Remarks |
| 1 | E22 13T 620 | INDOOR HEAT EXCHANGER | 1 | 1 | ||
| 2 | E22 151 667 | UNION (LIQUID) | 1 | 1 | ø1/4 (ø6.35) | |
| 3 | E22 179 667 | UNION (GAS) | 1 | 1 | ø1/2 (ø12.7) |
MSZ-GS24NA MSY-GS24NA
1-9. INDOOR UNIT STRUCTURAL PARTS
1-10. ACCESSORY AND REMOTE CONTROLLER
1-9. INDOOR UNIT STRUCTURAL PARTS
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS24NA – U1 | MSY-GS24NA – U1 | Symbol in Wiring Diagram | Remarks |
| 1 | E22 12A 234 | BOX ASSEMBLY | 1 | 1 | ||
| 2 | E22 T16 000 | PANEL ASSEMBLY | 1 | 1 | Includes No. 3, 4, and 5 | |
| 3 | E22 408 142 | CATCH | 4 | 4 | 4 PCS/SET | |
| 4 | E22 F28 067 | SCREW CAP | 3 | 3 | 3 PCS/SET | |
| 5 | E22 R19 010 | FRONT PANEL | 1 | 1 | ||
| 6 | E22 F28 100 | AIR FILTER (NANO PLATINUM FILTER) | 2 | 2 | 1 PC/SET | |
| 7 | E22 F28 975 | CORNER BOX (RIGHT) | 1 | 1 | ||
| 8 | E22 F28 976 | CORNER BOX (LEFT) | 1 | 1 | ||
| 9 | E22 F28 970 | INSTALLATION PLATE | 1 | 1 | ||
| 10 | — | AIR CLEANING FILTER (ELECTROSTATIC ANTI-ALLERGY ENZYME FILTER) | 2 | 2 | MAC-2310FT-E 2 PCS/SET |
1-10. ACCESSORY AND REMOTE CONTROLLER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS24NA – U1 | MSY-GS24NA – U1 | Symbol in Wiring Diagram | Remarks |
| 11 | E22 19T 426 | REMOTE CONTROLLER | 1 | SH22E | ||
| 11 | E22 20T 426 | REMOTE CONTROLLER | 1 | SH22F | ||
| 12 | E22 41G 083 | REMOTE CONTROLLER HOLDER | 1 | 1 |
MSZ-GS24NA MSY-GS24NA
1-11. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
1-11. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
- The part quantity below indicates the required number of pieces per unit.
- The circled No. indicates that the part is not shown in the figure.
| No. | Part No. | Part name | MSZ-GS24NA – U1 | MSY-GS24NA – U1 | Symbol in Wiring Diagram | Remarks [Drawing No.] |
| 1 | E22 A89 509 | BEARING MOUNT ASSEMBLY | 1 | 1 | Includes SLEEVE BEARING | |
| 2 | E22 T20 702 | DRAIN HOSE | 1 | 1 | ||
| 3 | — | DRAIN CAP | 1 | 1 | [ SU26R611H01 ] | |
| 4 | E22 19T 235 | NOZZLE ASSEMBLY | 1 | 1 | Full assembly except DRAIN HOSE | |
| 5 | E22 F76 040 | VANE (UPPER) | 1 | 1 | ||
| 6 | E22 F76 041 | VANE (LOWER) | 1 | 1 | ||
| 7 | E22 C33 303 | VANE MOTOR (HORIZONTAL) | 1 | 1 | MV1 | UP & DOWN |
| 8 | E22 C32 303 | VANE MOTOR (VERTICAL) | 2 | 2 | MV2 | RIGHT & LEFT |
| 9 | E22 F28 541 | WATER CUT | 1 | 1 | ||
| 10 | E22 45N 308 | ROOM TEMPERATURE THERMISTOR | 1 | 1 | RT11 | |
| 11 | E22 F76 979 | CONDUIT COVER | 1 | 1 | ||
| 12 | E22 F76 978 | CONDUIT PLATE | 1 | 1 | ||
| 13 | E22 77P 468 | POWER MONITOR RECEIVER SWITCH P.C. BOARD | 1 | 1 | ||
| 14 | E22 F28 095 | POWER MONITOR RECEIVER HOLDER | 1 | 1 | ||
| 15 | E22 19T 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes TERMINAL P.C. BOARD with TERMINAL BLOCK | ||
| 15 | E22 20T 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes TERMINAL P.C. BOARD with TERMINAL BLOCK | ||
| 16 | E22 F28 307 | INDOOR COIL THERMISTOR | 1 | 1 | RT12, RT13 | |
| 17 | E22 K90 385 | VARISTOR | 1 | 1 | NR11 | |
| 18 | E22 C67 382 | FUSE | 1 | 1 | F11 | T3.15AL250V |
| 19 | E22 F76 784 | V.A. CLAMP | 1 | 1 | ||
| 20 | E22 90F 333 | MOTOR BED | 1 | 1 | ||
| 21 | E22 F28 300 | INDOOR FAN MOTOR | 1 | 1 | MF | RC0J56-□□ Includes FAN MOTOR RUBBER MOUNT (2 PCS/SET) |
| 22 | E22 89F 333 | MOTOR BAND | 1 | 1 | ||
| 23 | E22 19A 302 | LINE FLOW FAN | 1 | 1 | ||
| 24 | E22 82F 303 | VERTICAL VANE MOTOR UNIT (L) | 1 | 1 | Includes MV2 | |
| 25 | E22 84F 303 | VERTICAL VANE MOTOR UNIT (R) | 1 | 1 | Includes MV2 |
1-12. INDOOR UNIT HEAT EXCHANGER MSZ-GS24NA MSY-GS24NA
1-12. INDOOR UNIT HEAT EXCHANGER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part name | MSZ-GS24NA – U1 | MSY-GS24NA – U1 | Symbol in Wiring Diagram | Remarks |
| 1 | E22 19T 620 | INDOOR HEAT EXCHANGER | 1 | 1 | ||
| 2 | E22 527 666 | UNION (GAS) | 1 | 1 | ø5/8 (ø15.88) | |
| 3 | E22 151 667 | UNION (LIQUID) | 1 | 1 | ø1/4 (ø6.35) |
MSZ-GS30NA MSZ-GS36NA MSY-GS30NA MSY-GS36NA
1-13. INDOOR UNIT STRUCTURAL PARTS
1-14. ACCESSORY AND REMOTE CONTROLLER
1-13. INDOOR UNIT STRUCTURAL PARTS
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part Name | MSZ-GS30NA – U1 | MSZ-GS36NA – U1 | MSY-GS30NA – U1 | MSY-GS36NA – U1 | Symbol In Wiring Diagram | Remarks |
| 1 | E22 C92 970 | INSTALLATION PLATE | 1 | 1 | 1 | 1 | ||
| 2 | E22 45N 234 | BOX ASSEMBLY | 1 | 1 | 1 | 1 | ||
| 3 | E22 45N 000 | PANEL ASSEMBLY | 1 | 1 | 1 | 1 | Includes No.4, 5, 6 and 7 | |
| 4 | E22 408 142 | CATCH | 2 | 2 | 2 | 2 | 2 PCS/SET | |
| 5 | E22 C92 142 | CATCH | 2 | 2 | 2 | 2 | 2 PCS/SET | |
| 6 | E22 55J 067 | SCREW CAP | 3 | 3 | 3 | 3 | 3 PCS/SET | |
| 7 | E22 B04 010 | FRONT PANEL | 1 | 1 | 1 | 1 | ||
| 8 | E22 45N 100 | AIR FILTER (NANO PLATINUM FILTER) | 2 | 2 | 2 | 2 | 1 PC/SET | |
| 9 | E22 C92 975 | CORNER BOX | 1 | 1 | 1 | 1 | ||
| 10 | — | AIR CLEANING FILTER (ANTI-ALLERGY ENZYME FILTER) | 2 | 2 | 2 | 2 | 2 PCS/SET MAC-1415FT-E |
1-14. ACCESSORY AND REMOTE CONTROLLER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part Name | MSZ-GS30NA – U1 | MSZ-GS36NA – U1 | MSY-GS30NA – U1 | MSY-GS36NA – U1 | Symbol In Wiring Diagram | Remarks |
| 11 | E22 45N 426 | REMOTE CONTROLLER | 1 | 1 | KM15H | |||
| 11 | E22 47N 426 | REMOTE CONTROLLER | 1 | 1 | KM15J | |||
| 12 | E22 527 083 | REMOTE CONTROLLER HOLDER | 1 | 1 | 1 | 1 |
1-15. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
MSZ-GS30NA MSZ-GS36NA MSY-GS30NA MSY-GS36NA
1-15. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part Name | MSZ-GS30NA – U1 | MSZ-GS36NA – U1 | MSY-GS30NA – U1 | MSY-GS36NA – U1 | Symbol In Wiring Diagram | Remarks |
| 1 | E22 55J 302 | LINE FLOW FAN | 1 | 1 | 1 | 1 | ||
| 2 | E22 A89 509 | BEARING MOUNT ASSEMBLY | 1 | 1 | 1 | 1 | ||
| 3 | E22 T20 702 | DRAIN HOSE | 1 | 1 | 1 | 1 | ||
| 4 | E22 45N 235 | NOZZLE ASSEMBLY | 1 | 1 | 1 | 1 | Full assembly except DRAIN HOSE | |
| 5 | E22 C92 040 | VANE UPPER | 1 | 1 | 1 | 1 | ||
| 6 | E22 C92 041 | VANE LOWER | 1 | 1 | 1 | 1 | ||
| 7 | E22 518 541 | WATER COVER | 1 | 1 | 1 | 1 | ||
| 8 | E22 448 303 | VANE MOTOR (VERTICAL) | 2 | 2 | 2 | 2 | MV2, MV3 | RIGHT & LEFT |
| 9 | E22 73F 303 | VANE MOTOR UNIT (L) (VERTICAL) | 1 | 1 | 1 | 1 | Includes MV3 | |
| 10 | E22 77F 303 | VANE MOTOR UNIT (R) (VERTICAL) | 1 | 1 | 1 | 1 | Includes MV2 | |
| 11 | E22 749 303 | VANE MOTOR (HORIZONTAL) | 1 | 1 | 1 | 1 | MV1 | UP & DOWN |
| 12 | E22 55J 468 | POWER MONITOR RECEIVER P.C. BOARD | 1 | 1 | 1 | 1 | ||
| 13 | E22 C92 095 | POWER MONITOR RECEIVER HOLDER | 1 | 1 | 1 | 1 | ||
| 14 | E22 55J 782 | SWITCH HOLDER | 1 | 1 | 1 | 1 | ||
| 15 | E22 73F 978 | CONDUIT PLATE | 1 | 1 | 1 | 1 | ||
| 16 | E22 45N 308 | ROOM TEMPERATURE THERMISTOR | 1 | 1 | 1 | 1 | RT11 | |
| 17 | E22 45N 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes SW P.C. BOARD | ||||
| 17 | E22 46N 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes SW P.C. BOARD | ||||
| 17 | E22 47N 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes SW P.C. BOARD | ||||
| 17 | E22 48N 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes SW P.C. BOARD | ||||
| 18 | E22 55J 374 | TERMINAL BLOCK | 1 | 1 | 1 | 1 | TB | |
| 19 | E22 C92 333 | MOTOR BAND | 1 | 1 | 1 | 1 | ||
| 20 | E22 73F 784 | V.A.CLAMP | 1 | 1 | 1 | 1 | ||
| 21 | E22 55J 300 | INDOOR FAN MOTOR ASSEMBLY | 1 | 1 | 1 | 1 | MF | RC0J56- Includes FAN MOTOR RUBBER MOUNT (2 PCS/SET) |
| 22 | E22 B75 385 | VARISTOR | 1 | 1 | 1 | 1 | NR11 | |
| 23 | E22 42J 382 | FUSE | 1 | 1 | 1 | 1 | F11 | T3.15AL250V |
| 24 | E22 55J 333 | MOTOR BED | 1 | 1 | 1 | 1 | ||
| 25 | E22 45N 307 | INDOOR COIL THERMISTOR | 1 | 1 | 1 | 1 | RT12, RT13 |
1-16. INDOOR UNIT HEAT EXCHANGER
MSZ-GS30NA MSZ-GS36NA MSY-GS30NA MSY-GS36NA
1-16. INDOOR UNIT HEAT EXCHANGER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part Name | MSZ-GS30NA – U1 | MSZ-GS36NA – U1 | MSY-GS30NA – U1 | MSY-GS36NA – U1 | Symbol In Wiring Diagram | Remarks |
| 1 | E22 45N 620 | INDOOR HEAT EXCHANGER | 1 | 1 | 1 | 1 | Full assembly except connect pipe | |
| 2 | E22 151 667 | UNION (LIQUID) | 1 | 1 | 1 | 1 | ø1/4 | |
| 3 | E22 527 666 | UNION (GAS) | 1 | 1 | 1 | 1 | ø5/8 |
MSZ-GS30NA2 MSZ-GS36NA2 MSY-GS30NA2 MSY-GS36NA2
1-17. INDOOR UNIT STRUCTURAL PARTS
1-18. ACCESSORY AND REMOTE CONTROLLER
1-17. INDOOR UNIT STRUCTURAL PARTS
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part Name | MSZ-GS30NA2 – U1 | MSZ-GS36NA2 – U1 | MSY-GS30NA2 – U1 | MSY-GS36NA2 – U1 | Symbol In Wiring Diagram | Remarks |
| 1 | E22 C92 970 | INSTALLATION PLATE | 1 | 1 | 1 | 1 | ||
| 2 | E22 45N 234 | BOX ASSEMBLY | 1 | 1 | 1 | 1 | ||
| 3 | E22 45N 000 | PANEL ASSEMBLY | 1 | 1 | 1 | 1 | Includes No.4, 5, 6 and 7 | |
| 4 | E22 408 142 | CATCH | 2 | 2 | 2 | 2 | 2 PCS/SET | |
| 5 | E22 C92 142 | CATCH | 2 | 2 | 2 | 2 | 2 PCS/SET | |
| 6 | E22 55J 067 | SCREW CAP | 3 | 3 | 3 | 3 | 3 PCS/SET | |
| 7 | E27 B04 010 | FRONT PANEL | 1 | 1 | 1 | 1 | ||
| 8 | E22 45N 100 | AIR FILTER (NANO PLATINUM FILTER) | 2 | 2 | 2 | 2 | 1 PC/SET | |
| 9 | E22 C92 975 | CORNER BOX | 1 | 1 | 1 | 1 | ||
| 10 | — | AIR CLEANING FILTER (ANTI-ALLERGY ENZYME FILTER) | 2 | 2 | 2 | 2 | 2 PCS/SET MAC-1415FT-E |
1-18. ACCESSORY AND REMOTE CONTROLLER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part Name | MSZ-GS30NA2 – U1 | MSZ-GS36NA2 – U1 | MSY-GS30NA2 – U1 | MSY-GS36NA2 – U1 | Symbol In Wiring Diagram | Remarks |
| 11 | E22 19T 426 | REMOTE CONTROLLER | 1 | 1 | SH22E | |||
| 11 | E22 20T 426 | REMOTE CONTROLLER | 1 | 1 | SH22F | |||
| 12 | E22 41G 083 | REMOTE CONTROLLER HOLDER | 1 | 1 | 1 | 1 |
1-19. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
MSZ-GS30NA2 MSZ-GS36NA2 MSY-GS30NA2 MSY-GS36NA2
1-19. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
- The part quantity below indicates the required number of pieces per unit.
- The circled No. indicates that the part is not shown in the figure.
| No. | Part No. | Part Name | MSZ-GS30NA2 – U1 | MSZ-GS36NA2 – U1 | MSY-GS30NA2 – U1 | MSY-GS36NA2 – U1 | Symbol In Wiring Diagram | Remarks |
| 1 | E22 55J 302 | LINE FLOW FAN | 1 | 1 | 1 | 1 | ||
| 2 | E22 A89 509 | BEARING MOUNT ASSEMBLY | 1 | 1 | 1 | 1 | ||
| 3 | E22 T20 702 | DRAIN HOSE | 1 | 1 | 1 | 1 | ||
| 4 | E22 52V 235 | NOZZLE ASSEMBLY | 1 | 1 | 1 | 1 | Full assembly except DRAIN HOSE | |
| 5 | E22 C92 040 | VANE UPPER | 1 | 1 | 1 | 1 | ||
| 6 | E22 C92 041 | VANE LOWER | 1 | 1 | 1 | 1 | ||
| 7 | E27 518 541 | WATER COVER | 1 | 1 | 1 | 1 | ||
| 8 | E22 448 303 | VANE MOTOR (VERTICAL) | 2 | 2 | 2 | 2 | MV2, MV3 | RIGHT & LEFT |
| 9 | E22 73F 303 | VANE MOTOR UNIT (L) (VERTICAL) | 1 | 1 | 1 | 1 | Includes MV3 | |
| 10 | E22 77F 303 | VANE MOTOR UNIT (R) (VERTICAL) | 1 | 1 | 1 | 1 | Includes MV2 | |
| 11 | E22 749 303 | VANE MOTOR (HORIZONTAL) | 1 | 1 | 1 | 1 | MV1 | UP & DOWN |
| 12 | E22 55J 468 | POWER MONITOR RECEIVER P.C. BOARD | 1 | 1 | 1 | 1 | ||
| 13 | E22 C92 095 | POWER MONITOR RECEIVER HOLDER | 1 | 1 | 1 | 1 | ||
| 14 | E22 55J 782 | SWITCH HOLDER | 1 | 1 | 1 | 1 | ||
| 15 | E22 73F 978 | CONDUIT PLATE | 1 | 1 | 1 | 1 | ||
| 16 | E22 45N 308 | ROOM TEMPERATURE THERMISTOR | 1 | 1 | 1 | 1 | RT11 | |
| 17 | E22 52V 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes SW P.C. BOARD | ||||
| 17 | E22 53V 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes SW P.C. BOARD | ||||
| 17 | E22 54V 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes SW P.C. BOARD | ||||
| 17 | E22 55V 452 | ELECTRONIC CONTROL P.C. BOARD | 1 | Includes SW P.C. BOARD | ||||
| 18 | E22 52V 375 | TERMINAL BLOCK | 1 | 1 | 1 | 1 | TB | |
| 19 | E22 C92 333 | MOTOR BAND | 1 | 1 | 1 | 1 | ||
| 20 | E22 73F 784 | V.A.CLAMP | 1 | 1 | 1 | 1 | ||
| 21 | E22 55J 300 | INDOOR FAN MOTOR ASSEMBLY | 1 | 1 | 1 | 1 | MF | RC0J56- Includes FAN MOTOR RUBBER MOUNT (2 PCS/SET) |
| 22 | E22 K90 385 | VARISTOR | 1 | 1 | 1 | 1 | NR11 | |
| 23 | E22 C67 382 | FUSE | 1 | 1 | 1 | 1 | F11 | T3.15AL250V |
| 24 | E22 55J 333 | MOTOR BED | 1 | 1 | 1 | 1 | ||
| 25 | E22 45N 307 | INDOOR COIL THERMISTOR | 1 | 1 | 1 | 1 | RT12, RT13 | |
| 26 | — | DRAIN CAP | 1 | 1 | 1 | 1 | [ SU26R611H01 ] |
1-20. INDOOR UNIT HEAT EXCHANGER
MSZ-GS30NA2 MSZ-GS36NA2 MSY-GS30NA2 MSY-GS36NA2
1-20. INDOOR UNIT HEAT EXCHANGER
1. The part quantity below indicates the required number of pieces per unit.
| No. | Part No. | Part Name | MSZ-GS30NA2 – U1 | MSZ-GS36NA2 – U1 | MSY-GS30NA2 – U1 | MSY-GS36NA2 – U1 | Symbol In Wiring Diagram | Remarks |
| 1 | E22 52V 620 | INDOOR HEAT EXCHANGER | 1 | 1 | 1 | 1 | Full assembly except connect pipe | |
| 2 | E22 151 667 | UNION (LIQUID) | 1 | 1 | 1 | 1 | ø1/4 | |
| 3 | E22 527 666 | UNION (GAS) | 1 | 1 | 1 | 1 | ø5/8 |
1-21. AIR CLEANING FILTER
Every 3 months:
- Remove dirt by a vacuum cleaner.
When dirt cannot be removed by vacuum cleaning: - Soak the filter and its frame in lukewarm water before rinsing it.
- After washing, dry it well in shade.
Every year: - Replace it with a new air cleaning filter for best performance.
NOTE 1: Clean the filters regularly for best performance and to reduce power consumption.
NOTE 2: Dirty filters cause condensation in the air conditioner which will contribute to the growth of fungi such as mold. It is therefore recommended to clean air filters every 2 weeks.
(ANTI-ALLERGY ENZYME FILTER)
| Model | Part No. |
| MSZ-GS06NA MSZ-GS09NA MSZ-GS12NA MSZ-GS15NA MSZ-GS18NA MSY-GS09NA MSY-GS12NA MSY-GS15NA MSY-GS18NA |
MAC-408FT-E |
| MSZ-GS30NA MSZ-GS36NA MSY-GS30NA MSY-GS36NA MSZ-GS30NA2 MSZ-GS36NA2 MSY-GS30NA2 MSY-GS36NA2 |
MAC-1415FT-E |
MSZ-GS06/09/12/15/18NA
MSY-GS09/12/15/18NA
MSZ-GS30/36NA MSY-GS30/36NA MSZ-GS30/36NA2 MSY-GS30/36NA2
(ELECTROSTATIC ANTI-ALLERGY ENZYME FILTER)
| Model | Part No. |
| MSZ-GS24NA MSY-GS24NA |
MAC-2310FT-E |
MSZ-GS24NA
MSY-GS24NA
OPTIONAL PARTS
2. AIR CLEANING FILTER (MICROPARTICLE CATCHING FILTER)
Every 3 months:
- Remove dirt by a vacuum cleaner.
- Do not wash it with water. Replace it with a new air cleaning filter when tobacco tar or oil stains adhere to it.
- Put it back to its original position, and install all tabs of the air cleaning filter.
Every 3 year: - Replace it with a new air cleaning filter for best performance.
NOTE 1: Clean the filters regularly for best performance and to reduce power consumption.
NOTE 2: Dirty filters cause condensation in the air conditioner which will contribute to the growth of fungi such as mold. It is therefore recommended to clean air filters every 2 weeks.
Air cleaning filter replacement
| MSZ-GS06NA MSZ-GS09NA MSZ-GS12NA MSZ-GS15NA MSZ-GS18NA MSY-GS09NA MSY-GS12NA MSY-GS15NA MSY-GS18NA |
MAC-EMF515FT-E |
| MSZ-GS24NA MSY-GS24NA | MAC-EMF615FT-E |
MSZ-GS06/09/12/15/18NA
MSY-GS09/12/15/18NA
MSZ-GS24NA
MSY-GS24NA
HEAD OFFICE: TOKYO BUILDING, 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
© Copyright 2021 MITSUBISHI ELECTRIC CORPORATION
Issued: Oct. 2022 No. OBB874 REVISED EDITION-A
Published: Jan. 2021. No. OBH874
Made in Japan
Specifications subject to change without notice.
