TX3 REINFORCED UNIVERSAL SERIES MOUNTING ACCESSORIES
Contents
TX3 Reinforced Universal Mounting Accessories
The TX3 Reinforced Universal Series enclosures have several installation options. The reinforced units are equipped for surface mounting. Semi-flush trim kits and gooseneck adapters are available to meet the various installation requirements.
Semi-flush Mounting Trim Kits
 |

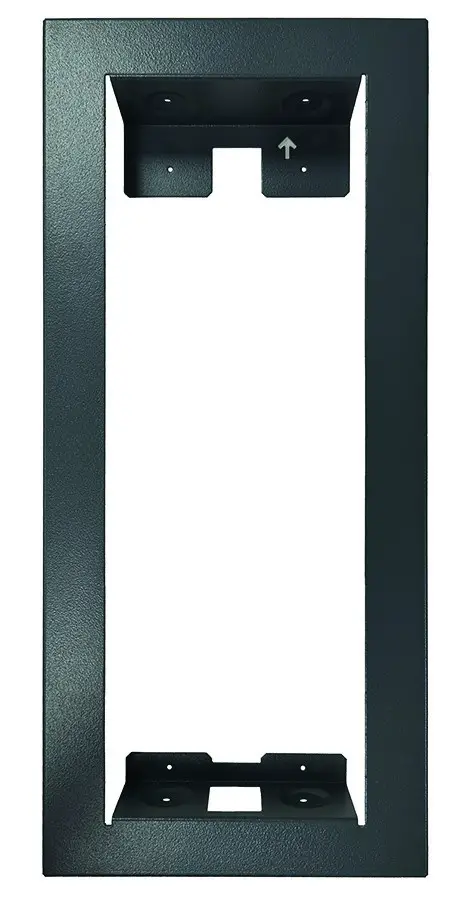

TX3-USFTR Semi-flush Mounting Trim Kit The TX3-USFTR semi-flush mounting trim kit designed for use with the TX3-2000-4UR Reinforced Universal Series enclosure. Overall dimensions: 19 5/8” H x 8 7/8” W x 2 1/16” D (498 mm x 225 mm x 53 mm) Wall cutout dimensions: 17 1/2” H x 6 1/2” W x 2” D (445 mm x 165 mm x 51 mm) |
 |

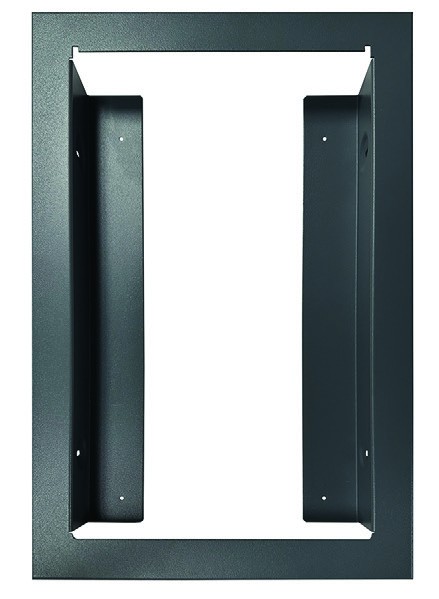

TX3-UFTR Semi-flush Mounting Trim Kit The TX3-UFTR semi-flush mounting trim kit designed for use with the TX3-2000-8UR Reinforced Universal Series enclosures. Overall dimensions: 19 ¾” H x 13 ¼” W x 2” D (502 mm x 336 mm x 51 mm) Wall cutout dimensions: 17 1/2” H x 10 5/8” W x 2” D (445 mm x 270 mm x 51 mm) |
Gooseneck Adapters
 |

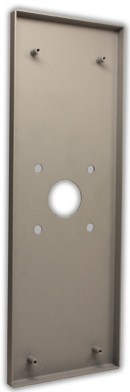

TX3-USGA Universal Slim Line Gooseneck Adapter The TX3-USGA Gooseneck mounting adapter is designed for use with the TX3-2000-4UR Reinforced Universal Series enclosure. |
 |

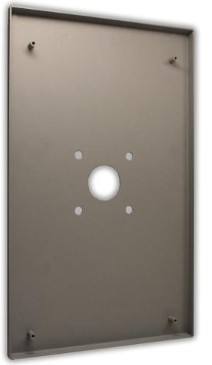

TX3-UGA Universal Gooseneck Adapter The TX3-UGA Gooseneck mounting adapter is designed for use with the TX3-2000-8UR Reinforced Universal Series enclosures. |
Ordering Information
| Model | Description |
| Semi-flush Trim Rings | |
| TX3-UFTR | Semi-flush mounting kit designed for use with the TX3-2000-8UR Reinforced Universal Series enclosures |
| TX3-USFTR | Semi-flush mounting kit designed for use with the TX3-2000-4UR Slim Line Reinforced Universal Series enclosure |
| Gooseneck Adapters | |
| TX3-UGA | Gooseneck mounting adapter for use with the TX3-2000-8UR Reinforced Universal Series enclosures |
| TX3-USGA | Gooseneck mounting adapter for use with the TX3-2000-4UR Slim Line Reinforced Universal Series enclosure |
