M.-Nr. 12 532 470 / 00

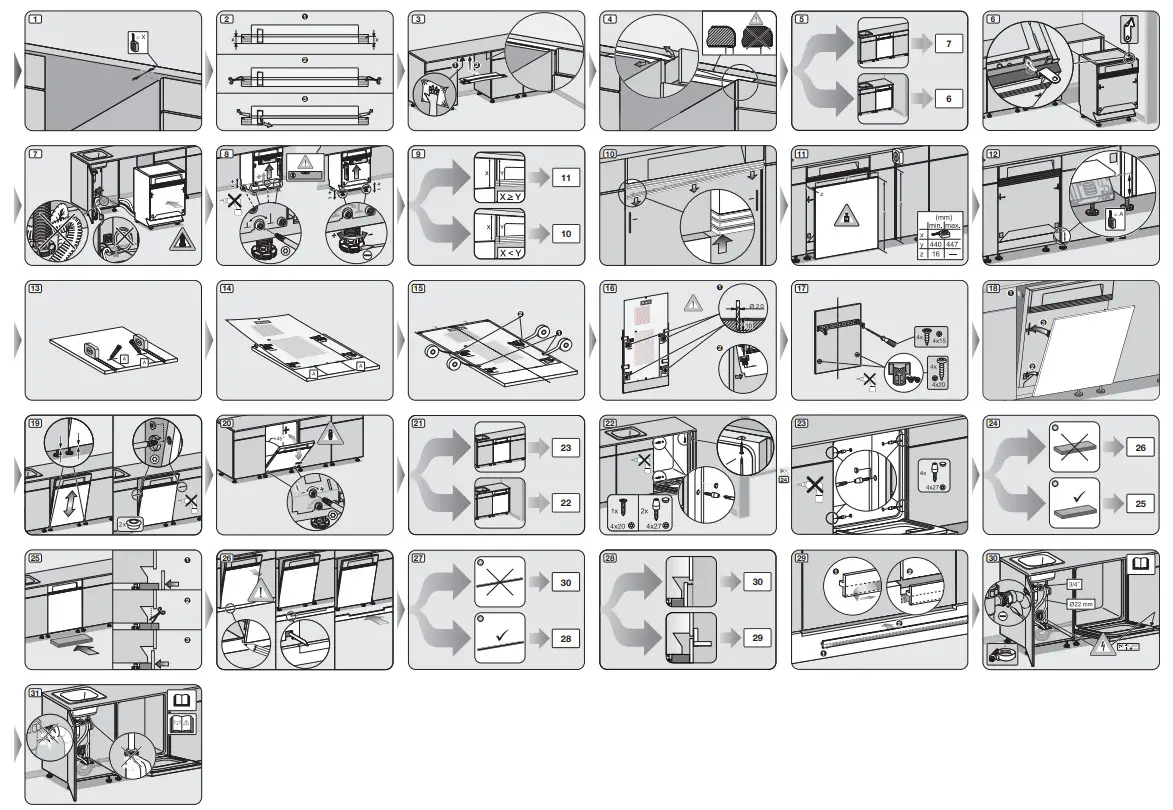

Installation drawings for semiintegrated dishwashers
To avoid the risk of accidents or damage to the dishwasher please observe this installation sheet and read the operating instruction manual supplied with it before it is installed or used for the first time.
See operating instruction manual.
Risk of damage or fire hazard.
Check connection data.
Do not use a cordless screwdriver, risk of damage.
Warning: Danger of being cut.
The minimum/maximum weight of the front panel is quoted in the technical data for your dishwasher on the Miele website.
The door springs must be set equally on both sides after fitting the front panel to the door.
Screw the feet in before moving the dishwasher.
Fittings supplied depend on model.
Optional accessories

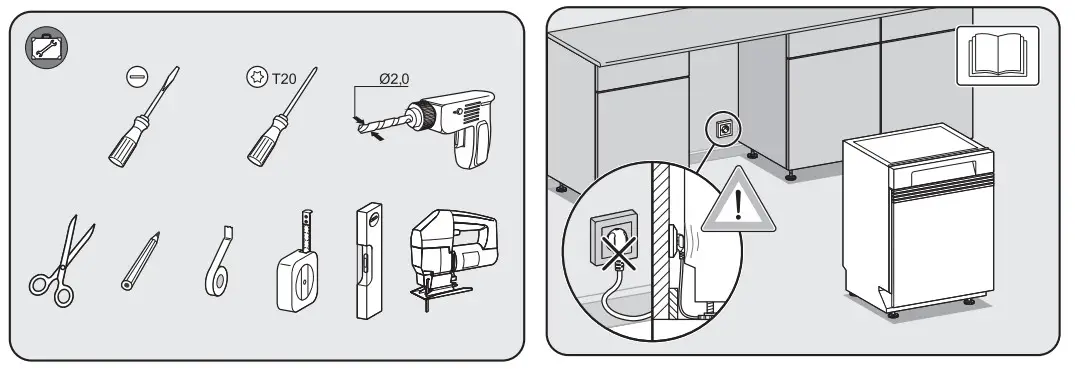

Tools required depend on model.
Venting the water drain
If the on-site drainage connection is situated lower than the guide path for the lower basket rollers in the open door, the drainage system must be vented.
