12W RGB+CCT Floor Lamp (WiFi + 2.4G)
Instruction Manual

Product features

This product uses WiFi + Bluetooth + 2.4G wireless transmission technology, low power consumption, strong anti-interference ability. WiFi + Bluetooth connect network can greatly enhance the connect network experience. When the router is disconnected, Bluetooth can also directly connect and control equipment at close range.
After successful network configuration using [Tuya Smart] app to achieve wireless dimming, remote control, group control, scene control, timing control, music movement, biorhythm, sleep plan, wake plan, one key execution, automation, etc. functions. And it supports 2.4G remote control.

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 1 16 Millions of colors to choose MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 11 Remote control Control distance 30m
MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 2 Color temperature adjustable 2700K-6500K MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 12 Smartphone app control
MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 3 Dim brightness / Saturation MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 13 Support third party voice control
MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 4 2.4G RF wireless transmission technology MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 14 Group contro
MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 5 WiFi wireless control support long-range control MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 15 Biorhythm
MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 6 Auto-transmitting & Synchronization (only for remote control dimming) MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 16 Support music rhythm
MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 7 Device sharing MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 17 Sleep / wake up plan
MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 8 Tap-to-Run & automation MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 18 Support scene customization
MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 9 Timing setting / countdown turn on / off LED light MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 19 Do not disturb mode
MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 10 DMX512 controllable (DMX512 LED transmitter is needed)

Button instructions

  1. Short press to turn ON / OFF
  2. Light on status: Long press increase / decrease brightness (Long press and release, then long press to change)
  3. Can be paired with the remote within 3 seconds after turning on the light
  4. Quickly press 5 times to enter the configuration mode

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Power Button

Compatible with these 2.4G RF remote controls

(Purchased separately)

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - remote controls

2.4G RF Remote control instruction

1). Linking Code Instructions

  1. Power off for 10 seconds, then power on again.
    Alternatively, you can briefly press the “MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 20” button to turn on the light. MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Linking Code 1

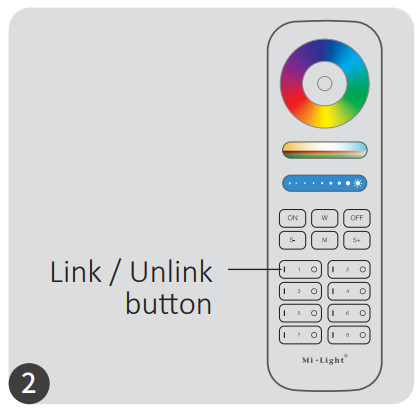

  2. Short press ” I ” button 3 times within 3 seconds. MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Linking Code 2
  3. Lights blink 3 times slowly means linking is done successfully.MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Linking Code 3

Linking failed if light is not blinking slowly, Please follow above steps again.
(Note: Light that have linked can’t link again)
2). Unlinking Code Instructions

  1. Power off for 10 seconds, then power on again.

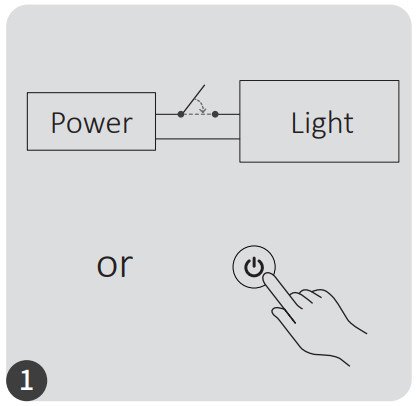

    Alternatively, you can briefly press the “MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 20” button to turn on the light.MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Unlinking Code 1
  2. Short press ” I ” button 5 times within 3 seconds.MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Unlinking Code 2

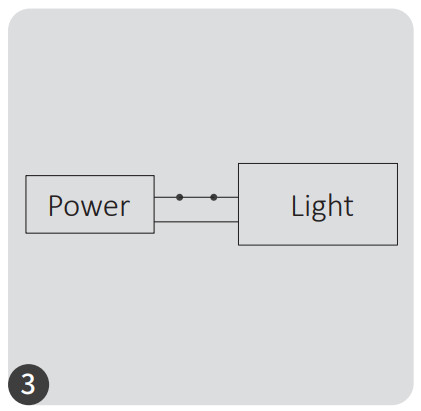

  3. Lights blink 10 times quickly means unlinking is done successfully.MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Unlinking Code 3

Unlinking failed if light is not blinking quickly, Please follow above steps again.
(Note: Light haven’t linked that don’t need to unlink)

3). Auto transmitting & Synchronization (only for remote control)
Remote signal auto transmitting
One light can transmit the signals from the remote control to another light within 30m, as long as there is a light within 30m, the remote control distance can be limitless.
Dynamic modes auto synchronization
Multi lights can synchronize if they are in same dynamic mode and linked with same remote (distance between each light is within 30m)

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Dynamic modes

4). Dynamic mode table selection (only for remote control)
Select dynamic mode table 1:
While the light is in static mode, short press “ S+ ” button 5 times quickly until blue light flashes 3 times slowly, static mode is activated successfully.
Select dynamic mode table 2:
While the light is in static mode, short press “ S- ” button 5 times quickly until yellow light flashes 3 times slowly, static mode is activated successfully.

Dynamic mode table 1 (default)

Number Dynamic Mode Brightness / Saturation / Speed
1 Mardi Gras Adjustable
2 Automatic color change
3 Sam
4 Gemstone
5 Twilight
6 American
7 Fat Tuesday
8 Party
9 Slow Color Splash

Dynamic mode table 2 (need to switch manually)

Number Seven colors gradual change Brightness / Saturation / Speed
1 Dynamic Mode Adjustable
2 White light Gradual change
3 RGB gradual change
4 Seven colors jump to change
5 Jump to change randomly
6 Red light gradual change +Flash 3 times
7 Green light gradual change +Flash 3 times
8 Blue light gradual change +Flash 3 times
9 White light gradual change +Flash 3 times

5). “Do Not Disturb” mode is activated and shut down (default activated)
Turn on “Do Not Disturb” mode (wide using in the area which have power failure frequently to save energy)
2.4G RF Remote turn on and turn off instruction
Turn on “Do Not Disturb” mode:
Press “OFF” button three times within three seconds and press “ON” button three times, Activated successfully once led light flashes four times quickly.
Attention: Do not disturb mode is activated

  1. When the light is OFF status (For example: Use app or remote to turn off light)
    The light is OFF status once you turn off power and turn on again.
    (User must turn off and turn on power twice times to activate light or use APP / remote to activate light)
  2. When the light is ON status
    The light remains in the ON status when you power off and then power on the light once.

Turn off “Do Not Disturb” mode:
Press “ON” button three times within three seconds and press “OFF” button three times, closed successfully once led light flashes four times slowly.
Attention: If you turn off and then turn on the power once the “Do Not Disturb” mode has been deactivated, the light will always remain in the “ON” status.
App turn on and off “Do Not Disturb” mode instruction (check details in page 8)

Smartphone APP control instruction

Network Configuration (Don’t support 5G router)
1. Download and install [Tuya Smart] app
Search for [Tuya Smart] in Apple or Google store or scan following QR code to download and install the app.
Please open the app click ” Register ” button to create account while using it in the first time, Log in directly if you already had account.

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - qr code 1https://miboxer.com/light/app/tuya.html

2. Network Configuration

  1. Connect floor lamp with power supply.
  2. Method to enter the pairing network mode (Note: Factory default is Pairing Network Mode)
    Method 1: Press the “MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 20” button quickly 5 times, and the light will flash rapidly.
    Method 2: Power off and then power on the light fixture 3 times, and the light will flash rapidly.
  3. Connect phone with home WiFi network in the 2.4GHz frequency.
  4. Open homepage of app and click ” + ” button at the upper right corner of page.
  5. Click ” Lighting ” on the left side of page and then click ” Light Source (BLE+Wi-Fi) “
  6. Follow app prompts to complete configuration.

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Network Configuration

App turn on and off “Do Not Disturb” mode (default activated)
Click the light which need to be set up or group control — click “More” — click “Power-on behavior” — turn on or off

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Do Not Disturb

Alexa voice control instruction

Please add device into [Tuya Smart] app (check details in page 7), then start following steps

  1. Open Alexa App
  2. Click “More” on the bottom of right corner
  3. Click “Skills & Games”MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Alexa voice control 1
  4. Click “MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 21” on the top of right corner
  5. Type into “Smart life” and searchMiBOXER WL FL5B 12W RGB CCT Floor Lamp - Alexa voice control 2
  6. Click “Smart Life” skill, follow instruction to finish configuration and start voice controlMiBOXER WL FL5B 12W RGB CCT Floor Lamp - Alexa voice control 3

Google Home voice control instruction

Please add device into [Tuya Smart] app (check details in page 7), then start following steps

  1. Open Google Home App
  2. Click “+” on the top of left cornerMiBOXER WL FL5B 12W RGB CCT Floor Lamp - Tuya Smart

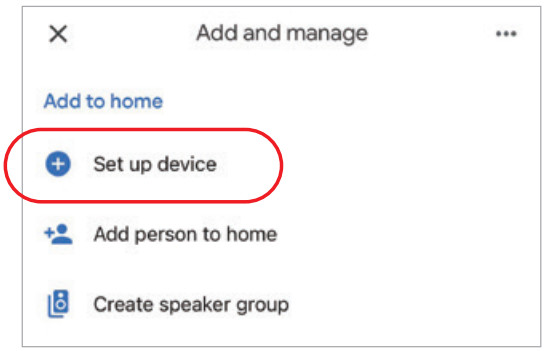

  3. Click “Set up device”MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Tuya Smart 2

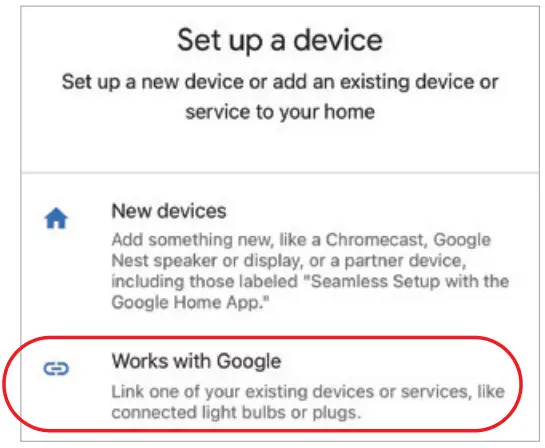

  4. Click “Works with Google”MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Tuya Smart 3
  5. Click “MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 21” on the top of right corner

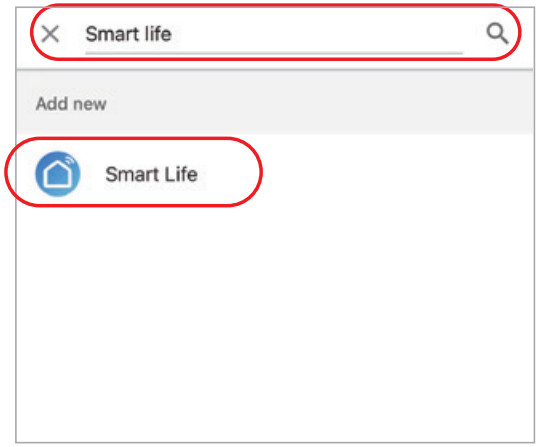

  6. Type into “Smart life” and search
  7. Click “Smart Life” skill, follow instruction to finish configuration and start voice controlMiBOXER WL FL5B 12W RGB CCT Floor Lamp - Tuya Smart 4

DMX512 LED Transmitter Control

(Purchased separately)

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Transmitter Control

DMX512 LED Transmitter Link/Unlink
① Follow instruction of DMX512 transmitter (FUTD01), Choose the zone for the light by pressing “ + ” or “ – ” (e.g. “CH12” means zone 12)

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Transmitter

Link
Power off for 10 seconds, then power on again. Alternatively, you can briefly press the “MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 20” button to turn on the light.
Short press “MiBOXER WL FL5B 12W RGB CCT Floor Lamp - SET” 3 times within 3 seconds while the indicator of controller is ON
Link is done once indicator of controller flashes 3 times slowly

Unlink
Power off for 10 seconds, then power on again. Alternatively, you can briefly press the “MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Symbol 20” button to turn on the light.
Short press “MiBOXER WL FL5B 12W RGB CCT Floor Lamp - SET” 5 times within 3 seconds while the indicator of controller is ON
Unlink is done once indicator of controller flashes 10 times quickly
If the link or unlink failed, please follow the above steps again.

Installation Method 1

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Installation

Installation Method 2

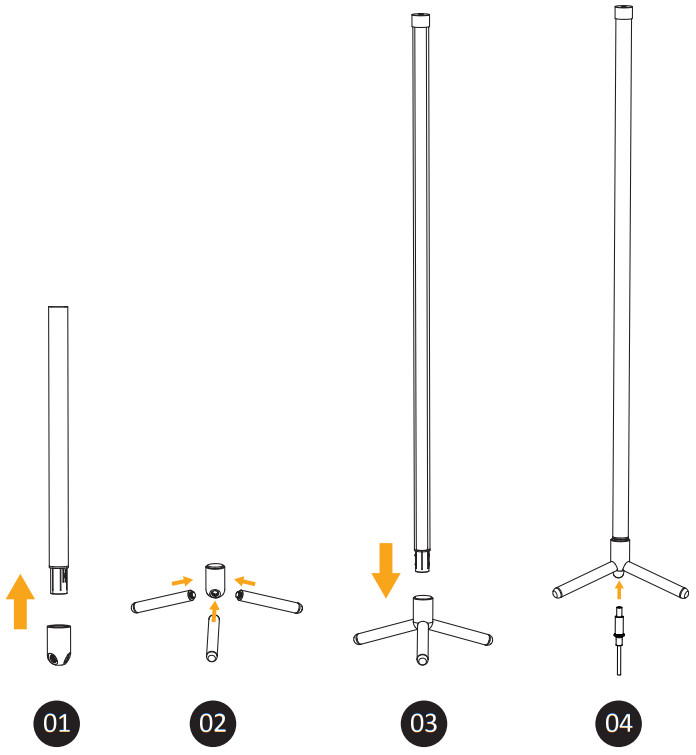

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - Installation 2

Attention

  1. Please turn off power supply before installation.
  2. Please ensure input voltage to be same as requirements from device.
  3. Don’t disassemble device if you are not expert, otherwise it will damage it.
  4. Please do not use the light in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.

MiBOXER WL FL5B 12W RGB CCT Floor Lamp - SymbolMade in China
