Disassembly instructions |
 |
Metz 32MTC6100Y
Nessesary tools:
Schraubendreher PH2
Screw driver PH2

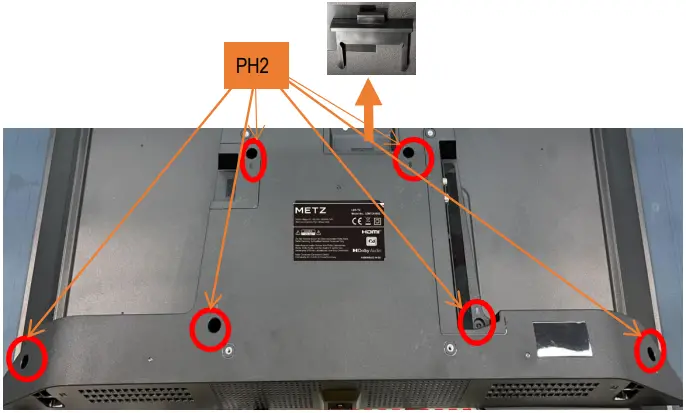

1 Disassembly the rear panel
a) Remove screws with a screw driver PH2.
b) Slightly bend open the tabs and lift the rear wall at the same time.
Elkos may contain residual charges.

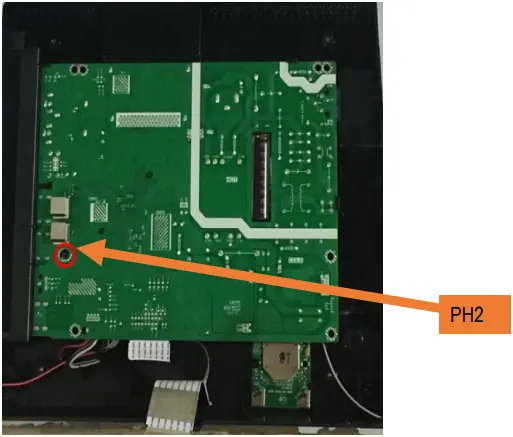

2 Disassembly of the printed circuit boards
Remove screws with a screw driver PH2.
Technical changes and errors excepted!
U2199_40325_00
