Symphony Classroom Wall Mount
Installation Guide
Wall Mount Assembly
Mounting Kit for Symphony Classroom™ Installation Guide
Contents
Symphony Classroom Wall Mount
WARNING / IMPORTANT SAFETY NOTICE
- Do not install the wall mount or the display mount until you have fully read and understood this installation guide.
- Incorrect or improper installation of this product may cause injury or property damage.
- Do not use the wall mount and display mount other than what is specified in the manual.
- Only qualified personnel or a mechanically proficient person should install this wall mount or display mount.
- Installers are responsible for checking the suitability of the wall in which the unit is being mounted on.
- It is recommended to have two people when lifting or mounting is involved.
- For wall mounting on drywall material or similar surfaces, please use the included plastic anchor for a more secure mount.
- Our product is intended for indoor use only; do not mount the unit outdoors as it can cause product damage or physical injury.
- Tighten the screws, but not over-torque them.
- Please contact tech support if you have any questions or comments
Limited Warranty Statement:
Your Product Accessory is covered by a Merlyn Mind, Inc. One-Year Standard Limited Warranty, the terms of which can be viewed at merlyn.org/support.
Included Hardware
Note: This list does not include pre-installed hardware or tools.
 |
Screw (x4) M6x3.0x54 mm |
 |
Screw (x2) M6x1x12 |
 |
Plastic Insert (x4) |
 |
Screw (x3) M5x0.8×15 mm |
 |
Nut (x2) M6x1 mm |

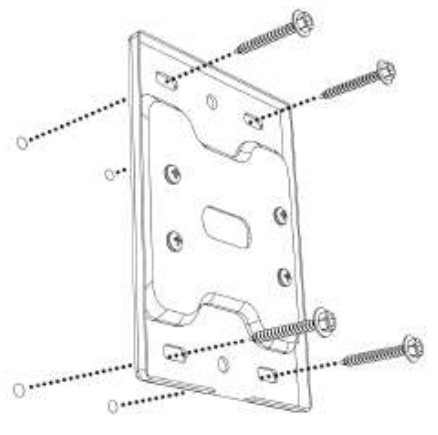

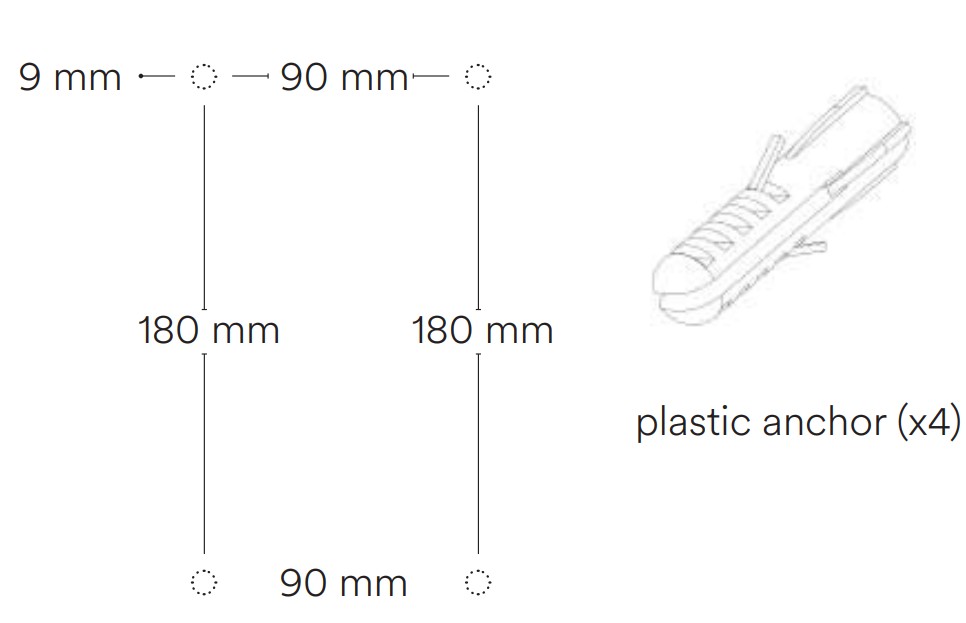

- Drill four holes in the wall using the diameter and spacing shown below. If installing in drywall, hammer a plastic anchor into each hole.
- Attach mounting plate to wall.

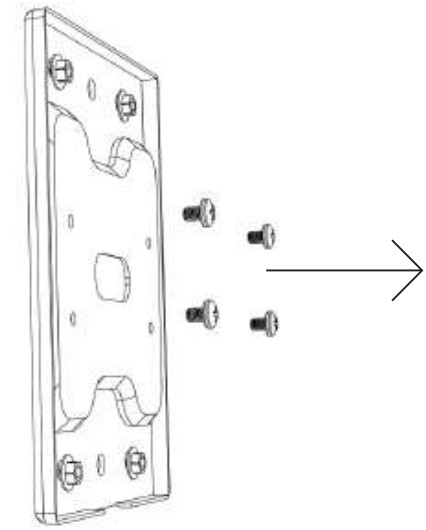

- Remove screws from mounting plate.

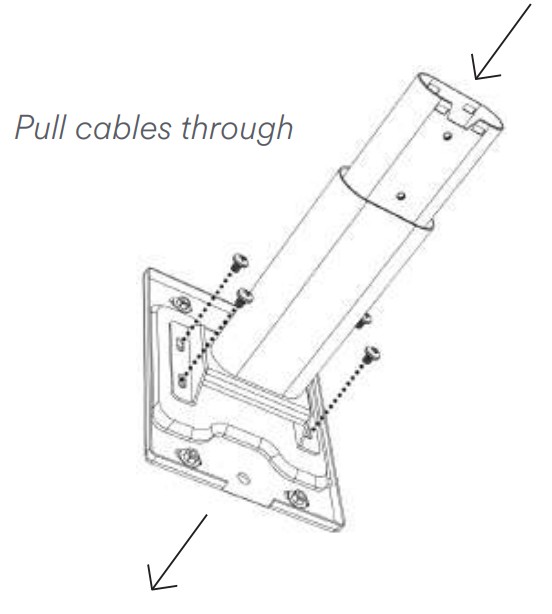

- Attach mounting arm to the mounting plate and pull cables through the mounting arm.

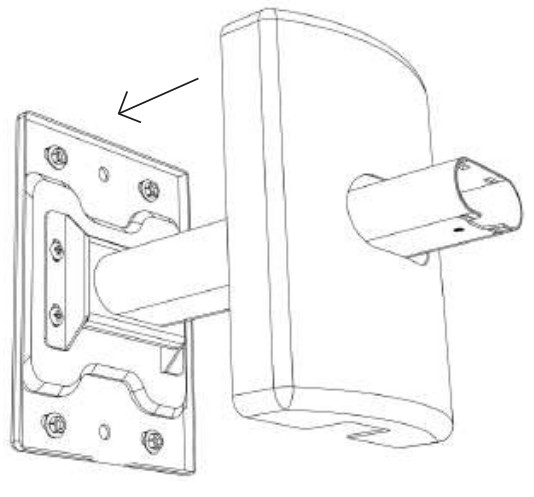

- Attach faceplate over the mounting assembly.

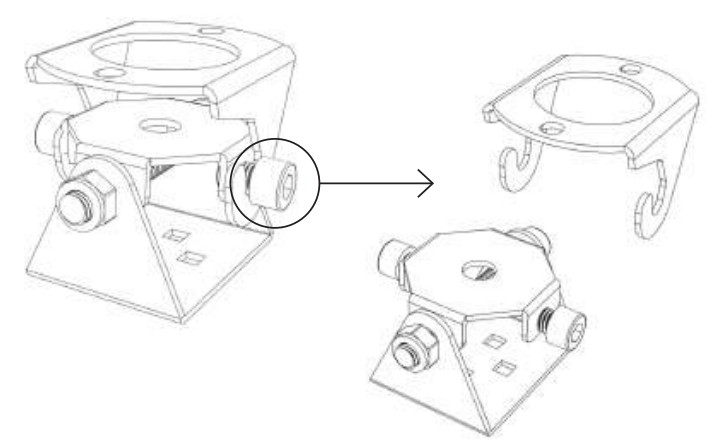

- Detach hang hooks from swivel hardware.

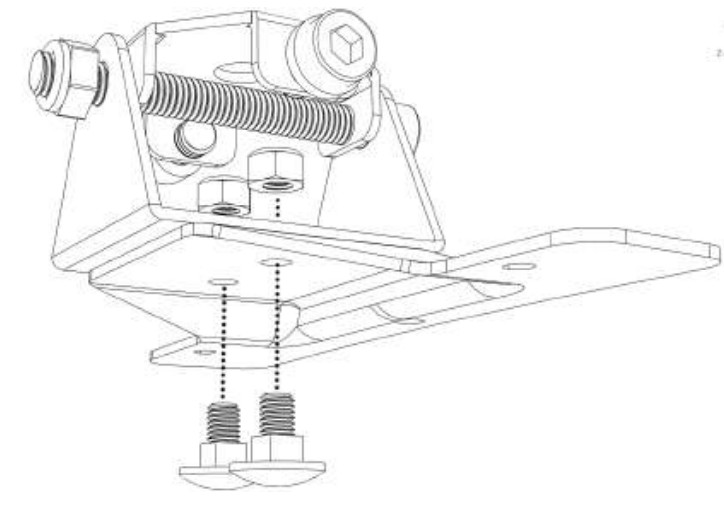

- Attach hang hooks to mounting assembly.
- Attach adapter plate to swivel hardware.

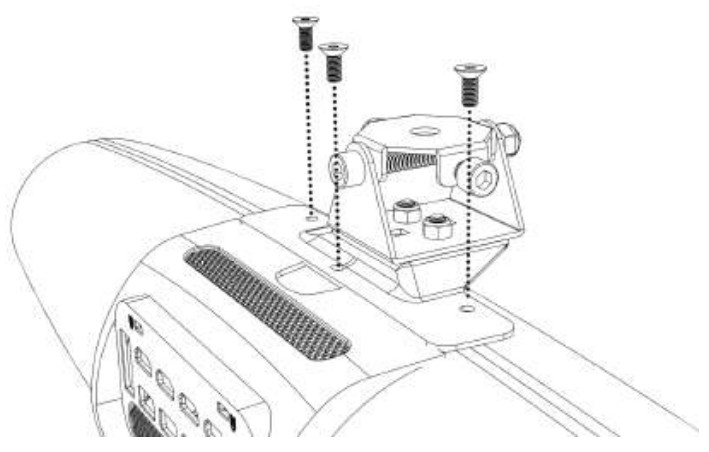

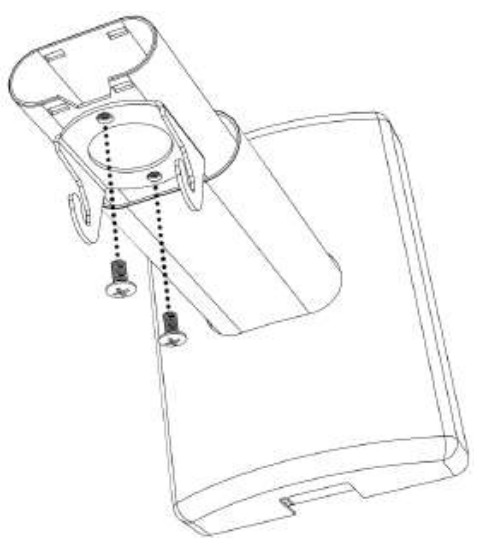

- Attach swivel hardware to Symphony Classroom™ unit.

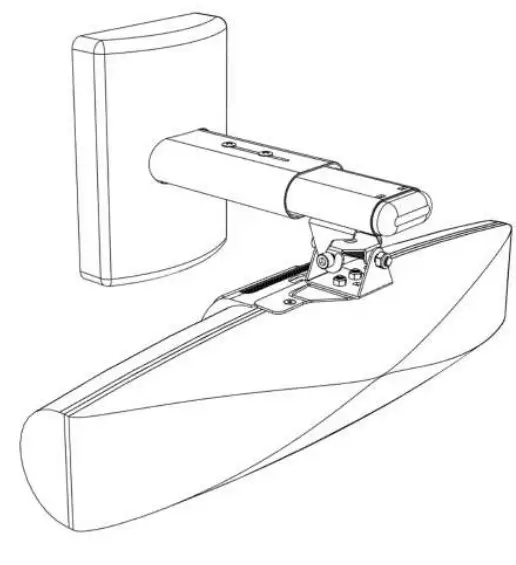

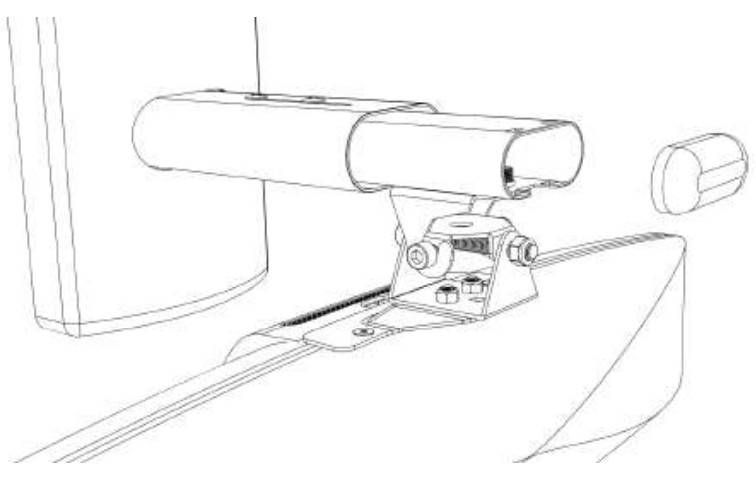

- Attach unit to mounting hardware using the hang hooks. Tighten swivel hardware to secure. Attach endcap.

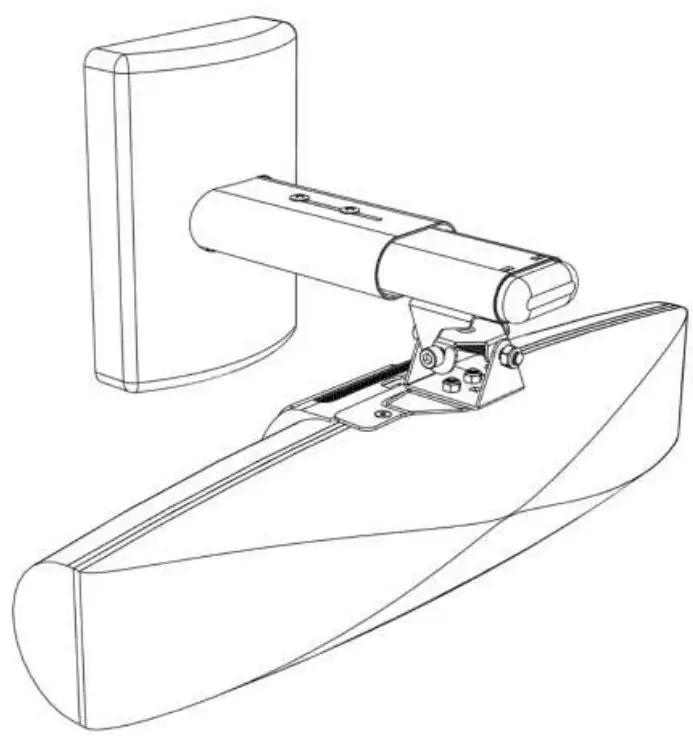

- The final result of the Symphony Classroom™ wall mounting assembly.
